Skid steer powertrain types: hydrostatic vs. mechanical

Knowing how skid steer powertrains work is key for anyone looking to judge a machine’s performance, reliability, and long-term value. The two main types, hydrostatic and mechanical, offer very different ways of delivering power, each with its own strengths and uses.

Although both systems power the small, easy-to-move skid steer, they work differently on the inside, need different kinds of upkeep, and are used in different ways.

This article looks at the technical differences between hydrostatic and mechanical powertrains in skid steers. It clearly explains the pros and cons of each system, how they affect worksite efficiency, and which one might be better for certain tasks.

What is a skid steer powertrain?

The powertrain in a skid steer loader is the group of parts that send power from the engine to the wheels or tracks. This usually includes the engine, transmission, drive system, and final drives. Choosing between a hydrostatic or mechanical powertrain affects how the machine uses and controls its power while working.

• Hydrostatic powertrain uses hydraulic pumps and motors to drive the wheels.

• Mechanical powertrain typically employs a standard transmission with gear sets and differentials, connected to axles.

Both systems have unique operational profiles that affect how a skid steer loader performs under various conditions.

Hydrostatic skid steer powertrain: how it works

In hydrostatic skid steers, the engine sends power to hydraulic pumps, which then pressurize fluid to run hydraulic motors that turn the wheels. These systems use a closed-loop setup, giving smooth speed control and quick direction changes without needing a clutch or gear shifts.

Key components include:

• Engine-driven variable-displacement hydraulic pumps

• Hydraulic motors for each drive wheel or track

• A closed-loop hydraulic circuit

• Control valves and joysticks for operation

This configuration allows smooth, precise movement and excellent maneuverability, especially in confined spaces.

Mechanical skid steer powertrain: how it works

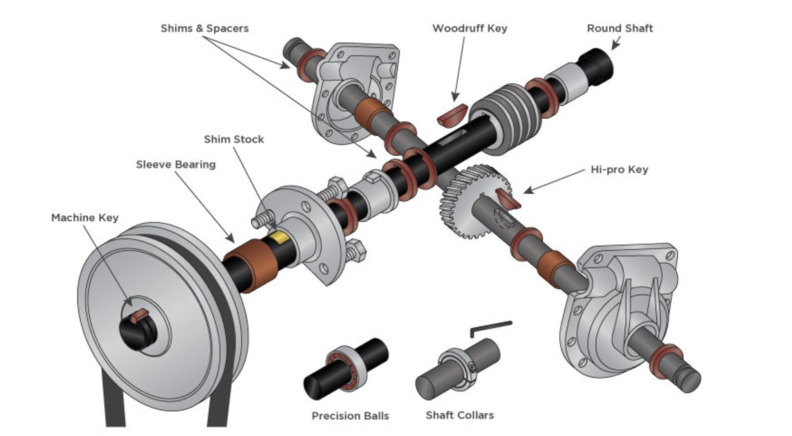

Mechanical skid steers use standard gear-based transmissions, like manual, automatic, or torque converter types, to send power from the engine to the wheels. They use parts like drive shafts, chain drives, or planetary gears to send power separately to each side.

Key components include:

• Manual or automatic gearbox

• Clutches or torque converter

• Chain drives or axles

• Differential mechanisms for wheel control

Mechanical systems are less common in today’s compact loaders, but you can still find them in older or lower-cost machines because they’re simple and affordable.

Advantages of hydrostatic drive in skid steers

1. Smooth and precise control

Hydrostatic systems let you control speed smoothly, making it easier to do detailed work like grading or moving materials in tight spaces.

2. Zero-turn capability

Each side moves on its own, so the machine can spin in place, great for small or crowded job sites.

3. Easier to use

No need to shift gears. Operators use joysticks or pedals to control movement, which helps reduce fatigue.

4. Fast directional changes

Perfect for jobs that need fast back-and-forth motion, like loading and dumping.

5. Fewer mechanical linkages

Since there are no drive shafts or gearboxes, fewer parts are subject to mechanical failure.

Disadvantages of hydrostatic systems

1. Higher initial cost

Hydrostatic skid steers cost more because of their complex hydraulic parts.

2. More sensitive to maintenance

Contaminated hydraulic oil or pump failure can lead to expensive repairs.

3. Efficiency losses under load

Hydraulic systems can lose efficiency at high torque demand, especially compared to mechanical drives in tough soil or uneven terrain.

4. Heat generation

Hydrostatic systems tend to generate more heat, requiring robust cooling solutions and monitoring.

Advantages of mechanical drive in skid steers

1. Lower cost of acquisition

Mechanical systems are simpler and cheaper to manufacture, making these skid steers more affordable, especially for smaller fleets or rental operations.

2. Torque delivery

Mechanical drives provide strong low-end torque, especially useful for heavy digging, pushing, or hard ground work.

3. Less heat build-up

Mechanical powertrains typically run cooler, which can be beneficial in hot climates or prolonged operation.

4. Simpler maintenance

Routine service is often easier, with readily available mechanical parts and familiar service procedures.

Disadvantages of mechanical systems

1. Rougher operation

Directional changes involve clutching or shifting gears, which can cause jerky motion, especially with inexperienced operators.

2. Limited control finesse

Not ideal for precision tasks such as fine grading or working near obstacles.

3. Increased wear on drivetrain

The mechanical components undergo greater wear, especially in skid turning where differentials and tires experience high friction.

4. Operator fatigue

Clutching, shifting, and braking manually can lead to greater fatigue on long shifts.

How to choose the right powertrain for your skid steer?

1. Think About What You'll Use It For

If you’re doing tasks that need smooth, careful movements, like fine grading, landscaping, or placing materials, hydrostatic is usually the better choice. But if your work involves heavy-duty jobs like demolition, digging, or moving large amounts of material, a mechanical system might be stronger and give better torque.

2. Look at the Ground and Weather Conditions

Hydrostatic systems might not perform as well in muddy areas or where the soil creates a lot of resistance. Mechanical systems tend to do better in rough terrain and can run for longer periods without getting too hot.

3. Figure Out the Total Cost Over Time

Don’t just look at the sticker price. Also think about:

• How much fuel it uses

• How often it needs repairs or upkeep

• How much you’ll spend on maintenance

• How productive your operator will be using it

4. Consider the Operator’s Skills and Training

Hydrostatic controls are usually easier to learn and use. Mechanical drives can take more skill, especially when working in tight or tricky spaces.

Which brands use hydrostatic vs. mechanical drives?

Most modern skid steers from major manufacturers use hydrostatic drives. Brands like Bobcat, Caterpillar, CASE, Kubota, and John Deere primarily offer hydrostatic models. However, some budget-oriented models or legacy machines still use mechanical drives.

Examples:

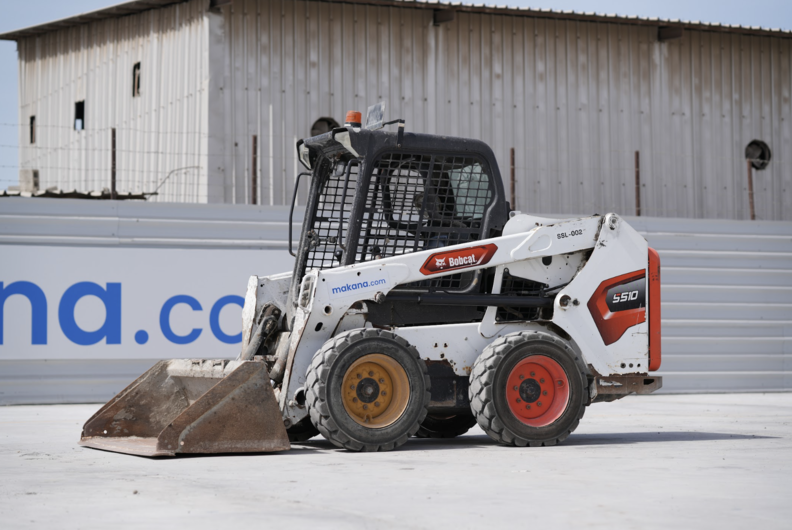

• Bobcat S510: Hydrostatic.

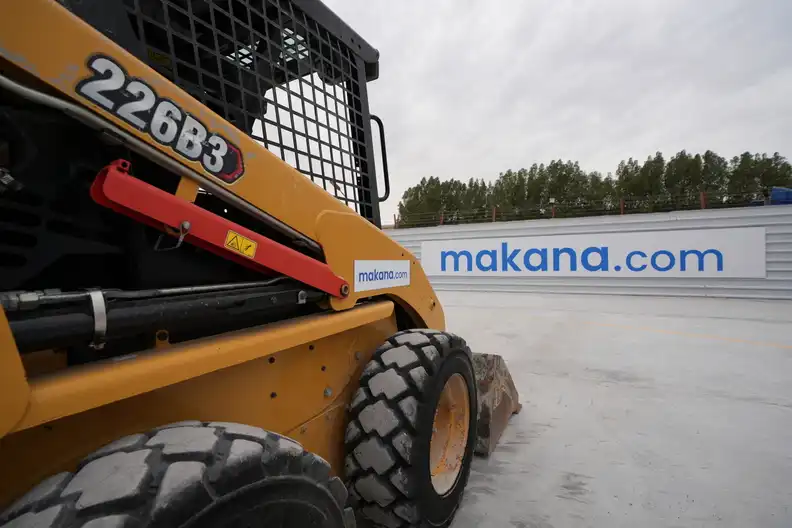

• Caterpillar 226B3: Hydrostatic.

• Older New Holland L555: Mechanical.

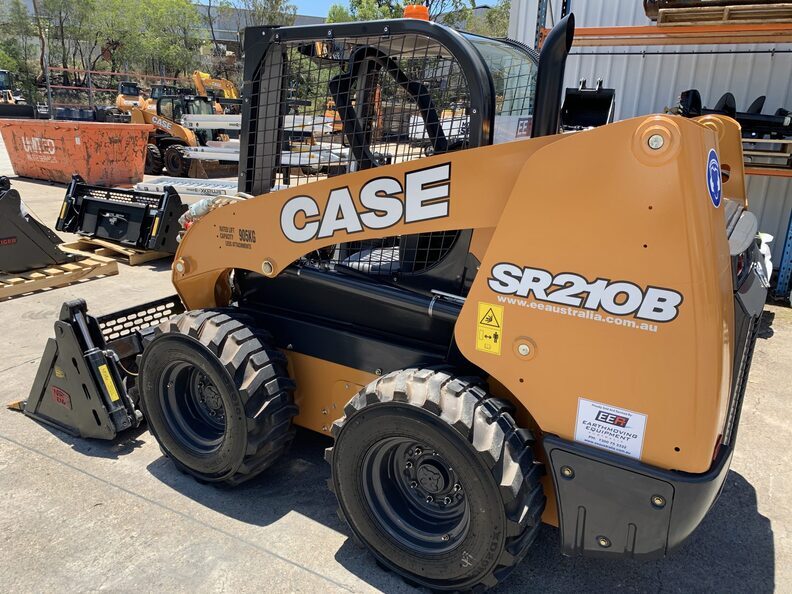

• CASE 1845C (vintage model): Mechanical.

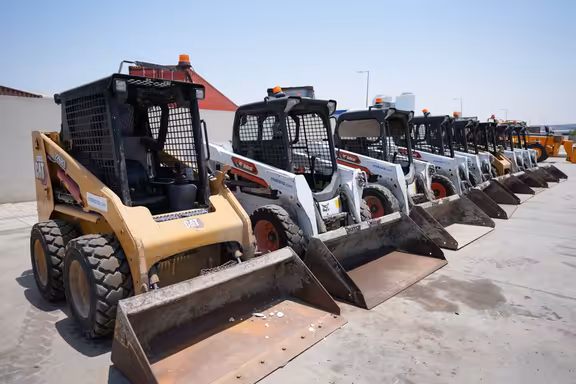

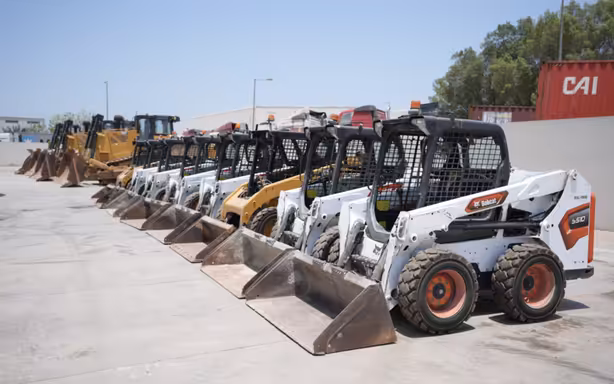

Many machines on Makana include full inspection reports that specify whether the machine uses a hydrostatic or mechanical drive, enabling accurate evaluation.

How to tell if a skid steer is hydrostatic?

1. Check the Controls: If the machine uses two joysticks or foot pedals to move and steer, it’s likely a hydrostatic model.

2. Read the Operator’s Manual: The manual or the spec sheet will clearly say what kind of transmission the skid steer has.

3. Look for Hydraulic Parts: If you see large hydraulic motors near the wheels and don’t see gearboxes or drive shafts, that’s a good sign it’s a hydrostatic system.

What is the most durable powertrain for heavy-duty work?

If you’re working on rough ground, rocky soil, or jobs that put the machine under constant stress, a well-maintained mechanical skid steer might last longer. That’s because it has fewer high-pressure parts that can wear out.

However, today’s hydrostatic machines, with good hydraulic filters and regular upkeep, can be just as durable, while also offering better performance and faster work.

What is the best skid steer powertrain for resale?

Hydrostatic skid steers usually hold their value better, especially those from top brands with features like joystick controls, digital displays, and remote tracking. Many buyers prefer hydrostatic models because they run more smoothly and work better with modern tools that need hydraulic power.

Conclusion

Picking the right skid steer comes down to what kind of work you’ll be doing, how skilled your operators are, the job site conditions, and your long-term plans. Hydrostatic models are more common today because they offer better control and flexibility. But mechanical models are still a solid choice when you need strong torque and tough durability for heavy-duty work.

Before you decide, think carefully about how you’ll use the machine. It’s also smart to check detailed equipment listings with specs and inspection reports, like the ones you can find on makana.com, to make sure the powertrain you choose fits your needs.
