Hydraulic oil contamination: a risk to your heavy equipment

Keeping heavy equipment like excavators, dozers, and loaders in peak condition depends heavily on their hydraulic systems. These systems power essential functions such as lifting, digging, pushing, and steering.

But when hydraulic oil contamination occurs, performance suffers and long-term damage can quickly follow.

In this article, we will discuss:

• What hydraulic oil contamination is and how it occurs

• The main causes and sources of contamination

• Early signs and warning symptoms to watch for

• How contamination affects hydraulic components and system performance

• Practical steps to prevent contamination in heavy machinery

• What to do when contamination is detected

• How to estimate the cost and impact of contamination-related repairs

• The effect of hydraulic oil contamination on fuel efficiency

• Real-world examples of contamination and their outcomes

• How certified inspections from Makana.com help ensure hydraulic system health

What is hydraulic oil contamination?

Hydraulic oil contamination occurs when foreign particles or substances enter the hydraulic fluid, compromising its performance. These contaminants can include dirt, water, metal particles, or even degraded oil itself.

Since hydraulic systems operate under high pressure and precision, even the smallest impurity can disrupt the system's efficiency.

For instance, a single particle larger than the system's filter rating can cause damage to sensitive components like valves and pistons, leading to equipment failure. Contaminated oil also reduces the lubrication properties of the fluid, causing heat buildup and accelerated wear.

Common causes of hydraulic oil contamination

Understanding the causes of contamination can help prevent it. Here are the primary reasons:

1. Dirty reservoirs: Improperly cleaned or maintained hydraulic reservoirs are a common source of contaminants. Dirt, dust, and debris can enter through poorly sealed openings.

2. Faulty seals: Worn or damaged seals allow contaminants like dirt and water to infiltrate the system.

3. Improper storage and handling: Hydraulic oil can be contaminated during transportation or storage if not kept in clean and sealed containers.

4. Moisture ingress: Water is a significant contaminant that enters systems through condensation, leaking seals, or exposure to humid environments.

5. Filter failure: Using low-quality filters or failing to replace them regularly can lead to contaminants bypassing filtration.

6. Wear and tear: Internal components of the hydraulic system naturally shed particles over time, contributing to contamination.

Want to see how contamination levels fluctuate over time? This contamination study reveals how wear metals like copper and iron increase near critical usage thresholds, emphasizing the need for proactive monitoring.

How to identify heavy machinery hydraulic oil contamination?

Recognizing early signs of contamination can save you from severe damage to your heavy machines. Here are the most common indicators:

1. Reduced performance: A decrease in lifting capacity, slower cycle times, or erratic movements often signal contamination.

2. Unusual noise: Grinding, squealing, or knocking sounds in the hydraulic system could indicate particle interference.

3. Discolored oil: Clean hydraulic oil typically has a translucent appearance. Dark, milky, or foamy oil suggests contamination.

4. Frequent filter clogs: If filters are clogging more often than usual, it might indicate excessive contamination.

5. Component overheating: Contaminated oil loses its thermal stability, leading to overheating in critical components.

How does hydraulic oil contamination damage heavy machinery?

Contamination has a chain reaction effect. Once present, it accelerates mechanical wear and spreads through the entire hydraulic system.

• Pump damage: Contaminants erode pump surfaces, causing cavitation and efficiency loss.

• Valve malfunctions: Dirt and sludge restrict valve movement, leading to jerky or delayed machine responses.

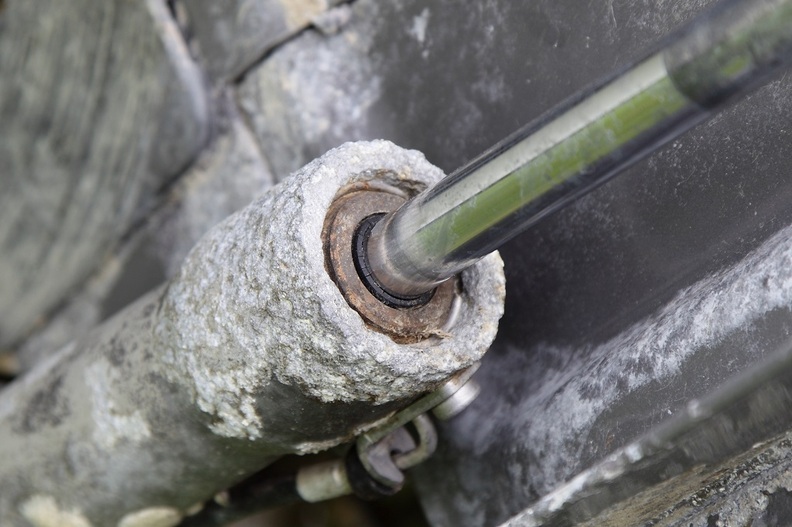

• Cylinder wear: Abrasive particles damage seals and surfaces, causing leaks and loss of pressure.

• Heat buildup: Reduced lubrication increases friction, which raises operating temperatures.

• System failure: In severe cases, total breakdown can occur, halting work completely.

Not sure if your equipment is at risk? Check this essential guide to learn how to diagnose contamination before it leads to breakdowns.

What are the early signs of hydraulic oil contamination?

Operators and maintenance teams can detect contamination by watching for these warning signs:

1. Slower hydraulic response: digging, lifting, or steering feels sluggish.

2. Abnormal noise: whining, knocking, or vibration in pumps.

3. Rising oil temperature: frequent overheating signals reduced lubrication.

4. Unusual oil appearance: cloudy, foamy, or dark fluid indicates water or sludge.

5. Frequent filter clogging: needing to replace filters more often is a strong contamination signal.

Catching these signs early prevents damage to critical systems in bulldozers, loaders, and excavators.

How to prevent heavy equipment hydraulic oil contamination?

Here’s how you can keep your hydraulic systems clean:

1. Regular oil analysis

Periodic oil sampling and analysis can detect contamination levels and identify issues early. This process involves sending samples to a lab, where they test for particle counts, moisture content, and viscosity changes.

2. High-quality filtration

Invest in premium filters with the appropriate micron ratings for your equipment. Replace filters as per the manufacturer's recommendations and consider using offline filtration units for additional protection.

3. Proper storage and handling

Store hydraulic oil in sealed containers in a clean, dry environment. Use dedicated tools for transferring oil to prevent cross-contamination. Ensure storage areas are free from dust and debris.

4. Seal inspection and replacement

Inspect all seals, gaskets, and fittings regularly. Replace worn or damaged seals promptly to prevent contaminants from entering the system.

5. Equipment cleaning

Keep the exterior of your heavy equipment clean, particularly around hydraulic reservoirs and access points. This minimizes the risk of external debris entering the system.

6. Monitor environmental conditions

If your machinery operates in harsh environments, use protective covers and shrouds to shield the hydraulic system from dirt and moisture.

What should you do when contamination occurs?

Despite the best preventive measures, contamination can still occur. When it does, prompt action is critical to minimize damage. Here’s what to do:

1. Stop operations: Continuing to operate a contaminated system can exacerbate the problem. Shut down the equipment immediately.

2. Drain and flush: Drain the contaminated oil and flush the system thoroughly with clean hydraulic fluid. This process ensures that all contaminants are removed.

3. Replace filters: Install new filters after flushing to prevent residual particles from circulating.

4. Inspect components: Check critical components like pumps, valves, and cylinders for damage. Replace any parts showing significant wear.

5. Refill with clean oil: Use high-quality hydraulic oil that meets your equipment's specifications.

How to calculate the cost of contamination-related repairs?

Understanding the financial impact of hydraulic oil contamination is essential for operators and fleet managers. Repair costs depend on the severity of contamination, the affected components, and how quickly the issue is addressed. Here’s how to calculate the cost:

1. Severity of damage: Light contamination may require an oil change and filter replacement, typically costing between $200 and $500. Severe contamination affecting pumps, valves, or cylinders could escalate repair costs to $10,000 or more.

2. Downtime costs: In industries like construction or mining, downtime can cost thousands of dollars per hour. Calculate the loss based on your average operational revenue.

3. Preventive maintenance costs vs. repair costs: Investing in preventive measures like regular oil analysis and high-quality filters is far more cost-effective than dealing with major repairs caused by contamination.

For example, replacing a contaminated hydraulic pump on a bulldozer might cost $15,000, while regular maintenance to prevent such an issue could cost under $1,000 annually.

Can hydraulic oil contamination affect fuel efficiency?

Yes, hydraulic oil contamination can indirectly impact fuel efficiency. Contaminated oil increases internal friction and reduces the efficiency of the hydraulic system, forcing the engine to work harder. This added strain results in higher fuel consumption.

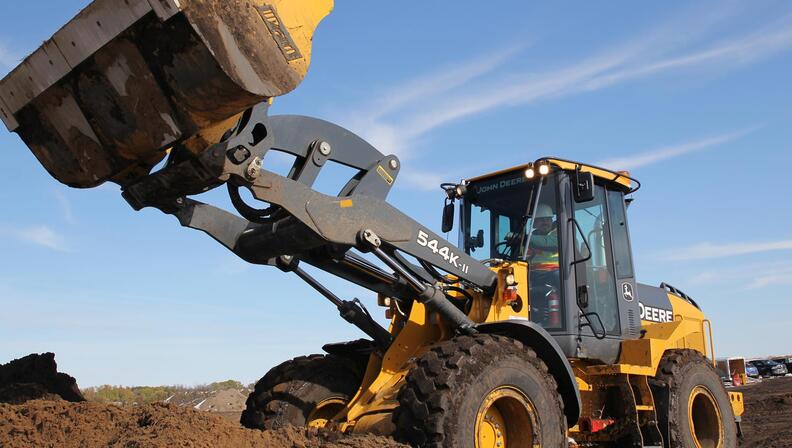

For example, a wheel loader operating with contaminated oil may experience sluggish movements and require more engine power to complete tasks, leading to a noticeable drop in fuel efficiency.

Want to avoid expensive repairs? See how proactive maintenance saves thousands by keeping hydraulic systems clean.

Real-world examples of hydraulic oil contamination

To illustrate the dangers of hydraulic oil contamination, let’s look at two real-world scenarios:

1. Excavator breakdown: A contractor in a quarry experienced a sudden breakdown of their 40-ton excavator. Upon inspection, the hydraulic pump was severely damaged due to dirt particles in the oil. The repair cost exceeded $15,000, not including the revenue lost during downtime.

2. Dozer overheating: A construction company noticed that their dozer was overheating frequently. An oil analysis revealed excessive water contamination. After flushing the system and replacing the oil, the overheating issue was resolved, but only after significant wear had occurred to the hydraulic seals.

Check Contamination guide for hydraulic fluids, oils and diesel fuels

What happens if hydraulic oil contamination is ignored?

If left unchecked, contaminated oil leads to:

• Frequent breakdowns

• Increased operating costs

• Lower resale value (machines with poor hydraulic records attract fewer buyers)

• Complete system failures requiring pump, valve, and cylinder replacement

For instance, a Volvo A40G articulated dump truck with ignored hydraulic maintenance may face pump replacement costs exceeding $20,000.

Comparison table: effects of different hydraulic oil contaminants

This table helps operators understand how different contaminants lead to specific failures in heavy equipment.

Makana.com: preventing costly repairs starts with better insights

As covered in the article, hydraulic oil contamination can lead to unexpected breakdowns and expensive repairs, that’s where certified inspections and oil analysis become essential. But how can you be sure the equipment you're buying is in top condition?

At Makana.com, every machine undergoes a 75+ point inspection, ensuring its hydraulic system, engine, structure, oil quality, and overall performance meet the highest standards. Our reports include:

• Hydraulic system testing to check for leaks, pressure levels, and contamination risks.

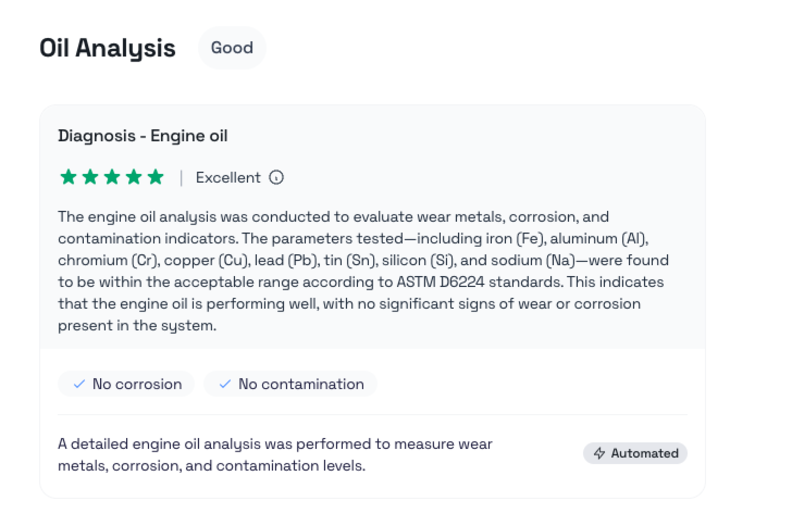

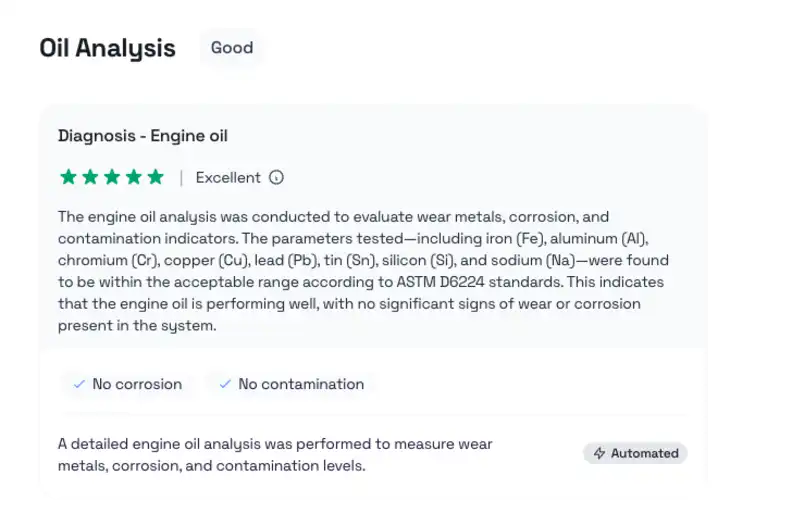

• Oil analysis to provide a clear picture of the current oil condition, identifying contamination, oxidation, or metal particles. Below is a sample of how makana.com analyzes machinery oil.

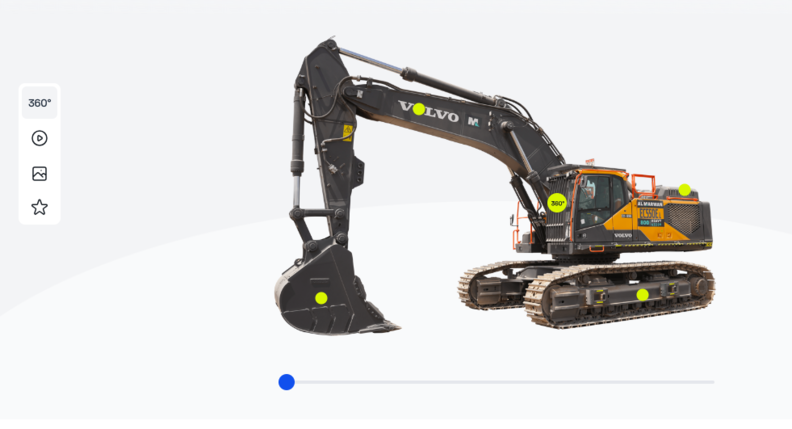

• High-quality images and videos that showcase the exact condition of each component.

With transparent inspections and detailed reports, you can buy with confidence, knowing your equipment is reliable, high-performing, and free from hidden issues.

Discover how our 75+ point inspection ensures your equipment is free from hydraulic system risks.

Don’t let contaminated hydraulic oil ruin your investment, buy with confidence at makana.com.



FAQ

1. How often should hydraulic oil be changed in heavy equipment?
Most manufacturers recommend oil replacement every 2,000–4,000 hours, but regular oil analysis is the best guide.

2. Can hydraulic oil contamination be repaired without replacing components?
Minor contamination can be addressed by flushing and replacing oil and filters, but severe cases often require component replacement.

3. What tools are used for hydraulic oil analysis?
Common tools include portable diagnostic kits like Jaltest Link V9 and lab-based particle counters.

4. Is water contamination more dangerous than solid particles?
Yes. Water not only reduces lubrication but also causes rust and chemical reactions inside the system.

5. How can operators quickly test for oil contamination on-site?
A simple patch test or visual inspection (cloudy or foamy oil) provides quick clues, but lab analysis confirms contamination.
