How to calculate lifting capacity for cranes, loaders, and excavators

Calculating lifting capacity is one of the most misunderstood aspects of operating heavy machinery. On job sites, operators often assume that a crane, loader, or excavator can lift anything that fits in its bucket or hangs on its hook, but the truth is, lifting capacity depends on multiple interrelated factors like geometry, hydraulics, balance, and ground stability.

A wrong assumption or quick guess can lead to machine tipping, hydraulic failure, or serious safety incidents. So, how do you accurately calculate lifting capacity for different types of heavy equipment such as cranes, loaders, and excavators? Let's break it down step by step.

Quick reference: lifting capacity formulas by machine type

Before diving into the details, here's the core lifting capacity formula or rule for each machine type in one place:

The sections below walk through each of these in detail, with worked examples.

What does lifting capacity mean in heavy machinery?

In simple terms, lifting capacity is the maximum weight a machine can safely raise, carry, or suspend without compromising stability or structural integrity. But this "maximum" isn't a single fixed number, it changes based on the machine's configuration, reach, and attachments.

There are two key terms to understand first:

• Gross capacity: The total weight a machine can lift including the hook, rigging, or bucket.
• Net capacity: The usable weight after subtracting the weight of all lifting accessories and attachments.

When calculating, always focus on net lifting capacity, since it represents the actual payload your machine can safely handle.

Several factors influence lifting power:

• Boom length and angle: Longer booms reduce leverage and therefore reduce lifting capacity.
• Reach or radius: The farther the load is from the machine's centerline, the lower the lifting limit.
• Hydraulic pressure: Determines how much force the cylinders can exert.
• Counterweight and machine stability: Balances the lifting load; too little counterweight can cause tipping.

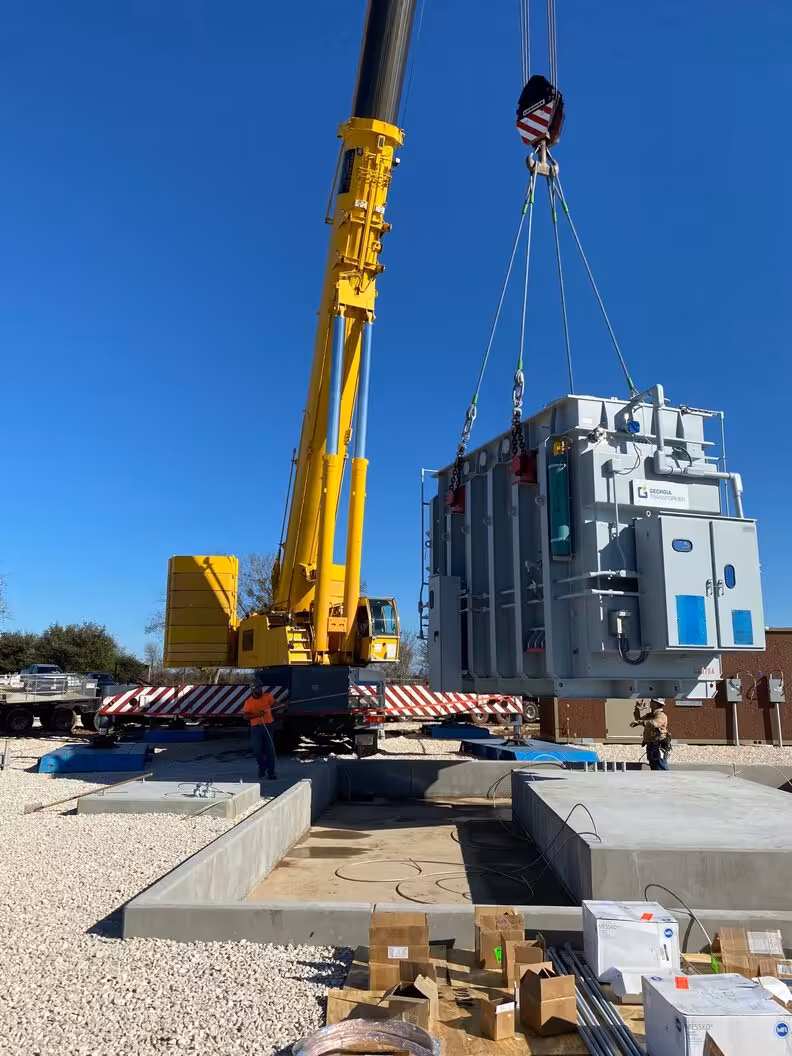

How to calculate lifting capacity for cranes

For cranes, lifting capacity is primarily determined through load charts. These charts are published by manufacturers and specify the maximum safe loads based on the boom's length, working radius, and the position of the outriggers.

Here's how to read a typical load chart:

1. Identify the boom length: For example, a 30 m boom will have different ratings than a 20 m boom.
2. Determine the working radius: This is the horizontal distance from the crane's center pin to the load.
3. Check outrigger position: Cranes can be rated for fully extended, partially extended, or on-rubber operations.
4. Cross-reference the rated capacity: Find the corresponding cell in the chart, this gives the maximum allowed load.
5. Apply derating factors: Adjust for wind speed, ground slope, or added attachments such as fly jibs.

Example: A Liebherr LTM 1100 mobile crane lifting at a 20 m radius with a 30 m boom might have a rated capacity of 5,000 kg. If you're operating on a 3° slope or using a jib extension, the effective capacity could drop by 10 to 15%.

Manufacturers usually include a stability margin of 75%. This means the load listed in the chart represents 75% of the tipping load, leaving a 25% safety buffer.

If your crane includes a Load Moment Indicator (LMI) system, it automatically calculates real-time load percentage, warning you before exceeding the safe limit.

What is a lifting plan?

A lifting plan is the formal document (and process) that lays out exactly how a lift will be carried out before it happens, the crane and configuration to be used, boom length and radius, rigging method, ground conditions, exclusion zones, and the calculated safe working load with its margin. For routine, low-risk lifts, this can be a simple pre-lift checklist. For complex or heavy lifts, it typically requires sign-off from a qualified lifting engineer. The lifting capacity formulas and charts covered in this article are the calculations that feed directly into that plan.

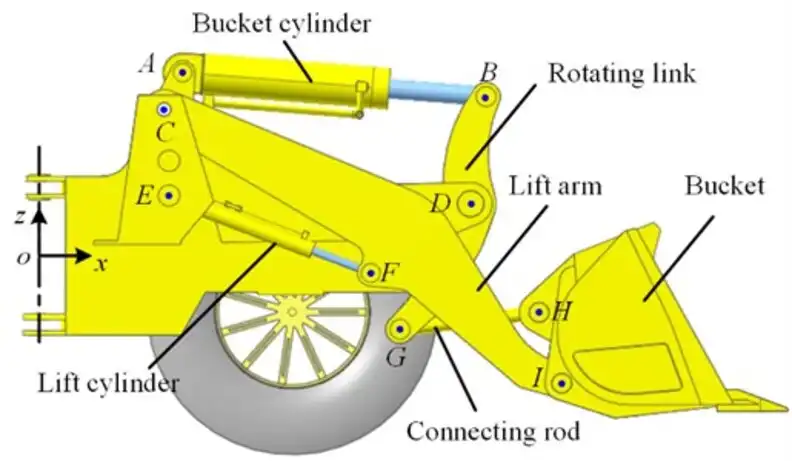

How to calculate lifting capacity for wheel loaders

Wheel loaders are commonly used for material handling, quarrying, and truck loading. Their lifting capacity is not based on hooks or radius charts but rather on tipping load and breakout force.

The rated operating capacity (ROC) defines how much load the machine can carry safely without tipping forward. Manufacturers typically calculate it as:

• 50% of the static tipping load for articulated loaders (Europe).
• 35% of the static tipping load for skid steer loaders (North America).

Example using the Cat 966L wheel loader:

• Static tipping load = 24,000 kg
• Rated capacity (50%) = 0.5 × 24,000 = 12,000 kg

That means under standard test conditions, the 966L can safely handle 12 tonnes per cycle.

However, lifting performance can vary due to:

• Boom height and bucket angle: A fully raised boom has less leverage than a half-raised one.
• Bucket size and material density: Sand, gravel, and wet clay all have different weights.
• Tire pressure and terrain: Uneven or soft ground reduces tipping stability.

A Komatsu WA470-6R for instance has a static tipping load of around 23,000 kg and a breakout force of 19,000 kg, key parameters to compare before choosing a loader for specific lifting tasks.

Modern loaders use onboard weighing systems or payload indicators to help operators track loads in real time, ensuring compliance with rated limits.

How to calculate lifting capacity for excavators

Excavators are complex because their lifting performance changes dramatically with boom, arm, and bucket configurations. Unlike cranes, their charts depend on both hydraulic capacity and machine stability.

The general equation is:

Lifting Capacity = (Hydraulic Pressure × Cylinder Area × Mechanical Leverage Factor) − Machine Weight Effect

Each component matters:

• Hydraulic pressure (in bar or psi) determines the cylinder force.
• Cylinder area (in cm²) affects how much force is transmitted to the arm.
• Leverage factor represents geometry and radius (shorter radius = more lift).
• Machine weight effect reflects how much counterbalance is available.

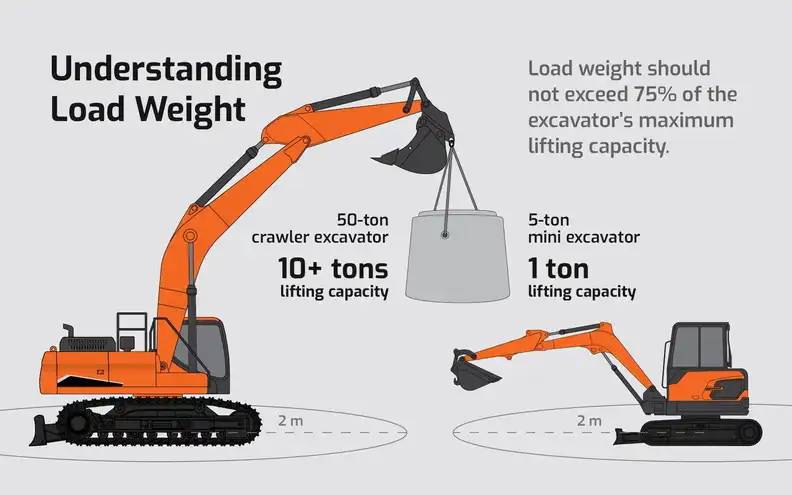

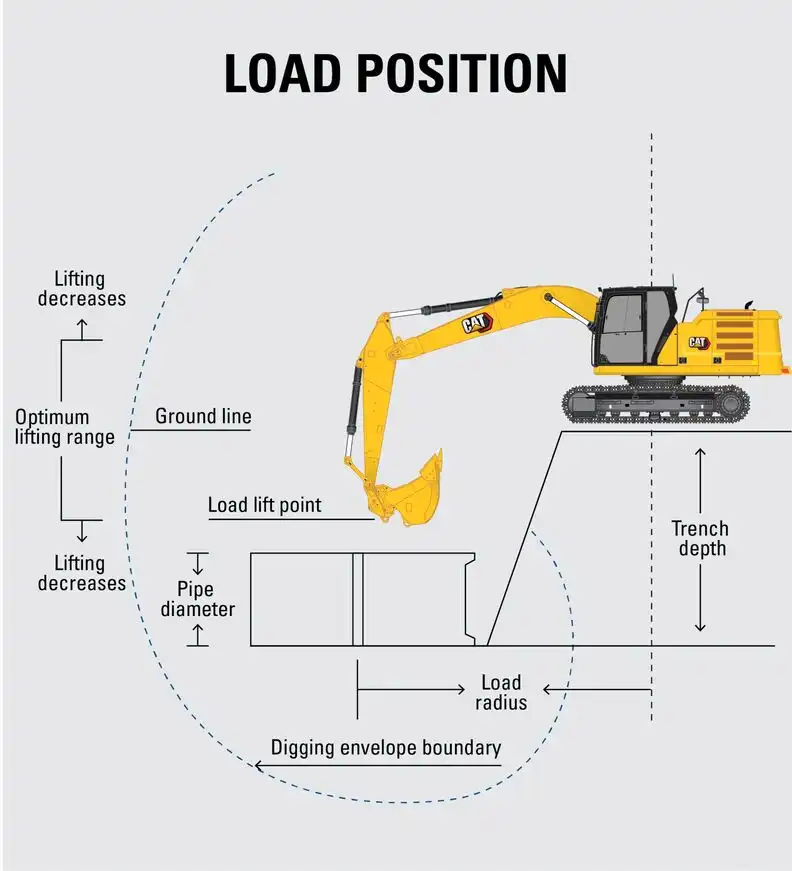

Example: A Cat 323D3 excavator lifting a 4,000 kg pipe at a 6 m radius might show two capacities:

• Over the front (tracks): 4,500 kg
• Over the side: 2,800 kg

That difference is due to stability, lifting over the side shifts the center of gravity away from the track base, reducing balance.

For large excavators like the Volvo EC550EL, rated capacities exceed 20,000 kg at short radii, but always verify the lifting chart, which is based on ISO 10567 standards (tested with 75% of tipping load).

Combined and tandem lifting capacity

Some lifts exceed what a single machine can safely handle, which is where combined (tandem) lifting comes in, using two cranes or machines to share one load. The combined total lifting capacity is not simply the sum of both machines' individual ratings. Standard practice derates each machine's contribution significantly, often to 75% or less of its individual rated capacity, to account for uneven load sharing, timing mismatches between the two machines, and the added risk if one machine's rigging or ground conditions change mid-lift. Tandem lifts require a detailed lifting plan and are typically only used when a single-crane solution genuinely isn't available, not as a default way to combine smaller machines for a bigger job.

Common factors that affect lifting performance

Lifting performance doesn't rely on machine specs alone, real job site conditions matter. Here are the most influential variables:

• Hydraulic condition: Worn seals, low-pressure pumps, or contaminated oil can reduce cylinder efficiency.
• Ground stability: Soft or uneven ground shifts the load balance.
• Attachment weight: Buckets, grapples, or couplers add extra mass that reduces net lifting capacity.
• Wind and weather: Wind loads add dynamic forces that affect boom stability.
• Temperature: High heat affects hydraulic viscosity, which slightly reduces lifting force.

That's why Makana's 75+ Point Inspection includes hydraulic flow testing using tools like the Jaltest Link V9 Kit, ensuring the hydraulic system operates at proper pressure and temperature.

Tools and software used for lifting calculations

Modern heavy equipment integrates technology to make lifting safer and more precise. Here are the most common tools:

• Load Moment Indicator (LMI): Alerts crane operators when approaching overload.

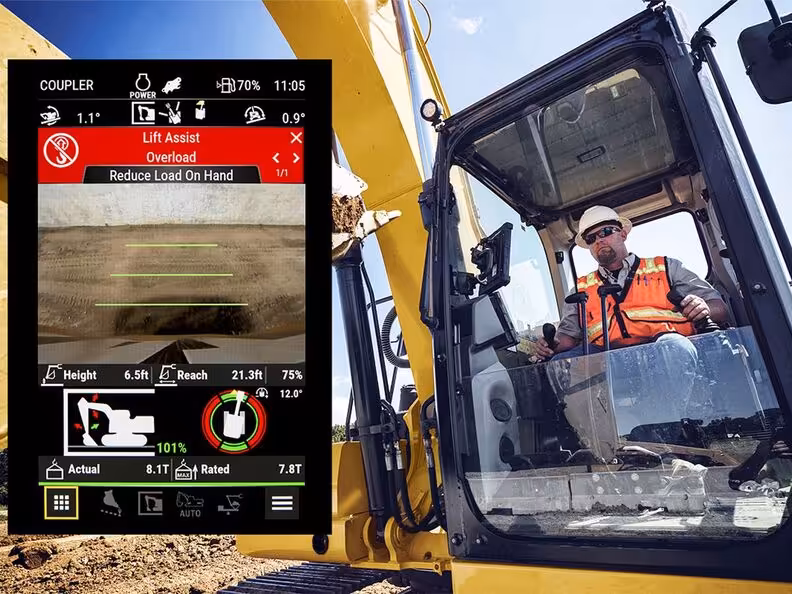

• Caterpillar Lift Assist: Built into newer Cat excavators to calculate real-time lift limits.
• Komatsu Komtrax: Tracks load cycles and operating pressures for performance monitoring.
• Jaltest Link V9 Diagnostic Tool: Used by Makana inspectors to record pressure data, fault codes, and lifting control performance.

Some construction firms also use CAD-based software to simulate lifting plans, helping engineers plan safe lifting angles, counterweight setups, and rigging configurations before work begins.

Safety precautions during lifting operations

Even when calculations are correct, safe lifting depends on operator discipline and environmental awareness. Follow these essential precautions:

• Never exceed 85% of the rated load in real-world conditions.
• Always use outriggers, stabilizers, or counterweights as recommended.
• Maintain clear visual communication between operators and riggers.
• Use proper rigging, no makeshift hooks or untested slings.
• Keep ground under stabilizers compacted and level.
• Perform daily inspections on load pins, boom joints, and hydraulic lines.

Compliance with ISO and OSHA standards not only prevents accidents but also extends machine lifespan by reducing structural stress.

For professionals comparing used heavy machines, makana.com provides detailed technical data, inspection reports, and virtual access to equipment, ensuring the machine you buy performs exactly as it should on site.

FAQ

What is the difference between rated and actual lifting capacity?

Rated capacity is determined in factory-controlled tests. Actual capacity depends on field factors like ground slope and wind conditions.

Do attachments reduce lifting capacity?

Yes. Every attachment adds extra weight, which reduces the net payload the machine can handle safely.

How often should load indicators be calibrated?

Most manufacturers recommend calibration every 6 to 12 months, or immediately after hydraulic maintenance.

What safety margin should operators follow?

A margin of 20 to 25% is standard. Never lift more than 80 to 85% of the rated load in real operations.

Does counterweight size affect lifting power?

Definitely. A heavier counterweight improves stability, allowing higher lifting capacities, within manufacturer limits.

What is the lifting capacity formula for a crane?

Cranes don't use a single algebraic formula, capacity comes from the manufacturer's load chart, cross-referenced by boom length, working radius, and outrigger position, then adjusted with derating factors for wind, slope, or attachments like a fly jib.

What is the combined lifting capacity for two machines working together?

It's not simply the sum of both machines' rated capacities. Standard tandem lift practice derates each machine to roughly 75% or less of its individual rating to account for uneven load sharing and added risk, and requires a detailed lifting plan.
