What is tipping load and how to calculate it?

Imagine you're on a construction site, moving heavy gravel or lifting materials with an excavator. As you extend the arm with a full bucket, the machine starts to wobble slightly. That's a warning that you might be nearing the tipping load. But what is tipping load, also sometimes called tip load or tipping weight?

If you want to keep your machine stable, safe, and working efficiently, you're in the right place. Let's break down what tipping load means, why it's important, and how to calculate it for excavators, loaders, and skid steers. We'll also include some examples to make it easy to understand.

What is tipping load, and why does it matter?

Tipping load is the maximum weight a machine can handle before it becomes unstable and starts to tip over. Think of it as the safety limit between stable and risky operation. Exceeding this limit doesn't just endanger the machine, it puts the operator and nearby workers at risk.

For example, if you're using a loader to carry wet soil, which is much heavier than dry soil, overloading the bucket could make the loader tip forward. That's tipping load in action, and it's something you want to avoid.

Tipping load is also connected to a machine's Rated Operating Capacity (ROC). The ROC is typically 50 to 60% of the tipping load and represents the maximum safe weight a machine can handle during regular use. Staying within this limit ensures safe, efficient, and stable operation.

Operating capacity vs. tipping load: what's the difference?

These two terms get confused constantly, but they're not the same number. Tipping load is the absolute point of failure, the weight at which the machine physically begins to tip. Operating capacity (ROC) is a deliberately conservative fraction of that number, typically 50 to 60% of the tipping load, built in as a safety margin for real-world conditions like uneven ground, sudden movement, or attachment wear.

In practice: tipping load tells you where the danger starts, ROC tells you the actual weight limit you should be working within day to day. You should never treat the tipping load figure itself as a target to lift toward, it's the line you stay well clear of, not a goal.

Static vs. dynamic tipping load

Most published tipping load figures refer to static tipping load, meaning the machine is stationary, on level, firm ground, with no additional forces like sudden acceleration, braking, or working on a slope factored in. This is also the figure ROC is typically calculated from.

Dynamic tipping load, the point at which a machine could tip during actual movement or operation (traveling with a raised load, working on an incline, or making a sudden stop), is lower than the static figure because motion and uneven ground reduce the machine's effective stability. This is exactly why staying within the ROC, rather than the published static tipping load, matters so much in real working conditions rather than lab testing conditions.

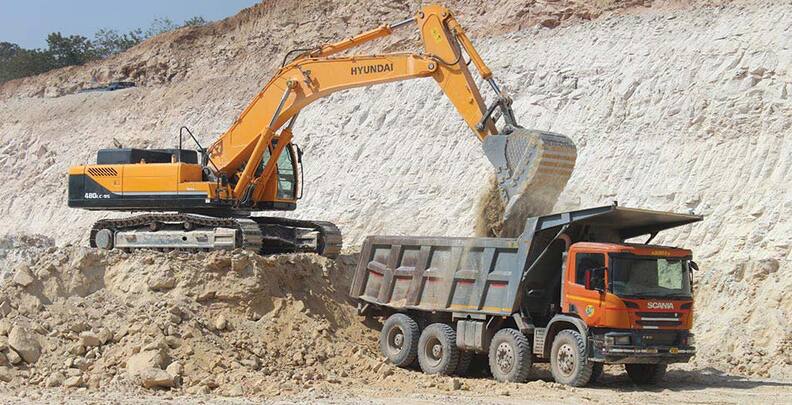

What is tipping load in excavators?

Tipping load in excavators refers to the maximum weight a machine can lift before becoming unstable. Exceeding this limit increases the risk of tipping, making it crucial to understand how different factors affect an excavator's lifting capacity.

Key factors affecting tipping load:

• Boom and arm length: a longer arm reduces stability, making lifting more challenging.
• Load radius: the farther the load is from the excavator's center, the higher the risk of tipping.
• Counterweight size: larger counterweights help balance the machine, allowing it to lift heavier loads safely.

How much can an excavator lift?

Lifting capacity varies based on the machine size, arm length, and counterweight. For example, if a concrete pipe weighs 2,000 pounds and your lifting radius is 15 feet, but your excavator's lifting chart shows a max capacity of 1,800 pounds at that distance, lifting the pipe could cause instability.

Always refer to the lifting capacity chart in the manufacturer's specifications to ensure safe and efficient operation. Kato Works, for example, publishes detailed lifting capacity charts showing exactly how capacity changes with radius and configuration.

How to calculate tipping load for excavators?

Calculating tipping load isn't as daunting as it sounds. Manufacturers provide lifting capacity charts that do most of the heavy lifting (pun intended) for you. Here's how to use one:

1. Measure the load radius: determine the distance from the machine's center of rotation to the load.
2. Check the boom and arm length: verify the configuration you'll be using.
3. Find the tipping load: cross-reference these values in the chart in the specs sheet to see the maximum weight your machine can lift safely.

Always stick to the chart's recommendations, those limits are there for a reason.

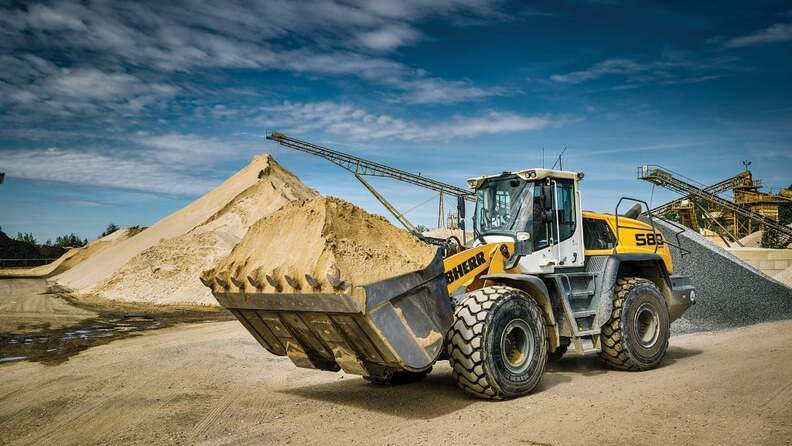

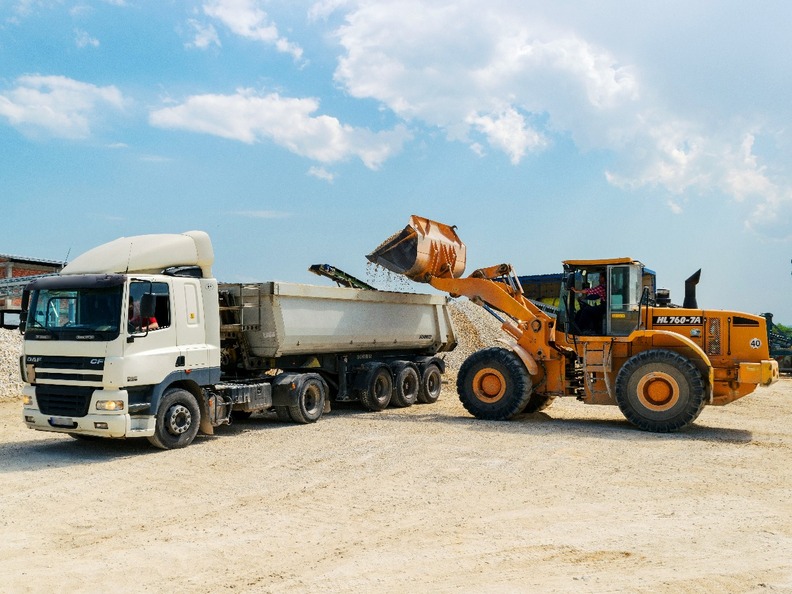

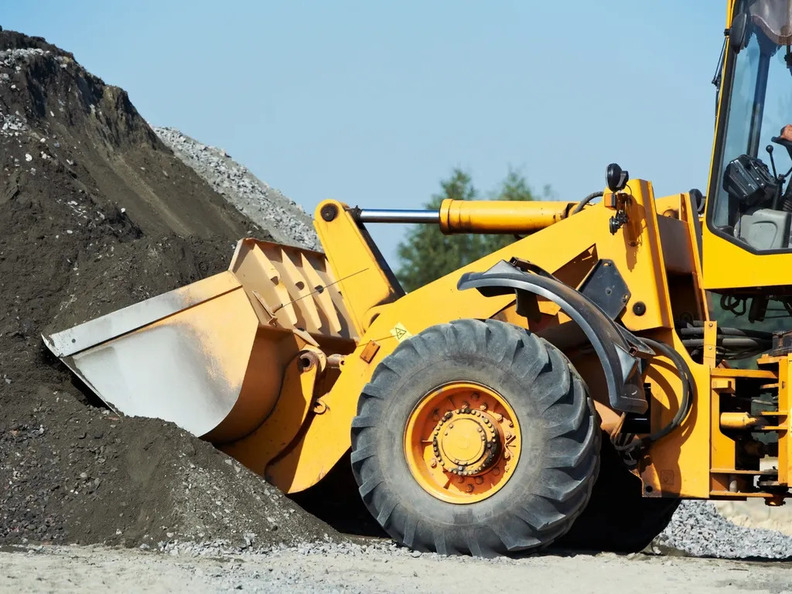

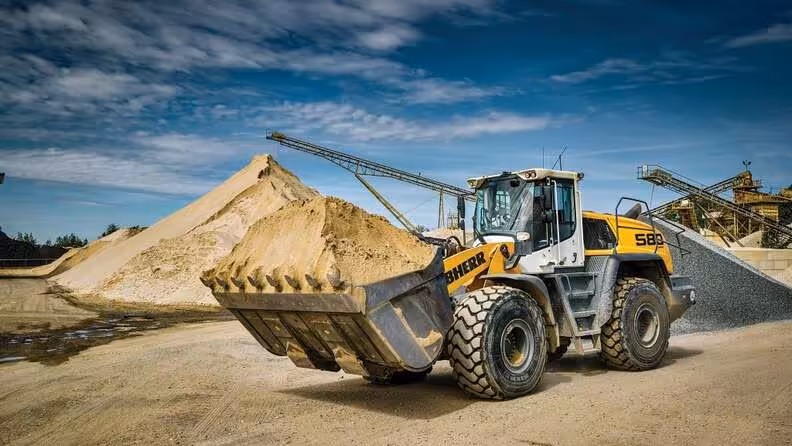

What is tipping load in loaders?

Loaders work a bit differently. Instead of using charts, their tipping load is determined through testing. Manufacturers add weight to the bucket little by little until the machine tips forward. The weight at that point is recorded as the tipping load.

Several factors influence the tipping load for loaders:

• Weight distribution: adding weight to the bucket shifts the center of gravity forward, increasing the tipping risk.
• Bucket size and shape: larger buckets can hold more weight, but they also raise the risk of tipping, especially if the load isn't evenly distributed.

Example: let's say you're using a loader to move sand. The bucket has a tipping load of 8,000 pounds. To stay within safe limits, you calculate the ROC at 60%, which comes to 4,800 pounds. If you attempt to carry 6,000 pounds of sand, you're well above the recommended operating capacity, increasing the risk of tipping forward.

How to calculate tipping load for loaders

Here's how you determine the tipping load and ROC for a loader:

1. Find the tipping load: this is typically listed in the manufacturer's specifications. If not, it's determined through testing.
2. Calculate the ROC: multiply the tipping load by 50% or 60%, depending on the safety factor recommended by the manufacturer.

For instance, if a loader's tipping load is 10,000 pounds, its ROC would be 5,000 pounds (at 50%). Operating within this limit keeps the machine stable and safe.

What is tipping load on a skid steer?

Skid steers have their own tipping load rating, and it's worth understanding separately because these machines carry loads much closer to the front axle than a loader or excavator, which makes them more sensitive to overloading.

A skid steer's tipping load is determined the same way as a loader's: manufacturers load the bucket incrementally until the rear wheels or tracks begin to lift off the ground, and that weight is recorded as the tipping load. As with loaders, ROC on a skid steer is typically 50% of that tipping load, a deliberately conservative margin since skid steers turn sharply and change direction constantly, both of which add dynamic stress that a static test doesn't capture.

What affects tipping load on a skid steer specifically:

• Attachment weight and reach: heavier attachments like grapples or pallet forks shift the center of gravity forward more than a standard bucket does.
• Tire or track condition: worn tires or loose tracks reduce the effective stability margin, lowering the practical (not published) tipping threshold.
• Ground slope and surface: because skid steers pivot in place rather than steering like a wheeled vehicle, working on a slope significantly increases tipping risk compared to the same load on flat ground.

Example: a skid steer with a rated tipping load of 4,000 lbs has an ROC of 2,000 lbs at the standard 50% safety factor. Loading 3,000 lbs into the bucket puts you well past the safe operating limit, even though it's still below the machine's absolute tipping point, which is exactly the gap the ROC margin exists to protect against.

How to interpret machine stability and tipping load specs

Reading a spec sheet correctly matters as much as knowing the numbers exist. When you're comparing machines or evaluating a used unit, here's what to actually look for:

1. Confirm whether the published figure is tipping load or ROC. Spec sheets don't always label this clearly, and mistaking one for the other is the single most common and dangerous misreading. If a number seems unusually high for the machine's size, it's likely the tipping load, not the safe operating capacity.
2. Check the test conditions. Tipping load figures are almost always static (stationary, level ground). If your job involves slopes, uneven terrain, or constant movement, treat the published figure as optimistic and lean further below the ROC, not just at it.
3. Match the figure to your actual attachment. Published specs usually assume a standard bucket. A heavier or longer-reach attachment lowers your effective tipping load even though the published number on the spec sheet doesn't change.
4. Look at counterweight and configuration notes. Some manufacturers publish different tipping load figures for different counterweight options, make sure you're reading the number for the actual configuration of the machine you're evaluating, not a heavier factory option it may not have.

How to apply tipping load knowledge for safe machinery operation?

Understanding tipping load is essential for the safe operation of excavators, loaders, skid steers, and heavy equipment. Exceeding the rated operating capacity (ROC) can cause instability, accidents, and equipment damage. Here's how to ensure safe lifting and stability:

• Choose the right machine: match the tipping load and ROC to your project. Use higher-capacity equipment for heavy materials like wet soil, gravel, or concrete pipes.
• Use attachments wisely: buckets, forks, and grapples affect the center of gravity and lifting capacity. Always account for these changes.
• Train operators: ensure excavator, loader, and skid steer operators understand tipping load limits and safe lifting practices to prevent accidents.
• Perform regular maintenance: keep hydraulics, counterweights, tires or tracks, and load distribution in check to maintain stability and efficiency.

Tipping load might seem like a technical concept, but it's a cornerstone of safe and efficient heavy equipment operation. Whether you're working with excavators, loaders, or skid steers, understanding how to calculate tipping load and why it matters helps you choose the right machine, operate it safely, and get the job done efficiently.

Frequently asked questions

What does tipping load mean?

Tipping load is the maximum weight a machine can handle before it becomes unstable and begins to tip over. It's the absolute physical limit, not a safe operating target, which is why machines are rated for actual use at a lower Rated Operating Capacity (ROC), typically 50 to 60% of the tipping load.

What's the difference between operating capacity and tipping load?

Tipping load is the point where the machine physically starts to tip. Operating capacity (ROC) is a conservative safety margin below that, usually 50 to 60% of the tipping load, meant to account for real-world conditions like uneven ground, movement, and attachment wear. You should operate within the ROC, never up to the tipping load itself.

What is tipping load on a skid steer?

It's the maximum bucket or attachment weight a skid steer can carry before its rear lifts off the ground, determined through incremental load testing by the manufacturer. As with loaders, the safe Rated Operating Capacity is typically 50% of that tipping load, since skid steers' tight turning and constant directional changes add stability risk beyond what a static test measures.

What is a tipping hazard?

A tipping hazard is any condition that increases the risk of a machine exceeding its stable operating limits, this includes overloading beyond the ROC, working on slopes or uneven ground, using heavier or longer-reach attachments than the machine is rated for, and worn tires or tracks that reduce effective stability.

Is tipping load the same as tip load or tipping weight?

Yes, these are all the same concept referred to by different names. Tipping load, tip load, and tipping weight all describe the maximum weight at which a machine becomes unstable and begins to tip.
