Bulldozer blades: 8 types and their applications

Dozer blades are the main tool that makes dozers useful for pushing, leveling, and clearing material on job sites. Different blades are designed for different tasks, allowing dozers to handle everything from smooth grading to moving large amounts of dirt. Picking the right blade can make work faster and easier.

Dozer blades: types and sizes

• S-Blade: Precision leveling and smoothing rough areas.

• U-Blade: Moving large quantities of lighter materials over long distances.

• SU-Blade: Balances precision with material movement.

• Angle Blade: Shaping, clearing debris, and spreading materials.

• PAT Blade: Flexible and versatile for detailed grading on varied terrain.

• Cushion Blade: Pushing heavy equipment safely.

• Coal Blade: Handling loose, lightweight materials like coal or woodchips.

• Landfill Blade: Designed for abrasive materials and waste management.

In this guide, we’ll explore each of these blades in detail, discussing their design, best applications, and how they support different industries. Understanding these options will help you choose the most effective blade for your job site needs.

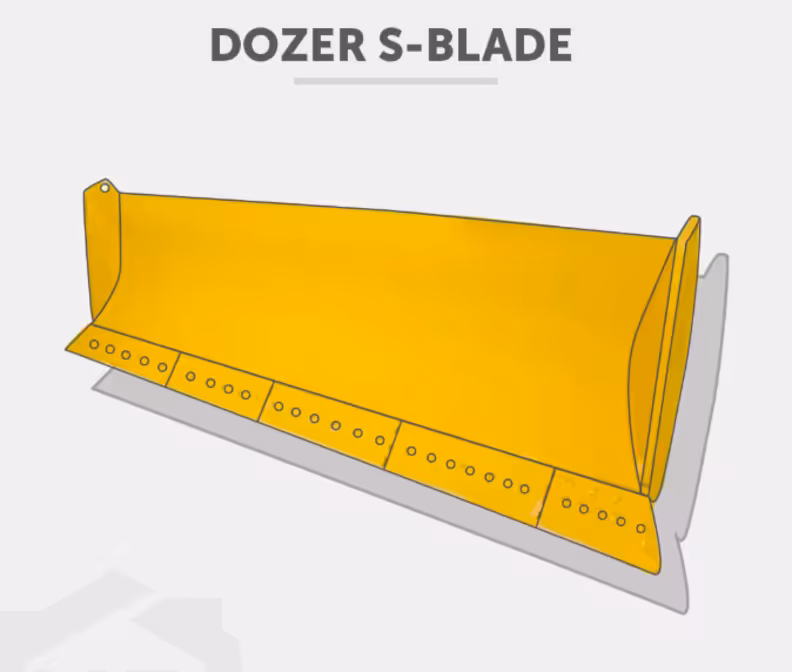

Straight Blade (S-Blade)

The straight blade, also called the S-blade, is the simplest bulldozer blade and works well for many jobs. It has a flat, straight shape that’s great for leveling ground, smoothing rough areas, and filling holes. Since it has no curves or side wings, it can’t carry materials over long distances, but it’s perfect for tasks that need careful, accurate work.

For example, if a construction site needs to be prepared for a new building, the S-blade is a great tool to get the ground ready. It’s sturdy enough to handle materials that are medium to hard in texture, which makes it a reliable option when precision and strength are both important.

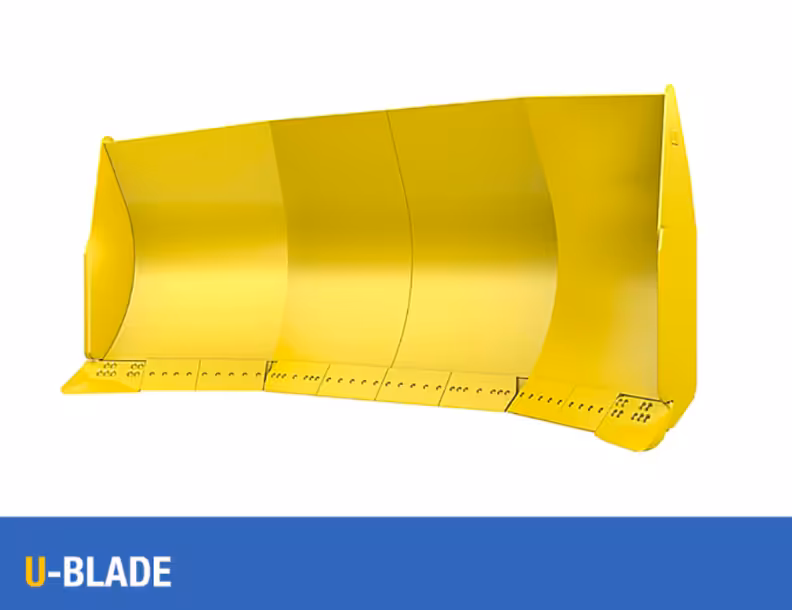

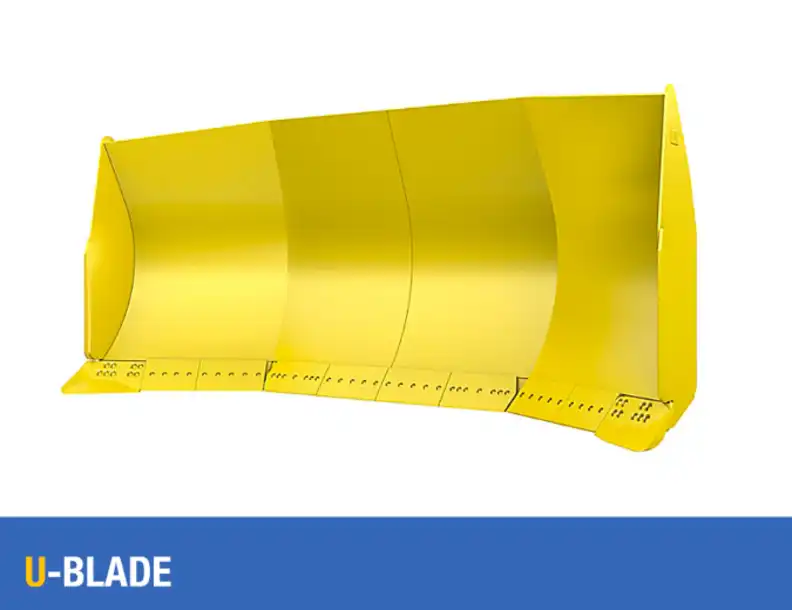

Universal Blade (U-Blade)

The universal blade, known as the U-blade, is designed to move large quantities of material over long distances. Its curved shape and high side wings allow it to scoop and hold more material, much like a big shovel attached to the bulldozer. The tall side wings help prevent the material from spilling out, which makes each pass more productive and efficient.

The U-blade works best with softer, lighter materials such as sand, loose soil, or gravel. It’s the perfect tool when there’s a need to clear large areas or shift piles of material across a construction site.

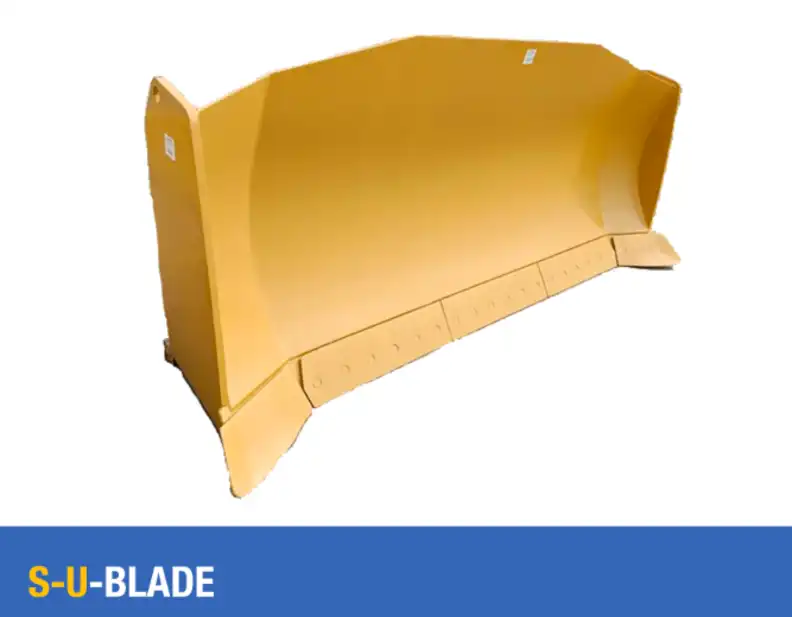

Semi-Universal Blade (SU-Blade)

If you need the accuracy of an S-blade but also want the ability to move more material like a U-blade, the semi-universal blade, or SU-blade, is the ideal choice. This blade blends the strengths of both designs. It has a slight curve and small side wings, which help it hold onto material without sacrificing precision.

The SU-blade is perfect for general-purpose work because it strikes a balance between carrying materials and performing detailed grading tasks. Its design allows it to cut through tougher materials such as compacted soil or clay, making it a great tool for more demanding jobs.

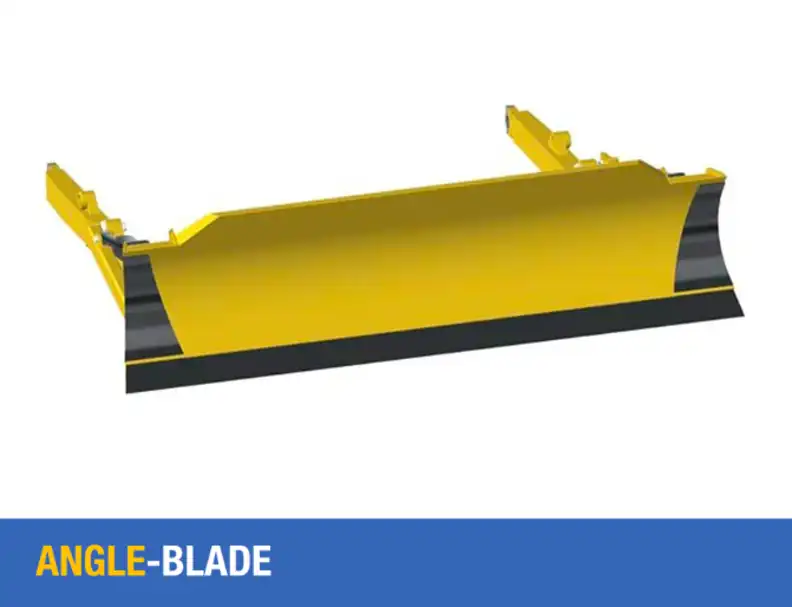

Angle Blade

The angle blade is ideal for tasks requiring precision and easy material direction. It can tilt up to 30 degrees to the left or right, making it suitable for pushing materials to the sides or clearing debris. It is used in tasks such as shaping road edges, creating drainage channels, or distributing materials. Its ability to control the direction of materials ensures efficient and accurate work.

Although it is not designed for moving large amounts of material over long distances, its versatility and flexibility make it an essential tool on construction sites and roadwork projects.

Read more: The role of bulldozers in the heavy equipment industry

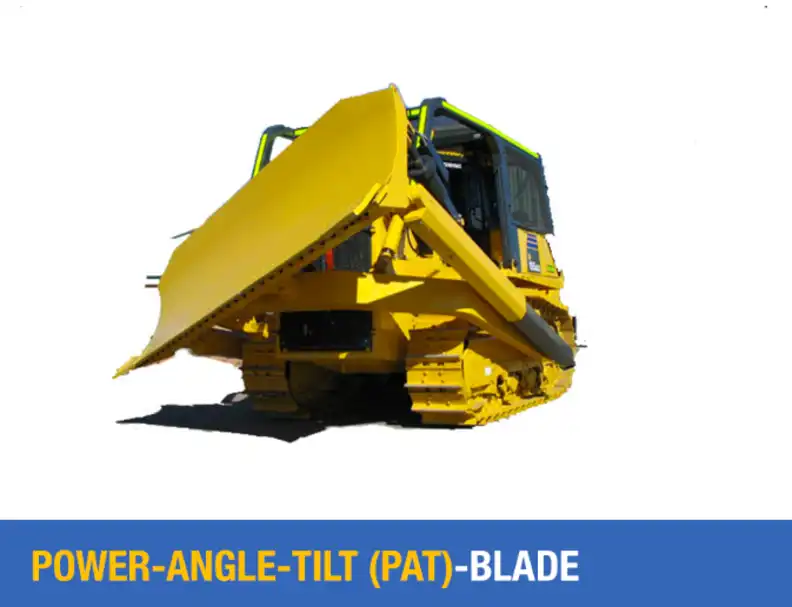

Power Angle Tilt (PAT) Blade

The Power-Angle-Tilt (PAT) blade is one of the most versatile dozer blades, known for its ability to move in six directions (up, down, left, right, and tilting forward or backward.) This range of motion gives operators excellent control, making it perfect for tasks like grading, land clearing, working on slopes, landscaping and road construction, where precision is key. Its flexibility allows operators to adjust on the go, even on uneven surfaces, for smooth and accurate results.

Cushion Blade

The cushion blade may not be as well-known as other blades, but it plays a key role in heavy-duty jobs. It’s designed to push large equipment, like scrapers, by absorbing shocks and reducing strain on both the dozer and the machinery being moved. This makes the pushing process smoother and helps prevent damage to the equipment.

The cushion blade is essential for big construction and earthmoving projects where bulldozers assist with moving heavy loads. Its shock-absorbing design protects both the blade and the equipment, helping them last longer during tough tasks.

Coal Blade

The coal blade is designed to handle large amounts of bulk materials, such as coal, wood chips, and grains. Its wide design makes it easier and faster to transport heavy loads, making it ideal for projects that require efficient material handling.

The coal blade has a larger capacity compared to standard blades, allowing it to carry more material and reduce the number of trips needed. This makes it a perfect choice for projects that demand faster material transport and higher productivity.

More about bulldozer types here.

Landfill Blade

The landfill dozer blade is designed to withstand harsh conditions when handling garbage and debris. It is highly resistant to wear and tear over time. This blade is used to compact waste while ensuring the stability of waste piles and maximizing space utilization. Despite its simple function, it plays a vital role in waste management operations.

What is the difference between a dozer blade and a bucket?

Bulldozer blades are primarily used for pushing, spreading, and leveling material, while excavator buckets are designed for digging, trenching, and loading operations. Extra details about the key differences.

How to choose the right dozer blade?

Choosing the right dozer blade depends on the details of your project, including three key factors: material, job size, and terrain.

1. Material: What are you working with? Is it loose sand, compacted soil, hard-packed clay, or waste?

2. Job Size: Does your project require precise grading, moving large quantities of material quickly, or a mix of both?

3. Terrain: What’s the terrain like? Is the ground flat, sloped, or uneven?

Each dozer blade is designed for specific tasks, and understanding their differences helps you choose the best one for the job.
