Forklift mast types: simplex, duplex, triplex, and quad

The forklift mast is the vertical structure that controls how high and how safely a machine can lift a load. It determines performance in tight spaces, sets the maximum fork height, and defines which environments the forklift can work in.

This article covers the four main forklift mast types, their key specifications, and when each one is the right choice.

The role of the mast in forklift performance

Before looking at each type, two terms are essential to understand: free lift and maximum fork height.

• Free lift is the distance the forks rise before the mast itself begins to extend upward. This is critical when operating under low ceilings, inside shipping containers, or through standard door openings.
• Maximum fork height is the total elevation the forks reach when the mast is fully extended. Both values vary significantly between mast types and have a direct impact on where and how a forklift can work.

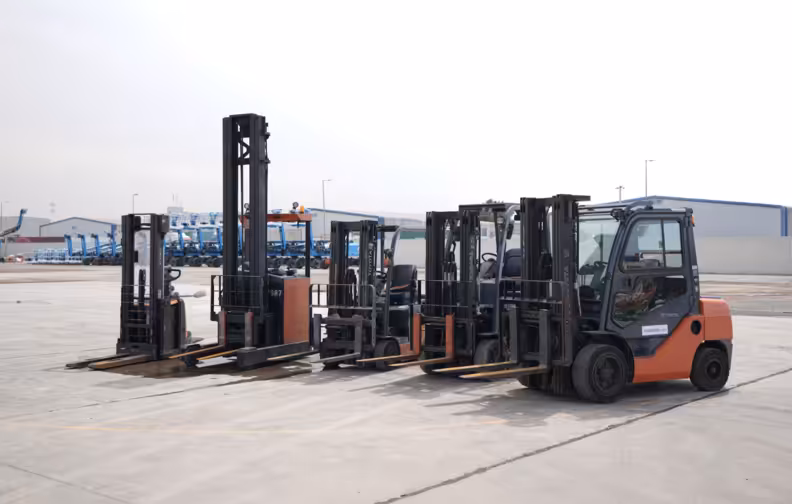

Forklift Mast Types

• Simplex mast

The simplex mast, also called a single-stage mast, is the most basic design available. It consists of a single mast section that extends upward, and there is no free lift. The forks and the mast rise together from the first millimeter of travel.

Because the machine's overall height increases immediately when lifting begins, simplex masts are not suitable for working inside buildings with standard ceiling heights. They are used mainly in outdoor settings such as ports, lumber yards, container yards, and open construction sites.

Typical maximum fork heights range from 2.5 m to 3.5 m. The advantage of this design is durability. Fewer moving parts mean lower maintenance requirements and easier field repairs.

• Duplex mast

The duplex mast, also called a two-stage mast, introduces a second mast section and, more importantly, genuine free lift. The forks rise independently before the outer mast section begins to move. This makes indoor operation practical for the first time.

A typical duplex mast offers around 150 to 200 mm of free lift, which is enough to pick up a pallet from the floor and move the load without raising the total height of the machine above door or rack clearance limits. Maximum fork heights for duplex masts generally fall between 3 m and 5 m.

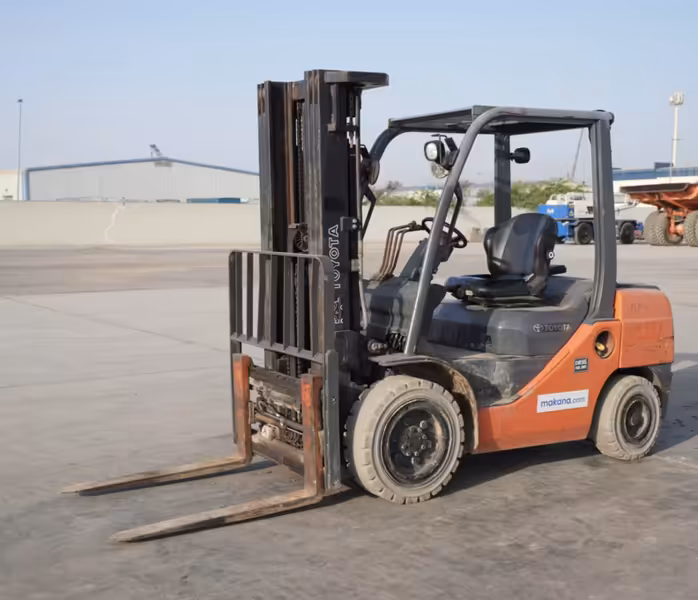

Models like Toyota 8FDU25 are commonly paired with duplex masts for general warehouse and loading dock work. For operations involving container loading, the duplex mast is often the preferred choice, as the free lift allows the forks to position a pallet inside the container without the mast contacting the container roof.

• Triplex mast

The triplex mast, or three-stage mast, is the most widely used mast type across warehousing and logistics. It has three mast sections and delivers the highest free lift among standard mast configurations, typically between 500 mm and 600 mm or more depending on the model.

This high free lift means the machine can enter a standard building through a regular door at full load without the mast extending. Once inside, it can reach high racking positions without issue. Maximum fork heights for triplex masts range from 5.5 m to over 9 m depending on configuration.

Toyota 8FDU30 and similar counterbalance models are frequently specified with triplex masts for high-bay warehouse operations. For heavier applications, the Komatsu FD200Z-6, a 20-tonne capacity diesel forklift, can be configured with multi-stage masts to match industrial storage requirements.

Triplex masts also offer good forward visibility compared to quad designs, since the outer channel does not obstruct the operator's view during most of the lift range. This makes them practical for high-frequency picking operations.

• Quad mast

The quad mast, or four-stage mast, adds a fourth section to reach maximum heights in confined environments. It is designed specifically for high-density storage facilities where rack heights exceed 9 m to 10 m, and where the collapsed mast height still needs to fit through standard entry points.

Maximum fork heights for quad masts typically fall between 10 m and 12 m, with some configurations going higher. The tradeoff is reduced forward visibility, since the additional mast sections partially block the operator's line of sight when elevated. Structural stability also decreases progressively toward maximum height, so these masts are de-rated more aggressively than triplex designs.

Quad masts are most common with electric narrow-aisle or reach truck configurations, not heavy counterbalance forklifts. They suit distribution centers and automated storage systems where height optimization is a priority.

Mast type comparison

How to choose the right mast type

The right mast depends on three factors: the height of the storage racks, the ceiling height of the facility, and the door clearance the forklift must pass through during normal operation.

• Choose a forklift with a simplex mast for open areas and low stacking.
• Choose a forklift with a duplex mast when you need better free lift and lower overhead clearance.
• Choose a forklift with a triplex mast when the truck must travel under low roofs but still stack high.
• Choose a forklift with a quad mast only when very high stacking is a real daily need.

Check top 5 forklifts for UAE job sites in 2026.

Forklifts for sale on Makana

Makana lists used and unused forklifts from Toyota, Komatsu, Doosan and other major brands, each backed by a +75-point certified inspection before being made available. You can browse available diesel and electric forklifts for sale, compare mast specifications, and request a virtual 3D tour directly on the platform. If you need a specific mast type or capacity that is not currently in stock, the machinery procurement service can help you source it. Want to sell a forklift? Contact our team.

FAQ

What is free lift in a forklift mast?

Free lift is the distance the forks can rise before the outer mast section starts to extend upward. It allows forklifts to lift loads inside spaces with limited overhead clearance, such as inside shipping containers or under low warehouse ceilings.

Can I add more lift height to my existing forklift?

In most cases, the mast type is matched to the forklift's frame, hydraulic system, and counterweight at the factory. Replacing the mast with a taller version is rarely practical. If more height is needed, sourcing a different machine is usually the better option.

What happens to lifting capacity as the mast extends higher?

Lifting capacity decreases as the mast rises. This is called the de-rating curve. A forklift rated at 3,000 kg at ground level may drop to 2,000 kg or less at maximum fork height, depending on the load center and mast type. Always check the capacity plate on the machine for exact values at each height.

Which mast type is best for loading inside shipping containers?

A duplex or triplex mast is the most suitable for container loading. Both offer free lift, which allows the forks to rise and position a load inside the container without the mast extending above the container roof.

Does the mast type affect visibility for the operator?

Yes. Simplex and duplex masts offer the clearest forward visibility. Triplex masts slightly reduce visibility at full height but are generally manageable. Quad masts create the most obstruction due to the additional mast channels, which is why they are mainly used in applications where the operator follows fixed paths or uses camera assistance systems.
