Telehandler instability at height: causes, fixes, and what to check first

Telehandler instability at height is not random, it follows a clear pattern. Every time the boom extends outward, the machine's center of gravity shifts forward, and the rated lifting capacity drops. Most operators know this in theory but do not account for it in practice.

This article covers the main causes of instability at full extension, what technical specs to look at, and the practical steps to fix it before the next lift.

JCB 540-170 load capacity by reach

When a telehandler lifts a load at short reach, the weight stays close to the front axle. As the boom extends, the load moves further from the machine's center. The more it extends, the more forward force that load creates, and the closer the machine gets to its tipping point. This is basic physics, and it affects every telescopic handler on the market regardless of brand.

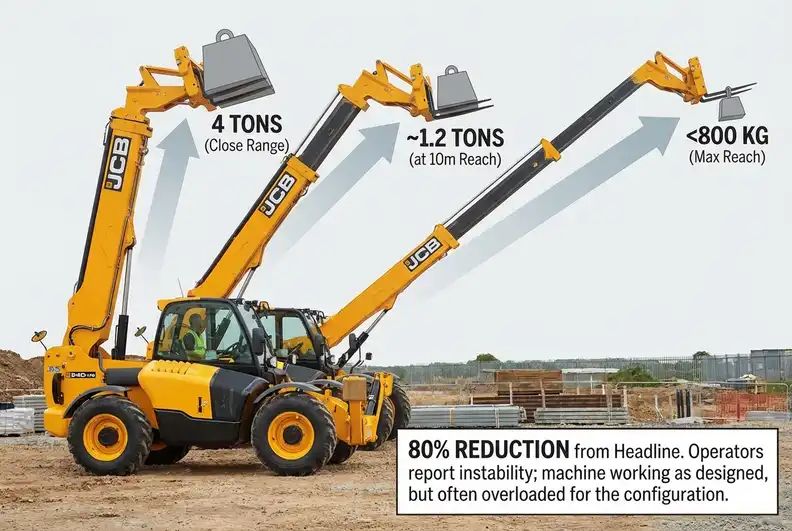

On JCB 540-170, the maximum lifting capacity is 4 tons at close range. At 10 meters of horizontal reach, the safe load drops to around 1.2 tons. At maximum reach, it falls below 800 kg. That is an 80% reduction from the headline number, and it is one of the reasons operators report the machine feeling light or unstable at full extension. The machine is working exactly as designed, the problem is that the load often exceeds what that configuration allows.

What specs affect telehandler stability the most

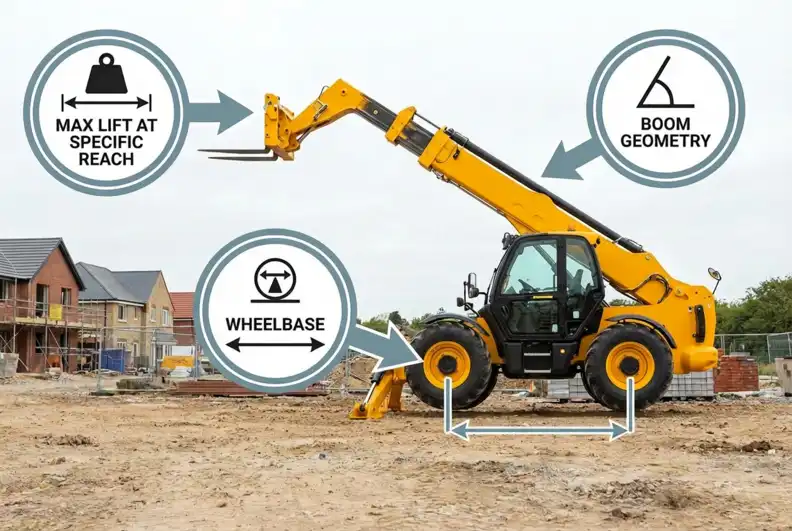

The headline capacity figure tells you very little about how a telehandler will perform at extended reach. Three specs matter far more when evaluating telehandler stability:

• Maximum lifting capacity at specific reach.
• Wheelbase.
• Boom geometry.

A longer wheelbase creates a more stable base when the boom is extended. A machine with a short wheelbase will feel less secure at the same load and reach, even if the rated capacity is identical.

The table below compares two machines that share the same headline capacity but differ in how they handle extended lifts:

Telehandler condition and stability at height

Ground conditions are a major factor in telehandler tipping risk that is easy to underestimate. A 2-degree slope under the machine is enough to shift the center of gravity and reduce the effective stability margin at full extension. Even a machine that is within its load chart limit can become unstable if the ground is not level and firm.

Always deploy stabilizers or outriggers when working at full height, even when the load chart does not technically require it at that reach. On soft or recently compacted ground, use spreader plates under the stabilizer feet to prevent sinking.

The Manitou MT series and JLG telehandlers both include electronic load management systems that warn operators when stability margins are low, but these systems are a backup, not a replacement for proper ground preparation.

Telehandler condition and stability at height

A telehandler that is in poor condition will behave unpredictably at extended reach, even when the load is within the chart limits.

Worn boom pivot pins create play in the extension, which causes small shifts in load position during the lift. Hydraulic system leaks reduce the precision of boom movement. And underinflated or unevenly worn tires change how load is distributed across the axles at height.

Before buying or operating a used telescopic handler, check the hydraulic response at full extension, inspect the boom wear pads and pins, and verify tire pressure against the manufacturer's spec. Machines that have not been properly maintained often show instability symptoms that disappear completely after a proper service.

See heavy equipment inspection at Makana for what a proper pre-purchase check covers on machines like these.

Pre-lift stability checklist for telehandler operators

Run through this before every lift at extended height:

Browse inspected telehandlers on Makana

If you are evaluating a telehandler for purchase, knowing the machine's real condition matters as much as its spec sheet. On Makana, every listed machine goes through a +75 point inspection using professional diagnostic tools. You can review technical specifications, access virtual tours, and compare models before making a decision.

If you already have a machine to sell, you can sell to us, contact our team for more details.

FAQ

What is the safest way to travel with a load on a telehandler

Always travel with the boom fully retracted and lowered to transport position, usually between 300 and 400 mm off the ground. Do not travel with an elevated or extended boom, even for short distances on site.

How do I know if a telehandler has a damaged boom cylinder

Slow or uneven extension under load, visible oil seeping around the cylinder seals, or the boom drifting downward when held at height are all signs of a failing boom cylinder. This should be inspected before operating at height.

Can I use a telehandler as a crane with a lifting hook

Yes, most telehandlers support a jib attachment with a hook for vertical lifts. The load chart for the jib configuration is separate from the fork chart and typically allows lower loads. Never use a standard fork frame as an improvised lifting point.

Do telehandlers need a special operator certification

Requirements vary by country and site rules. In most markets, a telehandler above a certain capacity requires a specific license or documented training record. Always confirm local regulations before assigning an operator to a machine they have not been certified on.
