Compaction Equipment: 7 Types, Benefits & How to Choose

Without proper compaction, even the best materials can fail under stress. That's where compaction equipment comes in, specialized heavy equipment designed to increase soil density, reduce air voids, and create stable ground for everything built above it.

Let's break down the main types of compaction equipment, their benefits, and how they shape the efficiency and safety of modern construction.

What is compaction equipment?

In simple terms, compaction equipment increases the density of soil or asphalt by removing air voids. This process improves load-bearing capacity, prevents settlement, and enhances stability. When soil is left uncompacted, it can shift over time, leading to cracks, uneven surfaces, and costly rework.

Compaction isn't just about pressing the ground, it's about using the right force, frequency, and contact area. That's why there are different types of compactors suited to specific materials and project sizes.

Here's a quick comparison to illustrate how compaction changes ground behavior:

Properly compacted soil ensures durability in road layers, parking lots, and foundations. Machines like vibratory rollers, plate compactors, and rammers achieve this by applying pressure and vibration to rearrange soil particles into a denser formation.

What are the main types of compaction equipment?

Different projects require different types of compactors. Let's look at the most common categories used across construction and infrastructure works.

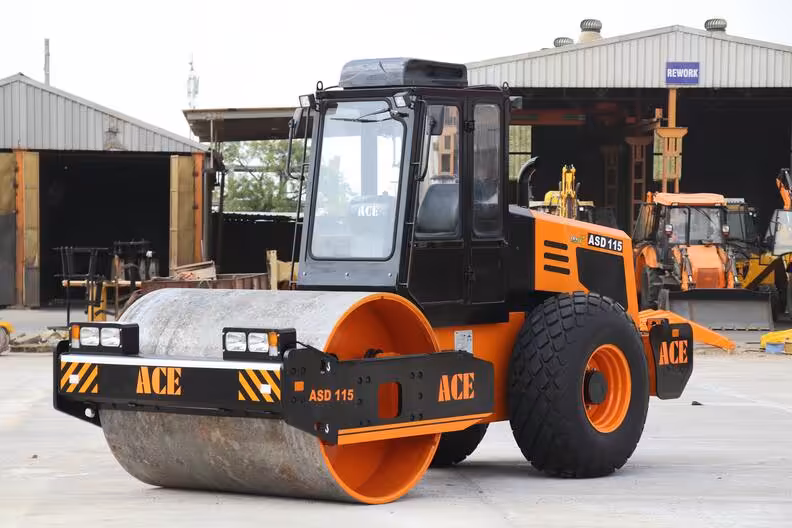

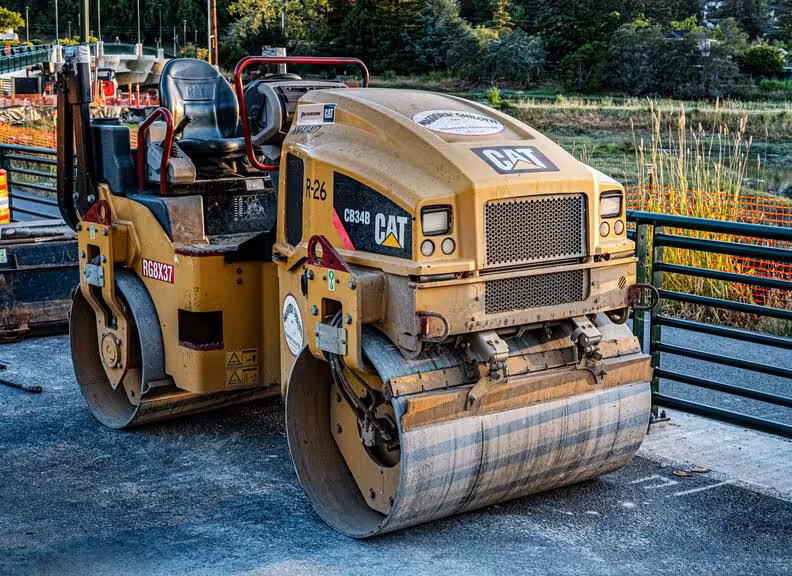

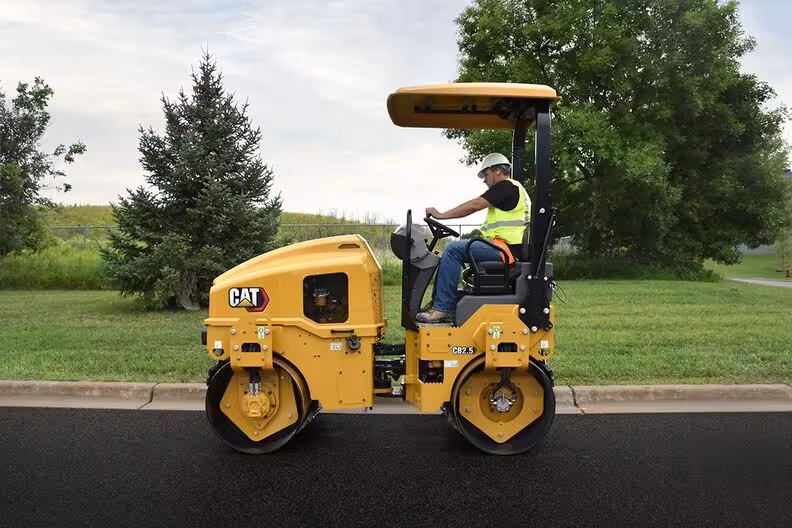

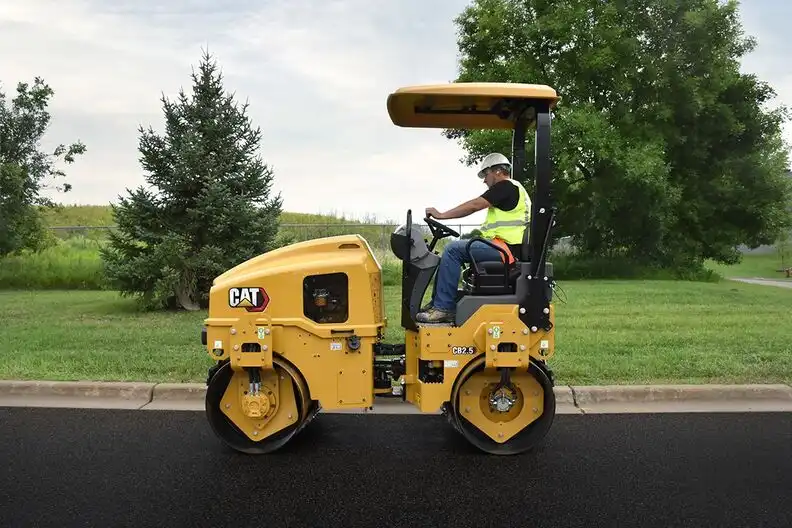

1. Smooth drum rollers

Also known as single-drum rollers, these machines are ideal for compacting granular soils, gravel, and asphalt layers. The large cylindrical drum provides uniform compaction, while vibration enhances the penetration depth. Browse smooth and tandem drum rollers on Makana currently available.

A great example is the Dynapac CC1200 VI tandem roller, available on makana.com, known for its reliability in small and medium asphalt jobs. It combines high vibration frequency with operator comfort, making it efficient for urban projects.

Smooth drum rollers deliver a fine finish and are commonly used in road base layers and pavement compaction.

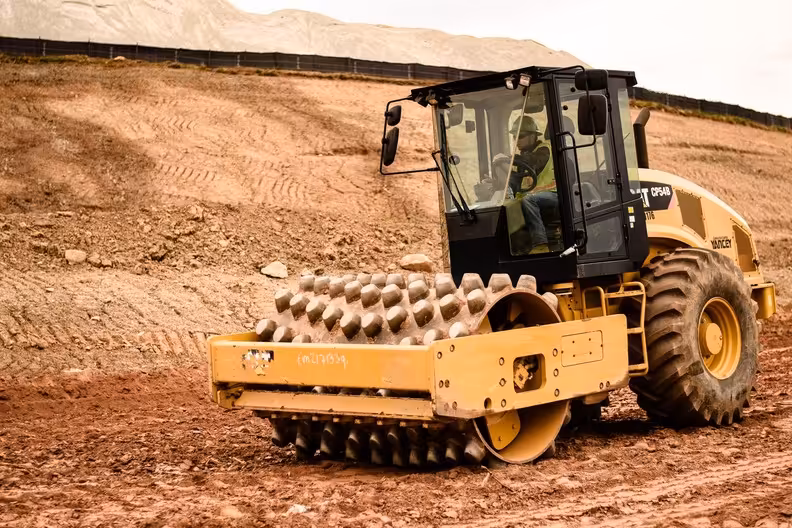

2. Padfoot rollers

Padfoot rollers, also called sheepsfoot rollers, are designed for cohesive soils like clay or silt. The drum is covered with rectangular or oval-shaped pads that penetrate deep into the soil, compacting from the inside out.

The kneading action of the pads ensures air removal in moist or sticky soils, something smooth drums can't achieve efficiently. Padfoot rollers are often used in embankment and landfill work, where deep compaction is required. See the full range of compaction equipment on Makana for padfoot and specialty rollers currently listed.

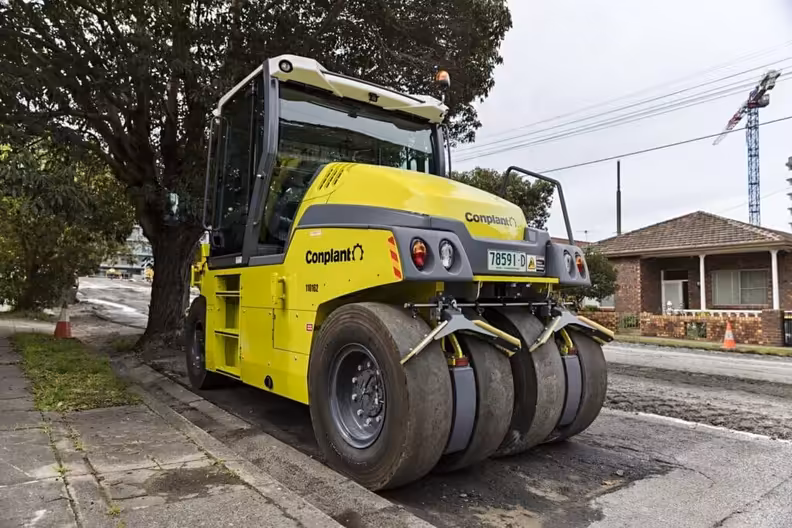

3. Pneumatic tired rollers

These rollers use a set of rubber tires that can be inflated or deflated to control contact pressure. The tires overlap slightly, creating a kneading and sealing effect on asphalt surfaces.

Pneumatic rollers are typically used for finishing asphalt layers after vibratory rolling, ensuring smooth, watertight finishes. Their adjustable air pressure allows operators to fine-tune compaction according to material type and layer thickness.

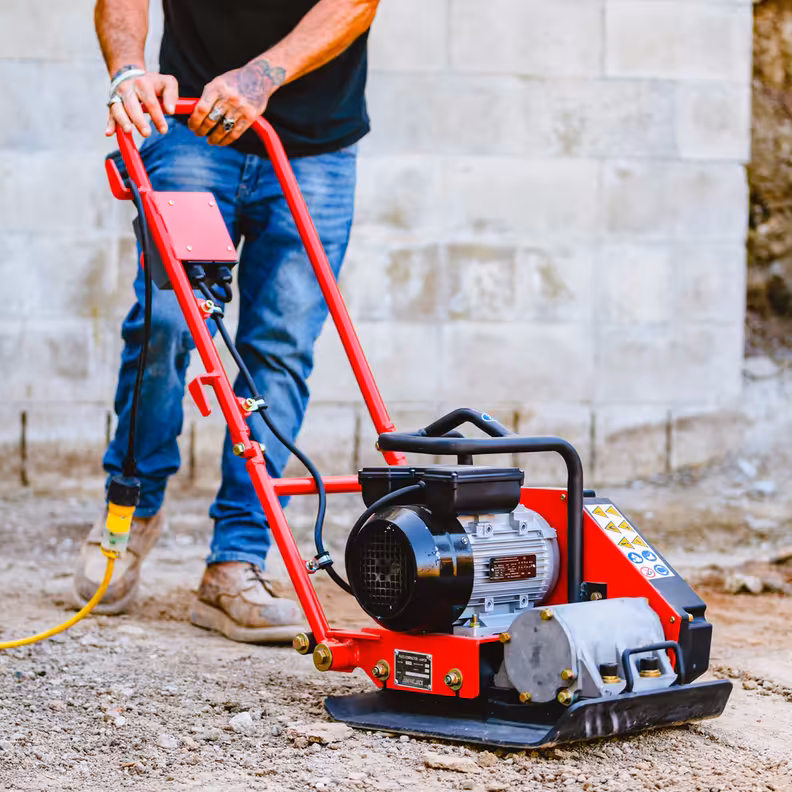

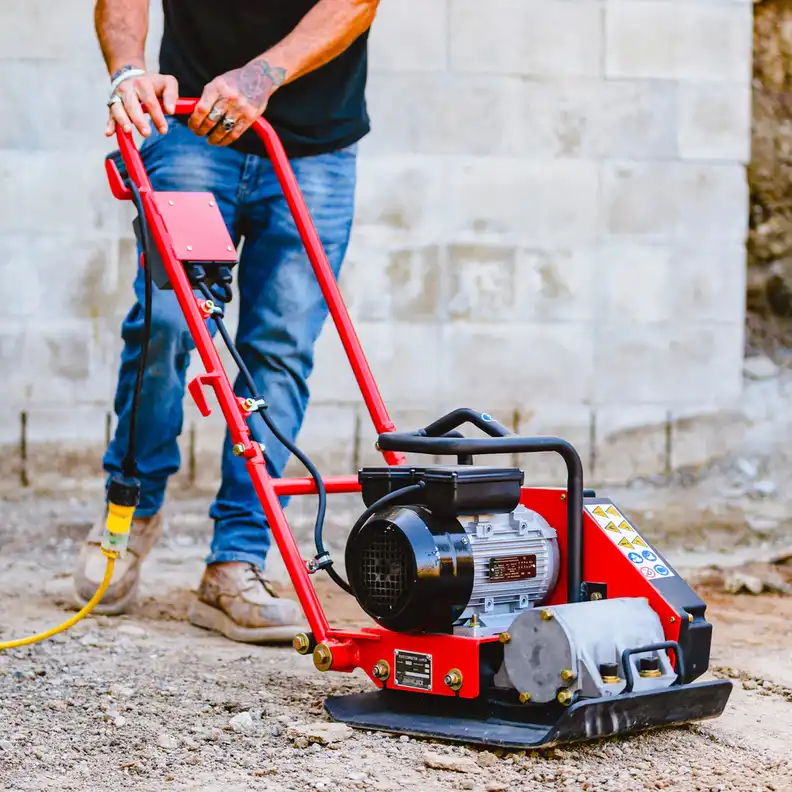

4. Plate compactors

Vibratory plate compactors are compact and highly maneuverable, making them perfect for confined areas such as sidewalks, driveways, and trenches. The base plate vibrates at high frequency, transmitting energy into the ground for efficient compaction of granular materials.

The Dynapac DFP10D is a reliable example featured on Makana. It offers forward motion compaction, ideal for smaller construction zones or patch repair jobs.

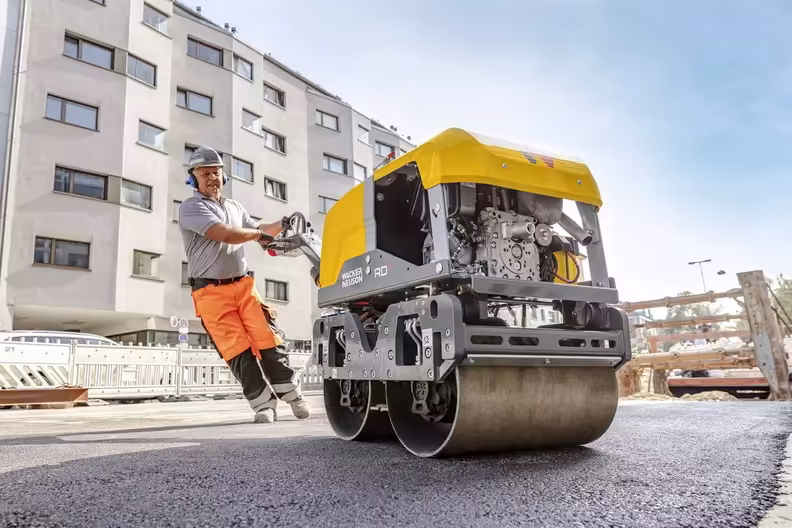

5. Walk-behind rollers

For compact areas where full-size rollers can't operate, walk-behind rollers are a practical choice. They provide high compaction performance in tight spaces and are easy to maneuver around obstacles.

Machines like the Dynapac DTR75 and DTR75D, both listed on Makana, combine twin-drum vibratory action with ergonomic design. They're commonly used for sidewalks, small road repairs, and parking areas.

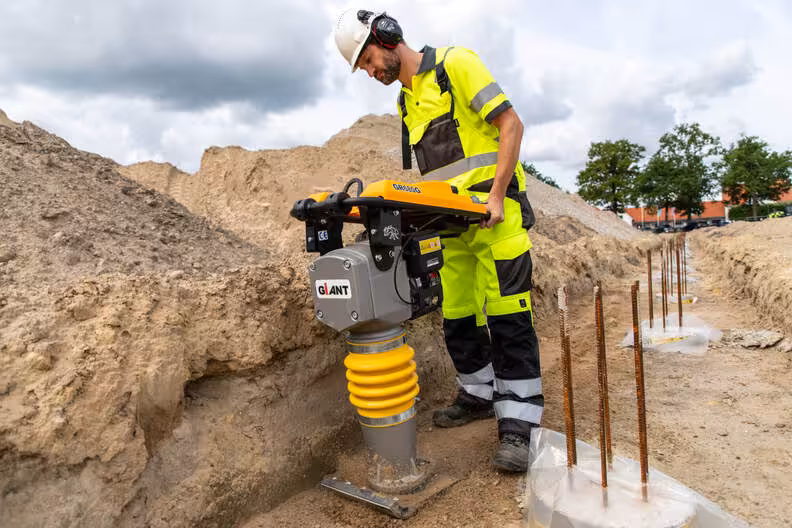

6. Tamping rammers

Tamping rammers are compact machines that deliver high-impact force through a foot-shaped base. They are used for cohesive soils and confined areas such as trenches or foundation backfills.

Unlike plate compactors, tamping rammers rely on a rapid vertical impact rather than vibration, allowing deeper penetration in clay-type soils. Available in diesel, petrol, or electric versions, they're a must-have for utility and pipeline contractors.

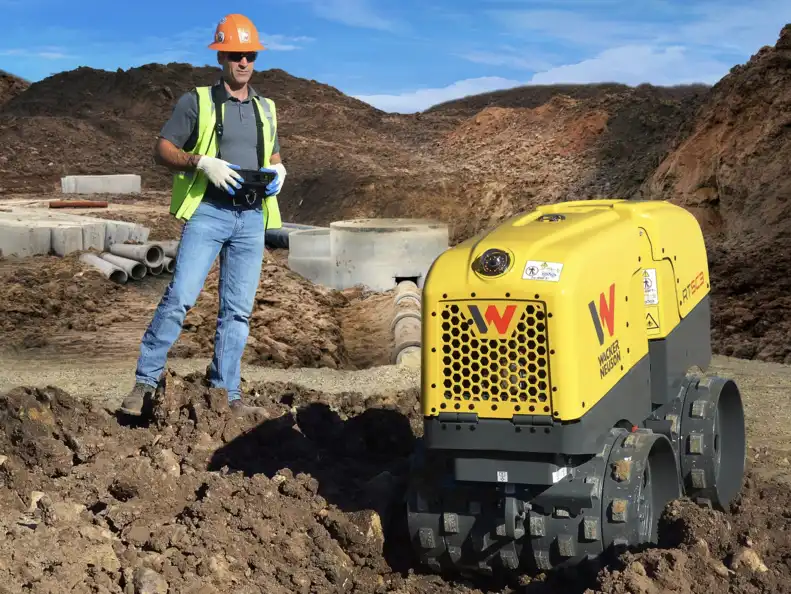

7. Trench rollers

Trench rollers are remote-controlled compactors with padfoot drums, designed for confined spaces where operator safety is a concern. They're used in pipeline construction, drainage works, and foundations.

Modern trench rollers feature dual amplitude settings, infrared safety systems, and even GPS integration for monitoring compaction quality. Their ability to work under hazardous conditions makes them essential for high-risk zones.

Explore our compaction equipment

How to choose the right compaction equipment for your project?

Choosing the right compaction equipment depends on several factors. Here's a simple step-by-step approach:

1. Identify soil type:
   • Cohesive (clay, silt): padfoot roller, rammer.
   • Granular (sand, gravel): smooth drum roller, plate compactor.
2. Define project scale:
   • Small (driveways, trenches): plate or walk-behind compactor.
   • Medium (urban roads, parking lots): tandem roller.
   • Large (highways, landfills): padfoot or pneumatic roller.
3. Check required compaction depth:
   • Shallow layers need high-frequency vibration.
   • Deep layers need heavier static weight or kneading action.
4. Evaluate site accessibility:
   • Narrow or confined sites favor small, maneuverable compactors.
   • Open areas allow for larger drum rollers.
5. Compare machine specifications:
   • Weight, drum width, vibration power, and centrifugal force.

Here's a quick reference table for typical use:

What are the key benefits of using modern compaction equipment?

Modern compaction machines offer several advantages beyond basic soil density improvement:

• Enhanced performance: Advanced vibration systems deliver consistent compaction across all layers.
• Fuel efficiency: Modern rollers are designed with optimized hydraulic systems that lower fuel use by up to 15%.
• Operator comfort: Enclosed cabins, intuitive controls, and reduced vibration levels improve productivity.
• Precision control: Electronic compaction measurement ensures uniform density across the surface.
• Reduced rework: Better compaction means fewer cracks or settlements in finished structures.
• Environmental benefits: Newer models comply with EPA and CE emission standards, reducing environmental footprint.

These improvements directly translate to higher-quality roads, longer-lasting foundations, and reduced maintenance costs.

How does compaction equipment impact the construction industry?

Compaction equipment is a cornerstone of every infrastructure project. Its impact extends beyond the soil, influencing project speed, safety, and long-term stability.

• Productivity gains: Vibratory systems and telematics allow faster, data-driven operations.
• Smart technology: GPS-guided rollers ensure consistent layer thickness.
• Safety: Remote-controlled trench rollers minimize human risk in hazardous zones.
• Global adoption: Compact and fuel-efficient machines are now preferred in urban development projects where space and emissions are limited.

Trusted names in compaction equipment include Dynapac, BOMAG, and Caterpillar. Platforms like Makana's compaction equipment category contribute to this shift by providing globally sourced, certified compaction equipment, allowing contractors to access the right machines without compromising quality or compliance.

Maintenance tips for compaction machinery

No matter how advanced a compactor is, its performance depends on proper maintenance. Follow these best practices to extend machine life:

• Check engine oil and hydraulic fluid regularly.
• Inspect vibration drums, belts, and bearings for wear.
• Clean the drum or plate after each use to prevent asphalt buildup.
• Keep cooling systems clear to avoid overheating.
• Store in dry conditions to prevent corrosion.
• Use only manufacturer-approved spare parts.

At Makana's compaction equipment category, every machine undergoes a certified 75+ point inspection using diagnostic tools such as the Jaltest Link V9 Kit, ensuring that all major systems, from hydraulics to electronics, meet operational standards before sale.

If you're searching for reliable, inspected compaction equipment, makana.com provides access to detailed inspection reports, operational videos, and expert comparisons to help you make informed choices, all in one platform.

Frequently asked questions

What's the difference between static and vibratory rollers?

Static rollers rely on their weight for compaction, while vibratory rollers use mechanical vibration to improve soil particle movement and density.

Can compaction equipment be used on wet soil?

Light moisture helps compaction, but excessive water leads to pumping and instability. Always test soil moisture before compaction.

How often should a compactor be serviced?

Depending on usage, every 250 to 500 operating hours. Regular oil checks and vibration system inspections are essential.

What safety gear is required during operation?

Operators should wear ear protection, safety boots, gloves, and reflective clothing. For remote-controlled rollers, maintain a safe perimeter.

Which brands are most reliable for compaction work?

Trusted names include Dynapac, BOMAG, Caterpillar, and Sakai, all known for durable designs and efficient vibration systems.

What does "field compaction equipment" mean?

Field compaction equipment refers to machines used directly on the job site, such as rollers, plate compactors, and rammers, as opposed to lab testing tools used to measure compaction results after the fact. In practice, most people searching for this term are looking for the same rollers and compactors covered in this guide.

What's the difference between a small compaction machine and a full-size roller?

Small compaction machines, like plate compactors and walk-behind rollers, are built for tight spaces, trenches, and patch repairs. Full-size tandem or padfoot rollers are built for large, open areas like roads and highways where speed and coverage matter more than maneuverability.

Choosing the right compactor comes down to soil, scale, and site

The right compaction equipment depends on your soil type, project scale, and how tight your site access is, get any one of those wrong and you'll either underperform on density or waste time and fuel with the wrong machine for the job.
