12 excavator attachments and how to match them to your machine

Excavators, sometimes called diggers, are designed to do much more than just digging. By pairing them with the right attachments (also called excavator tools), operators can adapt a single machine to perform demolition, grading, lifting, compacting, or drilling tasks with precision and efficiency. Understanding the function and compatibility of each attachment type is essential for productive operation.

In this article, we will cover 12 essential types of excavator attachments and explain how to choose the right one for each task and machine. These attachments are:

1. Digging bucket
2. Grading bucket
3. Trenching bucket
4. Rock bucket
5. Hydraulic breaker
6. Auger
7. Grapples and thumbs
8. Crusher bucket
9. Ripper
10. Tiltrotator
11. Drum cutter and mulcher
12. Quick coupler system

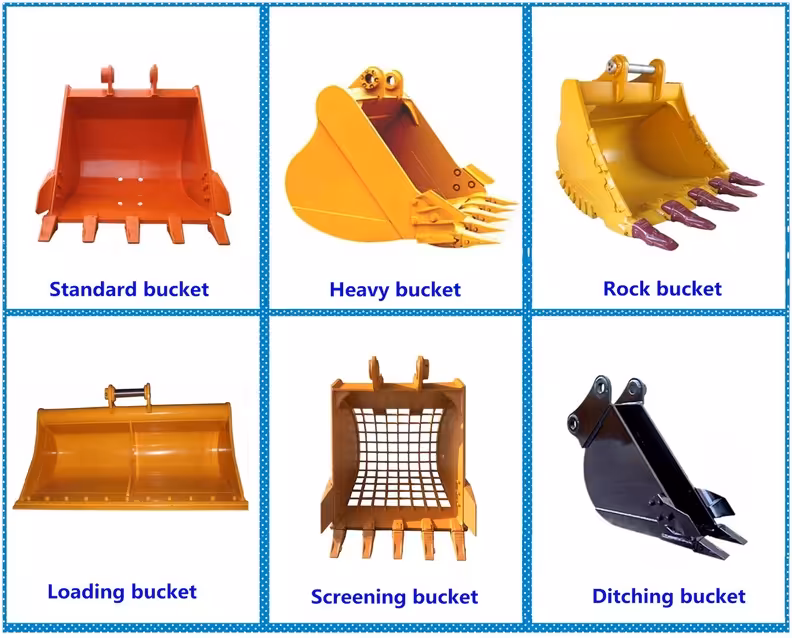

Bucket types and use cases

The most common attachment is the excavator bucket, but its design and application vary significantly depending on the task. Here are the main types:

• Digging buckets: Fitted with sharp teeth and reinforced edges for general excavation in soil, clay, or gravel.
• Trenching buckets: Narrower (150 to 600 mm wide), ideal for digging utility trenches or narrow foundations.
• Grading buckets: Wide, smooth-edged, and designed for leveling and finishing work.
• Rock buckets: Heavy-duty buckets built with abrasion-resistant steel for handling dense rock or broken concrete.

For example, a Cat 323D3 paired with a severe-duty rock bucket is ideal for quarry work, while a Cat 305.5E2 is better suited to trenching tasks in urban projects. Bucket size, tooth design, and wear protection must all match the ground condition and the machine's breakout force.

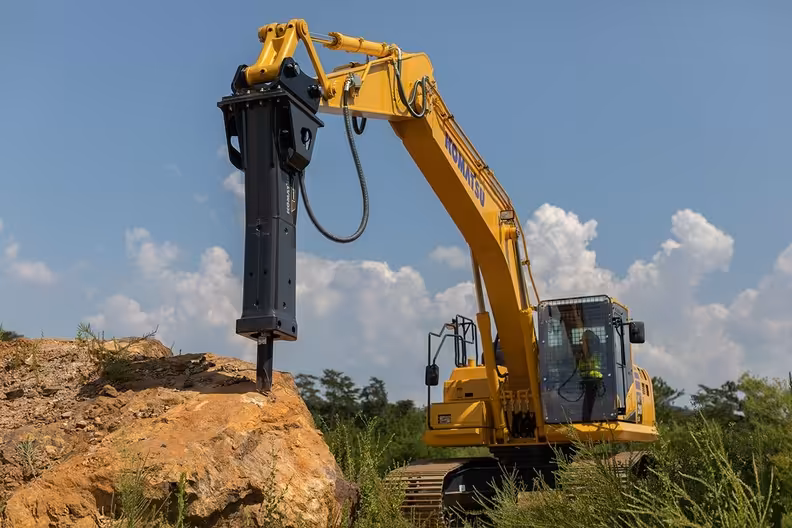

What does a hydraulic breaker do?

A hydraulic breaker, also known as a hammer or pecker, uses pressurized oil to deliver high-impact blows through a steel chisel. It's used to break reinforced concrete, asphalt, rock, or frozen ground.

These attachments are essential in demolition, roadwork, and mining. For example, a Volvo EC550EL with a properly matched breaker can remove bridge decks or concrete slabs without secondary tools.

When selecting a breaker, key parameters include:

1. Required impact energy (joules or ft-lb).
2. Hydraulic flow and pressure compatibility.
3. Carrier weight and boom reach.

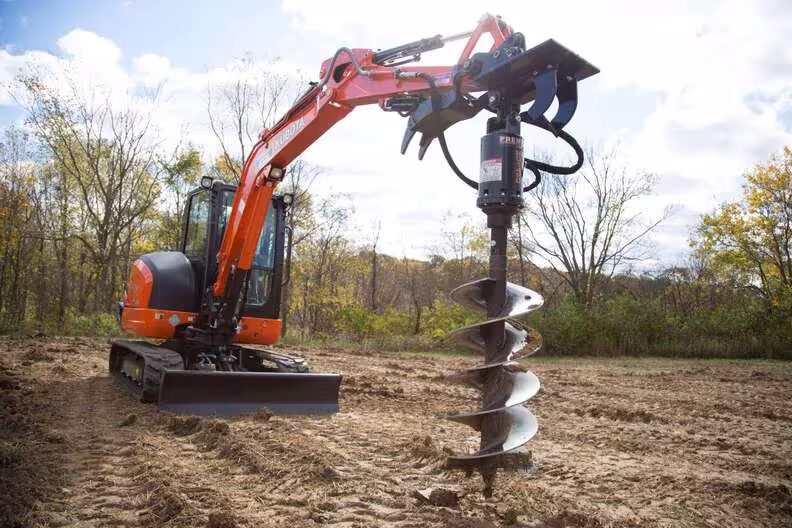

Augers for vertical drilling tasks

An auger is a helical drilling tool used to bore holes into soil, clay, or even light rock. Commonly used for fence posts, foundations, or tree planting, augers are hydraulically powered and mounted via quick couplers or fixed brackets.

A Cat 226B3 or Cat 303E can be equipped with light- to mid-duty augers for precision work. Larger auger drives with high torque motors are needed when working in compacted or rocky soils.

Considerations when choosing augers:

• Soil condition and bit type (standard, rock, or combination).
• Torque and RPM based on machine hydraulic specs.
• Use of swing control or alignment systems to maintain verticality.

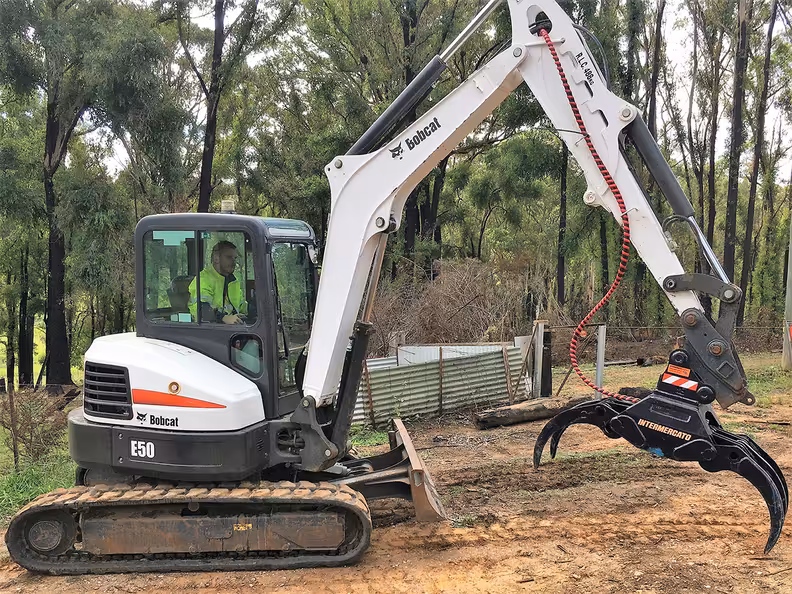

Excavator lifting attachments: grabs, grapples, and thumbs

Attachments designed for handling and lifting irregular loads like logs, rocks, or scrap, include:

• Thumbs: Mechanical or hydraulic clamps mounted opposite the bucket. Ideal for simple pick-and-place tasks.
• Grapples: Independent jaws with more precise control, available in:
  • Sorting grapples: Open/close like a hand, used for separating debris.
  • Orange-peel grapples: Multi-tine jaws for scrap and demolition waste.

A Cat 426F2 or Bobcat S510 can be adapted for waste handling with the right grapple. Hydraulic thumbs are also commonly paired with trenching or digging buckets for added versatility, and both thumbs and grapples fall under the broader category of excavator lifting attachments when the job involves picking and placing material rather than digging it.

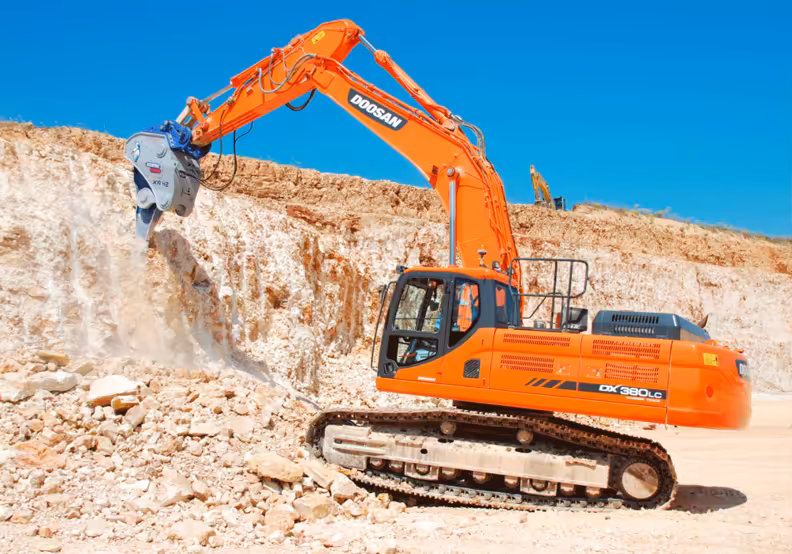

Rippers, drum cutters, and mulchers

Excavators can be used in land clearing, mining, and foundation removal when paired with high-force attachments such as:

• Rippers: Single-shank or multi-shank tools that tear through frozen soil, shale, or compacted layers.

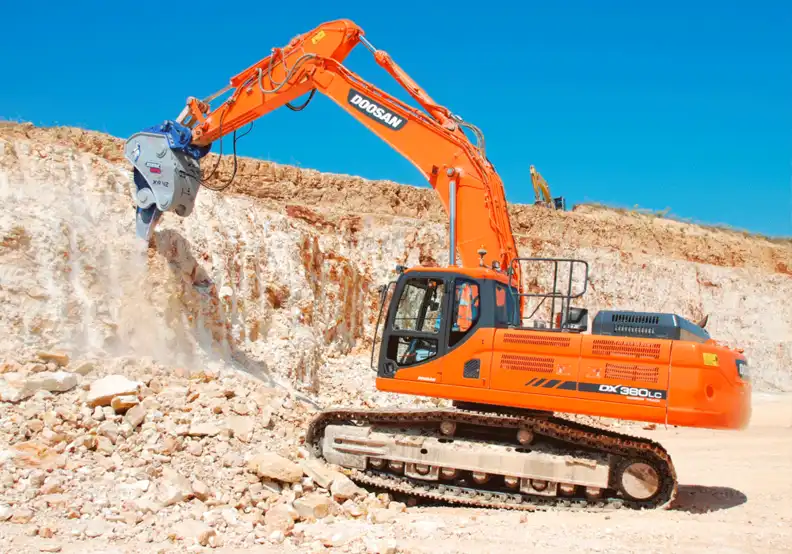

• Drum cutters: Rotating heads with carbide teeth used in tunneling or profiling rock and concrete.
• Mulchers: Flail or drum-style tools that shred vegetation, ideal for forestry or roadside clearing.

The Cat D8T, for example, is often used with rippers to pre-loosen rock layers before excavation.

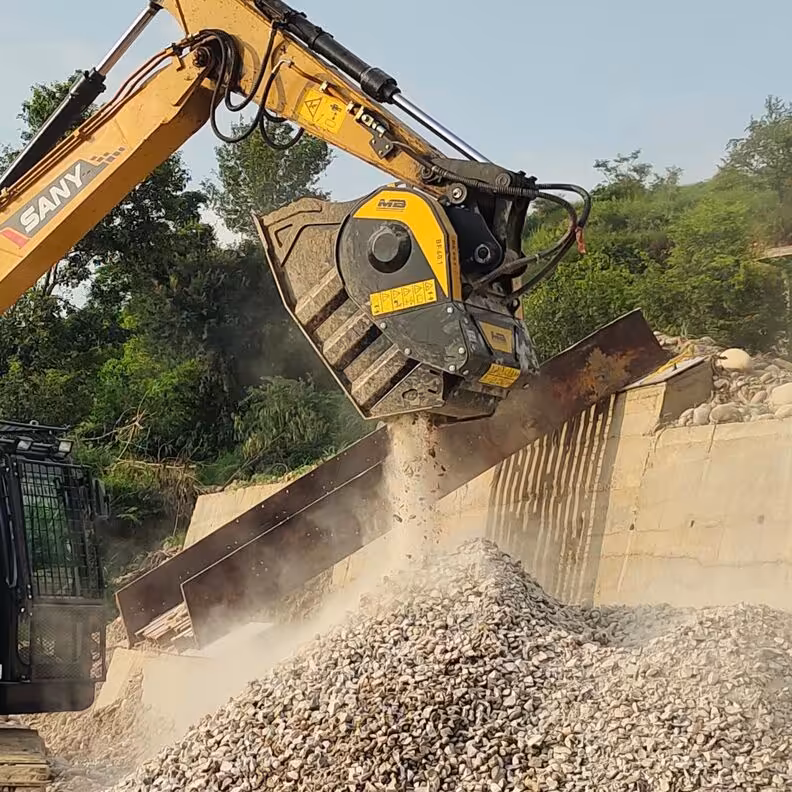

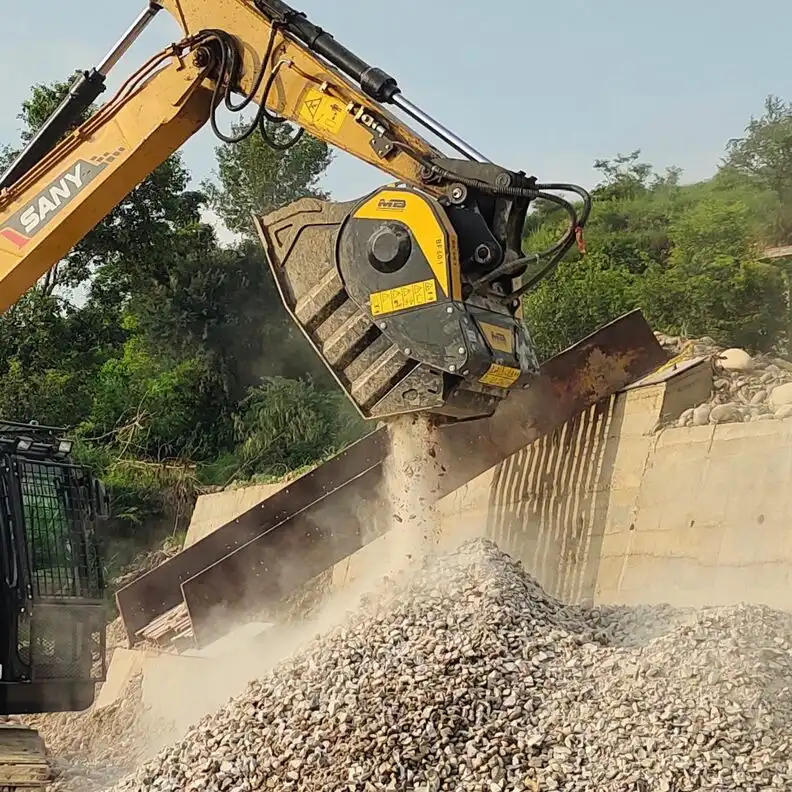

What is a bucket crusher?

A bucket crusher is a jaw-style crusher mounted on an excavator arm. It processes demolition debris such as concrete and brick into reusable material directly on site.

Benefits include:

1. Reduced transport and tipping costs.
2. Immediate reuse of aggregate for backfill or subbase.
3. Compact design allows use in confined urban sites.

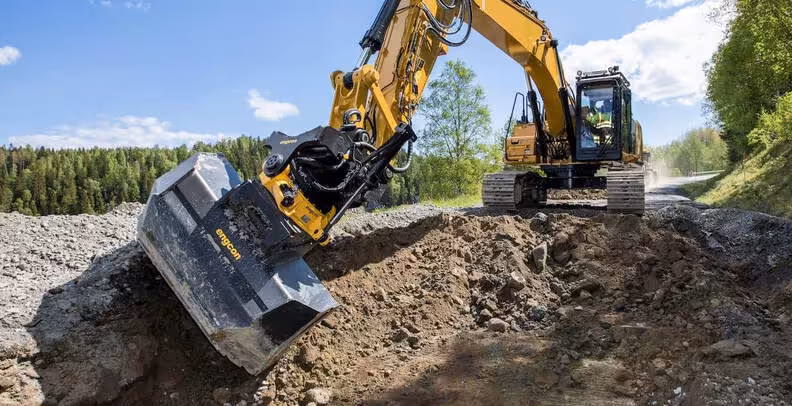

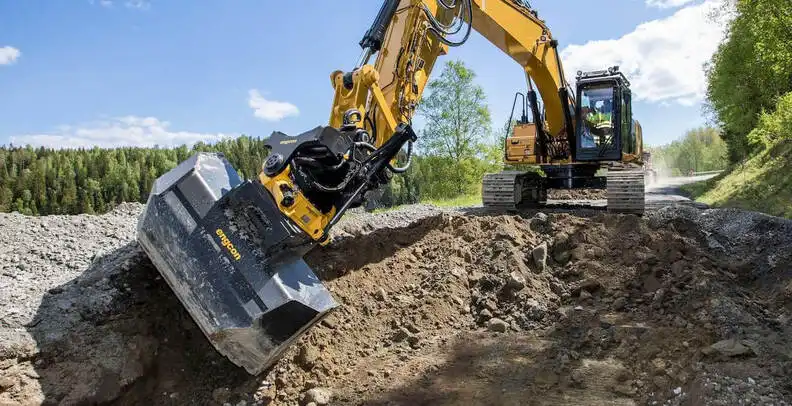

Tiltrotators and precision excavation

A tiltrotator is an advanced attachment interface that allows 360° rotation and tilting of the connected tool, typically a bucket or grapple. It acts like a wrist joint between the arm and the attachment, allowing the operator to dig, grade, or lift at virtually any angle.

This is especially useful for:

• Landscaping and slope work.
• Digging around obstacles.
• Fine grading in confined areas.

Paired with machines like the Cat 303E or Komatsu mini-excavators, tiltrotators significantly reduce repositioning time. Brands like Steelwrist and Engcon offer tiltrotators with integrated control systems and quick couplers.

Excavator quick coupler types and fast tool changes

Quick couplers allow operators to switch attachments in seconds, sometimes without leaving the cab. There are three main types of excavator quick couplers, differing mainly in how much operator involvement they require:

• Manual couplers: Require manual pin removal and insertion.
• Hydraulic couplers: Controlled from the cab, using the excavator's hydraulics.
• Fully hydraulic systems: Connect hydraulic lines automatically (e.g., OilQuick, Steelwrist), supporting tools like hammers or augers with live connections.

For instance, the Cat 428 may use a hydraulic coupler to switch between a grading bucket and an auger in minutes. The bucket connection type used by a coupler system (pin-and-latch, wedge, or hydraulic lock) determines how quickly and securely a bucket can be swapped without leaving the cab.

How do you choose the right attachment for your job?

1. Define the task: Excavation, demolition, handling, or finishing?
2. Match hydraulic specs: Flow rate, pressure, and coupler compatibility.
3. Assess ground conditions: Rock, clay, vegetation, or debris?
4. Factor in machine limits: Operating weight, reach, and lifting capacity.
5. Evaluate safety and efficiency: For frequent changes, a quick coupler or tiltrotator may offer better long-term value.

How much maintenance do excavator attachments require?

Routine maintenance is essential for longevity and safety:

• Buckets: Inspect wear plates and teeth regularly.
• Hydraulic tools: Check seals, hoses, and accumulators for leaks or wear.
• Quick couplers: Confirm proper locking function; lubricate moving parts.
• Drum cutters and crushers: Monitor blade or jaw condition and torque specs.

Scheduling inspections at service intervals (e.g., 250 hours for hammers or mulchers) helps avoid downtime.

By understanding the technical demands of each tool, operators can maximize productivity and reduce wear on their equipment.

FAQ

What are excavator attachments also called?

They're commonly referred to as excavator tools, and an excavator itself is sometimes called a digger, particularly in British English. All three terms describe the same category of equipment and add-on tools.

What are the main types of excavator buckets?

Digging buckets for general excavation, trenching buckets for narrow utility trenches, grading buckets for leveling and finishing, and rock buckets for dense material and broken concrete. The right choice depends on ground condition and the machine's breakout force.

What are the types of excavator quick couplers?

Manual couplers requiring pin removal by hand, hydraulic couplers operated from the cab, and fully hydraulic systems that connect hydraulic lines automatically, supporting live-connected tools like hammers or augers without leaving the cab.

What counts as an excavator lifting attachment?

Thumbs and grapples are the main lifting attachments, used for picking and placing irregular loads like logs, rocks, or scrap rather than digging. Sorting grapples and orange-peel grapples are common variants for debris handling and demolition waste.

How often should excavator attachments be serviced?

Service intervals vary by tool, hydraulic attachments like hammers and mulchers are commonly inspected around every 250 hours, while buckets need regular checks on wear plates and teeth, and quick couplers need locking function confirmed and moving parts lubricated.
