Bobcat S510: specs, performance, and expert insights

At every job site, there's always that one machine everyone counts on. For many contractors, that machine is the Bobcat S510.

What makes it stand out isn't just the size, it's the way it combines strength and simplicity. Operators love how easy it is to handle, and crews trust it because it keeps running day after day with very little fuss.

Over the years, we've seen the S510 on all kinds of projects: building sites, landscaping jobs, utility work in busy city streets. Everywhere it goes, it proves the same point, it's a compact loader built to handle big responsibilities.

What are the Bobcat S510 specs?

The Bobcat S510 specs give a clear picture of its role as a mid-range skid steer loader. Below is a detailed breakdown of its main specifications:

• Operating weight: 2,816 kg
• Shipping weight: 2,431 kg
• Rated operating capacity (ISO 14397-1): 851 kg
• Tipping load (ISO 14397-1): 1,703 kg
• Engine: Bobcat 2.4L diesel, Stage V compliant
• Power (ISO 14396): 41 kW (55 HP approx.) at 2,600 RPM
• Torque: 204 Nm at 1,800 RPM
• Fuel tank: 93.7 L
• Pump capacity: 64.7 L/min (101.1 L/min with high flow option)
• Travel speed: 11.8 km/h (low) to 17.3 km/h (high range option)
• Hydraulic relief pressure: 23.8 to 24.5 MPa

Dimensions:

• Overall length with bucket: 3,787 mm
• Width over tires: 1,727 mm
• Height to cab: 2,032 mm
• Height to bucket hinge pin: 2,908 mm

How much does the Bobcat S510 weigh?

Contractors often ask about Bobcat S510 weight because it determines transportation requirements and stability in operation.

• Operating weight: 2,816 kg
• Shipping weight: 2,431 kg

This places the S510 in the mid-weight skid steer category. It can be transported on a standard equipment trailer without requiring oversized permits, making it easier for rental fleets and small contractors to move between job sites.

How many horsepower does a Bobcat S510 have?

The Bobcat S510 HP rating comes from its 2.4L diesel engine, producing 41 kW / 55 HP at 2,600 RPM.

While not the most powerful in Bobcat's lineup, this output is sufficient for everyday applications such as:

• Loading gravel or soil
• Light excavation and trench backfilling
• Pallet handling with forks
• Landscaping tasks

The torque delivery of 204 Nm at 1,800 RPM also helps maintain consistent hydraulic performance during lifting and grading.

Bobcat S510 lift capacity

One of the most important measures for buyers is lift performance. The Bobcat S510 lift capacity is defined by:

• Rated operating capacity: 851 kg
• Tipping load: 1,703 kg

This makes it suitable for lifting pallets of bricks, concrete bags, or transporting materials in small batches. However, when compared with larger models like the Bobcat S650, the S510 falls short in heavy lifting. The trade-off is its smaller size and maneuverability.

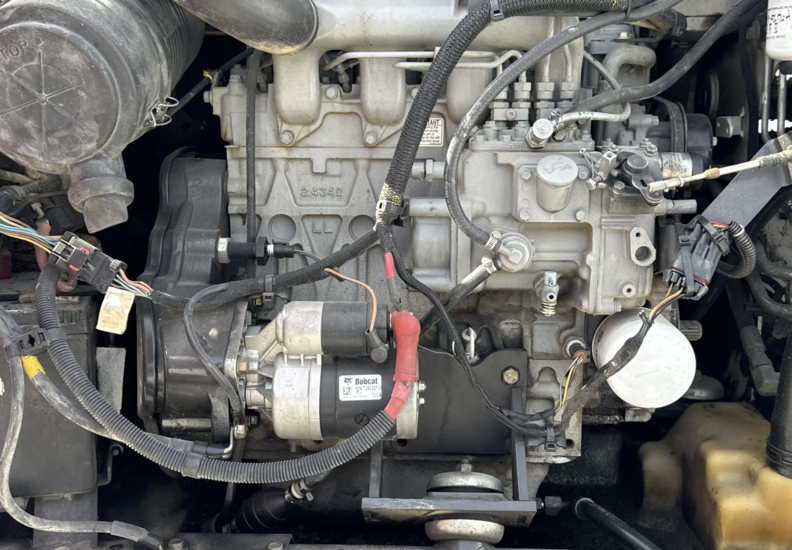

What engine does the Bobcat S510 use, and does it differ by model year?

The Bobcat S510 engine is a 2.4L diesel, liquid-cooled, four-cylinder unit. It complies with Stage V emissions standards in Europe and features:

• High-pressure common-rail fuel injection
• Diesel oxidation catalyst (DOC)
• Diesel particulate filter (DPF)

The engine setup actually changed partway through the model's production run, which matters if you're comparing specs across different years:

• Earlier units (generally through 2020): used a Kubota V2403 engine rated at 49 HP, Stage IV Interim emissions compliant.
• 2021-onward units: upgraded to Bobcat's own 2.4L engine platform (the 41 kW / 55 HP spec detailed above), with improved emission control to meet Stage V.

If you're looking at a specific year, like a 2015 or 2016 S510, expect the Kubota-powered specs (49 HP) rather than the newer Bobcat engine figures, the power rating, emissions compliance, and some maintenance parts will differ from a 2021+ unit.

This engine is valued for its fuel efficiency and relatively straightforward maintenance, though DPF regeneration cycles require careful monitoring on the newer Stage V units.

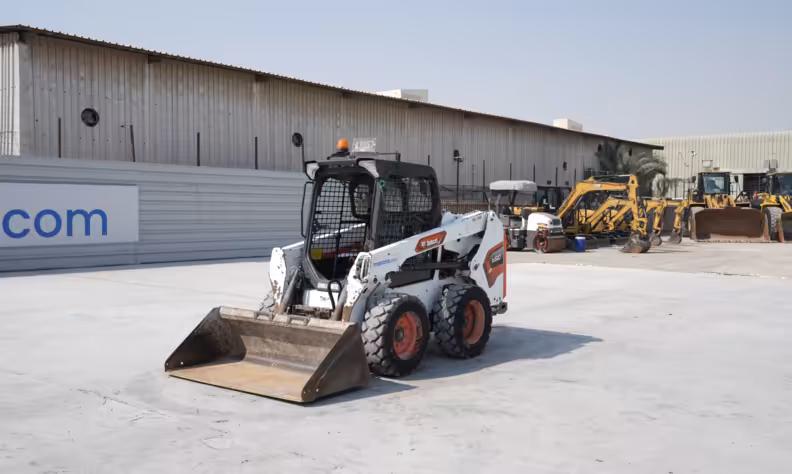

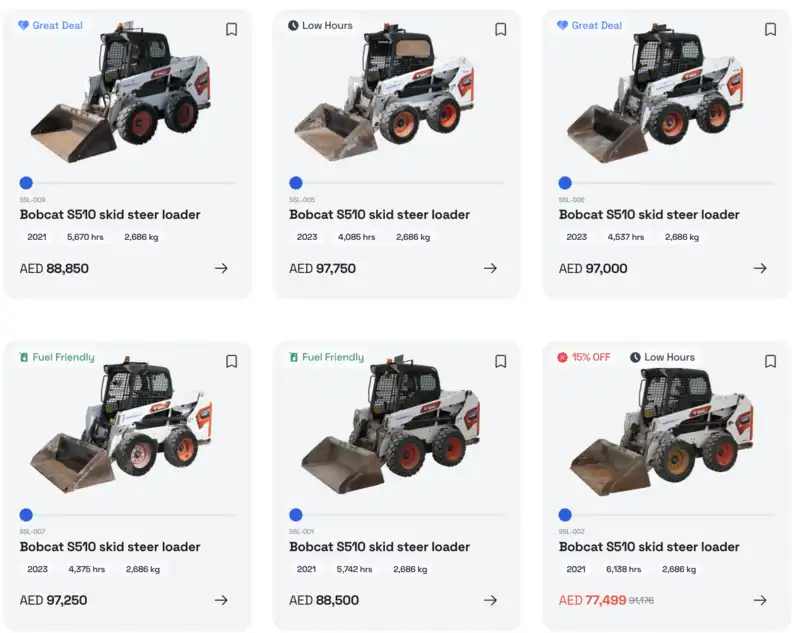

Bobcat S510 for sale: Makana UAE stock

For contractors searching for a Bobcat S510 for sale, Makana currently has six units available in the UAE, all low hour, ready for immediate use or export worldwide.

How does the Bobcat S510 perform in real jobs?

The Bobcat S510 is commonly used in:

• Residential construction for grading driveways and moving fill material.
• Landscaping for loading soil, mulch, and stone.
• Utility work where compact size and maneuverability are essential.
• Light excavation tasks in tight urban areas.

With a travel speed of 11.8 km/h (17.3 km/h optional high range), it moves quickly around small sites. Hydraulic responsiveness is good, though high-demand attachments like hydraulic breakers or planers may push the limits of the standard-flow system.

Attachments for the Bobcat S510

One of the biggest advantages of skid steer loaders is versatility. The S510 supports a wide range of Bobcat attachments, including:

• Buckets: general purpose, low profile, or combination.
• Pallet forks.
• Augers and trenchers.
• Breakers for concrete demolition.
• Landscape rakes and soil conditioners.
• Snow pushers and snow V-blades.
• Sweepers and brooms.

The optional high-flow hydraulics upgrade significantly improves performance with demanding attachments such as planers and flail cutters.

Common Bobcat S510 problems

No machine is without trade-offs, and buyers researching this model deserve a straight answer, not just a marketing gloss. Based on field reports and our own inspections, the most commonly reported issues are:

• Cab noise at higher throttle: operators consistently note the S510 runs louder than some competitors when working at high RPM for extended periods, worth factoring in for operators doing long shifts.
• Average cab ergonomics: the seat and control layout are functional but not class-leading, if you're comparing against a Cat 216D3, expect a noticeably more refined cab on the Cat.
• Limited telematics: the S510's onboard diagnostics and remote monitoring options are more basic than some rivals, which matters more for fleet operators managing many machines remotely than for a single-machine owner-operator.
• DPF regeneration monitoring (2021+ units): the newer Stage V engine's diesel particulate filter needs active monitoring, neglecting regeneration cycles is a common cause of performance complaints on later units.

None of these are dealbreakers on their own, but they're the specific points worth checking or asking about on a used unit, especially cab hours and any DPF-related fault history.

How does the Bobcat S510 compare with competitors?

When placed against similar loaders, the S510 shows a clear role in the market.

• Cat 216D3: comparable lift capacity but offers more refined cab comfort and electronics.
• John Deere 318G: slightly higher horsepower but larger footprint, making it less agile in tight spaces.
• Bobcat S590/S650: provide higher lift and power, but cost more to operate and transport.

The S510 remains a practical balance between performance, cost, and mobility.

Expert review insights

Based on field testing and the makana.com expert review section, here are summarized findings:

Pros

• Reliable power output with minimal downtime.
• Excellent maneuverability in confined spaces.
• Straightforward maintenance access.

Cons

• Noisy at higher throttle.
• Cab ergonomics are average.
• Limited advanced telematics compared to competitors.

For buyers needing a mid-range loader without unnecessary complexity, the S510 performs well.

Is the Bobcat S510 a good investment?

The answer depends on project type and fleet needs. For contractors handling urban or mid-scale projects, the Bobcat S510 for sale offers a good balance of:

1. Reasonable lift capacity for common material handling.
2. Transportability without oversized permits.
3. Reliable performance with routine maintenance.
4. Access to a wide range of attachments for seasonal or job-specific versatility.

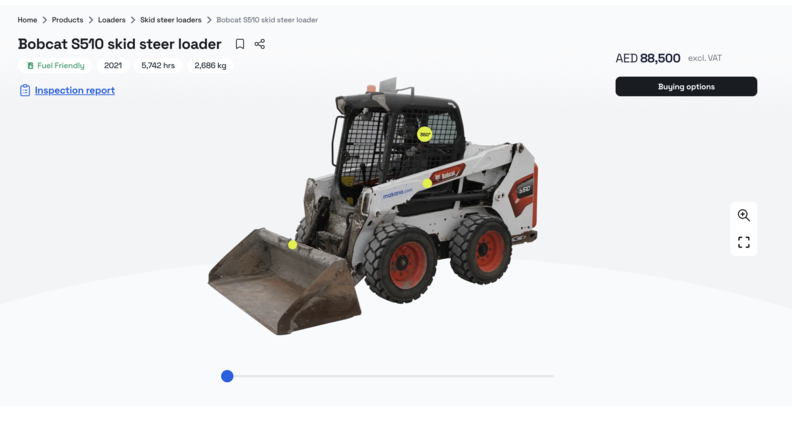

For buyers on makana.com, the advantage lies in pairing these features with inspection reports and virtual tours, ensuring machines are evaluated thoroughly before purchase.

Frequently asked questions

How much does a Bobcat S510 weigh?

The Bobcat S510 has an operating weight of 2,816 kg and a shipping weight of 2,431 kg, placing it in the mid-weight skid steer category, transportable on a standard trailer without oversized permits.

What is the lift capacity of a Bobcat S510?

Its rated operating capacity is 851 kg, with a tipping load of 1,703 kg under ISO 14397-1 testing.

Do 2015 and 2016 Bobcat S510 specs differ from newer models?

Yes. Units through roughly 2020 used a Kubota V2403 engine rated at 49 HP (Stage IV Interim emissions), while 2021-onward units switched to Bobcat's own 2.4L engine platform rated at 55 HP with Stage V emissions compliance. If you're checking specs for a specific model year, confirm which engine generation that unit actually has.

What are the most common Bobcat S510 problems?

The most frequently reported issues are cab noise at higher throttle, average cab ergonomics compared to competitors like the Cat 216D3, more limited telematics than some rivals, and on 2021+ units, the need to actively monitor DPF regeneration cycles on the Stage V engine.

Conclusion

The Bobcat S510 is not the largest or most powerful skid steer, but it remains one of the most practical in Bobcat's lineup. Its balance of lift capacity, compact size, and mechanical reliability makes it suitable for construction crews, landscapers, and rental companies.
