5 Types of undercarriages for heavy machines

When most people think about heavy equipment, they picture the big stuff, the bucket on an excavator, the blade on a dozer, or the sheer size of a crawler loader. But the part that actually keeps all that muscle moving? That's the undercarriage, sometimes written as under-carriage or under carriage.

It holds up the entire machine, keeps it stable, and lets you tackle everything from muddy job sites to rocky terrain. And if you don't have the right undercarriage for the job, you're asking for trouble, downtime, wear and tear, and way too many repairs.

In this article, we're diving into what makes tracked undercarriages so important, their individual components, the different types, and how to choose the best one for your work.

What is an undercarriage in heavy machinery?

An undercarriage is the lower section of tracked machines like bulldozers, crawlers, and excavators, designed to support weight and enable movement. There are multiple undercarriage configurations depending on the application, such as standard, heavy-duty, high-track, or variable gauge systems.

Undercarriage components explained

Before comparing the five main types, it helps to know what's actually inside a tracked undercarriage system:

• Track frame: the structural base that carries the machine's weight and connects all other undercarriage components together.
• Track chains: the linked steel chain that the track shoes bolt onto, forming the continuous loop the machine rides on.
• Track shoes: the individual metal plates bolted to the chain that make direct contact with the ground and provide traction.
• Rollers (top and bottom): guide the track chain along the frame, with bottom rollers bearing most of the machine's weight and top rollers supporting the upper track run.
• Idlers: located at the front (and sometimes rear) of the track frame, they guide the track and help maintain proper tension.
• Sprockets: driven by the final drive, sprockets engage the track chain links to actually propel the machine forward or backward.
• Track tensioning system: keeps the correct amount of slack in the track, too tight or too loose both accelerate wear on every other component.

Each of these parts wears at a different rate, which is exactly why undercarriage inspection (covered later in this article) checks them individually rather than just glancing at the tracks as a whole.

What are the main types of undercarriages?

There are five primary types of tracked undercarriages commonly used in modern heavy machines:

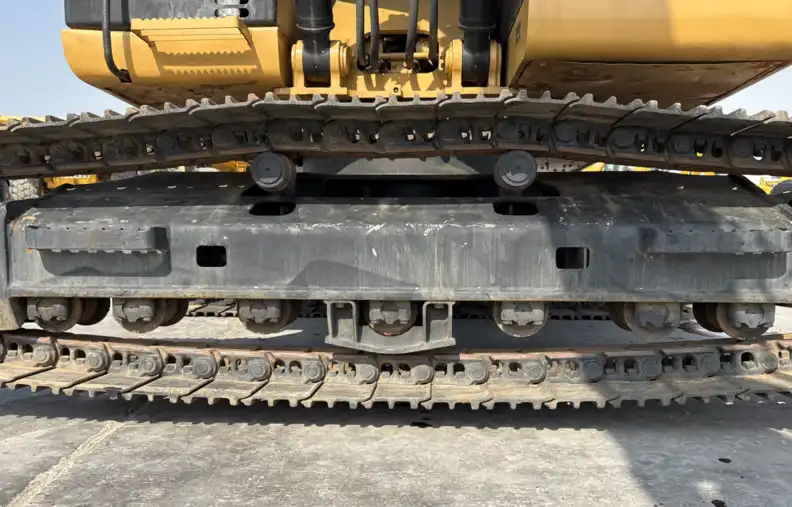

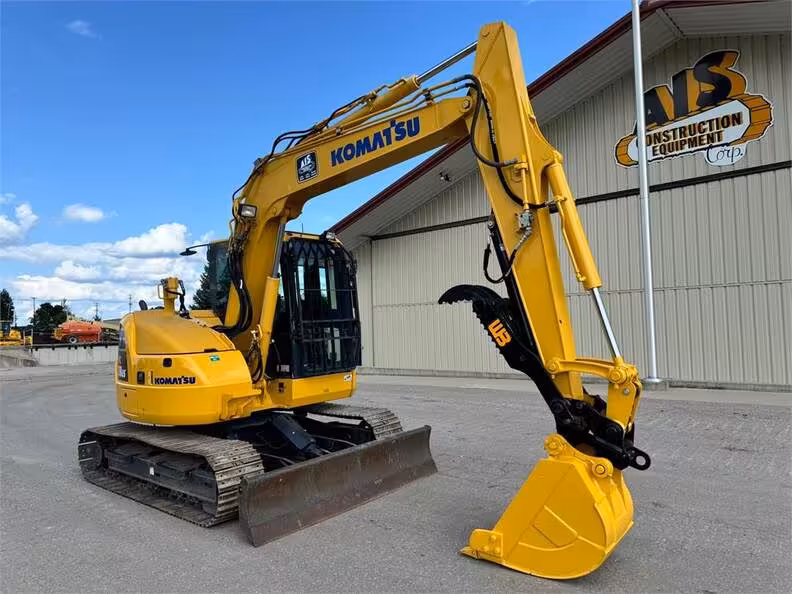

1. Standard undercarriage (rigid frame)

This is the most common undercarriage system used in general construction equipment like medium-duty excavators and bulldozers.

Best for: General-purpose excavation, trenching, earthmoving.

Used in models like: Cat 320, Komatsu PC200-8.

Advantages:

• Lower cost of ownership.
• Easy maintenance.
• Widely available spare parts.

Limitations:

• Not ideal for uneven terrain.
• Limited ground clearance.

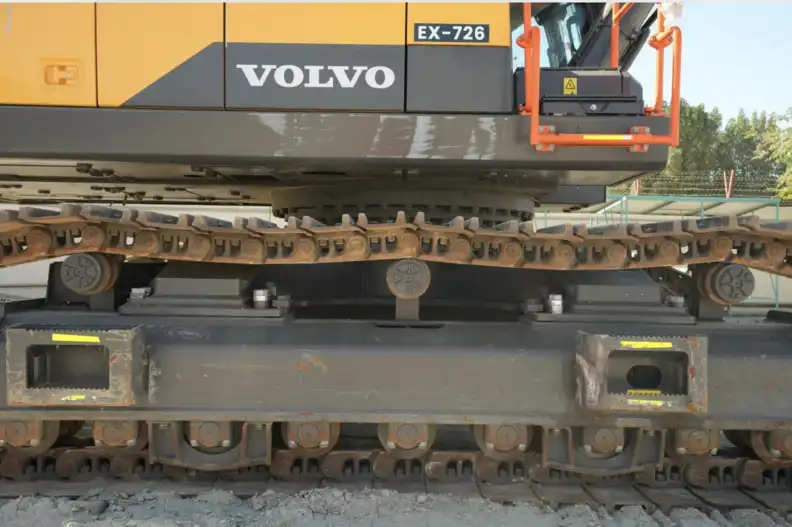

2. Heavy-duty undercarriage

Heavy-duty undercarriages are reinforced to handle extreme loads, impact, and wear in demanding applications like quarrying or demolition.

Best for: Mining, quarry work, demolition, forestry.

Used in models like: Cat 349D3, Volvo EC950F.

Advantages:

• Thicker track shoes.
• Sealed and lubricated rollers.
• Extended durability under high impact.

Limitations:

• Heavier and more expensive.
• Increased fuel consumption.

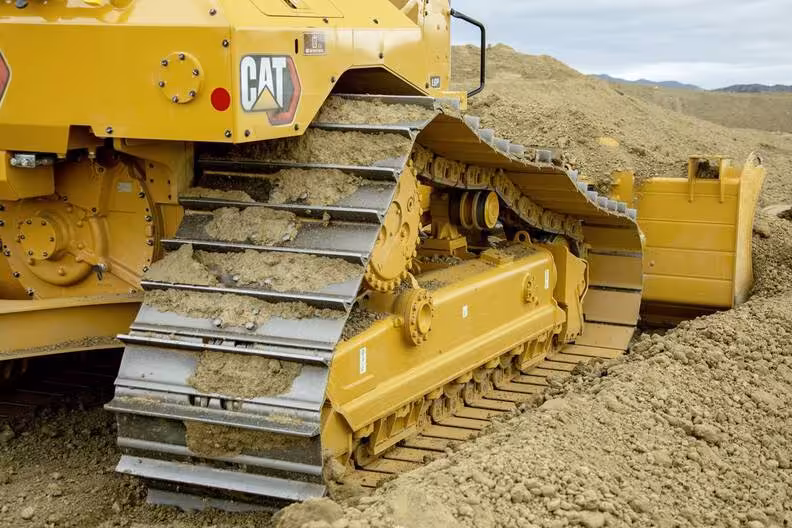

3. High-track undercarriage

This configuration uses elevated drive sprockets, separating the final drive from ground shock. It is most notable on Caterpillar bulldozers like the Cat D8T.

Best for: Dozing in rocky or abrasive conditions.

Used in models like: Cat D6T, D7R, D8T.

Advantages:

• Reduced drivetrain wear.
• Easier maintenance of final drives.
• Superior balance and traction.

Limitations:

• More complex and costly.
• Limited to specific OEMs (mainly Caterpillar).

4. Variable gauge undercarriage (expandable tracks)

This system allows the track width to expand or retract, improving transportability or stability depending on the job.

Best for: Urban construction, utility work.

Used in models like: Komatsu PC78US-10, Hitachi ZX75.

Advantages:

• Narrow transport width.
• Increased on-site stability.
• Flexibility in tight spaces.

Limitations:

• More moving parts to maintain.
• Not ideal for high-load operations.

5. Retractable undercarriage (mini excavators)

This compact system allows mini excavators to shrink their footprint for navigating doorways or narrow access points.

Best for: Indoor projects, landscaping.

Used in models like: Cat 303E CR, Bobcat E35.

Advantages:

• Compact transport.
• Easy access to confined areas.
• Simple maintenance.

Limitations:

• Lower stability.
• Limited load capacity.

How to choose the right undercarriage for your machine?

Choosing the right undercarriage involves a thorough assessment of your operating environment, machine type, and job demands.

Consider the following:

1. Terrain type (mud, rock, sand, urban streets).
2. Application load (demolition vs. light grading).
3. Frequency of use (occasional vs. continuous operation).
4. Transport requirements (narrow gates or urban mobility).
5. Cost of parts and servicing.

If your project involves high-impact work, opt for a heavy-duty undercarriage. For flexible job sites, a variable gauge or retractable track system may serve better.

How does undercarriage type affect total cost of ownership?

The undercarriage accounts for up to 50% of the maintenance cost of tracked heavy equipment over its lifespan. Here's how different configurations impact your TCO:

Understanding these cost drivers helps you make informed decisions based on lifecycle economics, not just upfront price.

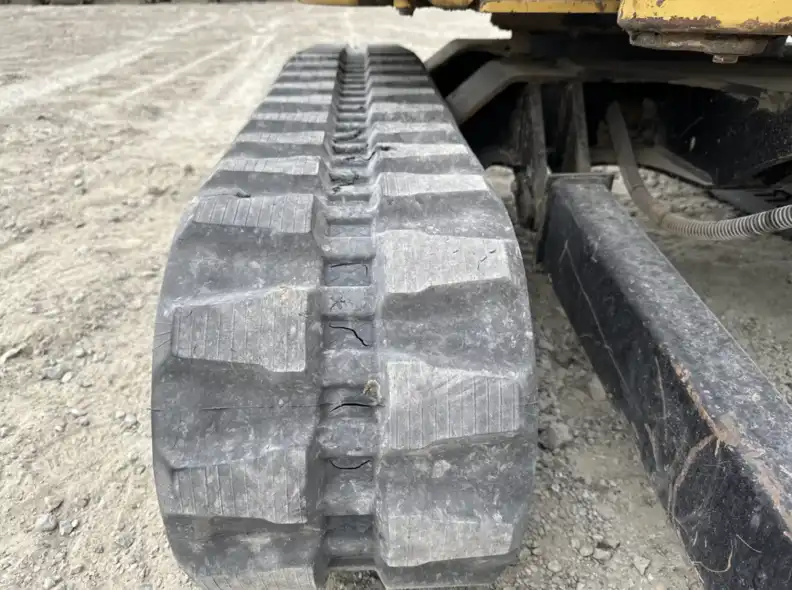

What are the signs of undercarriage wear?

Premature wear is common in misused or improperly maintained undercarriage systems. Regular inspection helps prevent costly breakdowns.

Watch for:

• Uneven track shoe wear.
• Loose or misaligned rollers.
• Leaking seals in idlers.
• Excess slack or tightness in tracks.
• Cracked sprockets.

Makana.com inspection reports include over 75+ checkpoints on key components like rollers, sprockets, and track shoes to ensure buyers have full transparency before purchasing.

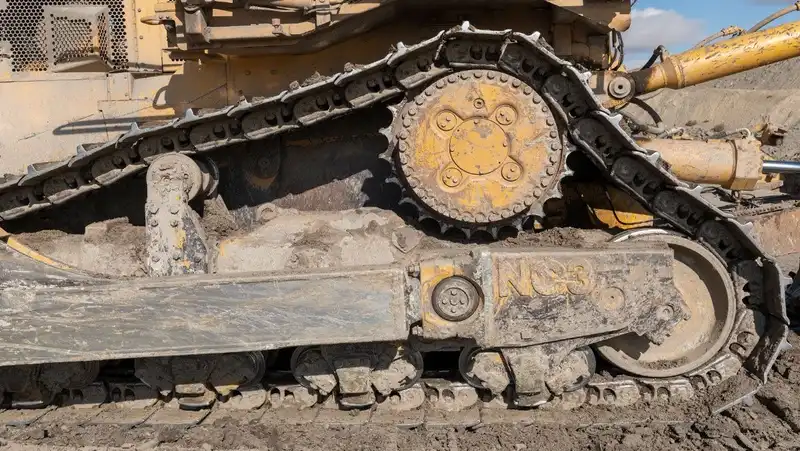

What machines use high-track undercarriages?

Only select models incorporate the high-track configuration, primarily seen in Caterpillar bulldozers.

Examples:

• Cat D6T: balanced power-to-weight ratio for finish grading.
• Cat D8T: high productivity in mining and site prep.
• Cat D11: massive push capacity, ideal for mine sites.

The elevated sprockets isolate drive motors from shock and debris, increasing lifespan in harsh conditions.

How to inspect a used undercarriage before buying?

When evaluating a used heavy machine, thoroughly inspect the undercarriage using this checklist:

1. Measure track shoe height: compare against OEM minimum specs.
2. Check link wear: look for elongation or stretching.
3. Inspect roller condition: check for flat spots or oil leaks.
4. Examine sprocket teeth: worn tips indicate slippage.
5. Check for frame cracks: especially around welds or tensioners.

On makana.com, listings like the Cat 323D3, Volvo EC550EL, and Komatsu WA470 come with detailed inspection reports, photos, and videos of the undercarriage.

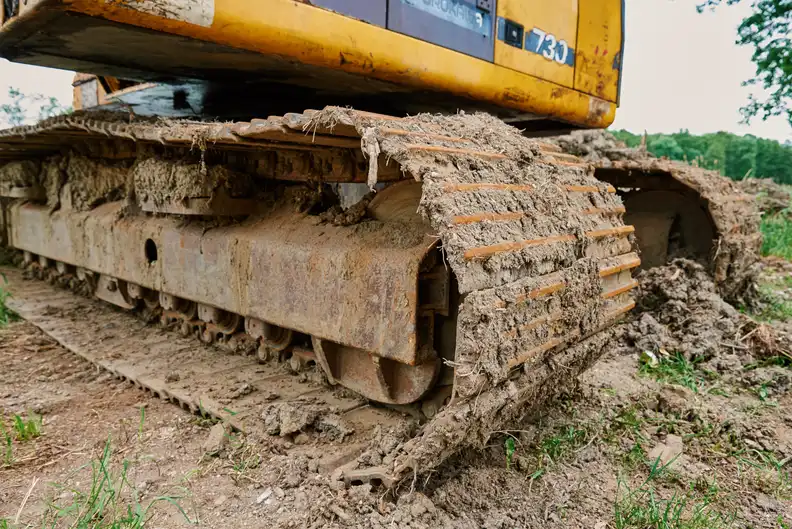

How to extend the life of your machine's undercarriage?

To get the most out of your track system, follow these expert maintenance practices:

• Keep tracks clean: remove mud and rocks daily.
• Maintain proper tension: not too tight or loose.
• Rotate pins and bushings: schedule based on OEM wear limits.
• Inspect daily: especially after working on abrasive or rocky ground.
• Avoid excessive turning: minimizes side wear on shoes and rollers.

Many OEMs like Caterpillar and Komatsu offer undercarriage wear calculators to help schedule proactive maintenance.

On makana.com, you'll find detailed product listings with certified inspection reports covering every major undercarriage component, empowering you to make confident buying decisions backed by transparency and expert insight.

Frequently asked questions

What are the main components of an undercarriage?

The track frame, track chains, track shoes, top and bottom rollers, idlers, sprockets, and the track tensioning system. Each wears at a different rate, which is why a proper inspection checks them individually rather than assessing the undercarriage as a whole.

What is a tracked undercarriage?

A tracked undercarriage is the system of connected track shoes, rollers, and sprockets that lets machines like excavators, bulldozers, and crawlers move on continuous tracks instead of wheels, providing better traction and stability on soft, uneven, or rocky ground.

How much does the undercarriage cost to maintain?

The undercarriage can account for up to 50% of a tracked machine's total maintenance cost over its lifespan, making it one of the most important cost factors to evaluate before buying.

Do bulldozers and excavators use the same undercarriage types?

They share the same core component types (track frame, rollers, sprockets, and so on), but the specific configuration differs by machine and application, high-track undercarriages, for example, are mainly used on Caterpillar bulldozers, while standard and heavy-duty configurations are common across both excavators and dozers.

Conclusion

Understanding undercarriage types, their components, and how they affect total cost of ownership helps you choose the right machine for your terrain and workload, and avoid costly surprises when buying used equipment.
