Asphalt compaction rollers: single drum vs. tandem vs. pneumatic (and combi)

Compaction is one of the most important stages in road construction. It's what gives the asphalt its strength, density, and durability. The challenge for contractors isn't only to achieve the required density, it's choosing the right roller for the job.

There are four main roller types used in asphalt projects today: single drum rollers, tandem (steel drum) rollers, pneumatic (tyre) rollers, and combi rollers that combine both drum types in one machine.

Each performs differently, and selecting the wrong one can lead to weak spots, premature cracking, or uneven surfaces. So which roller type should you really choose?

What does asphalt compaction really require?

Before comparing roller types, it's essential to understand what asphalt compaction aims to achieve. The goal is to remove air voids and bond the aggregate particles tightly together, improving load-bearing capacity and minimizing deformation under traffic.

A good compaction job balances several key parameters:

• Static weight: The downward force the roller applies to the surface.
• Amplitude: The height of the drum's vibration (high amplitude is ideal for deep compaction).
• Frequency: How fast the drum vibrates per second (typically between 50-70 Hz).
• Rolling speed: Usually between 3-5 km/h for optimal coverage.

When any of these parameters are off, especially vibration or temperature, compaction suffers. That's why the choice between single drum, tandem, pneumatic, and combi rollers directly affects the final pavement quality.

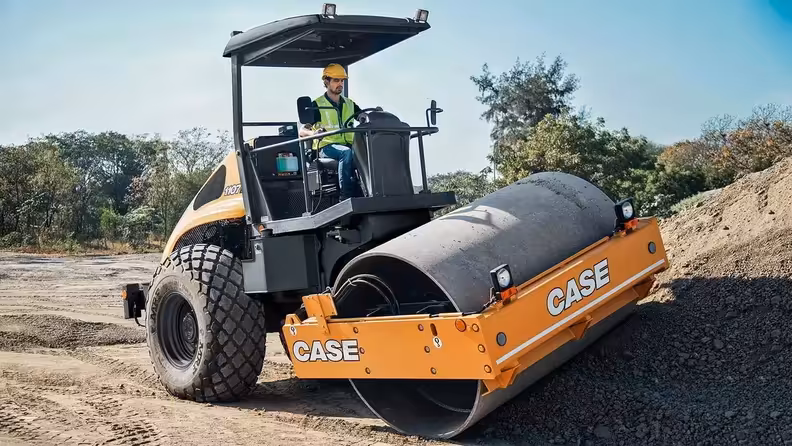

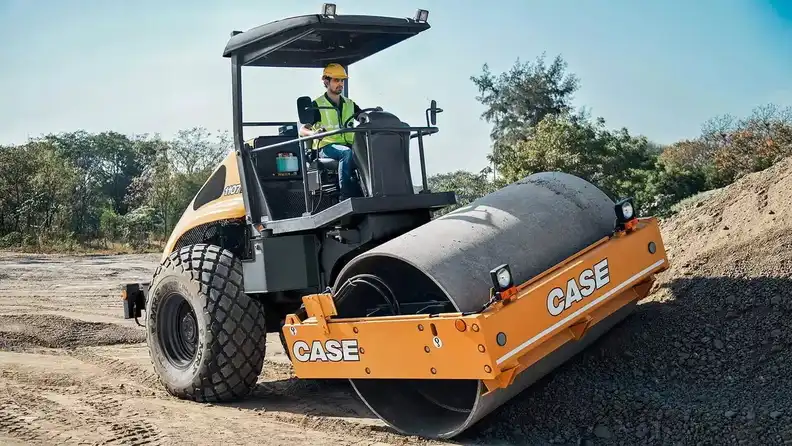

What is a single drum roller?

A single drum roller (also called a padfoot or smooth drum compactor) features one large steel drum at the front and two rubber tires at the back. This configuration makes it highly effective for deep compaction in soil, gravel, and sub-base layers before asphalt is even laid.

How the single drum roller works

The roller's heavy front drum delivers static pressure and vibration simultaneously, allowing it to penetrate several layers deep. The rear tires stabilize the machine and help with traction, especially on uneven ground.

Best applications of single drum roller

• Subgrade and sub-base compaction.
• Gravel roads and foundations.
• Embankments and backfills.
• Large infrastructure sites before paving.

Advantages of single drum roller

• High compaction force and depth.
• Effective on coarse or rocky materials.
• Good mobility on slopes and soft soils.
• Simpler vibration system, reducing maintenance.

Limitations

• Not suitable for asphalt finishing.
• Can leave drum marks on surface layers.
• Produces rough textures on thin asphalt courses.

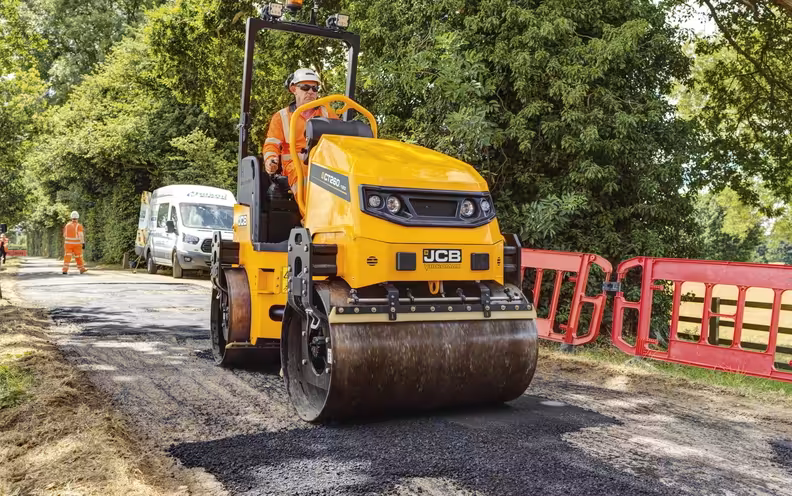

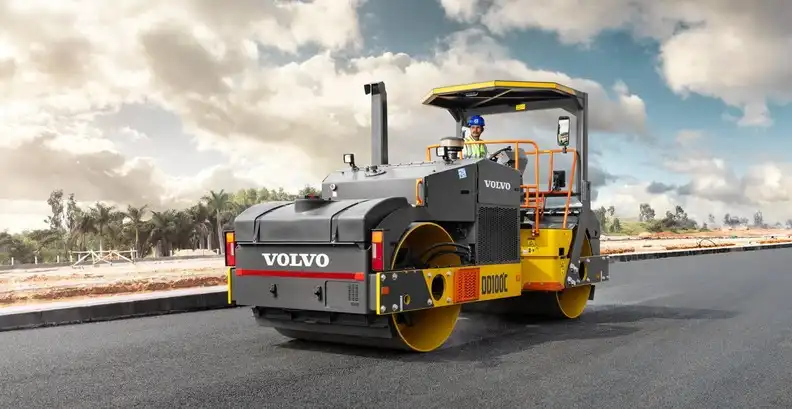

What is a tandem roller?

A tandem roller, often called a double drum or tandem steel roller, uses two steel drums, front and rear, that vibrate together or independently to compact the asphalt. The vibration is what allows the roller to achieve a dense, smooth surface finish, which is crucial for modern roads and highways.

How the tandem roller works

Both drums rotate in the same direction, evenly distributing pressure across the asphalt layer. A built-in water sprinkling system prevents asphalt from sticking to the drum surface, maintaining a clean finish.

Typical specifications of tandem roller

• Drum width: 1-1.2 m (ideal for compact or mid-size rollers).
• Frequency: Around 55-70 Hz.
• Amplitude: 0.4-0.6 mm for finishing courses.
• Operating weight: 2-10 tons depending on model.

Best applications for tandem roller

• Asphalt surface layers (binder and wearing courses).
• City streets and residential areas.
• Parking lots and bike paths.
• Tight spaces where maneuverability matters.

Advantages of tandem roller

• Produces perfectly smooth, uniform finish.
• Ideal for thin asphalt layers.
• Compact size suitable for confined urban jobs.
• Efficient vibration control systems.

Limitations of tandem roller

• Limited compaction depth.
• Not suitable for coarse or unbound materials.

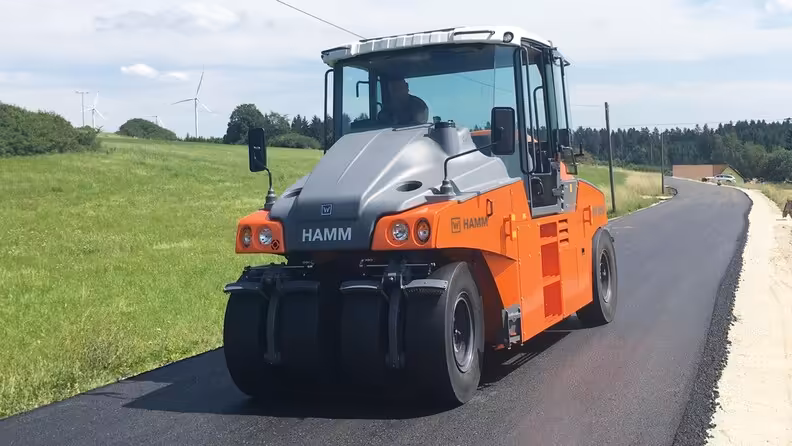

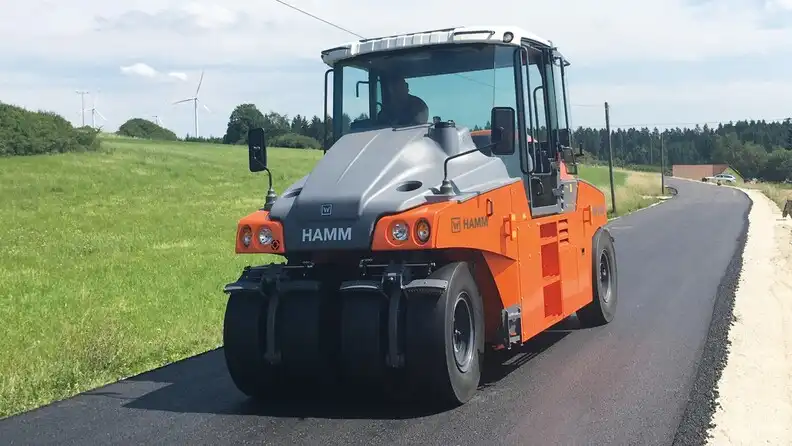

What about pneumatic (tyre) rollers?

Unlike steel drum rollers, pneumatic rollers, also called tyre rollers, use several rubber tires instead of metal drums. These tires overlap and flex under pressure, creating a "kneading" effect that gently rearranges asphalt particles rather than crushing them.

How pneumatic rollers work

Each tire applies pressure individually, conforming to surface irregularities. The overlapping footprint ensures uniform compaction without vibration. Tire pressure can be adjusted depending on the material density needed.

Typical specifications of pneumatic rollers

• Operating weight: 10-25 tons.
• Tire configuration: Usually 7-9 tires.
• Tire pressure: 350-700 kPa adjustable.

Best applications of pneumatic rollers

• Intermediate layers of asphalt.
• Surface sealing and finishing passes.
• Airfield runways and high-traffic roads.

Advantages of pneumatic rollers

• Provides dense, sealed surfaces.
• Smooths out minor roller marks.
• Reduces permeability and increases surface durability.
• Ideal for variable asphalt mixes.

Limitations of pneumatic rollers

• Not suited for rough terrain or base compaction.
• Requires tire maintenance and careful pressure control.

Pneumatic rollers are often used after a tandem roller to "seal" the layer, locking in aggregate and minimizing micro-voids, a critical step for heavy-duty pavements.

What is a combi roller (steel drum + pneumatic tires)?

A combi roller combines a single steel drum at the front with a set of pneumatic tires at the rear, on one machine, rather than requiring two separate rollers. This gives it a dual compaction action: the vibrating steel drum handles the initial density-building pass, while the rear tires provide the kneading, sealing effect normally associated with a dedicated pneumatic roller.

Best applications of combi rollers

• Mid-size asphalt projects where using two separate rollers isn't practical.
• Contractors who need both initial compaction and surface sealing without switching machines.
• Smaller crews or job sites with limited equipment budgets.

Advantages of combi rollers

• One machine covers two compaction functions, reducing equipment costs.
• Faster job setup since only one roller needs to be mobilized.
• Flexible for projects that don't justify a dedicated pneumatic roller.

Limitations of combi rollers

• Doesn't match a dedicated pneumatic roller's sealing performance on large, high-traffic projects.
• Less specialized than running a single drum and tandem or pneumatic roller separately for very large jobs.

Single drum vs tandem vs pneumatic vs combi: what's the real difference?

Here's how the four types stack up against each other:

How to choose the right roller for your asphalt project?

Choosing the correct compactor depends on the project's layer, mix, and specifications. Here's a structured approach:

1. Define the layer type: Sub-base, binder, or wearing course.
2. Consider the material: Coarse aggregates require single drum rollers; fine asphalt needs tandem, pneumatic, or combi rollers.
3. Evaluate jobsite conditions: Narrow streets or small areas favor compact tandem rollers.
4. Check required density: Use project specs to match the roller's static load and frequency.
5. Inspect before buying: Always review the inspection report before buying, like those available on makana.com, to check for drum wear, hydraulic leaks, and vibration system health.

Recently, we've added three reliable tandem rollers to our fleet: the Bomag BW 120 AD-5, Hamm HD 12 VV, and JCB CT160-80, each ready for work and available for global delivery.

Explore compaction equipment on Makana

FAQ

What is the ideal temperature for asphalt compaction?

The asphalt mix should be compacted between 120°C and 150°C. Below this, the material stiffens, reducing density and bond strength.

Can tandem rollers be used for soil compaction?

They can handle very light soil work, but their low amplitude and smooth drums make them inefficient for deep or coarse material compaction.

How often should the vibration system of a roller be serviced?

Manufacturers recommend every 500-1,000 hours depending on the model. Always inspect bearings, hydraulic hoses, and frequency sensors.

Why use a pneumatic roller after a steel drum roller?

It helps seal the surface and remove micro-voids, improving density and waterproofing the asphalt layer.

What is a combi roller with a front steel drum and rear pneumatic tires?

It's a single compactor combining a vibrating steel drum at the front with rubber tires at the rear, giving one machine both initial compaction power and the sealing, kneading effect of a pneumatic roller, without needing two separate machines.

What factors most affect compaction quality?

Temperature, roller speed, layer thickness, and number of passes have the greatest influence on achieving target density.
