What to check before buying a used pallet stacker

A pallet stacker can look simple at first, but the wrong specs can limit how much weight it lifts, how high it reaches, and how safely it moves inside your warehouse. Lift height and load capacity are the two numbers buyers check first, but they should always be read with mast type, battery setup, machine size, and aisle width.

This article explains what to check before buying a pallet stacker, how lift height and load capacity affect real warehouse use, why a used pallet stacker can be the better option, and which Toyota pallet stackers are available on Makana.

Pallet stacker applications

A pallet stacker is mainly used for warehouse storage, pallet movement, and low-to-medium height stacking. It works best in indoor areas where forklifts may be too large and pallet trucks may not lift high enough.

Common pallet stacker applications include:

• Warehouse pallet stacking
• Stockroom replenishment
• Loading and unloading light pallet loads
• Moving pallets between storage zones
• Feeding production lines
• Retail backroom handling
• Distribution center storage
• Low-clearance indoor handling
• Narrow-aisle pallet movement

Pallet stackers vs forklifts

Compared with standard forklifts, pallet stackers are usually more compact, easier to move in tight indoor spaces, and better for lighter warehouse stacking. Pedestrian stackers are compact and often need less aisle width than reach trucks, which makes them useful in confined warehouse layouts.

A forklift is better for heavier loads, loading yards, outdoor travel, and wider warehouse work. A pallet stacker is better when the job is mainly indoor pallet lifting, short travel, and stacking in racking or storage lanes.

On Makana you can find forklifts for sale from brands like Komatsu, Toyota and Doosan, and pallet stackers for sale from famous brands like Toyota.

Specs to check before buying a pallet stacker

• Lift height and mast type: the first buying filter

Lift height decides whether the pallet stacker can reach the required rack level. If your top pallet position is above the lift range, the machine will not work for the storage system, even if its capacity looks correct.

Mast type matters because it affects both lift height and lowered mast height. A 2-stage mast with free lift is useful when the stacker must work under low ceilings, mezzanines, doorways, or container-type areas. This is why the mast should be checked with the warehouse height, not only with the brochure number.

• Load capacity and load center: what the numbers really mean

Load capacity tells you the maximum weight the stacker can lift, but the real safe load depends on pallet size, load center, lift height, and floor condition. A 1.6-ton stacker is not automatically better than a 1.4-ton stacker if the warehouse mainly moves lighter pallets over longer travel distances.

For example, Toyota Staxio SWE160 and Toyota Staxio SWE160L are 1.6-ton pallet stackers. Toyota Staxio SPE140 is a 1.4-ton model, but it adds a flip-down operator platform, which makes it more suitable for longer internal travel.

• Battery type and charger condition

Most warehouse pallet stackers are electric, so battery condition affects daily use. Buyers should check battery voltage, battery age, charger availability, charging time, and whether the current battery still supports the expected shift length.

Many BT Staxio models come with 24V battery systems, including 1.4-ton and 1.6-ton options. The 1.6-ton BT Staxio Toyota pallet stackers can reach up to 6 meter lift height depending on configuration, while 1.4-ton models are with lift heights around 4.7 m.

• Aisle width and travel distance

A compact stacker can save space, but it still needs enough aisle width for turning, pallet positioning, and safe travel. Buyers should check the machine length, overall width, turning space, and aisle width with the real pallet size used in the warehouse.

Travel distance also matters. A pedestrian stacker is practical for short movements and tight areas. A platform stacker is better when the operator must travel longer distances inside a warehouse or distribution center. Toyota describes platform stackers as useful for longer-distance travel and medium to heavy-duty stacking operations.

New vs used pallet stacker: which one fits your operation

For many warehouse operators, a used pallet stacker is the better option. A new unit makes sense when the buyer needs a specific mast, a full warranty, a fresh battery, or heavy daily multi-shift use. But if the warehouse already knows its rack height, pallet weight, floor type, and travel pattern, a used pallet stacker can be a more practical buy.

The main checks are simple: lift height, remaining battery life, mast condition, hydraulic response, fork wear, brakes, charger condition, and control smoothness. If these match the work, a used stacker can handle daily pallet movement without the higher cost of a new machine.

Buy used pallet stackers on Makana

Makana includes used pallet stackers for sale, especially Toyota Staxio models built for warehouse and distribution work. Buyers can compare lift height, lifting capacity, mast type, battery setup, platform design, and operating weight before choosing the right stacker.

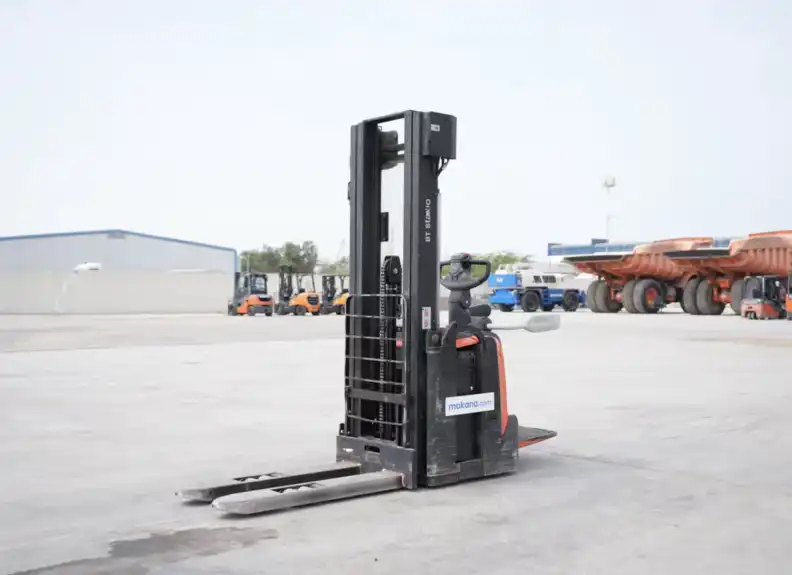

• Toyota Staxio SWE160 for sale on Makana

Toyota Staxio SWE160 is a 1.6-ton pallet stacker built for demanding warehouse and distribution operations. It offers 5.5 meter maximum lift height, a 2-stage mast with free lift, a 4 hp motor, and a 24V lead-acid battery system.

Toyota Staxio SWE160 also has a compact 2 meter length and 790 mm width, with 1.5 ton operating weight. Its BT Powerdrive system, fingertip controls, electronic braking, and 5-point chassis make it a strong fit for high-level stacking where stability and tight-space movement matter.

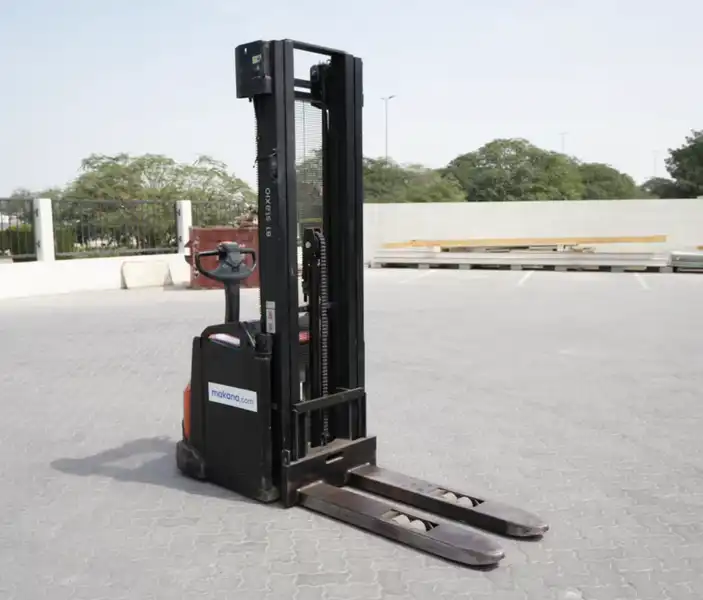

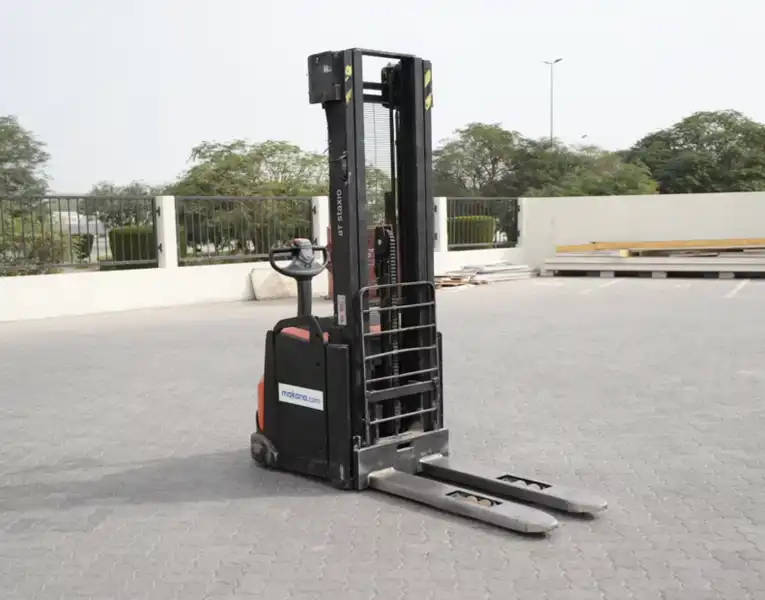

• Toyota Staxio SWE160L pallet stacker for sale

Toyota Staxio SWE160L is also a 1.6-ton pallet stacker, with nearly 5 meter maximum lift height and a 2-stage mast with free lift. It uses a 4 hp motor with a 24V lead-acid battery system and is built for high-density storage and repeated warehouse stacking.

Toyota Staxio SWE160L includes BT Powertrak traction, fingertip controls, electronic braking, electronic speed control, Sensilift, programmable performance, and easy maintenance access. Its used battery and 3,944 working hours should be checked against the buyer’s daily shift needs.

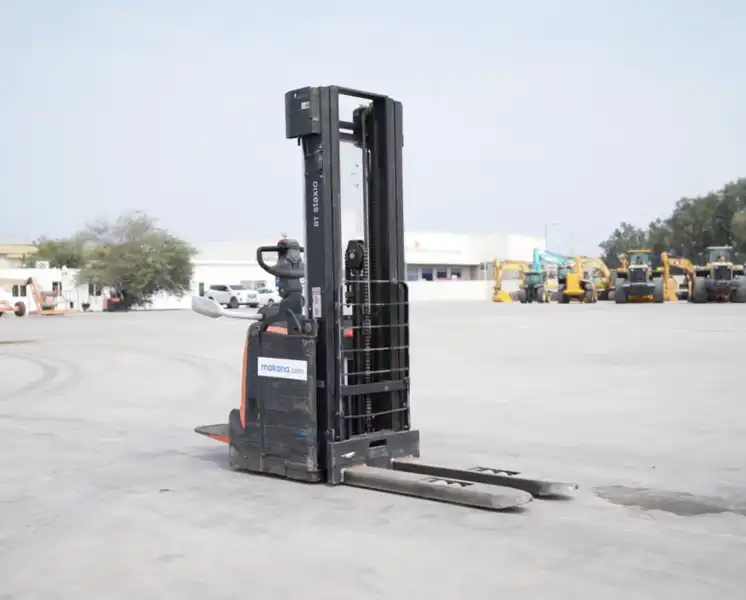

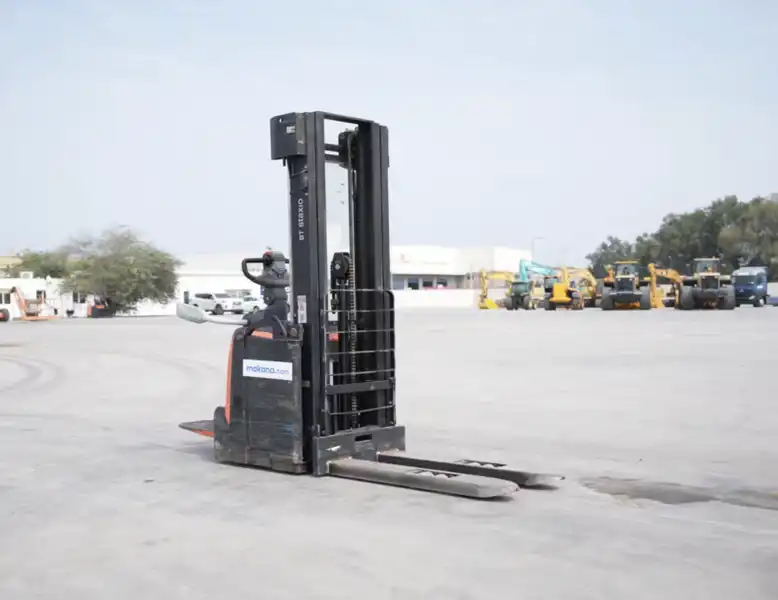

• Toyota 5-meter Staxio SPE140 for sale

Toyota Staxio SPE140 is a 1.4-ton pallet stacker built for medium to heavy-duty warehouse work, especially where longer internal travel is needed. It offers 4.8 m maximum lift height, a 2-stage mast with free lift, a 4 hp motor, and a 24V lead-acid battery system.

Toyota Staxio SPE140 has a flip-down operator platform, Click-2-Creep maneuverability, fingertip controls, electronic braking, speed control, Sensilift, and programmable performance. For buyers who need operator support during longer movements, the platform design makes Toyota Staxio SPE140 different from basic pedestrian stackers.

Looking for similar warehouse machines? Check Makana’s material handlers

If your operation needs more than a pallet stacker, Makana also lists other material handlers for warehouse, storage, and logistics work. Buyers can compare forklifts for heavier lifting, reach trucks for higher racking, pallet trucks for low-level pallet movement, and telehandlers for longer reach and rougher site handling.

For Toyota-specific options, buyers can also browse Toyota pallet stackers, review technical specifications, compare machines through the comparison tool, or estimate value with the used equipment value calculator.

FAQ

What is the difference between a pallet stacker and a pallet truck

A pallet truck moves pallets at low height, mainly for horizontal transport. A pallet stacker can lift pallets higher and place them on racks, making it better for warehouse storage.

Is a 1.5-ton pallet stacker enough for warehouse use

Yes, a 1.5-ton pallet stacker is enough for many warehouse pallet loads. Buyers still need to check pallet weight, load center, lift height, and floor condition before choosing.

What lift height should I choose for a pallet stacker

Choose a lift height that reaches your highest rack position with safe clearance. If the warehouse has low ceilings or doorways, also check lowered mast height and free lift.

Is a platform pallet stacker better than a walkie stacker

A platform pallet stacker is better for longer travel inside warehouses. A walkie stacker is better for short movements, tight areas, and lower travel demand.

Can a pallet stacker replace a forklift

A pallet stacker can replace a forklift only in light indoor warehouse tasks. It is not a full replacement for heavier lifting, outdoor loading, rough floors, or high-duty loading operations.
