How to check crawler dozer undercarriage wear

Crawler dozer undercarriage wear can tell you more about a used dozer than the paint, cabin, or even the hour meter. The tracks carry the machine’s full weight, transfer pushing power to the ground, and work continuously through sand, soil, rock, slopes, and turns.

A worn undercarriage does not always mean the complete system needs replacement. One sprocket may be badly worn while the rollers and track chain still have usable life. That is why each part should be checked separately and then looked at as one system.

This article explains how to check track tension, sprockets, rollers, idlers, chains, shoes, and grouser height when reviewing a used crawler dozer.

Crawler dozer undercarriage wear starts with track tension

Start with the tracks themselves. A track that is too tight creates more friction and can speed up wear on the bushings, chain, rollers, sprockets, and other components. A track that is too loose can move excessively and, in severe cases, derail.

There is no single track-sag number that works for every dozer. The correct measurement depends on the model and undercarriage design.

Caterpillar, for example, recommends measuring track sag differently depending on whether the machine has a carrier roller, then checking the correct limit in the machine manual.

A simple example, if the left track has noticeably more sag than the right track, do not just tighten it and move on. Check whether the tensioner is working properly and whether the chain, idler, and rollers on that side show additional wear.

Also check the tracks after removing packed mud, sand, and stones. Material trapped around the undercarriage can affect track movement and increase wear.

Dozer sprocket wear: check the tooth shape and cracks

The sprocket drives the track chain, so the teeth repeatedly contact the bushings every time the dozer moves.

Healthy sprocket teeth should keep a consistent shape. As wear increases, teeth can become thinner, sharper, uneven, or damaged. Look for:

• Cracked teeth
• Sharp or hooked tooth profiles
• Heavy wear on one side
• Uneven spacing or contact marks
• Damage around the sprocket segments

The important point is to check the sprocket and chain together.

For example, imagine replacing a badly worn sprocket while leaving a heavily worn chain in place. The old chain will start working against the new sprocket, so the new component may not wear evenly.

In one Komatsu D155A we inspected, both sprockets had visible severe damage and required replacement, while the track chains and shoes still remained functional with moderate wear. That is exactly why “the undercarriage looks okay” is not enough.

Track chain wear, rollers, and idlers should be checked together

The track chain wear tells only part of the story. The chain moves across the rollers, around the front idler, and onto the sprocket. Wear in one area can therefore affect several other components.

Track chain

Look for cracked links, unusual movement between links, damaged pins or bushings, and uneven wear.

A chain does not necessarily need replacement because it shows normal working wear. The question is how much usable life remains and whether it still matches the sprocket and rollers properly.

Track rollers

Rollers carry a large part of the dozer’s weight. Check for:

• Cracks
• Oil leakage
• Damaged running surfaces
• Flat or uneven wear
• Excessive side movement

A roller that still turns is not automatically a good roller. Its running surface also needs to match the chain correctly.

Front idler

The front idler guides the track and helps maintain its path. One side may wear faster than the other. For example, in one 42-ton dozer we inspected, the left front idler had moderate wear, while the right front idler had more noticeable wear and could require service sooner. The rollers on both sides, however, showed only minor wear with no visible cracks.

So four parts of the same undercarriage can be at four different stages of wear.

Dozer grouser height and track shoe wear show remaining grip

The shoes are what the dozer stands on. The grousers are the raised bars that bite into the ground.

As dozer grouser height decreases, there is less steel available to grip loose material. Think of it like tyre tread. A new tyre and a nearly smooth tyre may both still roll, but they do not give the same traction. Grousers work on a similar principle when a dozer pushes through sand, loose soil, or slopes. Check the shoes for:

• Cracks
• Bent plates
• Loose or missing bolts
• Uneven wear
• Damage around the edges

Then measure grouser height rather than judging it only from photos. Professional undercarriage inspections can use ultrasonic measuring tools to check wear more accurately.

Bulldozer track wear should be compared left vs right

Never inspect only the side that is easiest to see. Bulldozer track wear can develop differently on the left and right sides because of turning patterns, slopes, material, track adjustment, and how the machine was operated. A simple comparison can reveal a lot:

The example does not automatically diagnose a fault. It simply tells you where to look next. This is especially important on large machines.

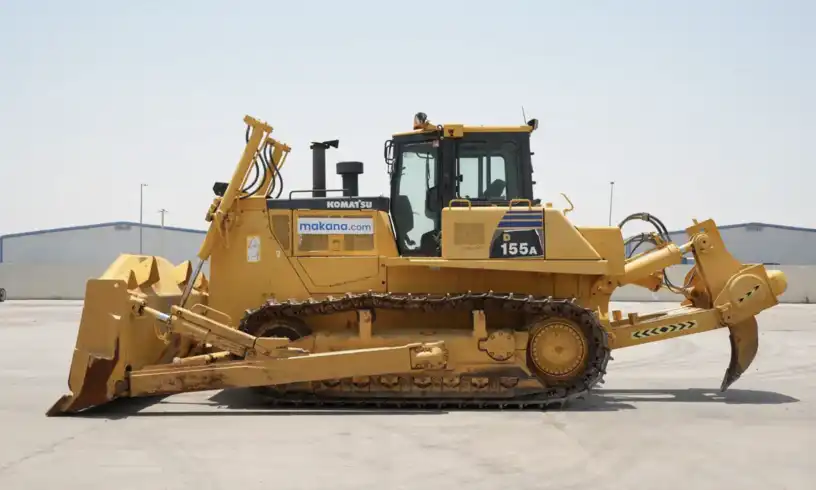

The Komatsu D155A, for example, weighs about 40 tons and runs on 560 mm track shoes. Every turn, push, reverse, and climb places significant load through those undercarriage components.

Small differences can become expensive when they continue for thousands of working hours.

Dozer undercarriage inspection: read the parts, not one overall condition

A proper dozer undercarriage inspection should break the system into individual components. Here is the useful way to read it:

The condition of one part should not hide the condition of another. In one Makana inspection, the complete undercarriage was still usable, but the individual results ranged from functional chains and shoes to sprockets that needed replacement.

For a buyer, that difference matters because it changes what may need attention first after the machine reaches the site.

Check crawler dozer undercarriage wear through Makana inspection reports

When you browse crawler dozers on Makana, you can review the undercarriage before deciding whether to visit the machine or buy it.

Makana’s 75+ point inspection reports break the machine into individual systems and checks. For crawler dozers, this can include sprockets, rollers, idlers, track chains, shoes, grouser height, tensioners, and final-drive condition, supported by photos and machine information.

This makes it easier to see the difference between normal wear, a component that should be monitored, and something that may need repair or replacement.

You can then look at the rest of the machine, including the engine, hydraulics, blade, ripper, drive system, and structure, before deciding which used crawler dozer fits your work and budget.

FAQs

What parts should I check for crawler dozer undercarriage wear?

Check the track tensioners, sprockets, track chains, rollers, carrier rollers, front idlers, track shoes, grouser height, and final drives. These parts work together, so one badly worn component can affect the others.

How can I identify dozer sprocket wear?

Look for cracked, sharp, hooked, thin, or uneven sprocket teeth. Also check how the sprocket teeth contact the track chain because sprocket and chain wear are closely connected.

How tight should a crawler dozer track be?

The correct track tension depends on the dozer model and undercarriage design. Measure track sag using the procedure in the machine’s operating and maintenance manual rather than using one number for every dozer.

Why is grouser height important on a dozer?

Grousers help the tracks grip the ground. As grouser height decreases, traction can be reduced, especially in loose soil, sand, slopes, and heavy pushing work.

Should left and right bulldozer track wear be the same?

Not always. Turning patterns, slopes, ground conditions, track adjustment, and previous operation can cause one side to wear faster. Large differences between the two sides deserve closer inspection.

Does Makana check crawler dozer undercarriages?

Yes. Makana’s crawler dozer inspections can cover track tensioners, sprockets, rollers, idlers, chains, shoes, grouser height, final drives, and other undercarriage components as part of the machine’s detailed inspection.
