Don't Buy a Reach Truck Before Checking These Details

A reach truck is built for warehouse work where storage height, aisle space, and pallet handling accuracy matter more than outdoor travel. A well-matched reach truck can increase usable storage density significantly in a high-rack layout compared to standard forklift aisles, which is exactly why warehouses standardize on them once racking gets tall and aisles get narrow. Buyers usually focus on lift height first, but that is only one part of the decision.

A wrong choice can lead to slow warehouse movement, poor rack access, or limits on the loads you can actually lift at height.

This article explains the main reach truck specs to check before purchase, where reach trucks fit best, why a used machine often makes more sense, and which used reach trucks you can find on Makana.

Applications of reach truck

A reach truck is mainly used for indoor warehouse material handling. It is built for jobs where pallets need to move through narrow aisles and reach upper rack levels safely.

Common reach truck applications include:

• Warehouse pallet handling.
• Logistics center storage.
• Distribution hub operations.
• High-rack pallet stacking.
• Narrow-aisle warehouse movement.
• Retail stockroom replenishment.
• Spare parts storage.
• Indoor pallet movement between racks.

Reach trucks vs forklifts

Compared with many standard forklifts, reach trucks are better for vertical storage and narrow-aisle work. A forklift is more flexible for wider spaces, loading zones, and mixed indoor or outdoor handling, but a reach truck is more focused on rack access and high stacking.

The core mechanical difference is how each machine lifts. A traditional forklift uses a counterweight over the rear axle to balance a load out front, which needs open floor space to maneuver. A reach truck instead sits on outrigger legs that straddle the pallet, with a mast that extends forward into the rack, so the truck itself barely has to move to place or retrieve a load. That is what lets it work in aisles a standard counterbalance forklift could never turn in.

At the extreme end of narrow-aisle handling sit two more specialized machines worth knowing about even if they are not the right fit for most warehouses: turret trucks, which rotate the fork carriage instead of the whole mast for true side-on pallet placement, and very narrow aisle (VNA) trucks, which can work in aisles as tight as roughly 1.5 m. Both usually run on guided rail or wire-guidance systems and cost more than a standard reach truck, so they only make sense when a warehouse is specifically designed around that aisle width from the start.

This is why buyers searching for used reach trucks for sale usually work in warehousing, retail logistics, spare parts storage, and pallet-based inventory systems where lift height, aisle width, and pallet placement accuracy matter most.

Specs to check before buying a reach truck

Lift height and mast type: the first buying filter

Lift height is usually the first thing buyers check because it decides whether the reach truck can work with the warehouse racking system.

If your top rack level is above the machine's lift range, the truck will not fit the job no matter how good the rest of the specs are.

Mast type also matters. A 3-stage mast is often preferred in warehouses because it gives higher lift while keeping a manageable lowered mast height.

Toyota 9BRU23 reach truck is a good example, with a 3-stage mast and 7.10 m maximum lift height.

One practical detail buyers often overlook: operator visibility gets harder as lift height increases. On many masts, a hydraulic cylinder runs up the center and can partially block the driver's sightline to the fork tips at full height, which is exactly the moment precision matters most. When comparing masts, it is worth asking how the model manages this, since a machine with poor high-lift visibility will be slower and less confident in daily use even if its rated lift height looks good on paper.

Load capacity and load center: what the numbers really mean

Many buyers look at lifting capacity only, but load center is just as important. A reach truck may be rated at 1.6 tons or 2 tons, but actual lifting performance changes depending on the load center, fork length, and lift height.

Toyota Reflex RRE160H and Toyota Reflex RRE160M are both 1.6-ton reach trucks, while Toyota 9BRU23 is a 2-ton model with a 600 mm load center. For buyers handling heavier pallets or bulkier warehouse loads, this difference matters more than the model year alone.

Battery type and runtime: electric reach truck buying factor

A reach truck is an electric warehouse machine, so battery setup affects daily operation more than many buyers expect. Battery voltage, battery type, charger condition, and runtime all affect shift planning and machine availability.

Runtime should be matched against your actual duty cycle, not just a single shift length. A machine running two or three shifts with heavy travel and lift cycles needs either a larger battery, a fast-charge or opportunity-charge setup, or a battery swap plan, otherwise it will run out of charge mid-shift regardless of its rated runtime on paper.

Toyota Reflex RRE160H uses a Li-ion battery system and comes with a new battery and charger, which makes it a strong option for buyers who want reduced downtime. Toyota Reflex RRE160M uses a 48 V power system, while Toyota 9BRU23 uses a 36 V battery setup.

Before buying, it is important to match the battery system with your charging setup, shift pattern, and maintenance plan.

Reach truck aisle width: why warehouse layout matters

A reach truck may have the right lift height and capacity, but it can still be a poor fit if the warehouse aisles are too tight or the turning space is not suitable. Aisle width affects rack access, travel speed, and how safely operators can place pallets at height.

This is why buyers should check warehouse layout before choosing a model. A narrow-aisle machine like Toyota Reflex RRE160M is better for high-density storage, while buyers handling heavier pallets at medium lift heights may compare it with Toyota 9BRU23. The right truck depends on rack spacing, pallet type, and daily travel pattern.

New vs used reach truck

Reach trucks are a specialized purchase, which usually makes them more expensive upfront than a general-purpose forklift of similar capacity. That is one of the main reasons used reach trucks are such a common choice, since electric reach trucks have relatively few moving parts compared to combustion forklifts and hold their performance well over a long service life when properly maintained.

The most important thing to check in a used reach truck is the battery. If it holds charge well, charges normally, and does not lose power quickly under load, the used option is usually the better buy. Battery age matters here specifically, since a replacement pack is one of the costliest parts on the machine.

Beyond the battery, a proper used-truck check should cover:

• Mast and reach mechanism: smooth extension and retraction with no visible play, binding, or delay in the reach cylinder.
• Hydraulics: clean fluid, no leaks around the mast or reach cylinder seals, and no drift when a raised load is held stationary.
• Forks and carriage: no cracks, excessive wear, or misalignment at the heel.
• Wheels and casters: even wear with no flat spots, since uneven wheels affect both ride and mast stability at height.
• Stability and braking systems: working stability sensors where fitted, and consistent brake response, since these directly affect safety when working at full lift height.

If the mast is smooth, the hydraulics are clean, and the truck has no clear lift drift or side-shift delay, a used reach truck can do the same warehouse job at a much lower cost. Buy new only when warranty, exact specs, or heavy multi-shift use matter more than price.

Buy used reach trucks on Makana

Makana includes several used reach trucks for sale, especially Toyota models built for indoor warehouse handling. Other well-known reach truck brands in the wider market include Crown, Raymond, Hyster, and Mitsubishi, but Toyota's dealer support and parts availability make it one of the most practical choices for buyers in the UAE. Buyers can compare 1.6-ton and 2-ton options based on lift height, battery setup, mast type, and load center before choosing the right machine.

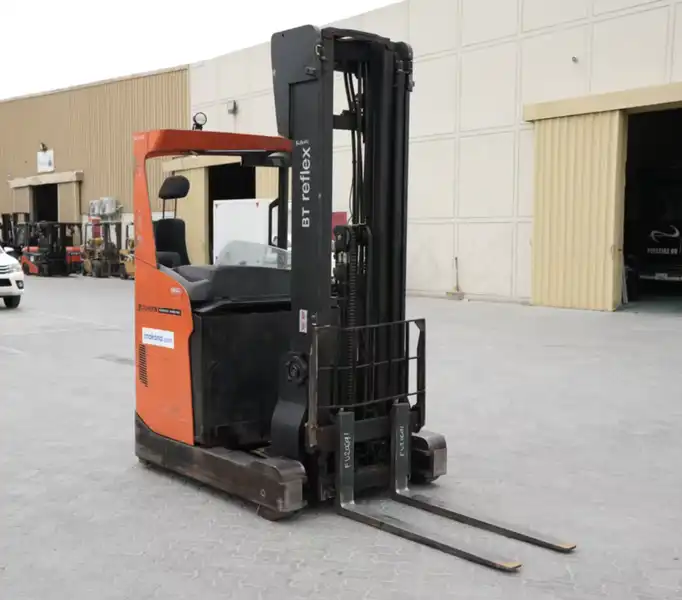

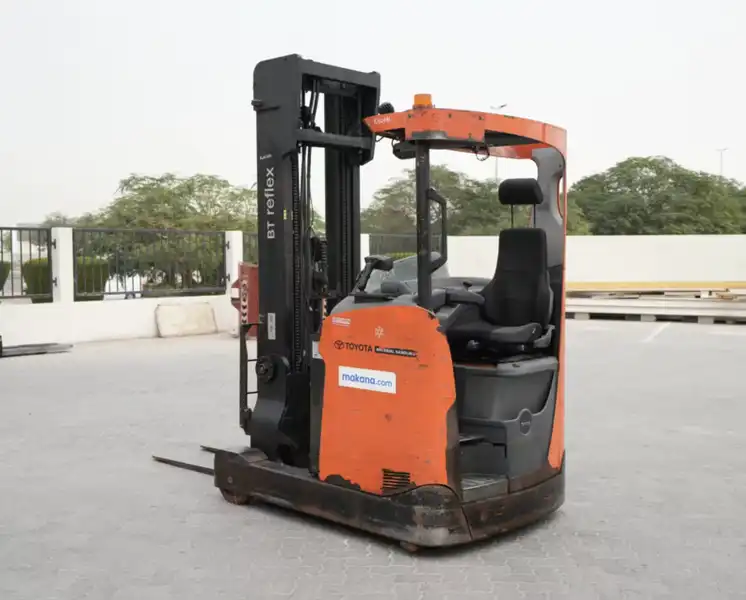

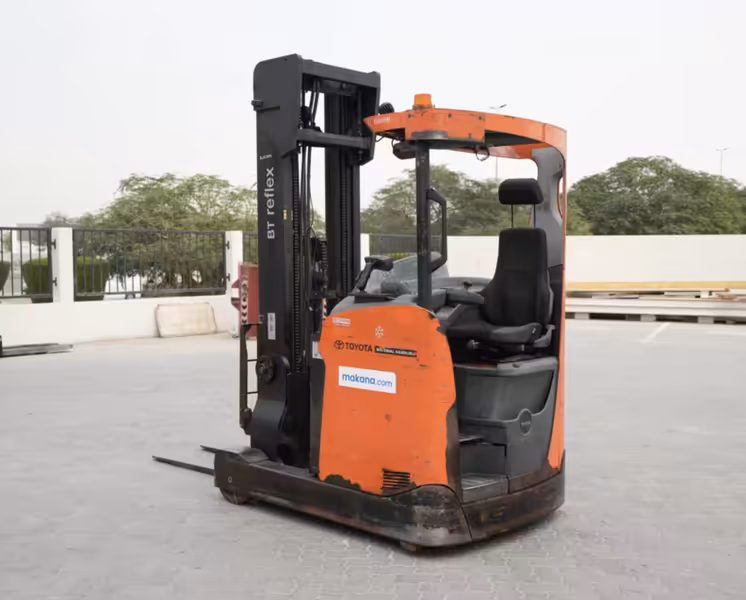

Toyota Reflex RRE160H

Toyota Reflex RRE160H is a 1.6-ton reach truck designed for intensive warehouse handling and high-density storage. With 1600 kg lifting capacity and 9500 mm lift height, it is a strong fit for elevated pallet handling and upper rack access.

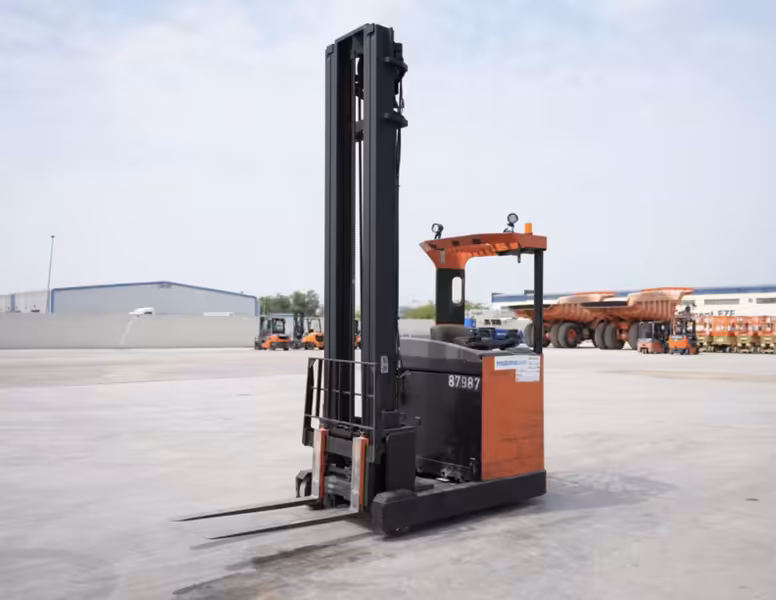

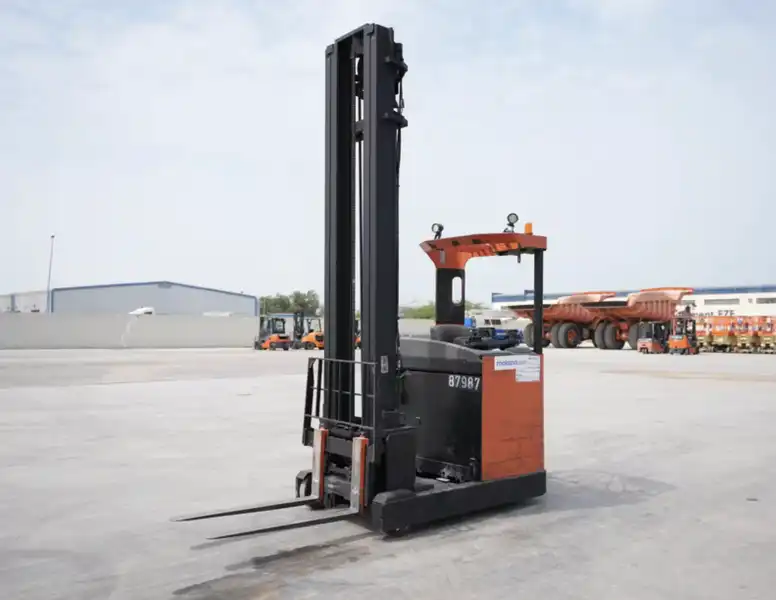

Toyota Reflex RRE160M

Toyota Reflex RRE160M is also a 1.6-ton model, built for narrow-aisle warehouse operations. It uses a 7.5 kW electric drive motor with a 48 V power system and offers up to 8500 mm lift height, plus travel speed up to 10 km/h. This makes it a practical choice for storage facilities and logistics centers that need repeated rack access.

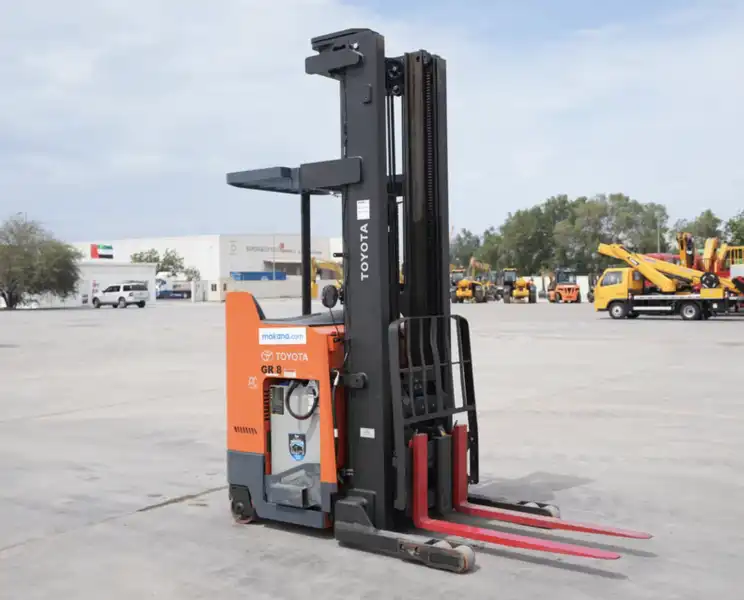

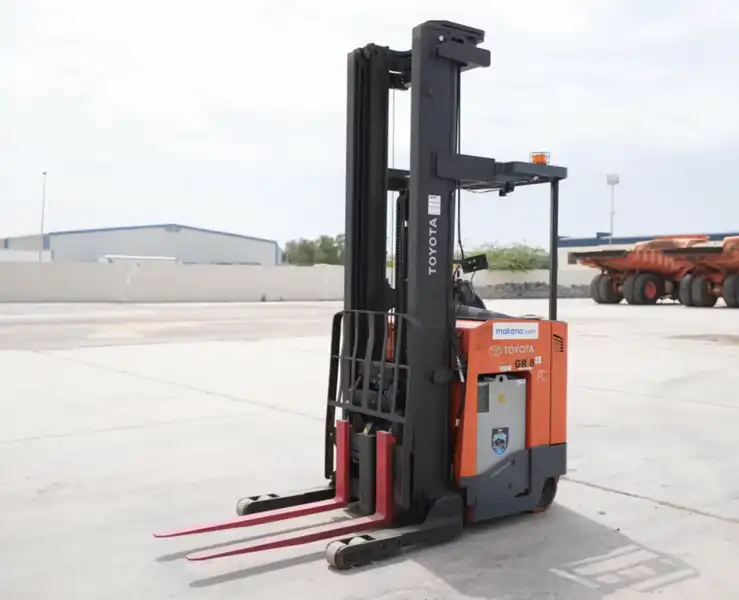

Toyota 9BRU23

Toyota 9BRU23 moves into the 2-ton class. It is suited to high-bay warehouse storage, narrow-aisle pallet handling, and indoor material movement. It comes with a 3-stage mast, 7.10 m lift height, 1.0 m forks, hydraulic side shift, and 600 mm load center. For buyers who need more lifting capacity than a 1.6-ton reach truck, this is an important model to compare.

If you are browsing used reach trucks, Makana helps you review material handlers, compare technical specifications, use the comparison tool, request a specific machine through request a machine, or estimate value through the used equipment value calculator.

FAQ

What is the difference between a reach truck and a forklift

A reach truck is mainly built for indoor warehouse use, narrow aisles, and higher stacking. A forklift is more general and may be better for wider spaces, loading areas, or mixed indoor and outdoor work.

Is a 1.6-ton reach truck enough for most warehouse jobs

Yes, for many pallet-handling jobs, a 1.6-ton reach truck is enough. It depends on pallet weight, lift height, and load center. Heavier pallets may need a 2-ton model.

What matters more in a reach truck, lift height or capacity

Both matter. Lift height tells you if the truck can reach the rack level, while capacity tells you if it can safely lift the pallet. Buyers need both figures together.

Can I use a reach truck outdoors

A reach truck is mainly for indoor warehouse floors. It is not the best choice for rough outdoor ground or long outdoor travel.

What is a turret truck or VNA truck, and do I need one instead of a reach truck

Turret trucks and very narrow aisle (VNA) trucks are specialized machines built for aisles too tight even for a standard reach truck, often using rail or wire guidance. They cost more and are usually only worth it when a warehouse is designed around that aisle width from the start. Most standard warehouse operations are better served by a regular reach truck.

How do I choose between Toyota Reflex RRE160H, RRE160M, and 9BRU23

Choose the RRE160H if you need higher lift height, the RRE160M if you want a 1.6-ton narrow-aisle model with practical warehouse performance, and the 9BRU23 if you need a 2-ton reach truck with strong indoor pallet-handling capacity.
