Cat D6 Crawler dozers tech specs

Overview

This is Cat’s “Swiss Army” mid-size dozer line. D6K/K2 = nimble finish grader with tech baked in. D6N = balanced all-rounder with lock-up transmission. D6T = the muscle: more weight, more shove, still precise with Grade tech. LGP/XL/XW decide how light you float; WH packs landfill armor. If your work ranges from pad-finishing to serious production pushes, there’s a D6 spec that fits.

What’s new

• Transmissions and efficiency: D6N uses a powershift with lock-up torque converter and Enhanced Auto Shift. D6T adds full-time auto shift with lock-up to keep fuel burn per m³ in check.
• Grade tech: D6K2 includes Slope Assist and Stable Blade, plus optional factory-integrated Grade with 3D. D6T offers Slope Assist standard with optional GRADE with 3D.
• Emissions: Tier 4 interim or Tier 4 Final across this era, with SCR and DEF on N, K2, and T models.

Performance & efficiency

• D6K2 (finish work hero): Hydrostatic, automatic traction control, excellent blade visibility. Set up to hit target grade faster with less rework.
• D6N (do-everything): Lock-up converter plus Enhanced Auto Shift helps lower fuel use while keeping a solid push for its weight.

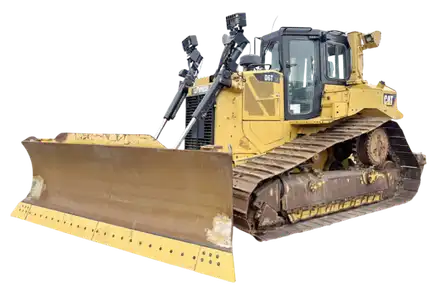

• D6T (production with finesse): Four-speed powershift with lock-up keeps power to the ground. With Slope Assist or 3D, the T still finishes well for its size.

Operator chatter backs the split: some prefer the D6T for ride and shove, others prefer the D6N for footprint and side visibility. Pick for the site, not the logo.

Maintenance & ownership

• DEF reality: Plan for roughly 2–3% DEF use versus fuel on D6N and a convenient 1:1 fill rhythm with fuel. Use ISO-22241 DEF and ULSD.
• Service access and telemetry: Grouped service points and connected monitoring help daily checks and planning.
• Landfill kits: WH variants add striker bars, guarding, and debris-tolerant cooling for tip-face abuse.

In-cab & interior

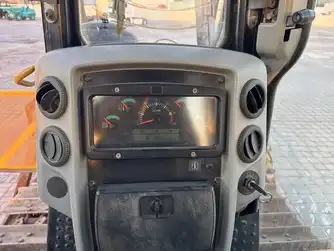

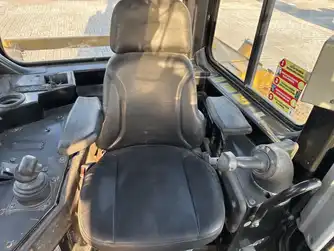

Pressurized cabs, air-suspension seats, seat-mounted joysticks. K2 stands out for blade sightlines and integrated displays for Slope Assist and rear camera. N and T cabs are calmer than older series.

Safety features

ROPS/FOPS, available rear camera, operator presence logic. WH machines add striker bars, extra guarding, and debris-resistant cooling for landfill work.

In comparison

Within D6 family:

• D6K2: about 13.3–13.9 t; about 97 kW/130 hp net. Best for pads, tight sites, and easy transport.
• D6N: about 16.8–18.3 t; about 124 kW/166 hp net typical. Balanced push and grading, popular as VPAT LGP.
• D6T: about 21–24 t; about 161 kW/215 hp net T4F. More shove; grade tech keeps it precise.

Against rivals (same era):

• Komatsu D65EX-16: roughly 20–23 t; about 164 kW/219 hp. Sigma blade helps carry.
• John Deere 850K: roughly 19–22 t; about 152 kW/205 hp. Nimble with strong dealer coverage in many regions.

Verdict

If your mix is finish > bulk, start with D6K2. If it’s 50/50 grading + push or you need more drawbar without stepping up to a D7, D6N hits the sweet spot. If you’re production-biased or running landfill armor, go D6T or D6T WH and let Grade tech handle the finesse.
Owner feedback: K2 is easy and fast; N is the safe bet; T is a beast, just mind weight and sightlines.
