Blind spots in heavy machinery: understanding and reducing risks

Have you ever noticed how, when operating a bulldozer or excavator, certain areas around the machine seem completely out of sight? These “blind spots” are a hidden danger that many don’t think about until an accident happens.

Understanding where these blind spots are and how to mitigate their risks is essential for keeping everyone on-site safe.

In this article, we’ll break down the causes of blind spots, where they’re most commonly found on different types of equipment, and how to reduce the dangers they present.

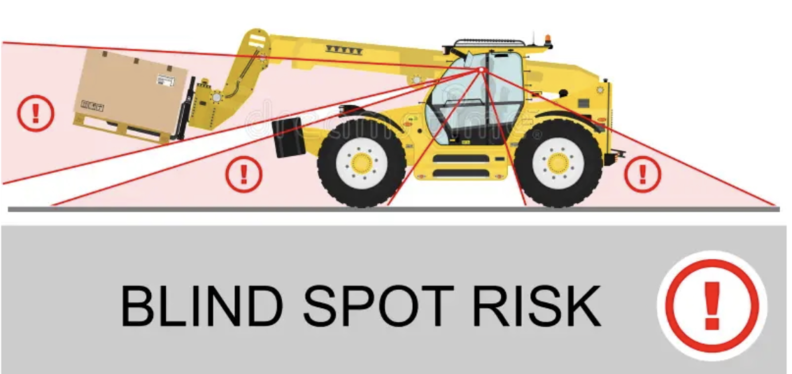

What is a blind spot in heavy machinery?

A blind spot in heavy machinery refers to any area around a machine that the operator cannot see directly or through mirrors and onboard cameras. These zones are often caused by structural components, like engine compartments, booms, loader arms, or counterweights, that physically obstruct the operator's field of vision.

In contrast to passenger vehicles, the size and configuration of construction equipment create much larger and more dangerous blind zones. On machines like excavators, bulldozers, and wheel loaders, the operator's elevated position and restricted cab windows make certain areas, especially behind and beside the machine, effectively invisible.

What causes blind spots in heavy machinery?

1. Machine design and structure: Large engine hoods, raised operator cabs, wide attachments, and massive counterweights often block direct lines of sight. Even with multiple mirrors, there are still areas, especially behind the machine, that remain out of view.

2. Booms, buckets, and attachments: In equipment like backhoe loaders and excavators, the movement of booms and arms can block visibility to the sides and front corners. Similarly, raised buckets on a wheel loader can obstruct the forward field of vision.

3. Cab limitations: Visibility from the operator’s seat is constrained by the cab’s frame and window placement. Even with rotational cabs, the field of view doesn’t always cover all surrounding zones.

4. Environmental factors: On muddy or cluttered sites, visibility can be further compromised by dust, weather, or poor lighting. These external conditions can amplify existing blind zones and increase the risk of accidents.

In short, a blind spot on a construction machine is any space that the operator can’t monitor without assistance, and in many machines, these zones can be large enough to conceal a full-sized pickup truck or multiple workers on foot.

Where are the blind spots on common heavy equipment?

While each type of heavy equipment has its own visibility challenges, some blind zones are more consistent across the board, especially in larger earthmoving machines, where visibility is naturally restricted due to size and structure.

Here’s a breakdown of the typical blind spots you’ll encounter on the most commonly used heavy-duty machinery:

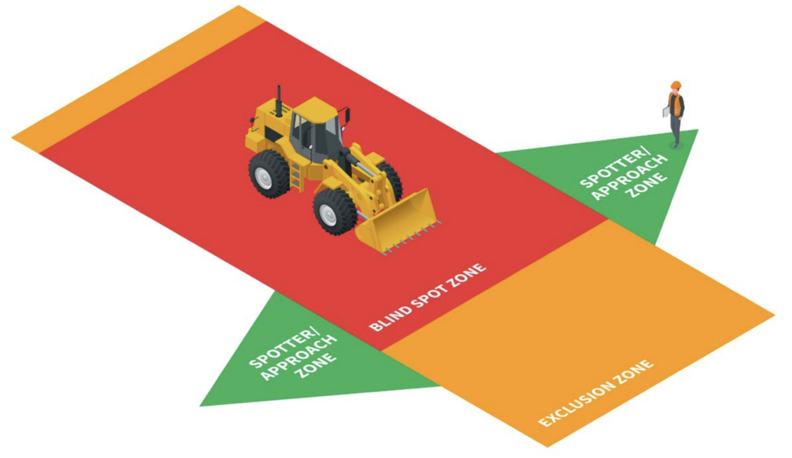

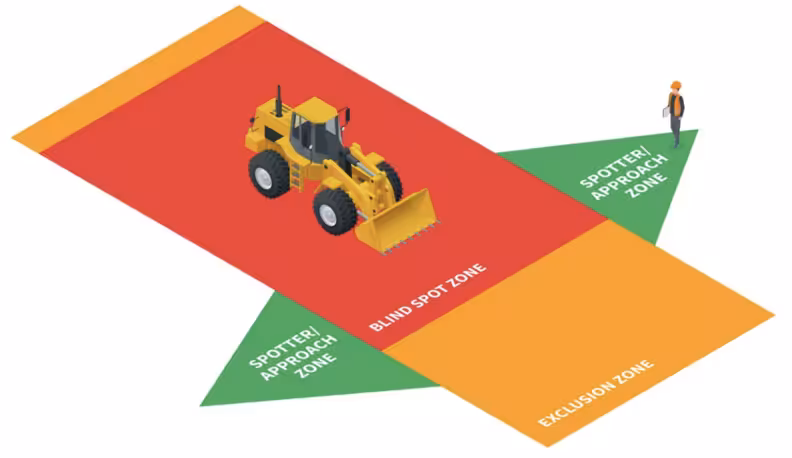

1. Wheel Loaders

Blind spot zones:

• Rear of the machine (especially when reversing)

• Bucket and front corners (when raised)

• Articulation pivot zone (especially during tight turns)

On models like the Cat 966L, the operator’s visibility significantly drops when the bucket is lifted, the raised arms and load obscure both the front and lower peripheral vision.

The large rear body and articulated steering also introduce dynamic blind spots, making reversing especially dangerous without cameras or spotters. In tight yards or near stockpiles, workers or objects in the turning area can be missed and hit before the operator even sees them.

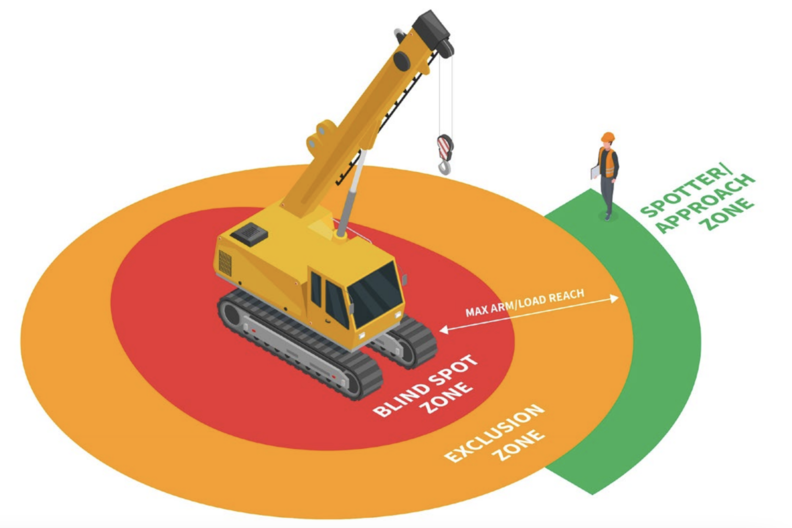

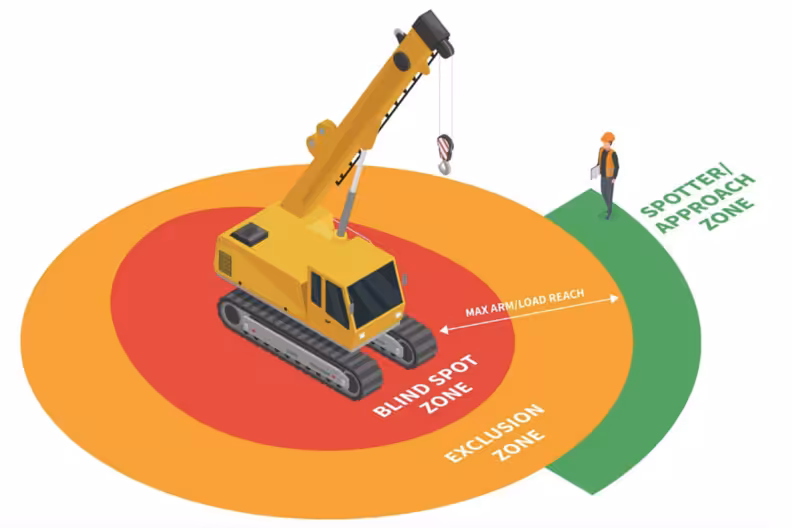

2. Mobile Cranes

Blind spot zones:

• Counterweight and full swing radius

• Boom pivot area (operator’s rear-left and rear-right)

• Outrigger ground zone (especially near edges or slopes)

Mobile cranes like the Liebherr LTM 1100 or Grove GMK series shift their blind spots continuously as the superstructure rotates. The rear counterweight creates a sizable dead zone, while elevated boom positions limit downward visibility near the outriggers.

If ground crew steps into the area without a spotter’s knowledge, the operator might never see them, especially during simultaneous lifting and slewing operations.

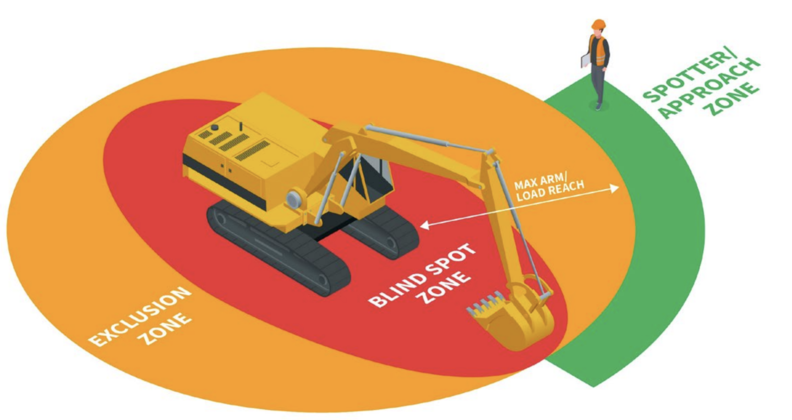

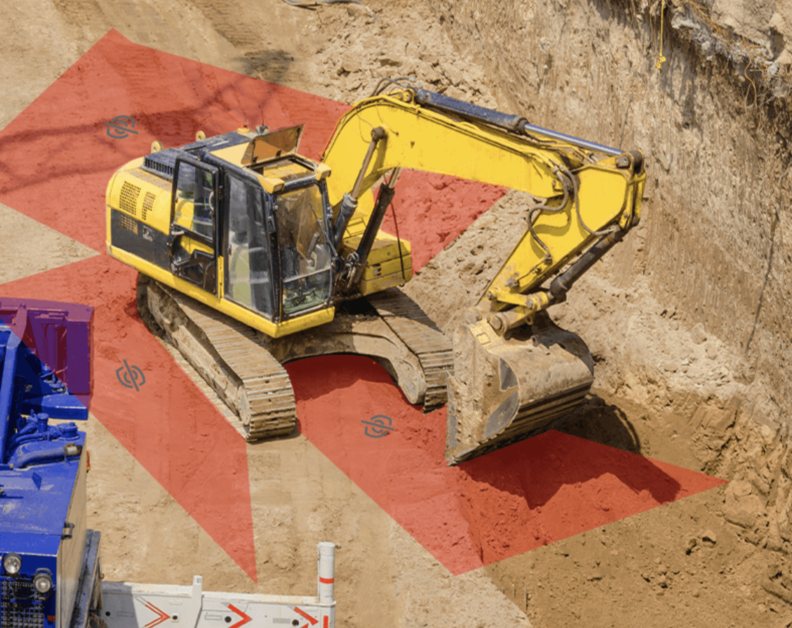

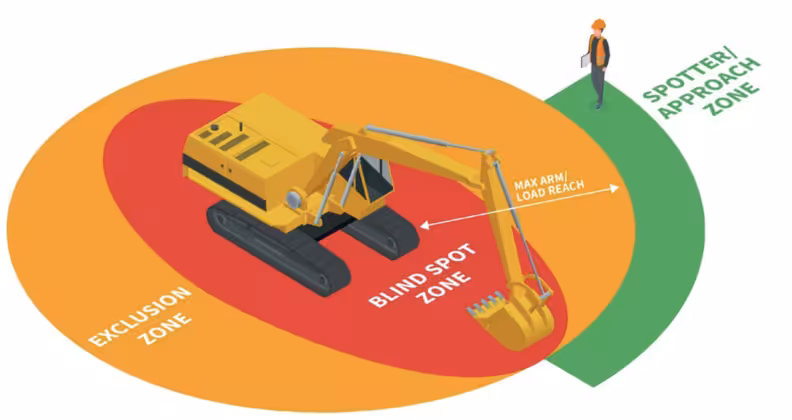

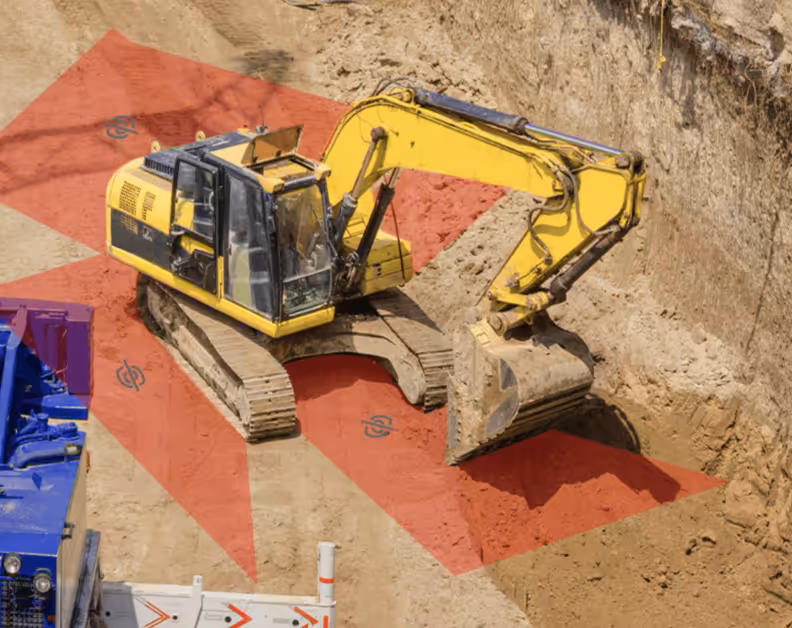

3. Hydraulic Excavators

Blind spot zones:

• Rear of the machine (behind counterweight)

• Right-hand side of the cab

• Under and behind the boom (when elevated)

In models like the CAT 323D3 or Kobelco SK350, the rear counterweight covers a large arc of vision, and even with rearview cameras, not all angles are visible, especially during fast slewing.

The right-hand side remains a major dead zone, particularly in zero-tail swing designs where tighter clearance comes at the cost of peripheral awareness. Any ground crew standing near the boom or dipper arm can easily fall into a blind wedge when digging or loading.

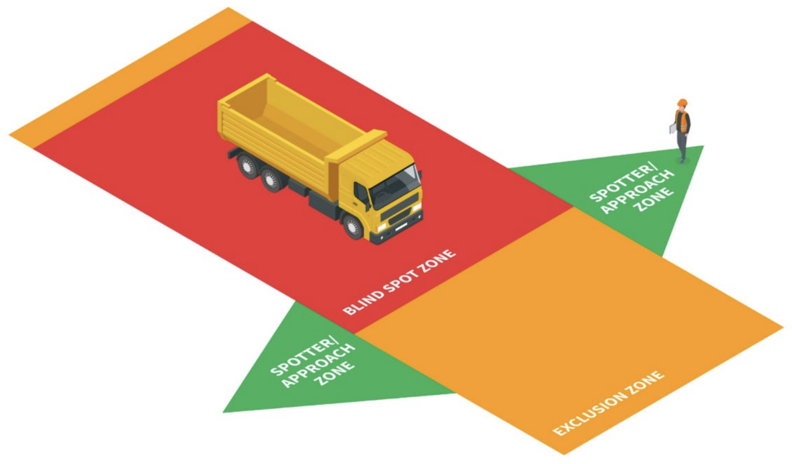

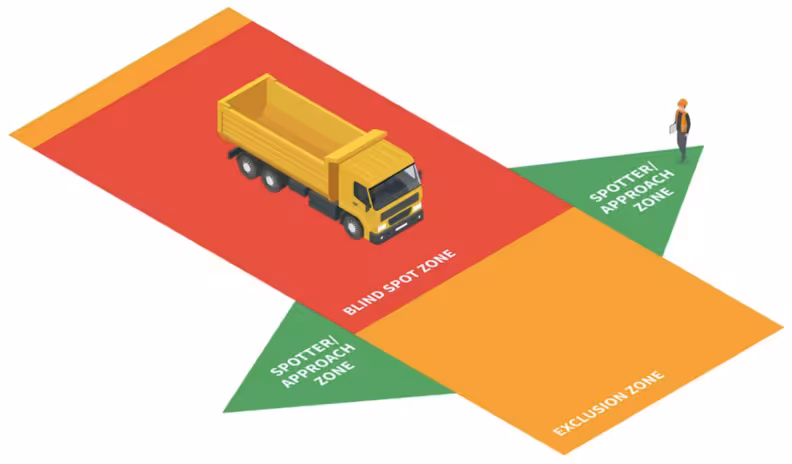

4. Dump Trucks (Articulated & Rigid Frame)

Blind spot zones:

• Directly behind the tailgate

• Passenger side of the cab

• Front-right hood area

Massive machines like the CAT 777G or Volvo A40G have towering dump bodies that block rear visibility entirely. Even in wide-open haul roads, personnel behind the truck are virtually invisible.

On mining sites or crowded projects, a ground worker or light vehicle parked behind may never be seen. Articulated steering and high cabs further reduce side visibility, making spotters and backup alarms non-negotiable.

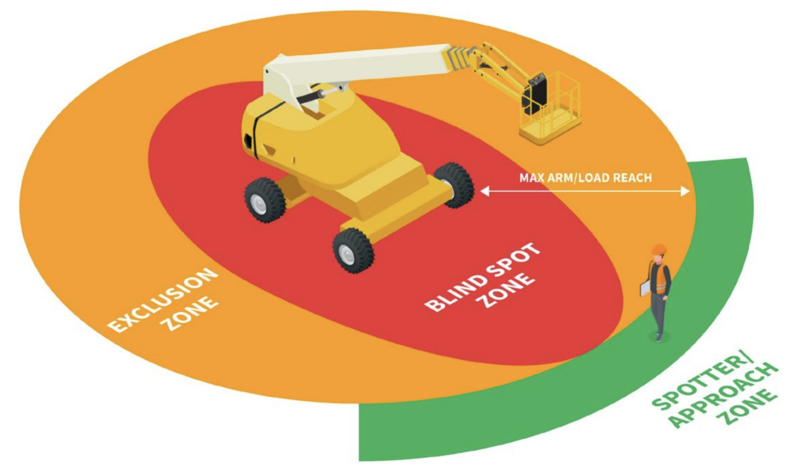

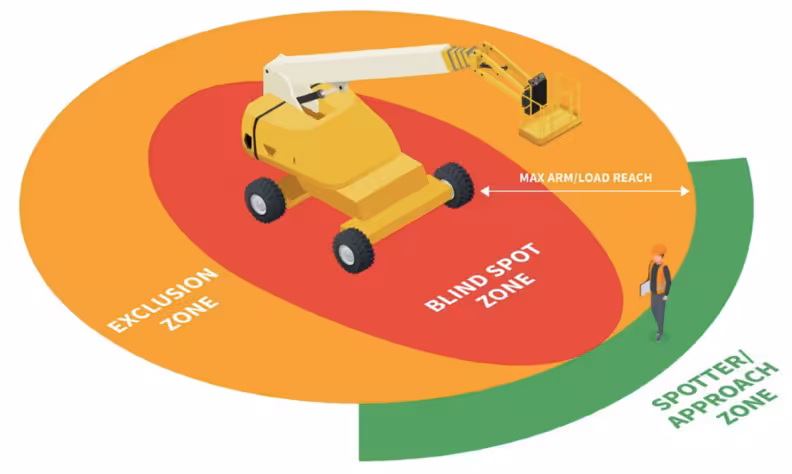

5. Boom Lifts (Aerial Work Platforms)

Blind spot zones:

• Base of the boom (directly beneath the platform)

• Ground zone within the turntable radius

• Rear of the base unit (if operator is in basket)

Machines like the Genie S-85 or JLG 860SJ create unique blind spots, especially since the operator may be elevated and not have a direct view of ground activities. The base’s rear and boom pivot area become blind zones, especially during boom rotation.

If workers are moving beneath the platform, or standing too close to outriggers, the elevated operator won’t see them, making ground-based spotters essential.

A very important note to highlight is that while each machine comes with its own challenges, blind spots are not static, they shift as attachments move, buckets raise or lower, and cabs rotate. That’s why simply “knowing the machine” isn’t enough. Visual tools, spotters, and consistent training are important to minimizing risk.

Now, we’ll take a closer look at what happens when these blind spots go unmanaged, and the kinds of incidents they often cause.

What are the risks associated with blind spots in heavy machinery?

Unseen doesn't mean harmless. Blind spots in heavy equipment operations are a leading cause of injuries, fatalities, and property damage on job sites globally. When a machine operator cannot see a person, vehicle, or obstacle in the machine’s path, every movement becomes a gamble, and unfortunately, the consequences are often severe.

Here’s a breakdown of the key risks linked to unaddressed blind spots:

1. Struck-by incidents involving ground workers

The most common and tragic outcome of blind spots is when a machine hits a worker on foot. These “struck-by” incidents often occur when:

• Workers enter the machine’s blind zone without being noticed

• The operator reverses without a spotter or rear camera

• Poor lighting or dust reduces visibility even further

According to OSHA, struck-by hazards are one of the "Fatal Four" in construction fatalities, and heavy equipment is a major contributor. For example, a wheel loader backing out of a stockpile yard strikes a ground worker carrying inspection paperwork, operator never saw him in the rear blind zone.

2. Equipment-to-equipment collisions

On dense job sites, it’s common to have multiple machines operating in parallel, loaders feeding excavators, trucks backing up to dump, cranes rotating with suspended loads. Blind spots in such settings can lead to:

• Sideswipes between machines during turns

• Contact between rotating parts (e.g. excavator booms and nearby machines)

• Undetected machines within a crane’s swing radius

This not only damages expensive equipment but disrupts site schedules and raises insurance costs. For instance, a dump truck reversing to a paver collides with a roller, damaging the drum and causing downtime. Both operators assumed the other would stop.

3. Structural and material damage

Blind spots also increase the chance of colliding with temporary structures, storage racks, or materials staged on-site. Especially in demolition or warehouse environments, the operator may not see:

• Pallet racks

• Wall segments

• Temporary scaffolding

• Fuel or materials storage

Such incidents are not only costly but can trigger secondary hazards (e.g., fire risk, collapse, or hazardous material spills).

4. Legal and regulatory consequences

Injury or damage caused by blind spot-related incidents can lead to:

• Regulatory fines (from OSHA, HSE, or local authorities)

• Civil lawsuits from injured parties

• Increased liability insurance premiums

• Suspension of site operations during investigations

Failure to implement proper blind spot mitigation strategies, like onboard cameras, proximity sensors, or trained spotters, can be seen as negligence in legal terms.

Key takeaway:
The cost of ignoring blind spots isn't just financial, it’s human. A few seconds of invisibility can result in permanent consequences. This is why modern job sites are investing in better technologies, training, and layout planning to reduce exposure.

Next, let’s walk through proven methods for identifying and reducing blind spot risks, both in new purchases and in machines already deployed on your site.

Strategies for reducing blind spot risks

There’s no single fix for blind spots in heavy machinery, but there are highly effective systems and practices that, when combined, can dramatically reduce the risk of accidents. Whether you're buying a used excavator, managing a multi-machine fleet, or operating equipment on a tight site, mitigation should start with awareness, and follow with layered solutions.

Here are the most effective strategies used across the industry:

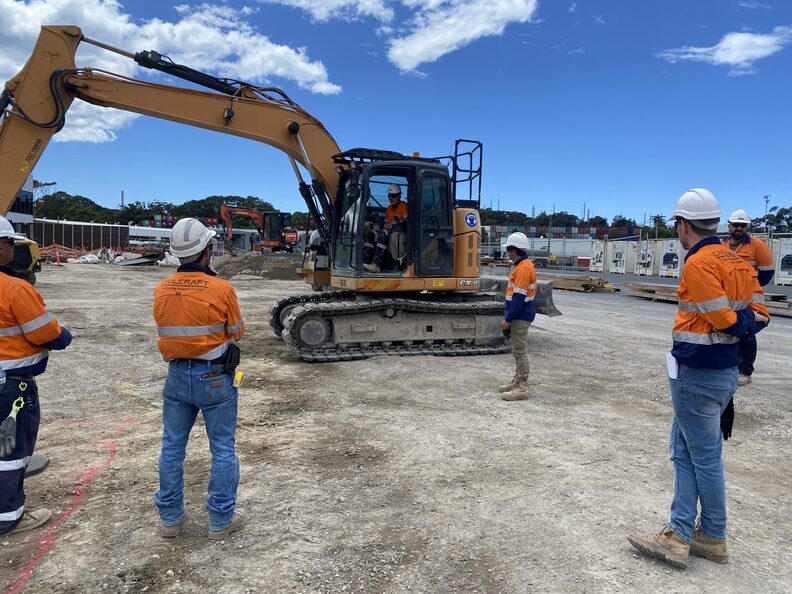

1. Operator training and awareness programs

Even with advanced technology, the operator remains the first line of defense.

• Machine-specific blind spot training: Operators should be trained on the blind zones of each model they operate. A Komatsu WA470 has very different sightlines compared to a CAT 320 excavator.

• Daily walkarounds: Encourage operators to perform a full circle inspection before ignition, not just for mechanical checks, but to familiarize themselves with site layout and surrounding activity.

• Seat time in different scenarios: Training should include congested areas, night operations, and limited-visibility conditions (dust, rain, glare).

Pro tip: Use cones or flags to physically mark blind zones during training. This reinforces spatial memory and improves spatial awareness.

2. Spotters and communication protocols

No camera system can replace a well-trained spotter with a direct line to the operator.

• Designate trained spotters: Spotters must know standard hand signals, blind zone locations, and the machine’s swing/reverse behavior.

• Two-way radios: Use dedicated channels for heavy machine operators and spotters. Ensure headsets are noise-canceling and rated for the site environment.

• Spotter zones: Create safe pathways and no-go zones for spotters to avoid being in harm’s way.

3. Onboard camera systems

Rearview and 360° cameras offer operators direct visuals of areas previously invisible from the cab.

• Rear cameras: Standard on many newer machines (e.g., Volvo EC480E), these cover the high-risk rear blind spot.

• 360° systems: Stitching images from multiple angles (like the Hyundai AAVM system) gives a complete real-time visual field.

• Aftermarket kits: For older machines, retrofitting is possible. Look for IP68-rated cameras with infrared night vision and in-cab LCD displays.

4. Proximity detection systems

These systems alert operators when something, or someone, enters a machine’s blind zone.

• Radar sensors: Detect large objects and people within 1–5 meters. Commonly used in mining fleets.

• Ultrasonic detection: Often mounted on bumpers; best for slower-speed equipment like loaders or forklifts.

• RFID tag systems: Workers wear RFID-equipped vests that trigger alarms if they enter a defined danger zone.

Note: These systems work best when combined with cameras and trained human oversight. They are not a substitute for vigilance.

5. Equipment layout and job site planning

Sometimes, risk mitigation is about designing the site around the machine, not the other way around.

• Staggered operations: Don’t allow multiple machines with overlapping blind spots to operate in close quarters simultaneously.

• Dedicated pedestrian routes: These should be physically separated from equipment zones, clearly marked, and enforced.

6. High-visibility PPE and wearables

Enhancing the visibility of ground personnel reduces the chance they’ll be missed in a machine’s blind zone.

• Class 2 or Class 3 reflective vests: Depending on proximity to equipment and lighting conditions.

• Illuminated PPE: LED-lit safety vests and helmets are now available for high-risk environments.

• Smart vests: Some models vibrate or flash if the wearer enters a blind spot zone, acting as a final line of protection.

7. Maintenance and visibility accessories

Even the best safety systems fail without upkeep.

• Clean lenses and mirrors daily: Dirt, oil spray, and dust reduce camera and mirror effectiveness.

• Check for cracked or misaligned sensors: Especially after machine transport or impact.

• Install additional mirrors: Wide-angle or convex mirrors mounted at the right spots can double visibility around lower blind zones.

8. Virtual inspections and pre-purchase planning

If you’re acquiring used heavy equipment through platforms like Makana, use virtual tools wisely.

• 360° virtual machine tours: Pay special attention to the cab design and whether cameras or mirrors are included.

• Certified Inspection Reports: Check for notes about blind spot coverage, added safety accessories, or visibility impairments (e.g., cracked windows, blocked mirrors).

Conclusion

Blind spots in heavy machinery are a serious safety concern, but with the right precautions, risks can be minimized. Operators must be aware of their machine’s blind spots, while site managers should enforce technological solutions and strict safety protocols to protect workers.
