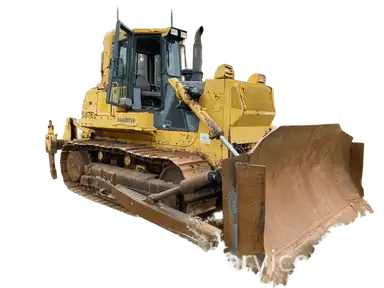

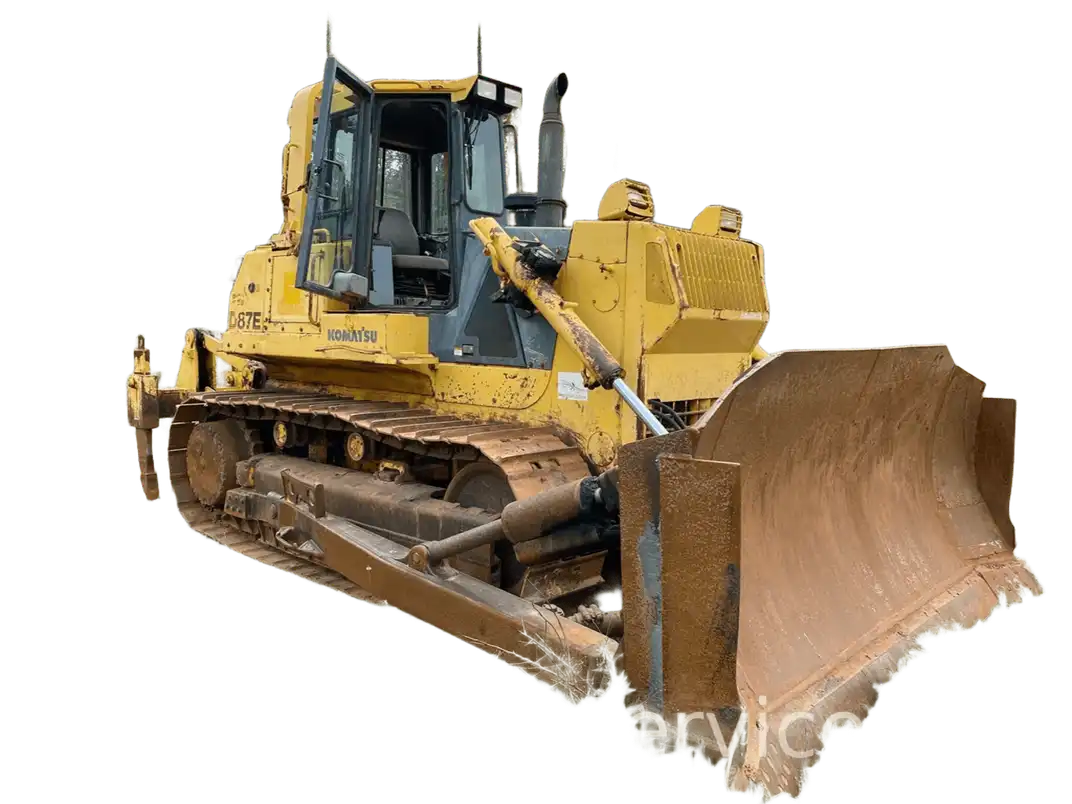

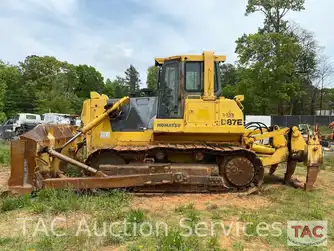

Komatsu D87 Crawler dozers tech specs

makana img
video play button
Video[1]

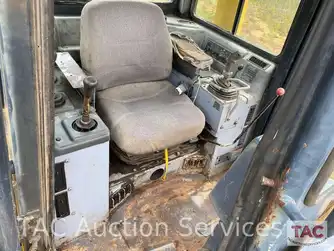

Interior [2]

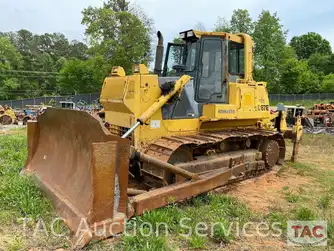

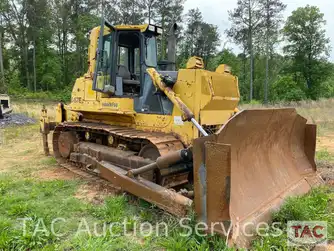

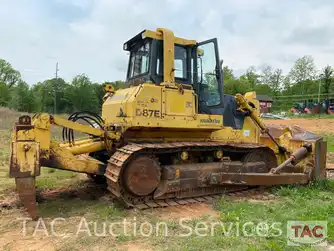

Exterior [4]

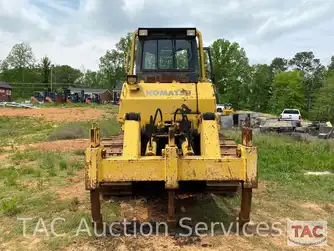

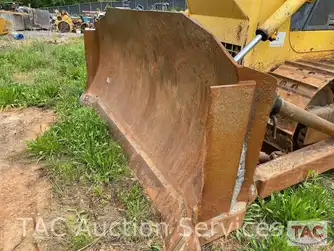

Attachments [2]
1996-2003
23,998 kg Operating weight
102.91 Nm Max torque
171.51 kw Net power
3.51 m Blade width
56.13 mm Track width
490.16 liter Fuel cap

A 23,998 kg crawler dozer built for heavy grading, site preparation, and production earthmoving work, the Komatsu D87 combines a 3 m blade with a modular countershaft-type power shift drive system for steady and controlled push performance. With its 490.16 liter fuel capacity, 3.11 m track length, and 56.13 cm track width, it is suited for roadworks, land clearing, and contractor jobs where good traction, longer working hours, and dependable dozing output matter.

Operating weight 23,998 kg

Blade width 3 m

Modular countershaft-type power shift drive

Fuel tank capacity 490.16 liters

Track length 3.11 m

Track width 56.13 cm

Built for grading, site prep, and production dozing

Makana rating

Owner rating

 | 3

Market average

AED 480,000

Starting from

AED 350,000

Komatsu D87 technical specifications

Highlight differences

Komatsu D87E-3

Komatsu D87E-3 LGP

General
Engine model S6D125E-2
Engine model S6D125E-2
Operating weight 23,998 kg
Operating weight 23,998 kg
Blade capacity 7.11 cu m
Blade capacity 7.11 cu m
Drive type Modular countershaft -type power shift
Drive type Modular countershaft -type power shift
Displacement 11,041.63 cu cm
Displacement 11,041.63 cu cm
Max torque 102.91 Nm
Max torque 102.91 Nm
Max speed forward 10.46 kph
Max speed forward 10.46 kph
Operating voltage 24
Operating voltage 24 V
Blade width 3.51 m
Blade width 3.51 m
Years 1996-2003
Years 1996-2003
Market Average AED 480,000
Market Average AED 480,000
Price AED 350,000
Price AED 350,000
Engine
Aspiration Turbocharged
Aspiration Turbocharged
Power measured @ 2,100 rpm
Power measured @ 2,100 rpm
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Gross power 184.19 kw
Gross power 184.19 kw
Alternator supplied amperage 50 Amh
Alternator supplied amperage 50 Amh
Number of cylinders 6
Number of cylinders 6
Net power 171.51 kw
Net power 171.51 kw
Refill capacities
Final drives fluid cap 38.23 liters
Final drives fluid cap 38.23 liter
Engine oil cap 30.28 liter
Engine oil cap 30.28 liter
Undercarriage
Ground contact area 88,901.66 cu cm
Ground contact area 88,901.66 cu cm
Number of shoes per side 42
Number of shoes per side 42
Track pitch 21.84 cm
Track pitch 21.84 cm
Ground pressure 0.66 bar
Ground pressure 0.66 bar
Number of track rollers per side 7
Number of track rollers per side 7
Track width 56.13 mm
Track width 56.13 cm
Track gauge 1.98 m
Track gauge 2.26 m
Track length -
Track length 3.41 m
Dimensions
Height - top of cab 3.51 m
Height - top of cab 3.51 m
Length with blade 6.13 m
Length with blade 6.13 m
Length without blade 4.51 m
Length without blade 4.51 m
Blade height 1.6 cm
Blade height 1.6 m
Ground clearance 0.49 m
Ground clearance 0.49 m
Width over tracks 2.56 m
Width over tracks 3.08 m
Hydraulic system
Pump flow cap 145.34 lpm
Pump flow cap 145.34 lpm
Relief valve pressure 165.47 bar
Relief valve pressure 165.47 bar
Pump type Mulitple pump gear
Pump type Mulitple pump gear
Service refill capacities
Cooling fluid cap 59.05 liters
Cooling fluid cap 59.05 liter
Fuel cap 490.16 liter
Fuel cap 490.16 liter
Hydraulic fluid cap 133.23 liter
Hydraulic fluid cap 133.23 liter
Transmission
Max speed reverse 12.23 kph
Max speed reverse 12.23 kph
Number of reverse gears 6
Number of reverse gears 6
Number of forward gears 6
Number of forward gears 6
Download datasheets
OEM product brochure

Komatsu D87 expert review

Reviewed by Wade A. on April 22, 2026

Overview

The Komatsu D87 (1996–2003) is a heavy crawler dozer designed for grading, site preparation, and general earthmoving tasks. It delivers a 23,998 kg operating weight, a 3 m blade width, and a modular countershaft-type power shift drive system, providing steady and practical pushing performance on demanding job sites.

Expert rating: 4 stars

Pros Strong operating weight and steady power shift performance for dependable production dozing.
Cons Older machine platform with less refinement than newer crawler dozers.

Performance & Efficiency

The 23,998 kg operating weight, 3 m blade, and modular countershaft-type power shift drive give the D87 steady pushing power for grading, clearing, and general site earthmoving, while the large fuel tank supports longer working hours.

In Comparison

Komatsu D80: Older and slightly lighter dozer for general contractor work.
Komatsu D85: Similar working class with wider blade coverage on some setups.
Komatsu D87: Better suited to buyers wanting heavier weight and a stronger day-to-day production feel.

Final Verdict

Rated 4 stars, the Komatsu D87 offers solid crawler dozer performance within the AED 350,000–480,000 range.

Show less

Komatsu D87 owner rating

Komatsu D87 Crawler dozers [1996-2003]

1996-2003

Overall rating

Based on 3 ratings

4.0
performance

4.0

comfort

4.0

fuel efficiency

4.3

safety

4.3

features

4.0

5 stars

34 %

4 stars

33 %

3 stars

33 %

2 stars

0 %

1 stars

0 %

Pros
Holds steady well under load and feels strong on long grading passes.
Cons
Older design means comfort and controls are not as refined as newer dozers.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Valuation

Last 12 month
1996

Komatsu D87 similar models

Highlight differences
Komatsu D87E-3
Komatsu D80A-12
Komatsu D85A-12
General
Engine model S6D125E-2
Engine model NH220-CI
Engine model NH220-CI
Operating weight 23,998 kg
Operating weight 21,550 kg
Operating weight 21,850 kg
Blade capacity 7.11 cu m
Blade capacity 5.96 cu m
Blade capacity 5.96 cu m
Drive type Modular countershaft -type power shift
Drive type Direct drive
Drive type K-C
Displacement 11,041.63 cu cm
Displacement 12,170.7 cu cm
Displacement 12,170.7 cu cm
Max torque 102.91 Nm
Max torque -
Max torque -
Max speed forward 10.46 kph
Max speed forward 7.4 kph
Max speed forward 10.14 kph
Operating voltage 24
Operating voltage -
Operating voltage -
Blade width 3.51 m
Blade width 3.63 m
Blade width 4.27 m
Years 1996-2003
Years 1978-1996
Years 1988-2003
Market Average AED 480,000
Market Average AED 390,000
Market Average AED 450,000
Price AED 350,000
Price AED 280,000
Price AED 320,000
Engine
Aspiration Turbocharged
Aspiration -
Aspiration -
Power measured @ 2,100 rpm
Power measured @ 1,850 rpm
Power measured @ 1,850 rpm
Torque measured @ 1,400 rpm
Torque measured @ -
Torque measured @ -
Gross power 184.19 kw
Gross power 134.23 kw
Gross power 134.23 kw
Alternator supplied amperage 50 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Number of cylinders 6
Number of cylinders 6
Number of cylinders 6
Net power 171.51 kw
Net power -
Net power -
Refill capacities
Final drives fluid cap 38.23 liters
Final drives fluid cap -
Final drives fluid cap -
Engine oil cap 30.28 liter
Engine oil cap -
Engine oil cap -
Undercarriage
Ground contact area 88,901.66 cu cm
Ground contact area -
Ground contact area -
Number of shoes per side 42
Number of shoes per side 38
Number of shoes per side 38
Track pitch 21.84 cm
Track pitch 21.84 cm
Track pitch 21.84 cm
Ground pressure 0.66 bar
Ground pressure 0.57 bar
Ground pressure 0.58 bar
Number of track rollers per side 7
Number of track rollers per side 6
Number of track rollers per side 6
Track width 56.13 mm
Track width 56.13 cm
Track width 56.13 cm
Track gauge 1.98 m
Track gauge 2.01 m
Track gauge 2.01 m
Track length -
Track length 2.74 m
Track length 2.74 m
Dimensions
Height - top of cab 3.51 m
Height - top of cab 3.26 m
Height - top of cab 3.26 m
Length with blade 6.13 m
Length with blade 6.83 m
Length with blade 6.95 m
Length without blade 4.51 m
Length without blade 4.6 m
Length without blade 4.6 m
Blade height 1.6 cm
Blade height 1.28 m
Blade height 1.06 m
Ground clearance 0.49 m
Ground clearance 0.43 m
Ground clearance 0.43 m
Width over tracks 2.56 m
Width over tracks 2.62 m
Width over tracks 2.62 m
Hydraulic system
Pump flow cap 145.34 lpm
Pump flow cap -
Pump flow cap -
Relief valve pressure 165.47 bar
Relief valve pressure -
Relief valve pressure -
Pump type Mulitple pump gear
Pump type -
Pump type -
Service refill capacities
Cooling fluid cap 59.05 liters
Cooling fluid cap 65.1 liter
Cooling fluid cap 65.1 liter
Fuel cap 490.16 liter
Fuel cap 420.14 liter
Fuel cap 420.14 liter
Hydraulic fluid cap 133.23 liter
Hydraulic fluid cap -
Hydraulic fluid cap -
Transmission
Max speed reverse 12.23 kph
Max speed reverse 9.66 kph
Max speed reverse 12.07 kph
Number of reverse gears 6
Number of reverse gears 4
Number of reverse gears 3
Number of forward gears 6
Number of forward gears 5
Number of forward gears 3
