Komatsu D575 Crawler dozers tech specs
:quality(50)/74056/abe58d4d-eadf-4ba7-8a60-1a8feec52a60.png)
:quality(50)/74069/conversions/41ebaca2-3442-4c28-a6a0-20b67f64985f-thumb.webp)
Video[1]
:quality(50)/74060/conversions/c49cb232-ed11-4831-b67b-1422e7cf951a-thumb.webp)
Interior [2]
:quality(50)/74062/conversions/fb05585e-3e74-4ecb-95d5-9675ed7d41c0-thumb.webp)
Exterior [5]
:quality(50)/74067/conversions/e81ad853-45a0-42a0-86db-96ebe3511a24-thumb.webp)
Attachments [2]
Komatsu D575 technical specifications
Highlight differences
:quality(50)/74057/5befc89d-f960-4f9e-8f24-463a2dd569b9.png)
:quality(50)/74058/1108ea12-c581-4416-834c-8268fca8799b.png)
:quality(50)/74059/e1f51609-ab91-470b-a4f5-5f586177af47.png)
Aspiration
Aspiration Turbocharged, emission certified diesel
Aspiration -
Aspiration Turbocharged, aftercooled
Gross power
Gross power 794.18 kw
Gross power -
Gross power -
Number of cylinders
Number of cylinders 12
Number of cylinders -
Number of cylinders 12
Power measured @
Power measured @ 1,800 rpm
Power measured @ -
Power measured @ 1,800 rpm
Net power
Net power -
Net power -
Net power 857.57 kw
Years
Years 1995-2004
Years 1995-2004
Years 1995-2004
Market Average
Market Average AED 4,600,000
Market Average AED 4,600,000
Market Average AED 4,600,000
Price
Price AED 3,500,000
Price AED 3,500,000
Price AED 3,500,000
Blade height
Blade height 2.74 m
Blade height -
Blade height 3.05 m
Ground clearance
Ground clearance 0.76 m
Ground clearance -
Ground clearance 0.76 m
Height - top of cab
Height - top of cab 4.91 m
Height - top of cab 3.81 m
Height - top of cab 4.88 m
Length with blade
Length with blade 12.01 m
Length with blade 7.71 m
Length with blade 11.73 m
Length without blade
Length without blade 7.28 m
Length without blade -
Length without blade -
Width over tracks
Width over tracks 4.21 m
Width over tracks 4.21 m
Width over tracks 3.23 m
Blade width
Blade width 5.88 m
Blade width -
Blade width 7.41 m
Displacement
Displacement 46,300.11 cu cm
Displacement 46,293.56 cu cm
Displacement 46,293.56 cu cm
Drive type
Drive type TORQFLOW
Drive type -
Drive type Komatsu TORQFLOW transmission
Engine model
Engine model SA12V170
Engine model SA12V170
Engine model SA12V170E
Max speed forward
Max speed forward 12.07 kph
Max speed forward 12.07 kph
Max speed forward 12.07 kph
Operating weight
Operating weight 129,200 kg
Operating weight 112,200 kg
Operating weight 114,577 kg
Cooling fluid cap
Cooling fluid cap 320.21 liter
Cooling fluid cap -
Cooling fluid cap 299.02 liter
Fuel cap
Fuel cap 2,099.92 liter
Fuel cap 2,099.92 liter
Fuel cap 2,100.68 liter
Hydraulic fluid cap
Hydraulic fluid cap 300.15 liter
Hydraulic fluid cap -
Hydraulic fluid cap 299.02 liter
Engine oil cap
Engine oil cap 129.07 liter
Engine oil cap -
Engine oil cap 196.82 liter
Final drives fluid cap
Final drives fluid cap 70.02 liter
Final drives fluid cap -
Final drives fluid cap 158.97 liter
Ground contact area
Ground contact area 174,896.24 cu cm
Ground contact area -
Ground contact area 23,962.86 cu cm
Ground pressure
Ground pressure 1.59 bar
Ground pressure -
Ground pressure 1.59 bar
Number of shoes per side
Number of shoes per side 43
Number of shoes per side -
Number of shoes per side 49
Number of track rollers per side
Number of track rollers per side 6
Number of track rollers per side -
Number of track rollers per side 8
Track gauge
Track gauge 3.23 m
Track gauge 3.23 m
Track gauge -
Track length
Track length 4.54 m
Track length 5.49 m
Track length -
Track width
Track width 76.2 cm
Track width 86.11 cm
Track width 86.36 cm
Max speed reverse
Max speed reverse 13.84 kph
Max speed reverse 13.84 kph
Max speed reverse 13.36 kph
Number of forward gears
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of reverse gears
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Pump flow cap
Pump flow cap 255.11 lpm
Pump flow cap -
Pump flow cap 1,256.62 lpm
Pump type
Pump type Gear driven
Pump type -
Pump type -
Relief valve pressure
Relief valve pressure 206 bar
Relief valve pressure -
Relief valve pressure 206.15 bar
Download datasheets
Komatsu D575 expert review
:quality(50)/60956/7a1344a3-c594-4581-8f94-22d923fd0ffc.jpeg)
Overview
The Komatsu D575 (1995–2004) is one of the largest crawler dozers ever produced for commercial earthmoving. Built for mining and high-volume infrastructure projects, it features a 129,200 kg operating weight and a massive 5 m blade designed to move huge quantities of material.
Expert rating: 4 stars
Pros
Enormous blade capacity and pushing force for mining-scale earthmoving.
Cons
Extremely high operating cost and limited practical use outside mining.
Performance & Efficiency
The massive weight and wide blade allow the D575 to move large volumes of material in fewer passes, making it highly productive in open-pit mining environments.
In Comparison
Komatsu D275: Smaller heavy dozer suited for large construction sites.
Komatsu D475: High-production mining dozer.
Komatsu D575: One of the largest production bulldozers ever built.
Final Verdict
Rated 4 stars, the Komatsu D575 delivers unmatched scale and pushing capacity within the AED 3,500,000–4,600,000 range.
Komatsu D575 owner rating
Komatsu D575 Crawler dozers [1995-2004]
1995-2004
Overall rating
Based on 3 ratings
5.0
performance
4.7
comfort
4.3
fuel efficiency
4.0
safety
4.3
features
4.0
5 stars
100 %
4 stars
0 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Komatsu D575 similar models
Highlight differences
:quality(50)/61055/3c6ca741-515a-4097-8ed8-f4695a536412.png)
:quality(50)/73931/b9054bbf-4fdf-43e9-a6f0-5963f107357c.png)
Aspiration
Aspiration Turbocharged, emission certified diesel
Aspiration Turbocharged, emission certified diesel
Aspiration -
Gross power
Gross power 794.18 kw
Gross power 305.74 kw
Gross power 2,000.07 kw
Number of cylinders
Number of cylinders 12
Number of cylinders 6
Number of cylinders -
Power measured @
Power measured @ 1,800 rpm
Power measured @ 1,800 rpm
Power measured @ 2,000 rpm
Torque measured @
Torque measured @ -
Torque measured @ 2,000 rpm
Torque measured @ -
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 50 Amh
Alternator supplied amperage -
Net power
Net power -
Net power 289 kw
Net power -
Bore
Bore -
Bore 110 cm
Bore -
Stroke
Stroke -
Stroke 90 cm
Stroke -
Years
Years 1995-2004
Years 2018-2024
Years 1986-1992
Market Average
Market Average AED 4,600,000
Market Average AED 150,000
Market Average AED 1,500,000
Price
Price AED 3,500,000
Price AED 120,000
Price AED 1,200,000
Blade height
Blade height 2.74 m
Blade height 1.91 cm
Blade height 2.37 m
Ground clearance
Ground clearance 0.76 m
Ground clearance 0.52 m
Ground clearance 0.7 m
Height - top of cab
Height - top of cab 4.91 m
Height - top of cab 3.96 m
Height - top of cab 4.57 m
Length with blade
Length with blade 12.01 m
Length with blade 9.08 m
Length with blade 11.55 m
Length without blade
Length without blade 7.28 m
Length without blade 5.46 m
Length without blade 6.43 m
Width over tracks
Width over tracks 4.21 m
Width over tracks 2.96 m
Width over tracks 3.72 m
Blade width
Blade width 5.88 m
Blade width 4.33 m
Blade width 5.27 m
Displacement
Displacement 46,300.11 cu cm
Displacement 23,150.06 cm3
Displacement 30,871.66 cu cm
Drive type
Drive type TORQFLOW
Drive type Torqflow
Drive type TORQFLOW
Engine model
Engine model SA12V170
Engine model S6D170-4
Engine model SA8V170
Max speed forward
Max speed forward 12.07 kph
Max speed forward 11.91 kph
Max speed forward -
Operating weight
Operating weight 129,200 kg
Operating weight 50,000 kg
Operating weight 91,570 kg
Engine power
Engine power -
Engine power 409 hp
Engine power -
Blade capacity
Blade capacity -
Blade capacity 12.84 cu m
Blade capacity -
Operating voltage
Operating voltage -
Operating voltage 24 V
Operating voltage -
Max torque
Max torque -
Max torque 3,200 Nm
Max torque -
Cooling fluid cap
Cooling fluid cap 320.21 liter
Cooling fluid cap 136.26 liters
Cooling fluid cap -
Fuel cap
Fuel cap 2,099.92 liter
Fuel cap 840.27 liter
Fuel cap -
Hydraulic fluid cap
Hydraulic fluid cap 300.15 liter
Hydraulic fluid cap -
Hydraulic fluid cap -
Engine oil cap
Engine oil cap 129.07 liter
Engine oil cap 51.1 liter
Engine oil cap -
Final drives fluid cap
Final drives fluid cap 70.02 liter
Final drives fluid cap 43.15 liters
Final drives fluid cap -
Ground contact area
Ground contact area 174,896.24 cu cm
Ground contact area 106,909.44 cu cm
Ground contact area -
Ground pressure
Ground pressure 1.59 bar
Ground pressure 0.87 bar
Ground pressure -
Number of shoes per side
Number of shoes per side 43
Number of shoes per side 39
Number of shoes per side 39
Number of track rollers per side
Number of track rollers per side 6
Number of track rollers per side 8
Number of track rollers per side 8
Track gauge
Track gauge 3.23 m
Track gauge -
Track gauge 2.77 m
Track length
Track length 4.54 m
Track length -
Track length 4.21 m
Track width
Track width 76.2 cm
Track width 61.21 mm
Track width 71.12 cm
Track pitch
Track pitch -
Track pitch 26.16 cm
Track pitch 31.75 cm
Max speed reverse
Max speed reverse 13.84 kph
Max speed reverse 14.97 kph
Max speed reverse -
Number of forward gears
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of reverse gears
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Pump flow cap
Pump flow cap 255.11 lpm
Pump flow cap 255.11 lpm
Pump flow cap -
Pump type
Pump type Gear driven
Pump type Gear driven
Pump type -
Relief valve pressure
Relief valve pressure 206 bar
Relief valve pressure 205.94 bar
Relief valve pressure -

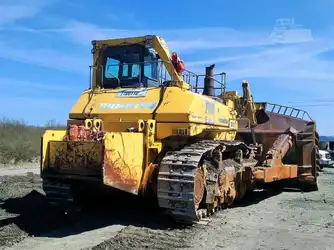

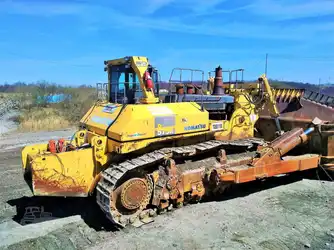

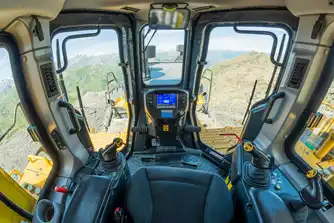

Komatsu D575 gallery
:quality(50)/74060/c49cb232-ed11-4831-b67b-1422e7cf951a.jpg)
:quality(50)/74061/85f13c7f-b84f-4504-b0d2-ef29f0101b8a.jpg)
:quality(50)/74062/fb05585e-3e74-4ecb-95d5-9675ed7d41c0.webp)
:quality(50)/74063/449c7e8a-a291-4fd0-aa6a-4141ee5fd075.webp)
:quality(50)/74064/c7f32255-4ea0-4ae8-a9f1-b26411c339c1.webp)
:quality(50)/74065/5afd945d-18d7-4df0-b2fe-5c71231620ca.jpg)
:quality(50)/74066/ce020e36-d2bf-4b5d-a76d-16a0b2edefd7.webp)
:quality(50)/74067/e81ad853-45a0-42a0-86db-96ebe3511a24.webp)
:quality(50)/74068/877d0429-295f-4ca4-827c-4b8df210174c.webp)
:quality(50)/74069/conversions/41ebaca2-3442-4c28-a6a0-20b67f64985f-thumb.webp)
:quality(75)/products/10191/3d_cover/5baa775f-39b6-47a9-a7a6-6ae487bb4aca.png)
:quality(75)/products/10170/3d_cover/0d3784e6-43fe-497b-933e-3d9ff6bd72ea.png)
:quality(75)/products/10285/3d_cover/9bfd4809-ed9a-4303-a29a-55d5a9090868.png)
:quality(75)/products/10032/cover/d2ed1969-5d41-4a66-85b4-8e9939bf2453.png)
Similar machines. Other reviews.
:quality(50)/73539/483a771d-4866-40f8-8a6b-62141de2d84d.png)
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
:quality(50)/73719/41aa3ddd-b7ce-4507-92cc-51a338a88afe.png)
:quality(80)/60951/b376c375-391e-4221-936c-4c863ae106c1.jpeg)
:quality(50)/103866/e327728f-a5a4-41b1-88a0-11591ce9e6f0.webp)
:quality(50)/74191/8c415f3c-4451-408b-93b2-fddf9a396d1d.png)
Komatsu SK1020 Compact track loaders specs Komatsu WB140 Backhoe loaders specs Komatsu WB142 Backhoe loaders specs Komatsu WB146 Backhoe loaders specs Komatsu WB150 Backhoe loaders specs Komatsu WB156 Backhoe loaders specs Komatsu WB70 Backhoe loaders specs Komatsu WB91 Backhoe loaders specs Komatsu WB93 Backhoe loaders specs Komatsu WB97 Backhoe loaders specs
Komatsu WF450 Crawler dozers specs Komatsu WF550 Crawler dozers specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Komatsu D135 Crawler dozers specs Komatsu D20 Crawler dozers specs Komatsu D21 Crawler dozers specs Cat D3 Crawler dozers specs Komatsu D31 Crawler dozers specs Komatsu D32 Crawler dozers specs
Komatsu WD600 Wheel dozers specs Komatsu WF450 Crawler dozers specs Komatsu WF550 Crawler dozers specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Komatsu D135 Crawler dozers specs Komatsu D20 Crawler dozers specs Komatsu D21 Crawler dozers specs Cat D3 Crawler dozers specs Komatsu D31 Crawler dozers specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
:quality(50)/35112/27094105-1188-4d7f-b8cd-5ed4b9c99391.svg)
:quality(50)/35115/93df1526-7a54-4e3c-9c3b-06102e561c2b.svg)
