Dos and don’ts of operating a boom loader at full reach

A boom loader can place materials much farther and higher than a standard forklift, but its lifting ability changes as the telescopic boom extends. A machine rated for 4 tons close to the chassis cannot automatically carry the same load at maximum forward reach.

For operators using telehandlers on construction sites, the main rules are simple: know the capacity at the required reach, keep the machine stable, and avoid movements that add extra force to an extended boom.

Check telehandler load capacity before extending the boom

The rated capacity of a telescopic handler describes its maximum lifting ability under specific conditions. It is not the capacity available everywhere within the boom’s working range.

As the boom extends forward, the load moves farther away from the machine. This increases leverage on the chassis and reduces how much weight can safely be carried.

Do: Use the load chart for the actual reach and height.

The correct capacity depends on the boom angle, extension, attachment, load center, and machine setup. Before placing a load, the operator should know its weight and where it needs to be positioned within the working envelope.

Don’t: Treat the headline capacity as full-reach capacity.

A telehandler rated for 4 tons may carry substantially less when the boom is fully extended. If the required load sits outside the permitted zone on the load chart, the machine needs to be positioned closer or a different machine is required.

This difference becomes especially important with high-reach boom loaders, where several meters of additional extension can significantly change the available capacity.

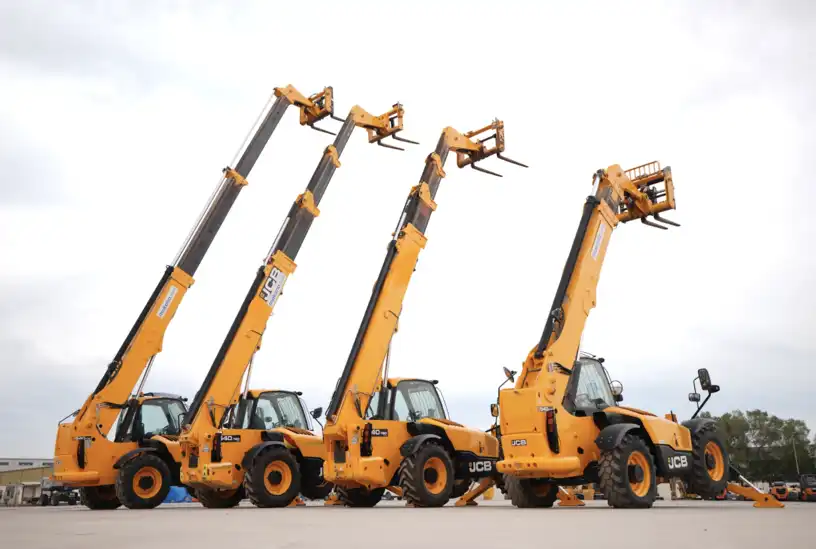

JCB 540-170 and 540-180 at high lift heights

The JCB 540-170 is designed for construction jobs that require both vertical lift and forward placement. It has a rated lift capacity of 4 tons, reaches about 16 m high, and provides around 12 m of forward reach.

That makes it suitable for placing pallets and construction materials onto upper levels, reaching across obstacles, and supplying elevated work areas where a standard forklift cannot reach.

The JCB 540-180 extends that working envelope further. It also has a rated capacity of 4 tons, while maximum lift height reaches about 17 m and forward reach is around 13 m.

The extra reach can be valuable when the machine cannot work directly beside the placement point. It also means the operator spends more time in parts of the load chart where the permitted capacity is lower than the headline 4-ton figure.

The choice between the two is therefore not only about an extra meter of lift. It depends on how far materials need to travel upward and forward from the machine.

Explore telehandlers and boom loaders for sale from JCB and other manufacturers on Makana.

Keep telehandlers level before lifting at full reach

Boom extension makes machine position increasingly important. The farther the load moves from the chassis, the less room there is for poor setup.

The Genie guidance for operating telescopic handlers bases load-chart capacities on the machine being correctly positioned on firm ground with the frame level.

Do: Set up the boom loader on firm, level ground.

High-reach models may use stabilizers or chassis-levelling systems to create a more stable lifting position. These features are particularly useful when placing loads high above the machine or reaching forward over a structure.

Don’t: Use full reach from an unstable or badly sloped position.

Uneven or weak ground reduces the machine’s stability before the boom even starts moving. The UK guidance for safe telescopic handler operation also identifies poor ground conditions and slopes as important overturning risks.

Boom extension should not be used to compensate for poor machine positioning. Moving the machine into a better lifting position is usually preferable to adding unnecessary reach.

Avoid side loads and sudden movement with the boom extended

A telescopic boom is designed primarily to lift and place loads through its normal operating envelope. It is not intended to act as a tool for dragging or pushing heavy loads sideways.

Side loading introduces forces that are different from a normal vertical lift. These forces become more significant when the boom is already extended.

Don’t: Drag, push, or pull loads sideways with the boom.

A load that needs repositioning should be approached and handled through the correct attachment and machine position instead of forcing the boom laterally.

Sudden machine movements can create a similar problem. Braking sharply, turning quickly, or changing boom direction abruptly can cause the load to shift or swing.

Do: Keep boom and machine movements smooth.

Raise, lower, extend, and retract the boom progressively. When travelling between lifting points, keep the load lower and the boom retracted rather than moving across the site with the load held at full reach.

These operating habits become more important as both lift height and forward reach increase.

Genie GTH-5519 for lower-reach lifting jobs

Not every construction site needs a boom loader capable of reaching 17 m. The Genie GTH-5519 is designed for shorter-reach material handling. It has a maximum rated capacity of about 2.5 tons, a lift height of around 5 m, and approximately 3 m of forward reach.

The load-chart numbers again show why rated capacity and full-reach capacity are different. At maximum lift height, capacity is around 2 tons, while at maximum forward reach it falls to about 1 ton, depending on configuration.

The GTH-5519 is also much more compact than the high-reach JCB models. This makes it useful for pallet handling, truck loading, landscaping, low-rise construction, and tighter sites where the reach of a 17 m telehandler would not add useful productivity.

Discover telehandlers for sale from Genie, JCB and other manufacturers on Makana.

Find JCB and Genie telehandlers for sale on Makana

Makana offers boom loaders and telescopic handlers for sale across different capacities and lift heights, including model pages for the JCB 540-170, JCB 540-180, and Genie GTH-5519.

Depending on the machine, buyers can access 75+ point inspection reports, operational videos, 3D and 360° views, detailed specifications, and clear pricing before purchase.

Makana also supports virtual or in-person inspections in Dubai and logistics for UAE and international buyers. When a required boom loader is not available, the machinery procurement service can help source a specific model.

FAQs

Is a boom loader the same as a telehandler?

Yes. Boom loader, telehandler, telescopic handler, and telescopic forklift are commonly used for machines with an extending boom that lifts and places materials vertically and forward.

Can a 4-ton telehandler lift 4 tons at full reach?

Usually not. The available capacity falls as the boom extends, so the load chart must be used for the specific boom angle, reach, attachment, and load position.

How high can a JCB 540-170 lift?

The JCB 540-170 reaches about 16 m and has a maximum rated lift capacity of 4 tons.

What is the difference between JCB 540-170 and JCB 540-180?

Both have a rated capacity of 4 tons. The 540-170 reaches about 16.7 m, while the 540-180 reaches around 17.5 m and provides more forward reach.

How much can the Genie GTH-5519 lift at full reach?

The GTH-5519 has a maximum rated capacity of about 2.5 tons, but capacity at maximum forward reach falls to around 0.9 tons, depending on configuration.

Should a telehandler be level before extending the boom?

Yes. The machine should be correctly positioned on firm ground and level according to its operating instructions before high-reach lifting.
