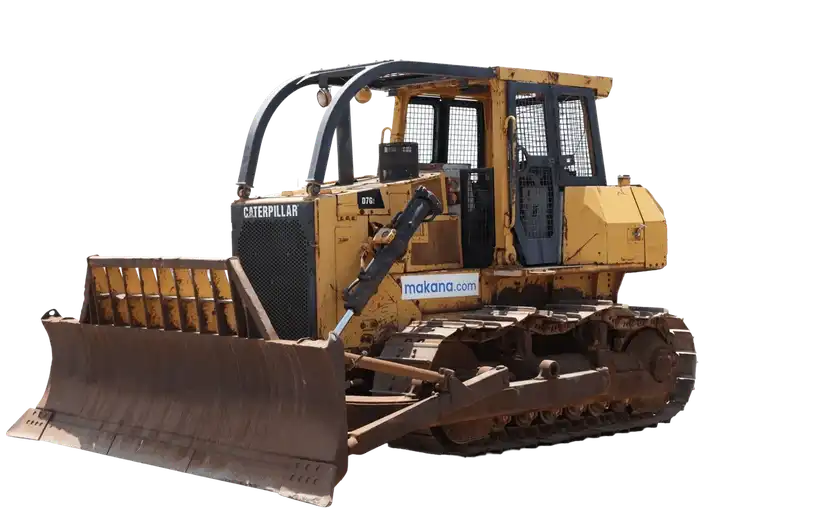

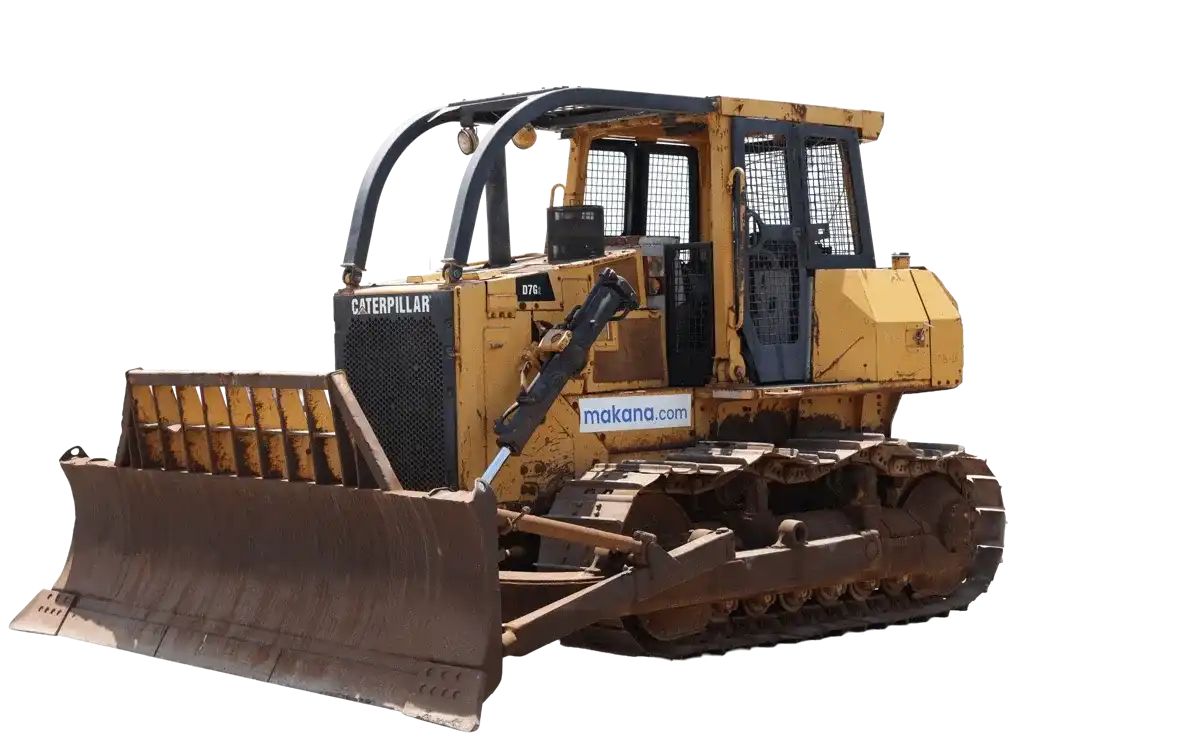

Cat D7 Crawler dozers tech specs
:quality(50)/103885/26ecd2c3-2c3c-4ed0-95e0-0f6364c9f6e0.webp)
:quality(50)/103900/conversions/e2fccd0a-82ff-4d5a-b459-463772eff9c5-thumb.webp)
Video[1]
:quality(50)/103892/conversions/3d2ef02a-7309-4ce0-805e-ff10c3f43daf-thumb.webp)

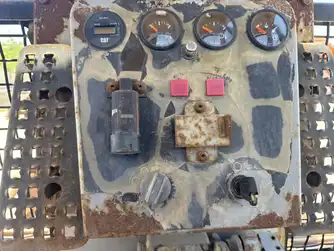

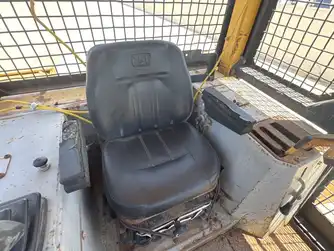

Interior [2]
:quality(50)/103894/conversions/81804647-512b-4fab-9338-ca4eaa6edc92-thumb.webp)
Exterior [4]
:quality(50)/103898/conversions/2938a784-66c7-4630-8ad5-7de4771ac7be-thumb.webp)
Attachments [2]

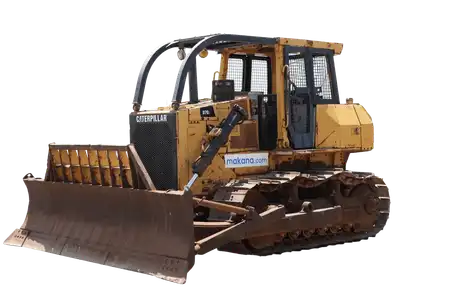

Cat D7 technical specifications
Highlight differences
:quality(50)/103889/54110f46-e170-41c9-96da-9cf1586ed0da.webp)
:quality(50)/103888/c8f5be96-d67f-43a4-b2fa-68ae681421de.png)
Engine model
Engine model 3408
Engine model -
Engine model C9.3 ACERT
Engine model C9.3 ACERT
Engine model C9.3 ACERT
Engine model -
Engine model 3306
Engine model 3306
Engine model 3176C
Engine model 3176C
Engine model 3306T
Engine model 3176C
Engine model 3176C
Engine model 3306T
Engine model 3176C
Operating weight
Operating weight 23,630 kg
Operating weight -
Operating weight 25,704 kg
Operating weight -
Operating weight 28,819 kg
Operating weight -
Operating weight 23,647 kg
Operating weight -
Operating weight -
Operating weight 27,895 kg
Operating weight 27,079 kg
Operating weight -
Operating weight 27,895 kg
Operating weight 24,539 kg
Operating weight -
Drive type
Drive type Powershift
Drive type Powershift
Drive type Electric
Drive type Electric
Drive type -
Drive type -
Drive type Planetary powershift
Drive type Powershift
Drive type Hydrostatic
Drive type -
Drive type Powershift
Drive type Hydrostatic
Drive type -
Drive type Powershift
Drive type Hydrostatic
Blade width
Blade width 4.18 m
Blade width 3.93 m
Blade width 3.72 m
Blade width 4.57 m
Blade width -
Blade width 3.69 m
Blade width 3.84 m
Blade width -
Blade width 3.69 m
Blade width 3.72 m
Blade width 4.57 m
Blade width 4.57 m
Blade width -
Blade width 3.72 m
Blade width 3.69 m
Displacement
Displacement 10,500.85 cu cm
Displacement -
Displacement 9,301.32 cu cm
Displacement 9,301.32 cu cm
Displacement 9,291.49 cu cm
Displacement 10,500.85 cu cm
Displacement 10,500.85 cu cm
Displacement 10,500.85 cu cm
Displacement 10,307.49 cu cm
Displacement 10,471.36 cu cm
Displacement 10,454.97 cu cm
Displacement 10,307.49 cu cm
Displacement 10,307.49 cu cm
Displacement 10,500.85 cu cm
Displacement 10,307.49 cu cm
Max speed forward
Max speed forward 10.14 kph
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward 11.91 kph
Max speed forward 11.91 kph
Max speed forward 10.62 kph
Max speed forward 10.62 kph
Max speed forward 10.94 kph
Max speed forward 10.62 kph
Max speed forward 10.62 kph
Max speed forward -
Max speed forward 10.62 kph
Operating voltage
Operating voltage -
Operating voltage 24
Operating voltage -
Operating voltage -
Operating voltage -
Operating voltage -
Operating voltage 24 V
Operating voltage -
Operating voltage -
Operating voltage 24 V
Operating voltage 24 V
Operating voltage -
Operating voltage 24 V
Operating voltage -
Operating voltage 24 V
Blade capacity
Blade capacity -
Blade capacity -
Blade capacity 6.88 cu m
Blade capacity 5.89 cu m
Blade capacity -
Blade capacity -
Blade capacity 4.51 cu m
Blade capacity -
Blade capacity 6.88 cu m
Blade capacity 14.07 cu m
Blade capacity 5.96 cu m
Blade capacity 5.89 cu m
Blade capacity 12.31 cu m
Blade capacity 6.88 cu m
Blade capacity 6.88 cu m
Years
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Years 2008-2017
Market Average
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Market Average AED 1,100,000
Price
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Price AED 900,000
Gross power
Gross power 249.81 kw
Gross power -
Gross power 187.92 kw
Gross power 187.92 kw
Gross power -
Gross power -
Gross power 172.26 kw
Gross power 160.33 kw
Gross power 192.39 kw
Gross power 192.39 kw
Gross power 191.65 kw
Gross power 192.39 kw
Gross power 192.39 kw
Gross power 184.19 kw
Gross power 192.39 kw
Aspiration
Aspiration -
Aspiration Turbocharged
Aspiration -
Aspiration -
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration -
Aspiration -
Aspiration -
Aspiration Turbocharged
Aspiration -
Aspiration -
Aspiration Turbocharged
Aspiration -
Power measured @
Power measured @ -
Power measured @ 2,100 rpm
Power measured @ 1,700 rpm
Power measured @ 1,700 rpm
Power measured @ -
Power measured @ 2,000 rpm
Power measured @ 2,100 rpm
Power measured @ -
Power measured @ 2,100 rpm
Power measured @ 2,100 rpm
Power measured @ 2,100 rpm
Power measured @ 2,100 rpm
Power measured @ 2,100 rpm
Power measured @ 2,100 rpm
Power measured @ 2,100 rpm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 70 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Alternator supplied amperage -
Alternator supplied amperage -
Alternator supplied amperage 35 Amh
Alternator supplied amperage -
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Alternator supplied amperage 70 Amh
Alternator supplied amperage -
Alternator supplied amperage 95 Amh
Alternator supplied amperage 70 Amh
Alternator supplied amperage 95 Amh
Number of cylinders
Number of cylinders -
Number of cylinders 6
Number of cylinders -
Number of cylinders -
Number of cylinders -
Number of cylinders 6
Number of cylinders 6
Number of cylinders -
Number of cylinders -
Number of cylinders 6
Number of cylinders 6
Number of cylinders 6
Number of cylinders 6
Number of cylinders 6
Number of cylinders 6
Net power
Net power -
Net power 171.51 kw
Net power -
Net power -
Net power -
Net power -
Net power 160.33 kw
Net power -
Net power 178.97 kw
Net power 178.97 kw
Net power 178.97 kw
Net power 178.97 kw
Net power 178.97 kw
Net power 171.51 kw
Net power 178.97 kw
Bore
Bore -
Bore -
Bore -
Bore -
Bore 11.43 cm
Bore -
Bore -
Bore -
Bore -
Bore -
Bore -
Bore -
Bore -
Bore -
Bore -
Stroke
Stroke -
Stroke -
Stroke -
Stroke -
Stroke 14.99 cm
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Ground contact area
Ground contact area 133,605.67 cu cm
Ground contact area -
Ground contact area 93,373.7 cu cm
Ground contact area 160,462.49 cu cm
Ground contact area -
Ground contact area -
Ground contact area 74,725.18 cu cm
Ground contact area 82,297.66 cu cm
Ground contact area -
Ground contact area 82,197.69 cu cm
Ground contact area 147,041.45 cu cm
Ground contact area 147,483.9 cu cm
Ground contact area 147,057.84 cu cm
Ground contact area 94,520.79 cu cm
Ground contact area 94,389.7 cu cm
Number of track rollers per side
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 8
Number of track rollers per side -
Number of track rollers per side 6
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 8
Number of track rollers per side 8
Track width
Track width 86.11 mm
Track width 56.13 mm
Track width 61.21 cm
Track width 91.69 cm
Track width -
Track width -
Track width 51.05 cm
Track width 56.13 cm
Track width -
Track width 55.88 cm
Track width 91.44 cm
Track width 91.44 cm
Track width 91.44 cm
Track width -
Track width 60.96 cm
Track gauge
Track gauge 2.19 m
Track gauge 1.98 m
Track gauge 1.98 m
Track gauge 2.29 m
Track gauge 2.29 m
Track gauge 1.98 m
Track gauge 1.98 m
Track gauge 1.98 m
Track gauge 1.98 m
Track gauge 1.98 m
Track gauge 2.23 m
Track gauge 2.26 m
Track gauge 2.26 m
Track gauge 1.98 m
Track gauge 1.98 m
Number of shoes per side
Number of shoes per side -
Number of shoes per side 40
Number of shoes per side 40
Number of shoes per side 44
Number of shoes per side -
Number of shoes per side -
Number of shoes per side 40
Number of shoes per side -
Number of shoes per side -
Number of shoes per side 43
Number of shoes per side 43
Number of shoes per side 43
Number of shoes per side 43
Number of shoes per side 41
Number of shoes per side 41
Ground pressure
Ground pressure -
Ground pressure -
Ground pressure 0.68 bar
Ground pressure 0.43 bar
Ground pressure 0.44 bar
Ground pressure 0.71 bar
Ground pressure 0.77 bar
Ground pressure 0.73 bar
Ground pressure -
Ground pressure 0.74 bar
Ground pressure 0.46 bar
Ground pressure 0.46 bar
Ground pressure 0.46 bar
Ground pressure 0.72 bar
Ground pressure 0.68 bar
Track length
Track length -
Track length -
Track length 3.02 m
Track length 3.47 m
Track length -
Track length -
Track length 2.93 m
Track length 2.93 m
Track length 2.88 m
Track length 2.87 m
Track length 3.17 m
Track length 3.2 m
Track length 3.2 m
Track length 3.08 m
Track length 3.66 m
Track pitch
Track pitch -
Track pitch -
Track pitch 21.84 cm
Track pitch 21.84 cm
Track pitch -
Track pitch -
Track pitch -
Track pitch -
Track pitch -
Track pitch -
Track pitch -
Track pitch 21.59 cm
Track pitch -
Track pitch -
Track pitch 21.59 cm
Height - top of cab
Height - top of cab 3.2 m
Height - top of cab -
Height - top of cab 3.41 m
Height - top of cab 3.41 m
Height - top of cab -
Height - top of cab -
Height - top of cab 3.35 m
Height - top of cab 3.44 m
Height - top of cab 3.38 m
Height - top of cab 3.44 m
Height - top of cab 3.66 m
Height - top of cab 3.47 m
Height - top of cab 3.6 m
Height - top of cab 3.6 m
Height - top of cab 3.38 m
Length with blade
Length with blade 5.7 m
Length with blade 5.82 m
Length with blade 5.82 m
Length with blade 5.61 m
Length with blade -
Length with blade 5.3 m
Length with blade 5.58 m
Length with blade 5.58 m
Length with blade 5.7 m
Length with blade 4.69 m
Length with blade 5.82 m
Length with blade 5.82 m
Length with blade 6.28 m
Length with blade 6.07 m
Length with blade 6.04 m
Length without blade
Length without blade 4.24 m
Length without blade -
Length without blade 4.63 m
Length without blade 4.63 m
Length without blade -
Length without blade -
Length without blade 4.63 m
Length without blade 4.63 m
Length without blade 4.72 m
Length without blade 4.72 m
Length without blade 4.75 m
Length without blade 4.72 m
Length without blade 4.72 m
Length without blade 4.75 m
Length without blade 4.72 m
Ground clearance
Ground clearance 0.37 m
Ground clearance 0.43 m
Ground clearance 0.49 m
Ground clearance 0.49 m
Ground clearance 0.49 m
Ground clearance 0.37 m
Ground clearance 0.43 m
Ground clearance 0.43 m
Ground clearance 0.43 m
Ground clearance -
Ground clearance 0.52 m
Ground clearance 5.94 m
Ground clearance 0.52 m
Ground clearance 0.43 m
Ground clearance -
Width over tracks
Width over tracks 3.35 m
Width over tracks -
Width over tracks 2.9 m
Width over tracks 3.44 m
Width over tracks -
Width over tracks -
Width over tracks -
Width over tracks 2.56 m
Width over tracks 2.56 m
Width over tracks 2.59 m
Width over tracks 3.38 m
Width over tracks 3.17 m
Width over tracks 2.56 m
Width over tracks 2.9 m
Width over tracks 2.59 m
Blade height
Blade height -
Blade height -
Blade height 1.52 m
Blade height 1.35 m
Blade height -
Blade height -
Blade height 1.28 m
Blade height -
Blade height 1.52 m
Blade height -
Blade height 1.34 m
Blade height 1.35 m
Blade height -
Blade height 1.52 m
Blade height 1.52 m
Fuel cap
Fuel cap 435.28 liter
Fuel cap -
Fuel cap 409.16 liter
Fuel cap 409.16 liter
Fuel cap 429.6 liter
Fuel cap -
Fuel cap 488.27 liter
Fuel cap 488.27 liter
Fuel cap 478.8 liter
Fuel cap 478.8 liter
Fuel cap 479.18 liter
Fuel cap 478.8 liter
Fuel cap 478.8 liter
Fuel cap -
Fuel cap 478.8 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 75.32 liters
Cooling fluid cap 87.06 liter
Cooling fluid cap 87.06 liter
Cooling fluid cap 85.16 liter
Cooling fluid cap -
Cooling fluid cap 52.61 liter
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap 75.32 liter
Cooling fluid cap 77.21 liter
Cooling fluid cap -
Cooling fluid cap 75.32 liter
Cooling fluid cap 77.21 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 54.13 liter
Hydraulic fluid cap 76.08 liter
Hydraulic fluid cap 76.08 liter
Hydraulic fluid cap 75.7 liter
Hydraulic fluid cap -
Hydraulic fluid cap 115.06 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap -
Hydraulic fluid cap -
Hydraulic fluid cap 54.13 liter
Hydraulic fluid cap -
Hydraulic fluid cap -
Hydraulic fluid cap -
Hydraulic fluid cap -
Max speed reverse
Max speed reverse 12.07 kph
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse 14.32 kph
Max speed reverse 14.32 kph
Max speed reverse 13.68 kph
Max speed reverse 13.52 kph
Max speed reverse 13.84 kph
Max speed reverse 13.68 kph
Max speed reverse 13.52 kph
Max speed reverse -
Max speed reverse 13.68 kph
Number of reverse gears
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears -
Number of reverse gears -
Number of reverse gears -
Number of reverse gears -
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of forward gears
Number of forward gears 3
Number of forward gears 3
Number of forward gears -
Number of forward gears -
Number of forward gears -
Number of forward gears -
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Final drives fluid cap
Final drives fluid cap -
Final drives fluid cap 13.25 liters
Final drives fluid cap 34.07 liter
Final drives fluid cap 42.01 liter
Final drives fluid cap -
Final drives fluid cap -
Final drives fluid cap 9.84 liter
Final drives fluid cap -
Final drives fluid cap -
Final drives fluid cap -
Final drives fluid cap 13.25 liter
Final drives fluid cap 12.87 liter
Final drives fluid cap -
Final drives fluid cap 13.25 liter
Final drives fluid cap 12.87 liter
Engine oil cap
Engine oil cap -
Engine oil cap 27.63 liter
Engine oil cap 30.28 liter
Engine oil cap 30.28 liter
Engine oil cap -
Engine oil cap -
Engine oil cap -
Engine oil cap -
Engine oil cap -
Engine oil cap -
Engine oil cap 27.63 liter
Engine oil cap 31.04 liter
Engine oil cap -
Engine oil cap -
Engine oil cap 31.04 liter
Pump flow cap
Pump flow cap -
Pump flow cap 177.14 lpm
Pump flow cap 312.26 lpm
Pump flow cap 312.26 lpm
Pump flow cap -
Pump flow cap -
Pump flow cap 175.25 lpm
Pump flow cap 175.25 lpm
Pump flow cap 180.17 lpm
Pump flow cap -
Pump flow cap 177.14 lpm
Pump flow cap 180.17 lpm
Pump flow cap -
Pump flow cap 177.14 lpm
Pump flow cap 180.17 lpm
Relief valve pressure
Relief valve pressure -
Relief valve pressure 227.94 bar
Relief valve pressure 275.79 bar
Relief valve pressure 275.79 bar
Relief valve pressure -
Relief valve pressure -
Relief valve pressure 227.52 bar
Relief valve pressure 227.52 bar
Relief valve pressure 228.01 bar
Relief valve pressure -
Relief valve pressure 227.94 bar
Relief valve pressure 228.01 bar
Relief valve pressure -
Relief valve pressure 227.94 bar
Relief valve pressure -
Pump type
Pump type -
Pump type Piston
Pump type -
Pump type -
Pump type -
Pump type -
Pump type -
Pump type -
Pump type -
Pump type -
Pump type Piston
Pump type -
Pump type -
Pump type Piston
Pump type -
Blade angle
Blade angle -
Blade angle -
Blade angle -
Blade angle -
Blade angle -
Blade angle -
Blade angle 25 º
Blade angle -
Blade angle -
Blade angle -
Blade angle -
Blade angle -
Blade angle -
Blade angle -
Blade angle -
Download datasheets
Cat D7 expert review
:quality(50)/55272/8c2d1d6b-e9a4-40d8-9825-964e2a331151.webp)
Overview
The Cat D7 (2008–2017) is a heavy-duty crawler dozer designed for grading, site preparation, and bulk earthmoving tasks. It delivers a 25,704 kg operating weight, a 3 m blade width, and an electric drive system, providing smooth and controlled pushing performance across demanding job sites.
Expert rating: 5 stars
Pros Smooth electric drive response and strong traction for grading and production dozing.
Cons Higher purchase and undercarriage costs than smaller crawler dozers.
Performance & Efficiency
The electric drive system provides smoother power delivery during pushing and grading, while the 25,704 kg operating weight and 3 m blade support stable production performance on civil and site development work.
In Comparison
Komatsu D155: Larger dozer with strong pushing force for heavier production work.
Cat D8: Bigger machine for higher-volume dozing with greater running demands.
Cat D7: Balanced for smooth control, traction, and practical production performance.
Final Verdict
Rated 5 stars, the Cat D7 offers strong dozing performance and smoother electric-drive control within the AED 900,000–1,100,000 range.
Cat D7 owner rating
Cat D7 Crawler dozers [2008-2017]
2008-2017
Overall rating
Based on 3 ratings
4.3
performance
4.7
comfort
4.3
fuel efficiency
4.3
safety
4.3
features
4.7
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Cat D7 similar models
Highlight differences

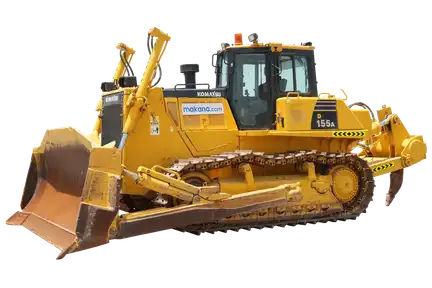

:quality(50)/103910/3e68b38e-d6e5-409f-abde-d1528c9c5e9f.webp)
:quality(50)/61022/b5f2b0c4-f2be-4a9e-b7d9-a3e1fe1200a2.png)
Engine model
Engine model 3408
Engine model S6D155-4
Engine model C15
Operating weight
Operating weight 23,630 kg
Operating weight 26,920 kg
Operating weight 38,351 kg
Drive type
Drive type Powershift
Drive type Planetary gear
Drive type Hydrostatic
Blade width
Blade width 4.18 m
Blade width 4.15 m
Blade width 3.93 m
Displacement
Displacement 10,500.85 cu cm
Displacement 19,254.84 cu cm
Displacement 15,207 cm3
Max speed forward
Max speed forward 10.14 kph
Max speed forward 11.91 kph
Max speed forward 10.62 kph
Blade capacity
Blade capacity -
Blade capacity 10.47 cu m
Blade capacity 10.3 cu m
Engine power
Engine power -
Engine power -
Engine power 365 hp
Operating voltage
Operating voltage -
Operating voltage -
Operating voltage 24 V
Max torque
Max torque -
Max torque -
Max torque 3,100 Nm
Years
Years 2008-2017
Years 2012-2018
Years 2011-2024
Market Average
Market Average AED 1,100,000
Market Average AED 342,000
Market Average AED 1,510,000
Price
Price AED 900,000
Price AED 290,000
Price AED 1,375,000
Gross power
Gross power 249.81 kw
Gross power 238.63 kw
Gross power 268.76 kw
Aspiration
Aspiration -
Aspiration Turbocharged
Aspiration Natural
Power measured @
Power measured @ -
Power measured @ -
Power measured @ 2,000 rpm
Torque measured @
Torque measured @ -
Torque measured @ -
Torque measured @ 2,100 rpm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage -
Alternator supplied amperage 100 Amh
Number of cylinders
Number of cylinders -
Number of cylinders -
Number of cylinders 6
Net power
Net power -
Net power -
Net power 232.66 kw
Bore
Bore -
Bore -
Bore 110 cm
Stroke
Stroke -
Stroke -
Stroke 90 cm
Ground contact area
Ground contact area 133,605.67 cu cm
Ground contact area -
Ground contact area 91,013.95 cu cm
Number of track rollers per side
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 8
Track width
Track width 86.11 mm
Track width 56.13 mm
Track width 610 mm
Track gauge
Track gauge 2.19 m
Track gauge 2.16 m
Track gauge 2.1 m
Ground pressure
Ground pressure -
Ground pressure 0.76 bar
Ground pressure 0.86 bar
Number of shoes per side
Number of shoes per side -
Number of shoes per side -
Number of shoes per side 44
Track pitch
Track pitch -
Track pitch -
Track pitch 21.59 cm
Height - top of cab
Height - top of cab 3.2 m
Height - top of cab -
Height - top of cab 3.6 m
Length with blade
Length with blade 5.7 m
Length with blade -
Length with blade 6.1 m
Length without blade
Length without blade 4.24 m
Length without blade 5.12 m
Length without blade 4.63 m
Ground clearance
Ground clearance 0.37 m
Ground clearance -
Ground clearance 0.64 m
Width over tracks
Width over tracks 3.35 m
Width over tracks 2.83 m
Width over tracks 3 m
Blade height
Blade height -
Blade height 1.59 cm
Blade height 165 cm
Fuel cap
Fuel cap 435.28 liter
Fuel cap 600.3 liter
Fuel cap 600 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 165.03 liters
Cooling fluid cap 76.84 liters
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap -
Hydraulic fluid cap 74.94 liter
Max speed reverse
Max speed reverse 12.07 kph
Max speed reverse 13.84 kph
Max speed reverse 14.16 kph
Number of reverse gears
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of forward gears
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Final drives fluid cap
Final drives fluid cap -
Final drives fluid cap -
Final drives fluid cap 12.49 liters
Engine oil cap
Engine oil cap -
Engine oil cap -
Engine oil cap 37.85 liter
Pump flow cap
Pump flow cap -
Pump flow cap -
Pump flow cap 276.31 lpm
Relief valve pressure
Relief valve pressure -
Relief valve pressure -
Relief valve pressure 393 bar
Pump type
Pump type -
Pump type -
Pump type piston-type, variable displacement
Blade angle
Blade angle -
Blade angle -
Blade angle 40 degrees

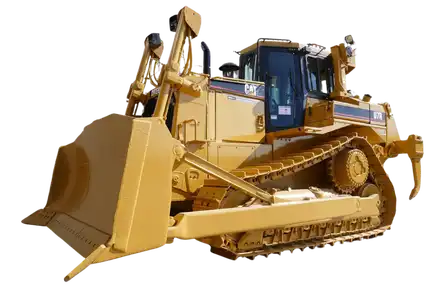

Cat D7 gallery
:quality(50)/103892/3d2ef02a-7309-4ce0-805e-ff10c3f43daf.webp)
:quality(50)/103893/36aef681-9f36-4c2a-a425-1df88d148d4e.webp)
:quality(50)/103894/81804647-512b-4fab-9338-ca4eaa6edc92.webp)
:quality(50)/103895/85f53ec0-3152-4630-8bc4-3de7b2fe3439.webp)
:quality(50)/103896/c0dedf32-f579-44ee-8fa8-829f99887730.webp)
:quality(50)/103897/27714397-c035-49b8-89f8-5c2da585ff5f.webp)
:quality(50)/103898/2938a784-66c7-4630-8ad5-7de4771ac7be.webp)
:quality(50)/103899/c954dccb-ca36-42b5-984a-15e30115324c.webp)
:quality(50)/103900/conversions/e2fccd0a-82ff-4d5a-b459-463772eff9c5-thumb.webp)
:quality(75)/products/10400/cover/904c44b9-6755-4934-a2e2-70b2e200d0b6.png)
:quality(75)/products/10418/cover/514044e5-2ac5-4bd1-9185-f365958fac80.png)
:quality(75)/products/10169/3d_cover/9ef1c9d2-cb68-4298-9e67-e9b78720df48.png)
:quality(75)/products/10170/3d_cover/0d3784e6-43fe-497b-933e-3d9ff6bd72ea.png)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
:quality(80)/60951/b376c375-391e-4221-936c-4c863ae106c1.jpeg)
:quality(50)/103866/e327728f-a5a4-41b1-88a0-11591ce9e6f0.webp)
Cat 345 Large excavators specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Cat D3 Crawler dozers specs Cat D4 Crawler dozers specs Cat D8 Crawler dozers specs Cat D9 Crawler dozers specs Cat D6 Crawler dozers specs Cat 725 Articulated dump trucks specs Cat 730 Articulated dump trucks specs
Komatsu WF450 Crawler dozers specs Komatsu WF550 Crawler dozers specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Komatsu D135 Crawler dozers specs Komatsu D20 Crawler dozers specs Komatsu D21 Crawler dozers specs Cat D3 Crawler dozers specs Komatsu D31 Crawler dozers specs Komatsu D32 Crawler dozers specs
Komatsu WD600 Wheel dozers specs Komatsu WF450 Crawler dozers specs Komatsu WF550 Crawler dozers specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Komatsu D135 Crawler dozers specs Komatsu D20 Crawler dozers specs Komatsu D21 Crawler dozers specs Cat D3 Crawler dozers specs Komatsu D31 Crawler dozers specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
