Wacker neuson DPU Plate compactors tech specs

Overview

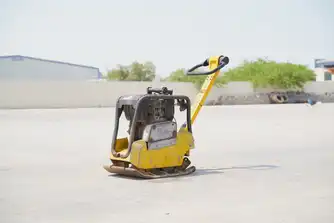

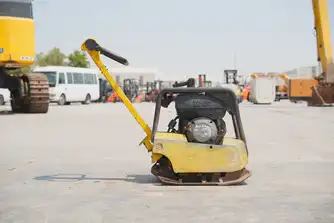

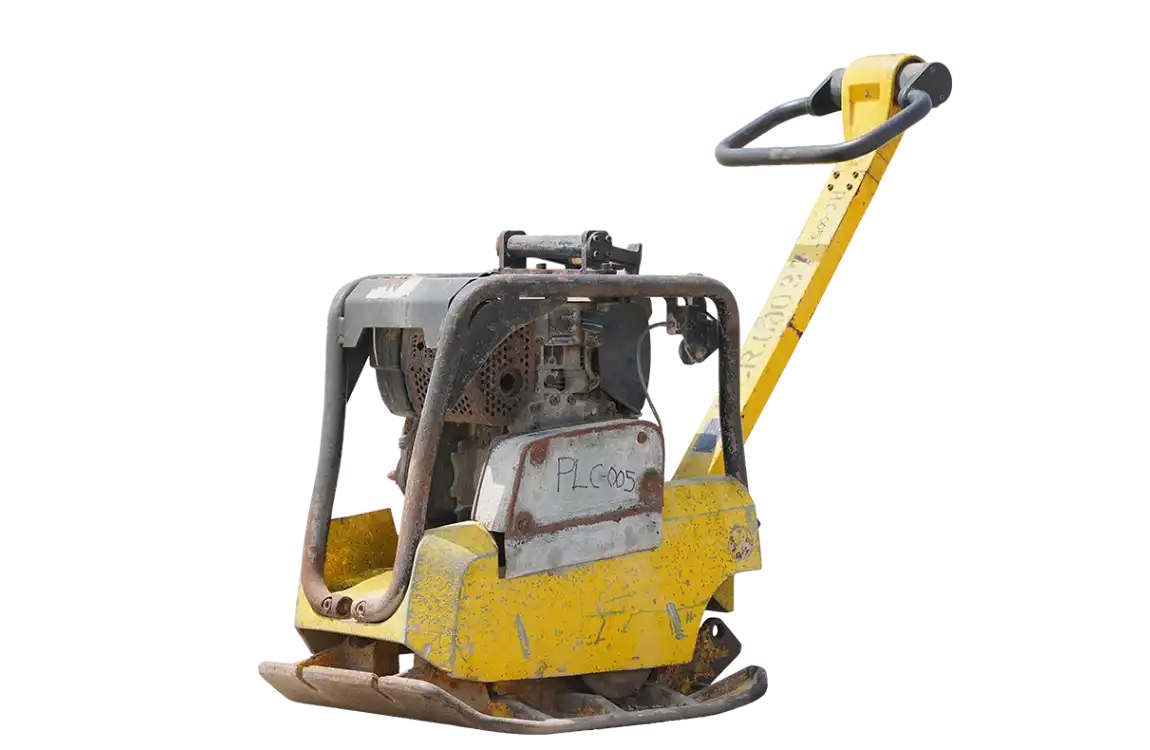

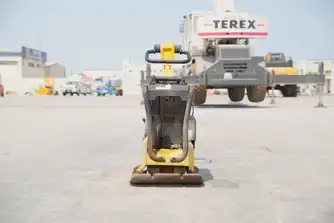

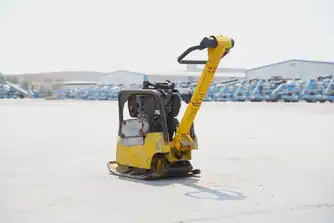

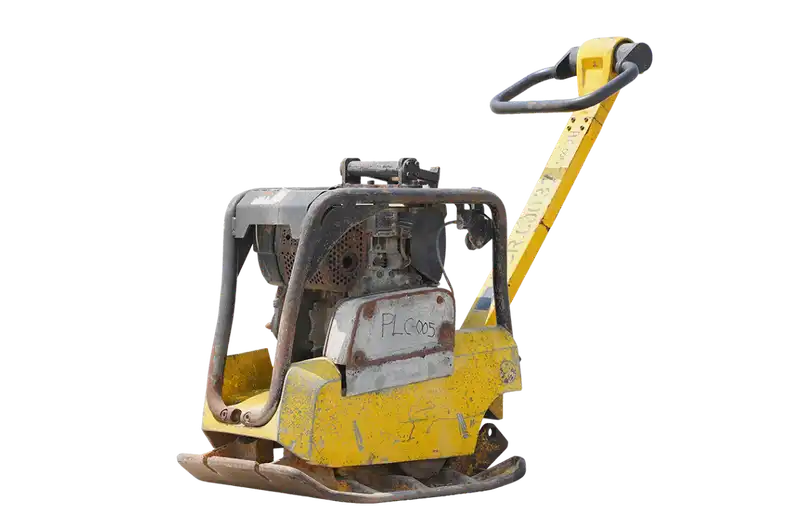

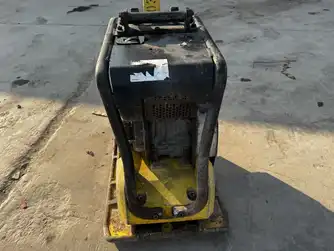

The Wacker Neuson DPU (2008–2026) is a vibratory plate compactor designed for soil compaction, paving preparation, trench backfilling, and landscaping. With a 166 kg operating weight, 25 kN impact force, and 500 mm plate width, it provides practical compaction performance for granular materials and prepared sub-bases. Its 90 Hz vibration frequency and 3.1 kilowatt Hatz diesel engine make it suitable for repeated compaction passes on construction and paving projects.

Expert rating: 5 stars

Performance & Efficiency

The Hatz 1B20-7-327D diesel engine produces 3.1 kilowatt net power, driving the vibration system to generate 25 kN impact force, equivalent to approximately 2.5 metric tons-force. The 500 mm plate width provides suitable coverage for compacting granular soil, sand, gravel, and prepared sub-bases. Its 90 Hz vibration frequency, equivalent to approximately 5,400 vibrations per minute, supports repeated compaction passes.

Actual compaction depth and productivity depend on moisture content, material density, layer thickness, and the number of passes. When working over paving stones or asphalt, suitable plate protection and operating procedures should be used to avoid damaging finished surfaces.

Maintenance & Ownership

The Hatz 1B20-7-327D diesel engine provides a conventional platform for routine servicing. Its 3-liter fuel tank requires regular monitoring during extended compaction work. Owners should maintain engine oil, air filters, fuel-system components, and the vibration drive according to the applicable service schedule.

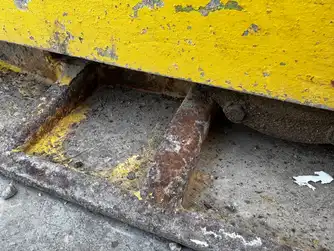

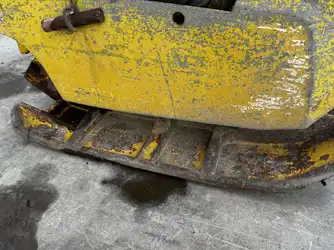

The base plate should be inspected for wear, cracking, and accumulated material, particularly after work on abrasive aggregates. Vibration isolators, mounting bolts, and handle components also require regular checks. On used machines, difficult starting, unusual mechanical noise, poor forward movement, or excessive handle vibration may indicate maintenance issues.

Operator Controls & Handling

The Wacker Neuson DPU has a compact body measuring 1.097 m in overall length and 0.736 m in stowed height. Its 500 mm plate width makes it practical for compacting trenches, walkways, paving areas, and confined construction spaces where larger rollers cannot operate.

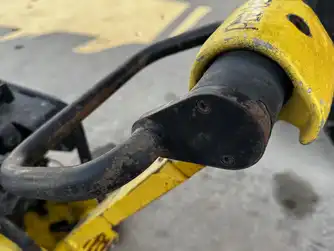

With a 166 kg operating weight, the compactor requires suitable lifting or loading equipment for transportation. Operators should maintain control of the guide handle, check ground conditions, and follow hearing-protection and vibration-exposure precautions during extended operation.

In Comparison

Dynapac DFP: A range of vibratory plate compactors designed for paving, landscaping, and general soil compaction, with specifications varying by individual model.
Wacker Neuson WP: A plate compactor range suited to routine soil and paving work, including applications where lighter equipment and easier handling are important.
Wacker Neuson DPU: Combines 25 kN impact force, a 166 kg operating weight, and a 500 mm plate width for trench backfilling, granular sub-base preparation, and regular construction compaction.

Final Verdict

Rated 5 stars, the Wacker Neuson DPU offers strong compaction force, practical working width, and diesel-powered operation within the AED 8,000–13,000 range. It remains a suitable choice for paving, trench backfilling, landscaping, and general site preparation, provided the engine, vibration mechanism, base plate, and mounting components are in good condition.
