Bomag BP Plate compactors tech specs

Overview

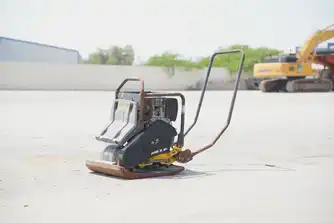

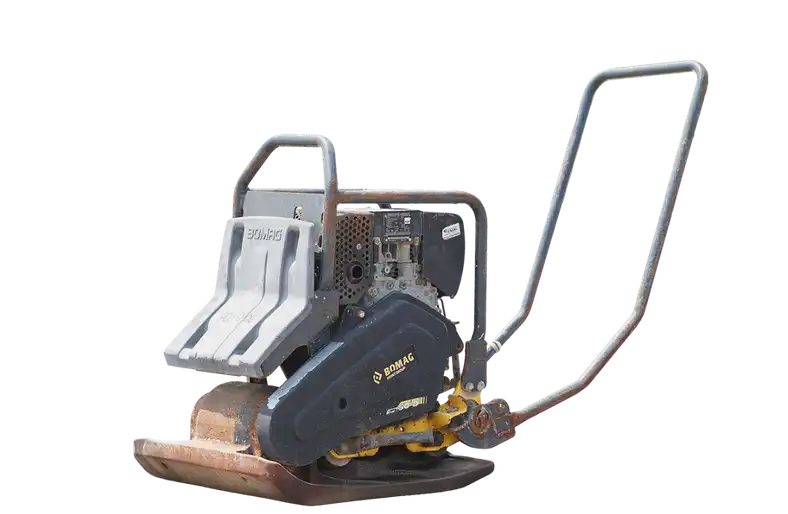

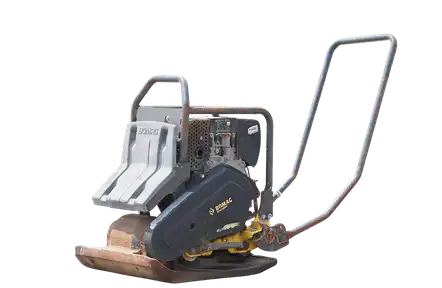

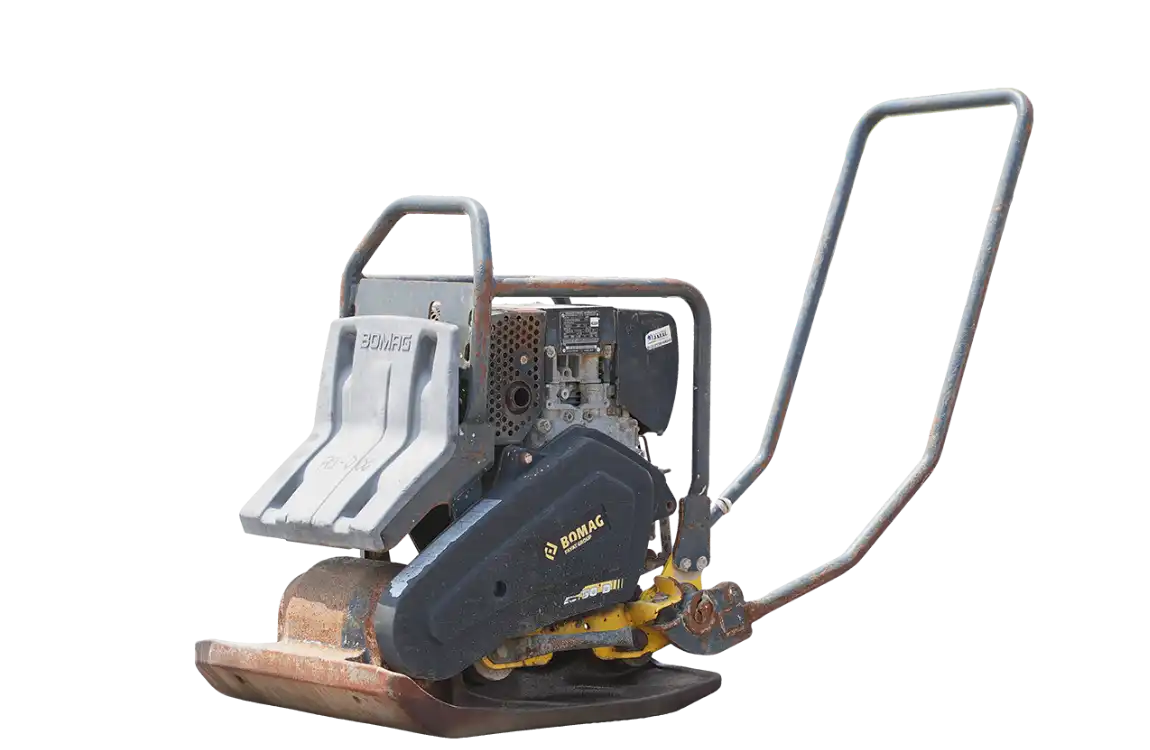

The Bomag BP (2009–2026) is a diesel-powered vibratory plate compactor designed for soil compaction, paving preparation, trench backfilling, and landscaping. With a 125 kg operating weight, 25 kN impact force, and 500 mm plate width, it provides strong compaction performance for granular materials and prepared sub-bases. Its 90 Hz vibration frequency and 3.1 kilowatt Hatz diesel engine make it suitable for repeated compaction passes across construction and paving projects.

Expert rating: 5 stars

Performance & Efficiency

The Hatz 1B20 diesel engine produces 3.1 kilowatt net power, driving the vibration mechanism to generate 25 kN impact force, equivalent to approximately 2.5 metric tons-force. The 500 mm plate width provides useful coverage for compacting granular soil, sand, gravel, and prepared paving bases. Its 90 Hz vibration frequency, equivalent to approximately 5,400 vibrations per minute, supports repeated compaction passes.

At 125 kg, the Bomag BP provides the same listed impact force as the heavier Wacker Neuson DPU. Actual compaction depth and productivity depend on material density, moisture content, layer thickness, and the number of passes. Suitable protective accessories and operating techniques should be used on paving stones or finished asphalt surfaces.

Maintenance & Ownership

The Hatz 1B20 diesel engine provides a conventional platform for routine servicing. Its 3-liter fuel tank requires regular monitoring during extended compaction work. Engine oil, air filters, fuel-system components, and the vibration mechanism should be maintained according to the applicable service schedule.

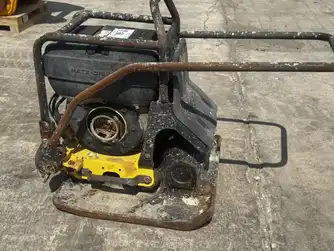

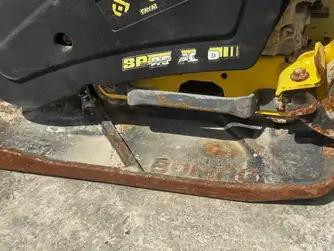

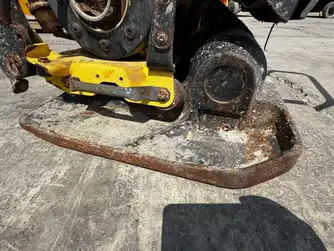

The base plate should be inspected for cracking, deformation, and excessive wear, particularly after work on abrasive aggregates. Vibration isolators, engine mounts, fastening bolts, and guide-handle components also require regular checks. On used machines, difficult starting, uneven vibration, excessive mechanical noise, or damaged mountings may indicate maintenance issues.

Operator Controls & Handling

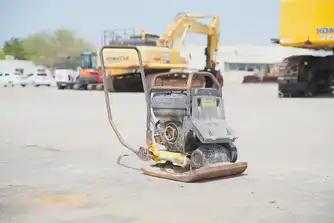

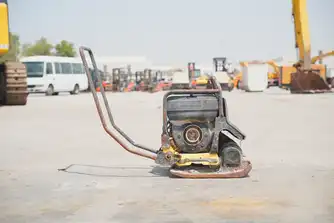

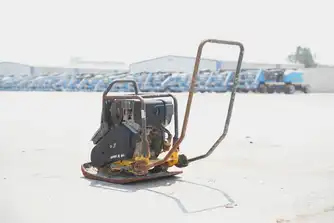

The Bomag BP features a compact body measuring 1.287 m in overall length and 0.862 m in stowed height. Its 500 mm plate width makes it practical for compacting walkways, paving bases, trenches, and restricted construction areas where larger rollers cannot operate efficiently.

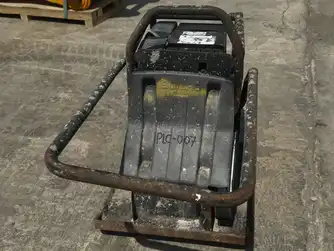

With a 125 kg operating weight, the compactor is lighter than the Wacker Neuson DPU but still requires suitable mechanical assistance for safe lifting and transportation. Operators should maintain control of the guide handle, assess ground stability, and follow hearing-protection and vibration-exposure precautions during extended operation.

In Comparison

Wacker Neuson DPS: Offers 16.9 kN impact force, 110 kg operating weight, and a 500 mm plate width for lighter soil compaction, paving, and landscaping.
Wacker Neuson DPU: Provides 25 kN impact force, 166 kg operating weight, and a 500 mm plate width for repeated compaction applications requiring greater machine mass.
Bomag BP: Combines 25 kN impact force, a 125 kg operating weight, and a 500 mm plate width, delivering strong listed compaction force with less weight than the DPU.

Final Verdict

Rated 5 stars, the Bomag BP offers strong compaction force, manageable equipment weight, and diesel-powered performance within the AED 2,500–5,000 range. It remains a practical choice for paving, trench backfilling, landscaping, and general site preparation, provided the engine, vibration mechanism, base plate, and mounting components are in good condition.
