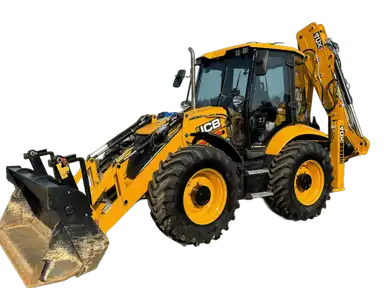

JCB 4CX Backhoe loaders tech specs

Video[1]

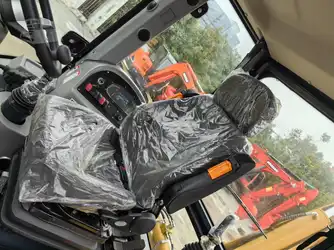

Interior [2]

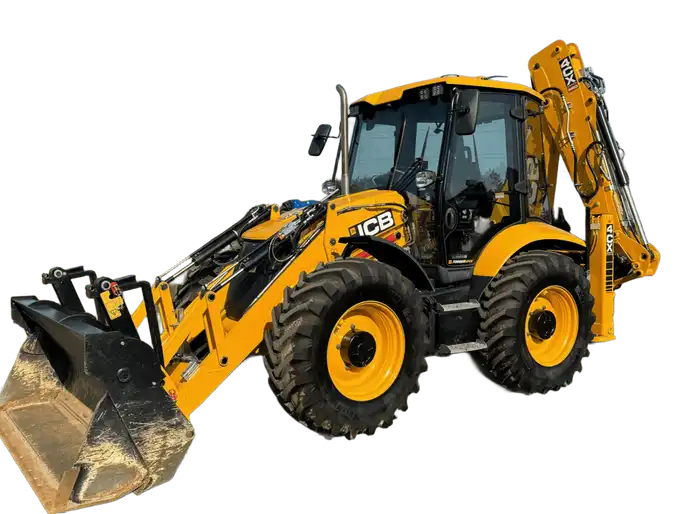

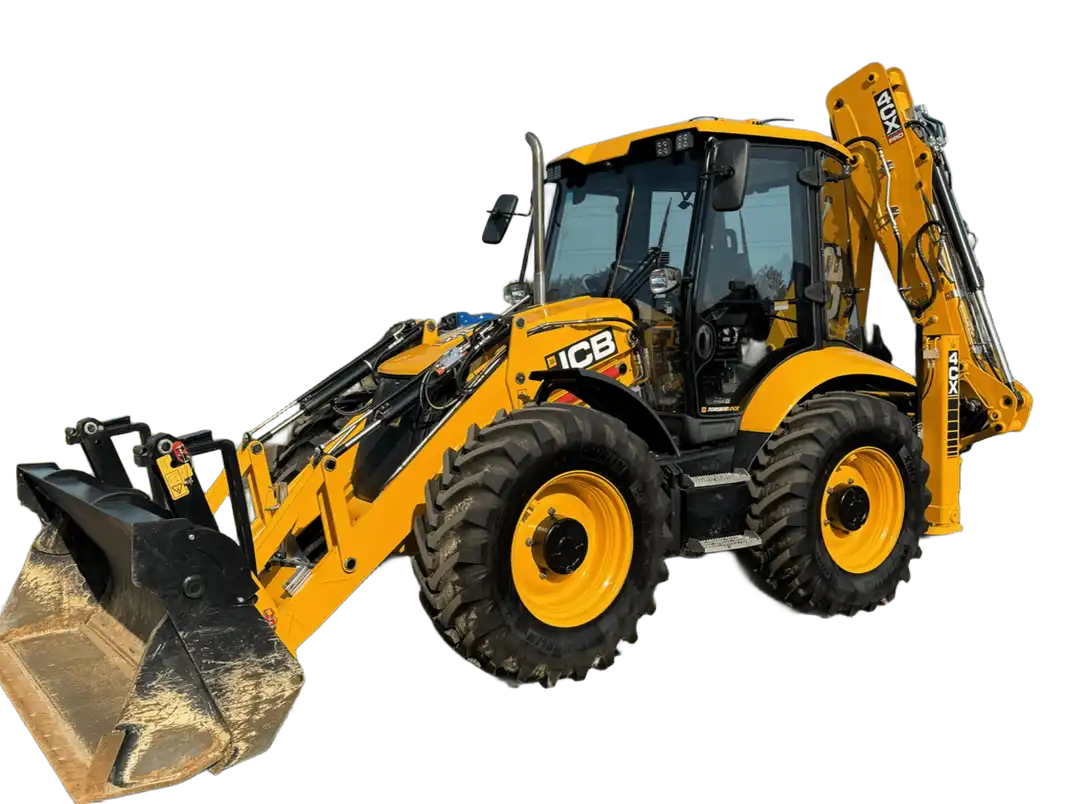

Exterior [4]

Attachments [2]

2009-2017

4.33 m Backhoe digging depth

160.11 liter Fuel cap

516.02 Nm Max torque

72.78 kw Net power

5.91 m Overall Length

2.38 m Overall Width

A heavy-duty backhoe loader built for demanding excavation and material handling work, the JCB 4CX combines 72.78 kilowatt net power with a 4.33 m backhoe digging depth and strong hydraulic performance. With its four-wheel steering capability and compact dimensions, it is suited for construction, roadworks, utilities installation, and large infrastructure projects where maneuverability and digging performance are equally important.

Net power 72.78 kilowatt

Maximum torque 516.02 Nm

Backhoe digging depth 4.33 m

Fuel tank capacity 160.11 liters

Overall length 5.91 m

Overall width 2.38 m

Four-wheel steering for improved maneuverability

Makana rating

Owner rating

| 3

Market average

AED 420,000

Starting from

AED 240,000

JCB 4CX technical specifications

Highlight differences

JCB 4CX

JCB 4CX Sitemaster

JCB 4CX Super

JCB 4CX Super Sitemaster

JCB 4CX-14

JCB 4CX-15

JCB 4CX-17

Engine

Alternator supplied amperage

Alternator supplied amperage 95 Amh

Aspiration

Aspiration Turbocharged

Aspiration -

Aspiration Turbocharged

Aspiration -

Aspiration Turbocharged

Battery amperage

Battery amperage 120 Amh

Battery amperage -

Net power

Net power 72.78 kw

Net power 81.28 kw

Net power -

Net power 81.28 kw

Power measured @

Power measured @ 2,200 rpm

Torque measured @

Torque measured @ 1,300 rpm

Gross power

Gross power -

Gross power 74.57 kw

Number of cylinders

Number of cylinders -

Number of cylinders 4

Years

Years 2009-2017

Market Average

Market Average AED 420,000

Price

Price AED 240,000

General

Backhoe digging depth

Backhoe digging depth 4.33 m

Backhoe digging depth 5 m

Backhoe digging depth -

Backhoe digging depth 4.97 m

Backhoe digging depth -

Bucket capacity

Bucket capacity 1.38 cu m

Bucket capacity 1.07 cu m

Bucket capacity 1.22 cu m

Bucket digging force

Bucket digging force 5,375.53 kg

Bucket digging force 5,373.72 kg

Bucket digging force 5,375.53 kg

Bucket digging force -

Bucket digging force 5,538.05 kg

Bucket digging force 5,533.83 kg

Bucket width

Bucket width 223 cm

Bucket width 235 cm

Bucket width -

Bucket width 238 cm

Bucket width 243 cm

Loader dump height

Loader dump height 2.71 m

Loader dump reach

Loader dump reach 1.22 m

Loader dump reach 1.19 m

Loader dump reach -

Loader dump reach 0.88 m

Max speed forward

Max speed forward 38.14 kph

Max speed forward 40.07 kph

Max speed forward -

Max torque

Max torque 516.02 Nm

Max torque 417.04 Nm

Operating voltage

Operating voltage 12 V

Transmission type

Transmission type powershift

Transmission type -

Transmission type JCB powershift

Wheelbase

Wheelbase 2.23 m

Wheelbase -

Wheelbase 2.32 m

Displacement

Displacement -

Displacement 4,401.58 cu cm

Operating weight

Operating weight -

Operating weight 8,867 kg

Operating weight 7,704 kg

Operating weight 8,511 kg

Operating weight 8,603 kg

Engine model

Engine model -

Engine model 444

Lifting capacity

Lifting capacity -

Lifting capacity 4,637.99 kg

Lifting capacity -

Lifting capacity 4,637.99 kg

Turning radius

Turning radius -

Turning radius 4.6 m

Turning radius 5.27 m

Backhoe

Backhoe reach from swivel

Backhoe reach from swivel 5.43 m

Backhoe reach from swivel 6.04 m

Backhoe reach from swivel -

Backhoe reach from swivel 5.94 m

Backhoe reach from swivel 6.4 m

Loader

Breakout force

Breakout force 6,213.77 kg

Breakout force 6,576.19 kg

Breakout force 1,478.39 kg

Breakout force 6,576.19 kg

Breakout force -

Loader digging depth

Loader digging depth 14.22 cm

Loader digging depth 18.03 cm

Loader digging depth -

Loader digging depth 20.07 cm

Service refill capacities

Cooling fluid cap

Cooling fluid cap 18.55 liter

Cooling fluid cap -

Cooling fluid cap 23.09 liter

Front axle fluid capacity

Front axle fluid capacity 16.28 liter

Front axle fluid capacity -

Front axle fluid capacity 16.28 liter

Fuel cap

Fuel cap 160.11 liter

Fuel cap -

Fuel cap 160.11 liter

Hydraulic fluid cap

Hydraulic fluid cap 132.1 liter

Hydraulic fluid cap -

Hydraulic fluid cap 127.18 liter

Rear axle fluid capacity

Rear axle fluid capacity 16.28 liter

Rear axle fluid capacity -

Rear axle fluid capacity 16.28 liter

Transmission fluid cap

Transmission fluid cap 16.28 liter

Transmission fluid cap -

Transmission fluid cap 16.28 liter

Refill capacities

Engine oil cap

Engine oil cap 15.14 liter

Engine oil cap -

Engine oil cap 15.14 liter

Operating specifications

Extended backhoe digging depth

Extended backhoe digging depth 5.55 m

Extended backhoe digging depth 6.16 m

Extended backhoe digging depth -

Extended backhoe digging depth 6.13 m

Extended backhoe digging depth 6.55 m

Extended backhoe dump height

Extended backhoe dump height 4.3 m

Extended backhoe dump height 4.08 m

Extended backhoe dump height -

Extended backhoe dump height 4.66 m

Extended backhoe dump height 4.48 m

Extended backhoe dump reach

Extended backhoe dump reach 3.78 m

Extended backhoe dump reach 4.48 m

Extended backhoe dump reach -

Extended backhoe dump reach 3.11 m

Extended backhoe dump reach 3.32 m

Extended backhoe reach from swivel

Extended backhoe reach from swivel -

Extended backhoe reach from swivel 6.52 m

Extended backhoe reach from swivel 7.1 m

Extended backhoe reach from swivel -

Extended backhoe reach from swivel 7.01 m

Extended backhoe reach from swivel 7.53 m

Tires

Front tires size (2WD)

Front tires size (2WD) 16.9x28 10PR Industrial

Front tires size (2WD) -

Front tires size (2WD) 16.9-24 R4 12 ply

Rear tires size

Rear tires size 16.9x28 10PR Industrial

Rear tires size -

Rear tires size 16.9-24 R4 12 ply

Dimensions

Ground clearance

Ground clearance 0.37 m

Height - top of cab

Height - top of cab 2.9 m

Overall Length

Overall Length 5.91 m

Overall Length -

Overall Length 7.5 m

Overall Width

Overall Width 2.38 m

Overall Width -

Overall Width 2.38 m

Overall Width 2.47 m

Transmission

Max speed reverse

Max speed reverse 38.14 kph

Max speed reverse 40.07 kph

Max speed reverse -

Max speed reverse 36.21 kph

Number of forward gears

Number of forward gears 4

Number of reverse gears

Number of reverse gears 4

Hydraulic system

Pump flow cap

Pump flow cap 81 lpm

Pump flow cap -

Pump flow cap 155.19 lpm

Pump type

Pump type Open centre system with twin gear pumps and hydraulic speed control

Pump type -

Pump type Tandem gear

Relief valve pressure

Relief valve pressure 251.65 bar

Relief valve pressure -

Relief valve pressure 227.52 bar

Download datasheets

OEM product brochure

JCB 4CX expert review

Reviewed by Rizwan R. on March 9, 2026

Overview

The JCB 4CX (2009–2017) is a heavy-duty backhoe loader designed for demanding excavation and material handling tasks. It delivers 72.78 kilowatt engine power, 516 Nm torque, and a 4.33 m digging depth, providing strong performance across construction and infrastructure projects.

Expert rating: 5 stars

Pros Deep digging capability and excellent maneuverability thanks to four-wheel steering.

Cons Higher purchase cost compared with smaller backhoe models.

Performance & Efficiency

The 72.78 kilowatt diesel engine produces 516 Nm of torque, delivering reliable digging power and efficient loader operation for construction and utility work.

In Comparison

Cat 428: Durable backhoe loader with strong dealer support.
Case 851: Comparable digging performance and machine size.
JCB 4CX: Known for its four-wheel steering and maneuverability.

Final Verdict

Rated 5 stars, the JCB 4CX offers powerful excavation capability and maneuverability within the AED 240,000–420,000 range.

Show less

JCB 4CX owner rating

JCB 4CX Backhoe loaders [2009-2017]

2009-2017

Overall rating

Based on 3 ratings

4.3

performance

4.7

comfort

4.7

fuel efficiency

4.3

safety

4.3

features

4.7

5 stars

33 %

4 stars

67 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros

Four-wheel steering makes maneuvering around tight construction sites much easier.

Cons

Larger machine size requires more space during transport and storage.

Submitted by on Mar 9, 2026 / JCB 4CX Backhoe loaders / Purchased on Jul, 2016

performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Pros

Strong digging depth and torque handle trenching and utility work efficiently.

Cons

Fuel consumption can be higher during continuous heavy excavation.

Submitted by on Mar 9, 2026 / JCB 4CX Backhoe loaders / Purchased on Jun, 2019

performance

5.0

comfort

5.0

fuel efficiency

4.0

safety

4.0

features

5.0

Valuation

Last 12 month

2009

JCB 4CX similar models

Highlight differences

JCB 4CX

Cat 428

Case 851FX

Engine

Alternator supplied amperage

Alternator supplied amperage 95 Amh

Alternator supplied amperage -

Aspiration

Aspiration Turbocharged

Aspiration Mechanical turbo

Aspiration -

Battery amperage

Battery amperage 120 Amh

Battery amperage -

Net power

Net power 72.78 kw

Net power 65.6 kw

Net power -

Power measured @

Power measured @ 2,200 rpm

Power measured @ -

Torque measured @

Torque measured @ 1,300 rpm

Torque measured @ -

Gross power

Gross power -

Gross power 74 kw

Gross power 72 kw

Bore

Bore -

Bore 10.5 cm

Bore -

Stroke

Stroke -

Stroke 12.7 cm

Stroke -

Emissions

Emissions -

Emissions Tier 3

Emissions CEV Stage IV

Torque rise

Torque rise -

Torque rise 31 %

Torque rise -

Years

Years 2009-2017

Years 1987-2025

Years 2022-2025

Market Average

Market Average AED 420,000

Market Average AED 275,000

Market Average AED 210,000

Price

Price AED 240,000

Price AED 186,000

Price AED 189,000

General

Backhoe digging depth

Backhoe digging depth 4.33 m

Backhoe digging depth 4,400 mm

Backhoe digging depth 4,700 mm

Bucket capacity

Bucket capacity 1.38 cu m

Bucket capacity 1 m3

Bucket capacity 0.3 cu m

Bucket digging force

Bucket digging force 5,375.53 kg

Bucket digging force 63.4 kN

Bucket digging force -

Bucket width

Bucket width 223 cm

Bucket width 2,409 mm

Bucket width -

Loader dump height

Loader dump height 2.71 m

Loader dump height 2,755 mm

Loader dump height 2,660 mm

Loader dump reach

Loader dump reach 1.22 m

Loader dump reach 805 mm

Loader dump reach 840 mm

Max speed forward

Max speed forward 38.14 kph

Max speed forward 37 kph

Max speed forward 39.2 kph

Max torque

Max torque 516.02 Nm

Max torque 383 Nm

Max torque 459 Nm

Operating voltage

Operating voltage 12 V

Operating voltage -

Transmission type

Transmission type powershift

Transmission type Powershuttle 4x4

Transmission type Powershuttle with TC

Wheelbase

Wheelbase 2.23 m

Wheelbase 2.2 m

Wheelbase 2.18 m

Engine model

Engine model -

Engine model CAT 3054C

Engine model FPT F5BFL413A*W

Operating weight

Operating weight -

Operating weight 11,000 kg

Operating weight 8,100 kg

Lifting capacity

Lifting capacity -

Lifting capacity 3,728 kg

Lifting capacity 3,700 kg

Tire size

Tire size -

Tire size (F) 340/80-18 , (R) 440/80-28

Tire size (F) Standard 9x16-16 PR, (R) Standard 16.9x28-12 PR

Displacement

Displacement -

Displacement 4,400 cm3

Displacement 3,400 cu cm

Backhoe dump height

Backhoe dump height -

Backhoe dump height 3,900 m

Backhoe dump height 3,800 mm

Backhoe

Backhoe reach from swivel

Backhoe reach from swivel 5.43 m

Backhoe reach from swivel 5,600 m

Backhoe reach from swivel 5,900 mm

Bucket rotation

Bucket rotation -

Bucket rotation 205 degrees

Bucket rotation 204 º

Loader

Breakout force

Breakout force 6,213.77 kg

Breakout force 54.79 kN

Breakout force 54.11 kN

Loader digging depth

Loader digging depth 14.22 cm

Loader digging depth 99 mm

Loader digging depth 110 mm

Service refill capacities

Cooling fluid cap

Cooling fluid cap 18.55 liter

Cooling fluid cap 18 liters

Cooling fluid cap 20 liter

Front axle fluid capacity

Front axle fluid capacity 16.28 liter

Front axle fluid capacity -

Front axle fluid capacity 8.9 liter

Fuel cap

Fuel cap 160.11 liter

Fuel cap 160 liter

Fuel cap 129 liter

Hydraulic fluid cap

Hydraulic fluid cap 132.1 liter

Hydraulic fluid cap 95 liter

Hydraulic fluid cap 80 liter

Rear axle fluid capacity

Rear axle fluid capacity 16.28 liter

Rear axle fluid capacity 16 liter

Rear axle fluid capacity 17.1 liter

Transmission fluid cap

Transmission fluid cap 16.28 liter

Transmission fluid cap 19 liter

Transmission fluid cap 18 liter

Front axle fluid cap

Front axle fluid cap -

Front axle fluid cap 11 liters

Front axle fluid cap -

Refill capacities

Engine oil cap

Engine oil cap 15.14 liter

Engine oil cap 9 liter

Engine oil cap 9.1 liter

Operating specifications

Extended backhoe digging depth

Extended backhoe digging depth 5.55 m

Extended backhoe digging depth 5.7 m

Extended backhoe digging depth -

Extended backhoe dump height

Extended backhoe dump height 4.3 m

Extended backhoe dump height 4.5 m

Extended backhoe dump height -

Extended backhoe dump reach

Extended backhoe dump reach 3.78 m

Extended backhoe dump reach 2.5 m

Extended backhoe dump reach -

Dump angle

Dump angle -

Dump angle 45 degrees

Dump angle -

Extended backhoe reach from swivel

Extended backhoe reach from swivel -

Extended backhoe reach from swivel 6.5 m

Extended backhoe reach from swivel -

Rack back angle

Rack back angle -

Rack back angle 45 º

Brake system

Brake system -

Brake system Wet Multi Discs, 4 Discs

Tires

Front tires size (2WD)

Front tires size (2WD) 16.9x28 10PR Industrial

Front tires size (2WD) -

Rear tires size

Rear tires size 16.9x28 10PR Industrial

Rear tires size -

Dimensions

Ground clearance

Ground clearance 0.37 m

Ground clearance -

Height - top of cab

Height - top of cab 2.9 m

Height - top of cab -

Overall Length

Overall Length 5.91 m

Overall Length 5 m

Overall Length -

Overall Width

Overall Width 2.38 m

Overall Width 2 m

Overall Width -

Transport length

Transport length -

Transport length 6 m

Transport width

Transport width -

Transport width 2 m

Transmission

Max speed reverse

Max speed reverse 38.14 kph

Max speed reverse 37 kph

Max speed reverse -

Number of forward gears

Number of forward gears 4

Number of forward gears 6

Number of forward gears 4

Number of reverse gears

Number of reverse gears 4

Hydraulic system

Pump flow cap

Pump flow cap 81 lpm

Pump flow cap 160 lpm

Pump flow cap 154 lpm

Pump type

Pump type Open centre system with twin gear pumps and hydraulic speed control

Pump type Variable flow, axial piston

Pump type Closed center

Relief valve pressure

Relief valve pressure 251.65 bar

Relief valve pressure 250 bar

Relief valve pressure 209.94 bar

Operational specifications

Arm crowding force

Arm crowding force -

Arm crowding force 36.8 kN

Arm crowding force -

JCB 4CX gallery

Generation-JCB 4CX Backhoe loaders-interior

Generation-JCB 4CX Backhoe loaders-exterior

Generation-JCB 4CX Backhoe loaders-attachments

Generation-JCB 4CX Backhoe loaders-video

Backhoe loaders. For sale.

Sold

BHL-002

2023 Cat 428 backhoe loader

Used

1,760 hrs

Notify me when available

Sold

BHL-004

2022 JCB 3DX Plus backhoe loader

Used

9,213 hrs

India

Notify me when available

Sold

BHL-001

2022 Cat 426F2 backhoe loader

Used

6,491 hrs

India

Notify me when available

Similar machines. Other reviews.

880

2013

Cukurova 88 Backhoe loaders specs

Cat 416 Backhoe loaders specs

Cat 432 Backhoe loaders specs

Cat 446 Backhoe loaders specs

/ Makana rating

Reviewed by Zafer R.

JCB S2632E Scissor lifts specs JCB CT260 Tandem rollers specs JCB 4CX Backhoe loaders specs JCB 5CX Backhoe loaders specs JCB 3DX Backhoe loaders specs JCB 540 Telehandlers specs JCB 260T Compact track loaders specs JCB 270T Compact track loaders specs JCB 1110T Compact track loaders specs JCB 150T Compact track loaders specs

Mecalac TLB8 Backhoe loaders specs Mecalac TLB9 Backhoe loaders specs Terex TLBT Backhoe loaders specs Terex TX75 Backhoe loaders specs Terex TX76 Backhoe loaders specs Terex TX86 Backhoe loaders specs Terex TX87 Backhoe loaders specs Terex TX97 Backhoe loaders specs Venieri VF1 Backhoe loaders specs Venieri VF10 Backhoe loaders specs

Gehl RT175 Compact track loaders specs Gehl RT210 Compact track loaders specs Komatsu SK1020 Compact track loaders specs ASV SR-70 Compact track loaders specs ASV SR-80 Compact track loaders specs Wacker neuson ST28 Compact track loaders specs Wacker neuson ST31 Compact track loaders specs Wacker neuson ST35 Compact track loaders specs Wacker neuson ST45 Compact track loaders specs Kubota SVL75 Compact track loaders specs

JCB 3CX-4 VS JCB 4CX Cat 434E VS JCB 4CX Super JCB 3DX Plus VS JCB 4CX Super JCB 3CX VS JCB 4CX JCB 4CX-14 VS JCB 5CX JCB 4CX-14 VS Komatsu WB97R-2 Cat 428 VS JCB 4CX Cat 416E VS JCB 4CX-15 Cat 420D VS JCB 4CX-14 Cat 422E VS JCB 4CX-14 Cat 422E VS JCB 4CX-15 Cat 426B VS JCB 4CX-14 Cat 422E VS JCB 4CX Cat 422E VS JCB 4CX Super Cat 424D VS JCB 4CX Cat 426B VS JCB 4CX Cat 426B VS JCB 4CX Super Cat 426B VS JCB 4CX-15 Cat 426B VS JCB 4CX-17 Cat 432D VS JCB 4CX Cat 434E VS JCB 4CX Cat 434E VS JCB 4CX-14 Case 480B VS JCB 4CX JCB 4CX VS John deere 510C JCB 3CX-4 VS JCB 4CX Sitemaster JCB 4CX VS Komatsu WB150AWS-2N JCB 4CX-15 VS Komatsu WB70A-1 JCB 4CX-15 VS Komatsu WB93R-5 Cat 416C VS JCB 4CX-15 Cat 430D VS JCB 4CX-14 Cat 432D VS JCB 4CX-17 Cat 442D VS JCB 4CX JCB 4CX Super VS John deere 500C JCB 3CX-15 VS JCB 4CX JCB 4CX VS Volvo BM EL70 JCB 4CX VS Komatsu WB156-5 JCB 4CX Super VS Komatsu WB150-2N JCB 4CX Super VS Komatsu WB70A-1 JCB 4CX-14 VS Komatsu WB70A-1 JCB 4CX-14 VS Komatsu WB93R-2 JCB 4CX-15 VS Komatsu WB97S-2 JCB 4CX-17 VS Komatsu WB150-2N JCB 4CX-17 VS Komatsu WB93R-5 JCB 4CX-17 VS Komatsu WB97R-2 JCB 3DX Plus VS JCB 4CX Cat 420F VS JCB 4CX Cat 430E IT VS JCB 4CX-17 Cat 442D VS JCB 4CX-15

Get the latest from Makana

Subscribe to receive auction dates, exclusive deals, and news in your inbox.

We care about the protection of your data. Read ourPrivacy Policy
