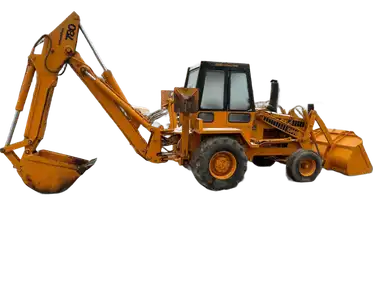

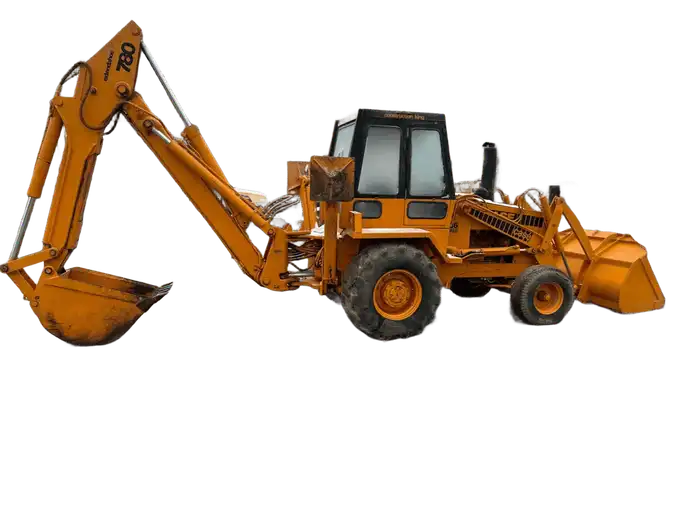

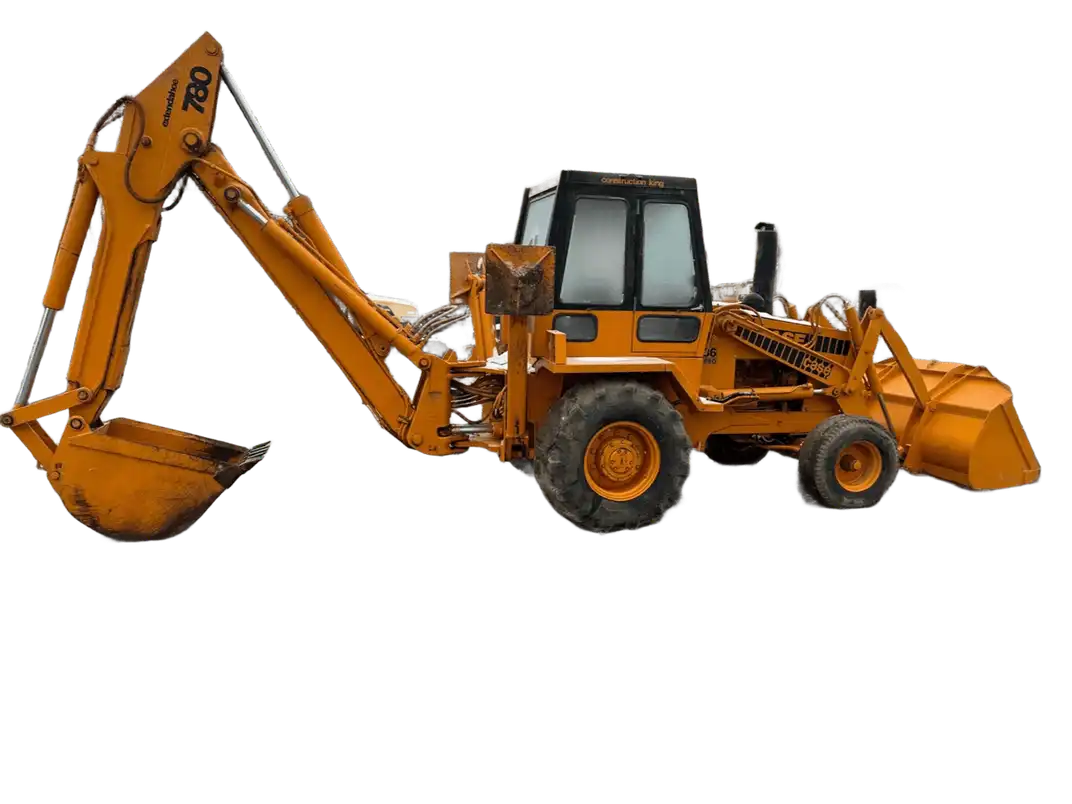

Case 780 Backhoe loaders tech specs
:quality(50)/66432/4807e51c-fd5a-4844-82fa-728078026921.png)
:quality(50)/66444/conversions/c99a513c-7610-4120-b6c8-81d5bceae36c-thumb.webp)
Video[1]
:quality(50)/66436/conversions/c4b1e61d-034f-434f-b6b9-b67dc21f7dd4-thumb.webp)

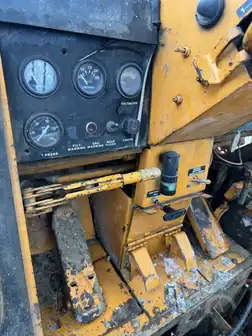

Interior [2]
:quality(50)/66438/conversions/e30384c7-b945-4b83-952b-d505645dcc5c-thumb.webp)

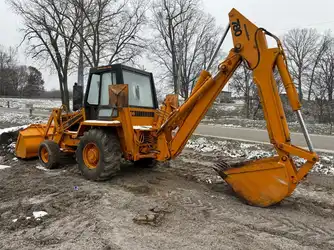

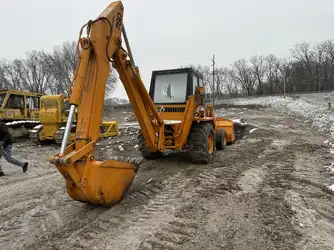

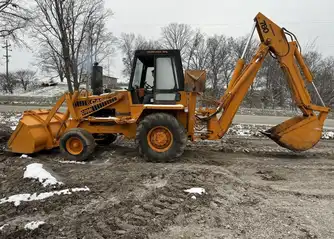

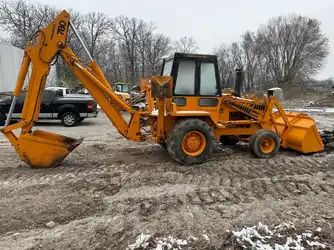

Exterior [4]
:quality(50)/66442/conversions/f5f01dc7-2dc3-4918-b83d-60c1b37a18a2-thumb.webp)

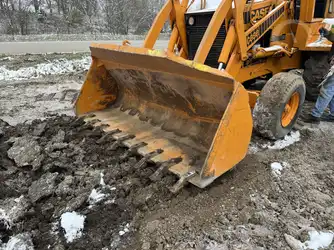

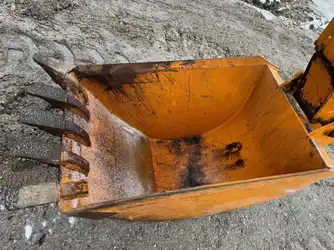

Attachments [2]
1988-2015
5.61 m Backhoe digging depth
7,257.49 kg Breakout force
2.71 m Loader dump height
1.74 m Loader dump reach
82.77 kw Net power
7,711 kg Operating weight
Makana rating
Owner rating
Market average
AED 650,000Starting from
AED 280,000Case 780 technical specifications
Highlight differences
:quality(50)/66433/a6cec5b3-ddd6-49d7-ad00-169a04344074.png)
:quality(50)/66434/143453a7-cdf1-4e5d-98fc-f968b6f60dbc.png)
:quality(50)/66435/cf468108-758f-4b87-ab72-e87a072280b7.png)
Alternator supplied amperage
Alternator supplied amperage 95 Amh
Alternator supplied amperage -
Alternator supplied amperage 65 Amh
Bore
Bore 11.94 cm
Bore 11.94 cm
Bore 10.41 cm
Engine make
Engine make Case
Engine make J.I. Case
Engine make J.I. Case
Gross power
Gross power 89.49 kw
Gross power -
Gross power 92.47 kw
Net power
Net power 82.77 kw
Net power 82.77 kw
Net power 83.52 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 6
Power measured @
Power measured @ 2,200 rpm
Power measured @ -
Power measured @ 2,200 rpm
Stroke
Stroke 12.7 cm
Stroke 12.7 cm
Stroke 12.19 cm
Torque measured @
Torque measured @ 2,200 rpm
Torque measured @ -
Torque measured @ 1,200 rpm
Years
Years 1988-2015
Years 1988-2015
Years 1988-2015
Market Average
Market Average AED 650,000
Market Average AED 650,000
Market Average AED 650,000
Price
Price AED 280,000
Price AED 280,000
Price AED 280,000
Backhoe digging depth
Backhoe digging depth 5.61 m
Backhoe digging depth -
Backhoe digging depth 5.52 m
Bucket capacity
Bucket capacity 1.15 cu m
Bucket capacity -
Bucket capacity -
Bucket digging force
Bucket digging force 6,047.3 kg
Bucket digging force -
Bucket digging force 6,187.01 kg
Bucket width
Bucket width 241 cm
Bucket width -
Bucket width 243 cm
Displacement
Displacement 5,506.07 cu cm
Displacement 5,501.15 cu cm
Displacement 5,900.99 cu cm
Engine model
Engine model A336 BDT
Engine model -
Engine model 6T-590
Loader dump height
Loader dump height 2.71 m
Loader dump height -
Loader dump height 2.71 m
Loader dump reach
Loader dump reach 1.74 m
Loader dump reach -
Loader dump reach 0.91 m
Max speed forward
Max speed forward 28 kph
Max speed forward -
Max speed forward 31.38 kph
Max torque
Max torque 386.4 Nm
Max torque -
Max torque 501.65 Nm
Operating voltage
Operating voltage 24 V
Operating voltage -
Operating voltage 12 V
Operating weight
Operating weight 7,711 kg
Operating weight -
Operating weight 10,552 kg
Transmission type
Transmission type Full powershift
Transmission type Powershift
Transmission type Powershift
Wheelbase
Wheelbase 2.23 m
Wheelbase -
Wheelbase 2.23 m
Backhoe dump height
Backhoe dump height -
Backhoe dump height -
Backhoe dump height 3.87 m
Backhoe reach from swivel
Backhoe reach from swivel 6.89 m
Backhoe reach from swivel -
Backhoe reach from swivel 6.71 m
Breakout force
Breakout force 7,257.49 kg
Breakout force -
Breakout force 5,579.19 kg
Cooling fluid cap
Cooling fluid cap 24.6 liter
Cooling fluid cap -
Cooling fluid cap 25.74 liter
Fuel cap
Fuel cap 132.48 liter
Fuel cap -
Fuel cap 162.76 liter
Rear axle fluid capacity
Rear axle fluid capacity 15.14 liter
Rear axle fluid capacity -
Rear axle fluid capacity -
Transmission fluid cap
Transmission fluid cap 18.93 liter
Transmission fluid cap -
Transmission fluid cap -
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap -
Hydraulic fluid cap 53.75 liter
Engine oil cap
Engine oil cap 9.46 liter
Engine oil cap -
Engine oil cap 11.73 liter
Front tires size (2WD)
Front tires size (2WD) 9.00 * 20 , 10PR
Front tires size (2WD) -
Front tires size (2WD) 14.00x17.5
Rear tires size
Rear tires size 18.4 * 24 , 12PR , R4
Rear tires size -
Rear tires size 21Lx24
Ground clearance
Ground clearance 0.4 m
Ground clearance -
Ground clearance 0.55 m
Overall Length
Overall Length 7.5 m
Overall Length -
Overall Length 7.53 m
Overall Width
Overall Width 2.44 m
Overall Width -
Overall Width 2.47 m
Front tread range
Front tread range -
Front tread range -
Front tread range 199.14 cm
Height - top of cab
Height - top of cab -
Height - top of cab -
Height - top of cab 2.96 m
Rear tread range
Rear tread range -
Rear tread range -
Rear tread range 181.1 cm
Max speed reverse
Max speed reverse 28 kph
Max speed reverse -
Max speed reverse 12.07 kph
Number of forward gears
Number of forward gears 2
Number of forward gears 3
Number of forward gears 3
Number of reverse gears
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Pump flow cap
Pump flow cap 87.06 lpm
Pump flow cap -
Pump flow cap 119.23 lpm
Relief valve pressure
Relief valve pressure 141.34 bar
Relief valve pressure -
Relief valve pressure 120.66 bar
Pump type
Pump type -
Pump type -
Pump type Open center
Extended backhoe digging depth
Extended backhoe digging depth -
Extended backhoe digging depth -
Extended backhoe digging depth 6.71 m
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe dump height 4.42 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel -
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 7.77 m
Download datasheets
Case 780 expert review
:quality(50)/60951/b376c375-391e-4221-936c-4c863ae106c1.jpeg)
Overview
The Case 780 delivers 82.77 kW net power with 5.61 m digging depth and strong breakout for heavy utility and foundation work.
Pros Excellent breakout force, deep reach, strong loader geometry.
Cons Larger footprint, higher fuel use under heavy digging.
Efficiency
A 2.71 m loader dump height and 5.61 m backhoe depth support deep trenching and bulk loading.
In Cabin
Improved visibility on later models with production-focused ergonomics.
In Comparison
Between the Case 695 and John Deere 710, the 780 balances breakout power with manageable size.
Final Verdict
Rated 4 stars, the Case 780 fits heavy site work, priced between AED 280,000 and 650,000.
