JCB 540-170 vs other boom loaders: Specs and prices in the UAE

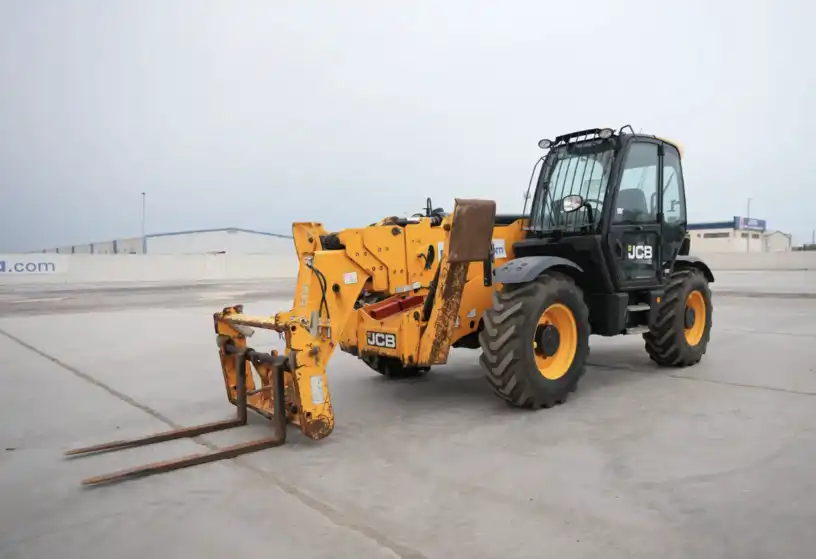

The JCB 540-170 is a popular boom loader for construction work in the UAE. It can lift materials up to 16.7 metres high and has a maximum lifting capacity of 4 tonnes.

But not every project needs a 17-metre boom loader. Some sites need more height, while others need a smaller machine for moving pallets and materials.

The JCB 540-180, JCB 540V140, Manitou MT 1840, and Genie GTH-5519 are other options worth comparing.

This article looks at their lifting capacity, reach, useas, and prices in the UAE to help buyers choose the right machine.

JCB 540-170 vs other boom loaders: specifications compared

The JCB 540-170 is not the only telehandler available for high-reach work. The table below compares five models with different lifting heights and capacities.

These are maximum rated specifications, not the lifting capacity at full height or full reach. Figures may vary by model version.

JCB 540-170 vs JCB 540-180

The JCB 540-180 is one of the closest alternatives to the 540-170. Both models have a maximum lifting capacity of 4 tonnes. The main difference is reach. The 540-180 can lift to 17.51 metres, compared with 16.7 metres for the 540-170. It also has a slightly longer forward reach.

This makes the 540-180 useful when materials must be placed higher or farther across a work area. However, the extra reach does not always mean better value. If the site needs only 15 metres of lifting height, the 540-170 may already meet the requirement.

JCB 540-170 vs JCB 540V140

The JCB 540V140 is a shorter-reach model with a maximum lifting height of 13.78 metres. It still has a 4-tonne maximum lifting capacity. The 540V140 is useful for medium-height construction work, industrial sites, and material handling where a 17-metre boom is not needed.

It is also smaller and lighter than the 540-170, which may help on sites with limited working space. For buyers who do not need the extra height, the 540V140 can be a more suitable choice.

JCB 540-170 vs Manitou MT 1840

The Manitou MT 1840 is another high-reach telehandler. It offers a 4-tonne maximum lifting capacity and a lift height of 17.55 metres. Its forward reach is around 13.08 metres. This puts it in a similar working class to the JCB 540-170 and 540-180.

The Manitou may be worth comparing for multi-storey construction, building materials, and high-reach lifting. For used machines, buyers should also compare local service support, parts, condition, and price.

JCB 540-170 vs Genie GTH-5519

The Genie GTH-5519 is much smaller than the JCB 540-170. It has a maximum lifting capacity of about 2.5 tonnes and a lift height of 5.74 metres. Its main advantage is not lifting height. It is the ability to work in smaller areas.

The Genie can be useful for loading trucks, moving pallets, and handling materials on low-rise construction sites. It is not a direct replacement for the JCB 540-170 on projects that need materials lifted to upper floors.

Boom loader prices in the UAE

Used boom loader prices in the UAE depend on the model, year, condition, operating hours, attachments, and customs status. A machine with more lifting height is not always more expensive. A newer model with fewer working hours may cost more than a larger, older machine.

JCB 540-170 and other telehandler price examples

The following are examples of advertised prices on Makana in October 2026.

These are advertised prices for selected used machines, not fixed market prices. Availability and prices can change. Applicable taxes and fees may be extra.

The figures show an important point. A used JCB 540-180 can sometimes cost less than a JCB 540-170, even though the 540-180 has a higher maximum lift height. This is why buyers should compare individual machines rather than choose only by model name.

For a Manitou MT 1840, buyers should request a current UAE quote for a machine in similar condition before comparing costs.

Choosing the right boom loader for UAE construction work

The right machine depends on the work you do every day.

High-rise and multi-storey construction

For projects where materials must reach upper floors, the JCB 540-170, JCB 540-180, and Manitou MT 1840 are useful options. They offer lifting heights of around 17–18 metres. The 540-180 and MT 1840 provide slightly more height than the 540-170.

However, maximum lift height alone is not enough. Check how much weight the machine can lift at the required height and distance.

General construction and industrial sites

A JCB 540V140 may be enough for sites that need strong lifting power but do not need 17 metres of height. Its shorter boom can suit jobs such as moving pallets of bricks, blocks, and other building materials.

The JCB 540-170 remains useful when the same site needs both medium-height and higher lifting work.

Small construction sites and yards

For shorter lifting jobs, the Genie GTH-5519 may be more practical. It is smaller and lighter than the high-reach JCB models. This can make it easier to use for truck unloading, low-level material placement, and yard work. However, it has a lower maximum lifting capacity and much less reach.

Working in UAE heat and dust

UAE construction sites can be hot and dusty. When choosing a used boom loader, buyers should check the cooling system, air filters, hydraulics, and air conditioning. The condition of the tyres and steering system is also important when working on loose ground. A machine that performs well during a short test may still need repairs before working long shifts.

Secure JCB 540-170 boom loaders on Makana

Makana offers JCB 540-170 telehandlers for sale in the UAE, along with other high-reach and compact boom loaders. Buyers can also review the JCB 540 telehandler technical specifications to compare the 540-170, 540-180, and 540V140. For more options, explore used boom loaders and telehandlers for sale on Makana.

Boom loaders in Makana's monthly machinery auctions

Makana runs online machinery auctions every month in Dubai, usually at the beginning of the month. Boom loaders and telehandlers are among the equipment types regularly offered in these auctions, including JCB models.

For example, Makana has offered JCB 540-170 and 540V140 telehandlers through its auction platform. Buyers can visit the telehandler auction category to review available machines, past lots, and upcoming opportunities.

Auction inventory changes every month, so a specific JCB model may not appear in every event. Registration is free. Buyers must activate their bidding limit before placing bids. Makana provides inspection reports, photos, specifications, and operational videos where available to help buyers compare machinery.

FAQs about JCB 540-170 and other boom loaders

How high can a JCB 540-170 lift?

The JCB 540-170 has a maximum lifting height of 16.7 metres. The weight it can lift at that height depends on the machine's load chart and setup.

What is the lifting capacity of a JCB 540-170?

The JCB 540-170 has a maximum rated lifting capacity of 4 tons. This does not mean it can lift 4 tonnes at full height or full forward reach.

What is the difference between JCB 540-170 and 540-180?

Both have a 4-tonne maximum lifting capacity. The JCB 540-180 has a higher lift height of 17.51 metres, compared with 16.7 metres for the 540-170. It also has slightly more forward reach.

How much does a used JCB 540-170 cost in the UAE?

As an example, Makana advertised selected used JCB 540-170 machines for AED 296,500–325,000 in October 2026. Actual prices depend on year, condition, hours, equipment, and availability.

Is a JCB 540V140 cheaper than a JCB 540-170?

It can be. A shorter-reach JCB 540V140 may cost less than a similar-condition 540-170. However, prices also depend on age, working hours, condition, and included attachments.

Is a boom loader the same as a telehandler?

Yes. Boom loader is a common name for a telescopic handler, or telehandler. It uses a telescopic boom to lift and place loads at height or forward of the machine.

Can I buy a JCB 540-170 at a Makana auction?

Makana has offered JCB 540-170 telehandlers in its machinery auctions. However, availability changes between monthly events, so buyers should check the current auction inventory.
