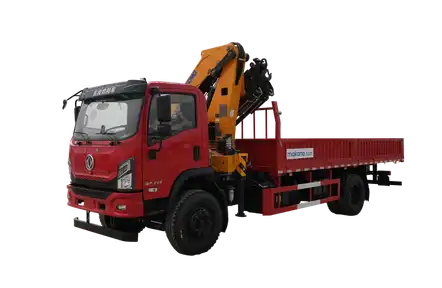

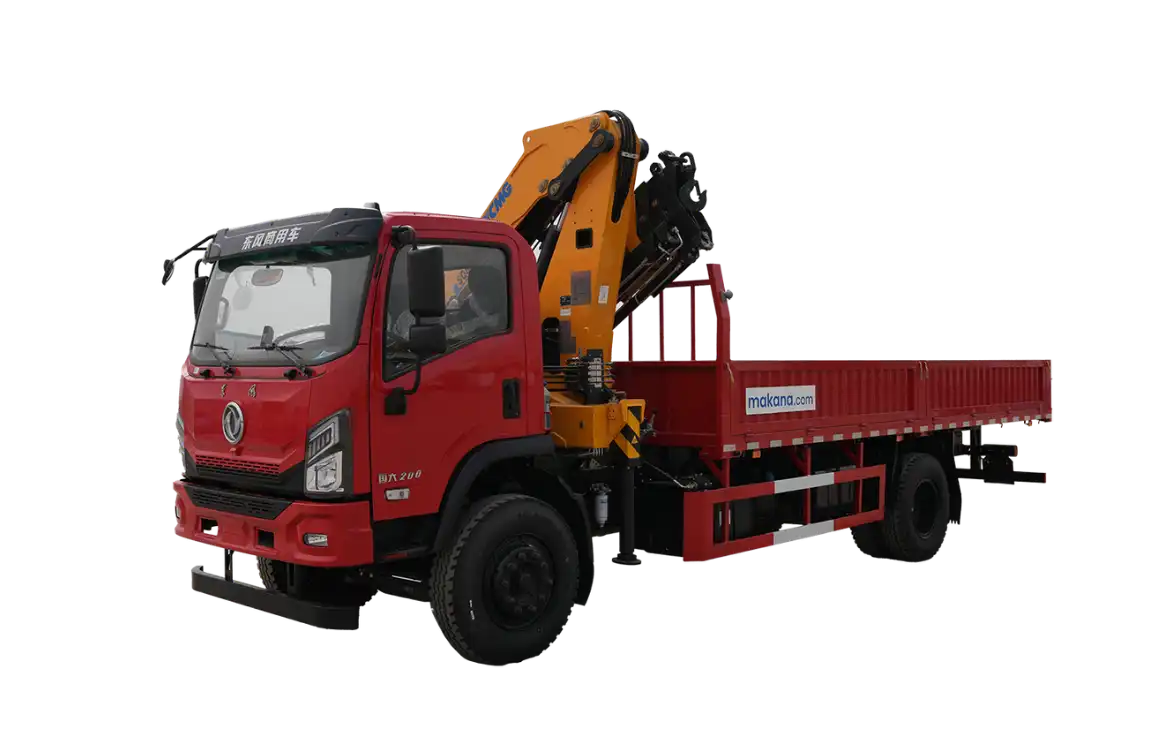

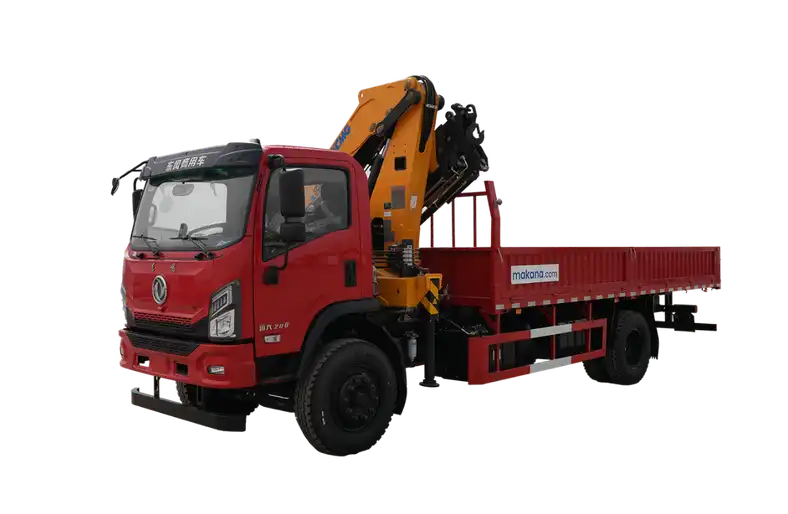

XCMG SQ Boom truck cranes tech specs

Name: XCMG SQ8ZK3Q Boom truck cranes Specs & Dimensions | Research
Brand: XCMG
Availability: InStock
Rating: 4.3 (3 reviews)

Video[1]

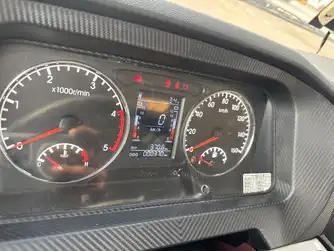

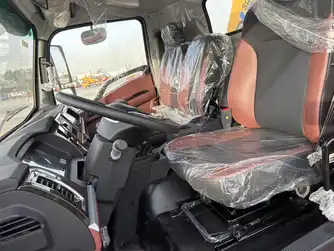

Interior [2]

Exterior [4]

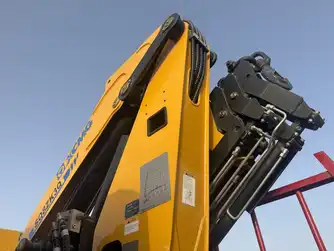

Attachments [2]

2017-2026

9.8 m Boom length

720 Nm Max torque

8-speed manual Transmission

13.2 m Max lifting height

1.6 liter Engine size

160 liter Fuel cap

A truck-mounted crane range with model-dependent lifting capacities from 5,000 to 10,000 kg, the XCMG SQ combines lifting and cargo transport for construction deliveries, equipment handling, utility work, and industrial site support. The specified configuration uses a 9.8 m boom with a 13.2 m maximum lifting height, while 720 Nm of maximum torque and an 8-speed manual transmission support loaded road and site travel. A 160-liter fuel tank helps maintain regular delivery and lifting schedules without frequent refuelling.

Lifting capacity 5,000–10,000 kg depending on model

Maximum lifting height 13.2 m

Boom length 9.8 m

Maximum torque 720 Nm

Engine displacement 1.6 liters

Transmission 8-speed manual

Fuel tank capacity 160 liters

Makana rating

Owner rating

| 3

Market average

AED 180,000

Starting from

AED 55,000

XCMG SQ technical specifications

Highlight differences

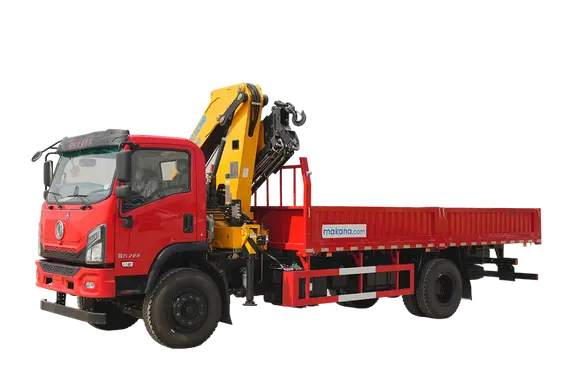

XCMG SQ8ZK3Q

XCMG SQS125

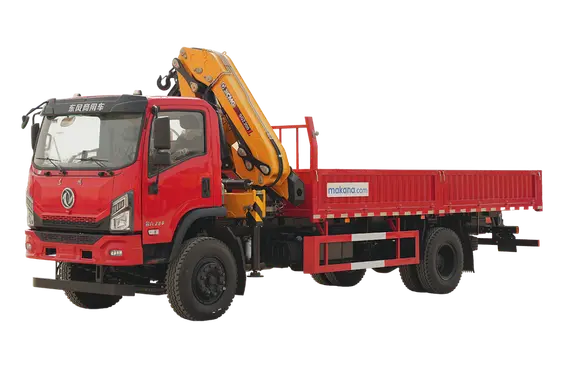

XCMG SQZ200

General

Engine model

Engine model Yuchai YCS04200-68

Engine model Yunnei YN33CRE1

Engine model Yuchai

Engine power

Engine power 149 kw

Engine power 80 kw

Engine power 150 kw

Operating weight

Operating weight 5,600 kg

Operating weight 3,500 kg

Operating weight 3,100 kg

Lifting capacity

Lifting capacity 8,000 kg

Lifting capacity 5,050 kg

Lifting capacity 10,000 kg

Boom length

Boom length 9.8 m

Boom length 11.2 m

Boom length 12.8 m

Max travel speed

Max travel speed 85 kph

Max travel speed 90 kph

Tire size

Tire size 10.00R20

Tire size 7.50R16LT

Tire size 12.00R20

Max torque

Max torque 720 Nm

Max torque 80 Nm

Max torque 1,250 Nm

Boom Type

Boom Type 360º rotation, folded boom

Boom Type Telescopic

Boom Type Telescopic, folding

Transmission

Transmission 8-speed manual

Transmission 6-speed manual

Transmission 8-speed manual

Gross vehicle weight - GVW

Gross vehicle weight - GVW 18,000 kg

Gross vehicle weight - GVW 11,000 kg

Gross vehicle weight - GVW 25,000 kg

Axle configuration

Axle configuration 4x2

Number of boom sections

Number of boom sections 5

Number of boom sections 4

Max lifting height

Max lifting height 13.2 m

Max lifting height 12.5 m

Max lifting height 15.5 m

Engine size

Engine size 1.6 liter

Engine size 9.7 liter

Years

Years 2017-2026

Market Average

Market Average AED 180,000

Price

Price AED 55,000

Service refill capacities

Fuel cap

Fuel cap 160 liter

Fuel cap 120 liter

Fuel cap 300 liter

Download datasheets

OEM product brochure

XCMG SQ expert review

Reviewed by Marcis V. on July 20, 2026

Overview

The XCMG SQ (2017–2026) range is aimed at construction suppliers, utility contractors, industrial yards, and equipment transport businesses that need one truck for both cargo movement and on-site lifting. The SQS125, SQ8ZK3Q, and SQZ200 variants cover 5-, 8-, and 10-ton lifting classes, while the specified 9.8 m boom reaches a 13.2 m maximum lifting height.

Expert rating: 5 stars

Pros Broad 5- to 10-ton model range, combining cargo transport and on-site lifting in one setup.

Cons Lifting performance varies between models, with shorter boom reach than premium comparable cranes.

Performance & Efficiency

The specified configuration combines 720 Nm of maximum torque with an 8-speed manual transmission, providing a broad gear range for loaded starts, road travel, and movement around construction sites. Its 9.8 m boom reaches a maximum lifting height of 13.2 m, making it suitable for loading and placing building materials, generators, small machinery, and site equipment. The 160-liter fuel tank supports regular transport and lifting schedules, although operators must follow the correct load chart because lifting capacity decreases as boom reach increases.

Final Verdict

Rated 5 stars, the XCMG SQ range is a practical boom truck crane option within the AED 55,000–180,000 range. Its model-dependent lifting capacities, 13.2 m specified lifting height, 9.8 m boom, and straightforward manual drivetrain suit contractors that regularly transport and place construction materials or equipment.
