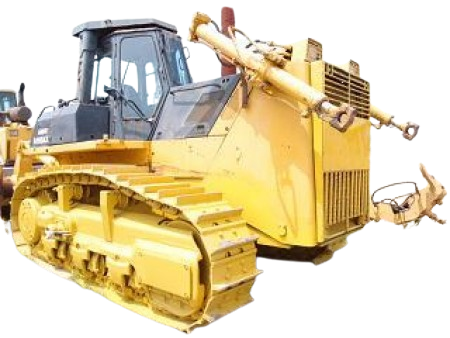

Komatsu D155AX-3E Crawler dozers research
2025
Komatsu D155AX-3E Crawler dozers Technical specifications
General
Engine model
SA6D140E-2
Operating weight
38,500 kg
Operational specifications
Drive type
PS,HSS
Blade width
3 mm
Engine
Displacement
15241 cu cm
Gross power
228.19 kw
Number of cylinders
6
Dimensions
Length with blade
8.17 m
Length without blade
5 m
Blade height
1.72 mm
Ground clearance
0.52 m
Width over tracks
2.71 m
Undercarriage
Tracks length
3 m
Number of track rollers per side
6
Track width
56.13 cm
Track gauge
2.1 m
Download datasheets
Komatsu D155AX-3E vs Komatsu D155AX-5
Komatsu D155AX-3E Crawler dozers

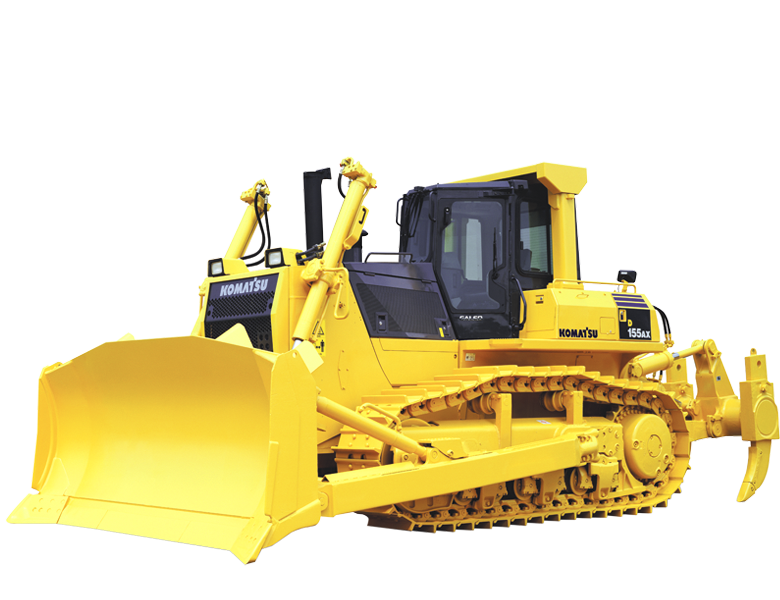

Komatsu D155AX-5 Crawler dozers
Engine model
SA6D140E-2
SA6D140E-2
Operating weight
38,500 kg
39,010 kg
Blade capacity
-
8.87 m3
Max speed forward
-
10.94 kph
Market Average
AED 125,000
AED 125,000
price
-
-
Years
2025
2025
Drive type
PS,HSS
HS
Blade width
3 mm
3 mm
Displacement
15,241 cu cm
15,241 cu cm
Gross power
228.19 kw
234.15 kw
Number of cylinders
6
6
Aspiration
-
Turbocharged
Max torque
-
156.8 Nm
Length with blade
8.17 m
6.31 m
Length without blade
5 m
4.88 m
Blade height
1.72 mm
1.72 mm
Ground clearance
0.52 m
0.49 m
Width over tracks
2.71 m
2.71 m
Tracks length
3 m
3 m
Number of track rollers per side
6
6
Track width
56.13 cm
61.21 cm
Track gauge
2.1 m
2.1 m
Ground contact area
-
99,468.06 cm3
Number of shoes per side
-
41
Final drives fluid cap
-
58.29 liters
Engine oil cap
-
37.09 liters
Pump flow cap
-
255.11 lpm
Relief valve pressure
-
205.94 bar
Pump type
-
Gear driven
Cooling fluid cap
-
107.12 liters
Fuel cap
-
625.28 liters
Hydraulic fluid cap
-
83.27 liters
Max speed reverse
-
14 kph
Number of reverse gears
-
3
Number of forward gears
-
3
