Top 10 large excavators

Overview

The 2023 Volvo EC550EL is a heavy-duty, 55-ton tracked excavator designed for large earthmoving and quarrying applications. It features a 424 HP Volvo D13 engine, a maximum digging depth of 7.9 meters, and an operating weight of around 54884.6 kg. The machine is built for high productivity, with impressive breakout and lifting capacities, making it well-suited for demanding job sites like quarries, coal mines, and mass excavation.

Optional equipment

• Block heater 120 V, 240 V
• Oil bath pre-cleaner
• Diesel coolant heater, 10 kW
• Dig Assist 2D, In-Field Design and 3D
• On-board weighing
• Volvo smart view
• Fabric seat with heater and air suspension
• Deluxe seat with multiple adjusting armrest

What's new

The 2023 EC550EL includes Volvo’s latest hydraulic system, which optimizes power distribution for faster cycle times. The machine integrates Volvo's ActiveCare Direct, a real-time telematics service for remote monitoring and predictive maintenance. This model also features a redesigned boom and arm for improved durability. A new electro-hydraulic control system offers greater operator precision and responsiveness, helping reduce cycle times. Enhanced fuel efficiency is achieved through the latest generation D13 engine, compliant with Tier 4 Final/Stage V emissions standards. The cab has also been updated, providing better visibility and a more ergonomic layout. Finally, an expanded set of attachments is now compatible, increasing versatility across different job sites.

Efficiency and performance

The EC550EL stands out for its high digging forces and excellent lifting performance, making it effective in heavy-duty applications like trenching, loading, and earthmoving. Its new hydraulic system delivers better responsiveness and shorter cycle times, boosting productivity on-site. Fuel economy is a strong suit, with the D13 engine offering optimized consumption rates, especially in ECO mode. However, the large frame can make it less agile on confined job sites, and extended service intervals, up to 1,000 hours; aid in reducing downtime but require more attention to detail during maintenance.

Routine maintenance is straightforward, with ground-level access to key components. Filters, fluid checks, and routine diagnostics are designed to be fast, thanks to Volvo’s centralized service points. Mechanics might find some components densely packed within the engine compartment, slightly complicating certain repairs.

In-cabin and interior features

Volvo has improved the cabin layout for better operator comfort and efficiency. The seat is fully adjustable with better cushioning and support for long working hours. A new 10-inch touchscreen display offers better machine control and telematics access. Visibility enhancements include larger front and side windows, a rear-view camera, and optional 360-degree visibility for increased safety and awareness. Noise levels in the cabin have been reduced, making for a quieter working environment compared to older models.

Safety features

Safety features include a new hydraulic lockout system that prevents accidental machine movements during maintenance. The seatbelt reminder system is standard, along with a slew of alarms for proximity, overload, and engine anomalies. Hydraulic safety checks and multiple emergency stop buttons have also been added for enhanced operator protection. The updated 360-degree camera system improves awareness around the machine, minimizing blind spots.

In comparison

Compared to its predecessor, the 2023 EC550EL boasts better hydraulic efficiency, improved cabin comfort, and higher lifting capacities. It competes well against models like the CAT 352 and the Komatsu PC490LC, offering superior fuel efficiency and better telematics integration. However, it comes with a higher price tag, which could be a consideration for budget-focused operations.

Verdict

The 2023 Volvo EC550EL is a powerful, high-performing excavator that excels in demanding applications. Its strengths lie in fuel efficiency, productivity, and safety, but its size and price point might limit its appeal to smaller contractors. Overall, it's a solid choice for those needing a versatile, heavy-duty machine built for large-scale jobs.

Overview

The 349F L is a large crawler excavator weighing 48.6 t (107,145 lb), equipped with a 311 kW (417 hp) Cat C13 ACERT engine. It achieves a dig depth of 7.66 m and horizontal reach of about 11.73 m. Bucket capacity is 3.1 m³, tear-out force 267 kN, and transport size is roughly 12.5 m long, 3.34 m wide, and about 3.71 m high.

Performance & Efficiency

Smart Mode aligns hydraulic and engine output to load needs, enhancing fuel efficiency by up to 10 %. Maintenance is more economical—15 % lower—thanks to extended service intervals and accessible layout.

In Comparison

Compared to older 349s, the F L adds power and smart tools without much extra weight. Compared to newer Cat excavators, it keeps things simpler while staying production-ready.

Verdict

Perfect for high-volume digging and heavy work. Powerful, smart, and built to last. Not ideal for narrow, lightweight tasks or minimal tech systems.

Overview

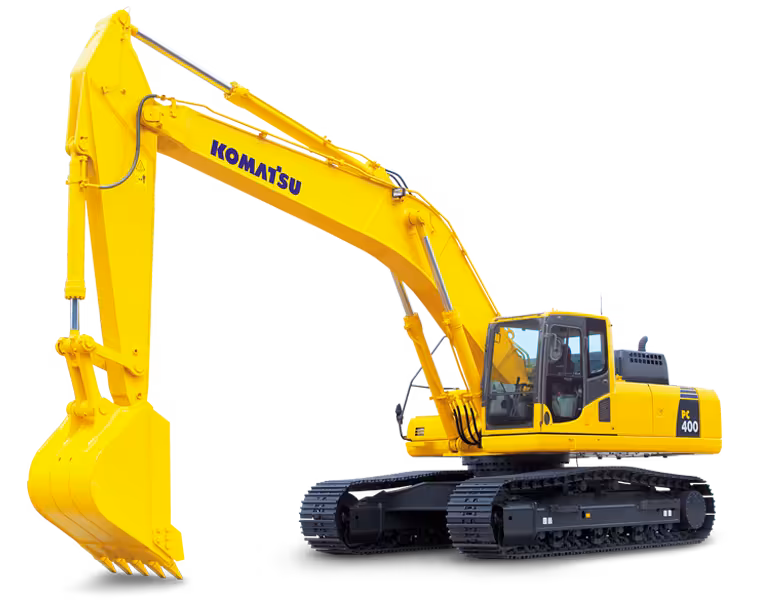

The PC400-8 (2007–2014) weighs ~47.1 t and uses a 257 kW SAA6D125E-5 engine. It digs to 9.255 m and reaches 13.18 m, with transport dimensions of ~11.905 m × 3.64 m × 3.265 m.

Performance & Efficiency

Hydraulic and engine tuning with smart features help minimize fuel burn while KOMTRAX keeps you ahead of maintenance.

In Comparison

Punches above midsize excavators while staying more maneuverable and affordable than full-range giants.

Verdict

Great choice for heavy-duty, high-output work. Go elsewhere if your site is narrow or needs bare-bones simplicity.

Overview

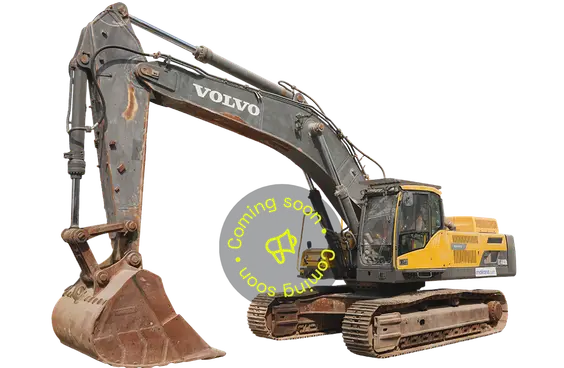

The Volvo EC480 (EC480DL) (2011–2017) is a 53.1-ton large excavator aimed at quarry operators, major contractors, mining support fleets, and earthmoving companies that need long reach and high loading capacity. Its 265 kilowatt turbocharged Volvo D13H engine, 3.8 cubic meter bucket, 9.2 m digging depth, and 13.26 m reach make it suitable for bulk excavation, quarry production, deep foundations, large-truck loading, demolition preparation, and major site-development work.

Expert rating: 5 stars

Performance & Efficiency

The 265 kilowatt Volvo D13H turbocharged engine supports a hydraulic pump flow of 716 liters per minute at a relief pressure of 353 bar. Its 251 kN bucket digging force and 174 kN arm crowding force provide useful breakout performance in dense soil and bulk excavation, while the 333 kN drawbar pull and 35-degree gradeability support movement across difficult ground. The 8.8 rpm swing speed maintains controlled loading and excavation cycles despite the machine’s 53.1-ton operating weight.

In Comparison

Cat 349: A closely matched large excavator for quarry, demolition, and bulk earthmoving work, with a strong production platform and broad service support.
Hitachi ZX470LC: Offers higher stated bucket and arm digging forces, with similarly deep digging capability and heavy transport requirements.
Volvo EC480: Combines a 3.8 cubic meter bucket, 13.26 m reach, 353-bar hydraulic pressure, and a 53.1-ton platform for high-volume excavation and loading.

Final Verdict

Rated 5 stars, the Volvo EC480 is a capable large excavator within the AED 245,000–450,000 range. Its large bucket, long working reach, strong hydraulic pressure, and substantial traction make it a practical choice for quarries, deep foundations, bulk excavation, and major earthmoving projects where production justifies the higher transport and operating costs.

Overview

The Hitachi ZX470LC (ZX470LC-6) (2015–2016) is a 50.26-ton large excavator aimed at quarry operators, major contractors, mining support fleets, and earthmoving companies that require deep digging capability and high hydraulic output. Its 270 kilowatt turbocharged Isuzu 6UZ1 engine, 2.34 cubic meter bucket, 9.1 m digging depth, and 12.49 m reach make it suitable for bulk excavation, deep foundations, quarry production, loading large trucks, demolition preparation, and major site-development work.

Expert rating: 5 stars

Performance & Efficiency

The 270 kilowatt Isuzu 6UZ1 turbocharged engine supports a hydraulic pump flow of 800 liters per minute at a relief pressure of 319 bar. Its 286 kN bucket digging force and 210 kN arm crowding force provide strong breakout performance in dense soil and heavy excavation, while the 329 kN drawbar pull and 35-degree gradeability support movement across difficult ground. The 9.5 rpm swing speed maintains steady loading and excavation cycles despite the machine’s 50.26-ton operating weight.

In Comparison

Cat 349: A closely matched large excavator for quarry, demolition, and bulk earthmoving work, with a strong production-focused platform and broad support network.
Komatsu PC450: A comparable heavy excavator suited to deep excavation and truck loading, with similar transport and operating-cost considerations.
Hitachi ZX470LC: Combines a 2.34 cubic meter bucket, 286 kN bucket force, 12.49 m reach, and 800-liter-per-minute hydraulic flow for demanding production applications.

Final Verdict

Rated 5 stars, the Hitachi ZX470LC is a capable large excavator within the AED 300,000–550,000 range. Its deep digging range, strong hydraulic system, high digging forces, and substantial traction make it a practical choice for quarries, major foundations, bulk excavation, and large earthmoving projects where production justifies the higher transport and operating costs.

Overview

Built 2007–2013, the PC450 LC-8 brings a net 257 kW (345 hp) SAA6D114E-5 engine into a 45 t chassis. It offers ~9.26 m dig depth and ~13.37 m reach, with manageable transport dimensions for a large excavator.

Performance & Efficiency

ECO and operating modes paired with KOMTRAX monitoring help optimize fuel and uptime. Smart hydraulics deliver consistent productivity.

In Comparison

Stronger and more capable than midsize units, but more agile and cost-effective than full-range mega excavators.

Verdict

For heavy-duty, high-production work, this is a strong pick. Not ideal for compact urban jobs or minimalist fleets.

Overview

The Cat 345 (2002–2005) is a large-class production excavator designed for continuous heavy digging. With a CAT 3176C ATAAC pushing 257 kW, 2.5 cu m bucket capacity, and nearly 49,000 kg operating weight, it targets quarry loading, mass excavation, and infrastructure where stability and breakout matter more than compact-site agility.

Key Features Highlight

• 48.96-ton class for bulk material movement
• 235 kN bucket digging force, 198 kN arm crowding force
• 720 LPM hydraulic flow for sustained loading cycles
• 8.6 rpm swing tuned for controlled truck loading
• 7.2 m max digging depth, 11.29 m reach
• 331 kN drawbar pull for tough underfoot conditions
• Large onboard fluids: 720 L fuel, 520 L hydraulic oil

Pros High digging forces, massive hydraulic flow, stable platform for truck loading.

Cons Fuel-heavy in light work, oversized for tight urban sites.

Efficiency

The 345 is built for sustained production, not stop-start finesse. Its 720 LPM hydraulic capacity keeps attachments responsive under load, while the 8.6 rpm swing favors controlled, repeatable truck loading over rapid cycling.

In Cabin

Operator environment is straightforward and industrial. Visibility to the bucket and working area is solid, controls are direct, and long shifts are manageable.

In Comparison

• Cat 349: heavier and more powerful for extreme production.
• Komatsu PC400: similar class with smoother hydraulics on some setups.
• Cat 345: balanced middle ground with strong digging forces.

Final Verdict

Rated 5 stars, the Cat 345 fits quarry and infrastructure work in the AED 187,500–420,000 range.
