Zoomlion ZTC 800V Truck cranes 2019 TRC-004

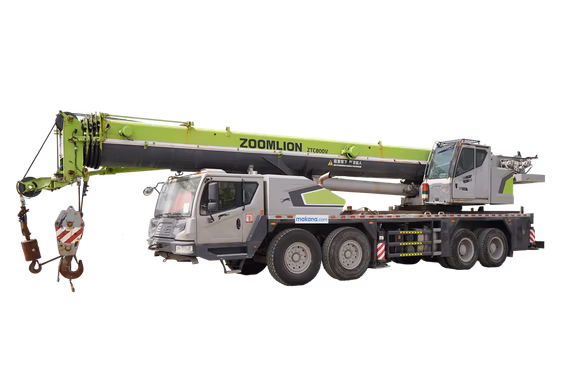

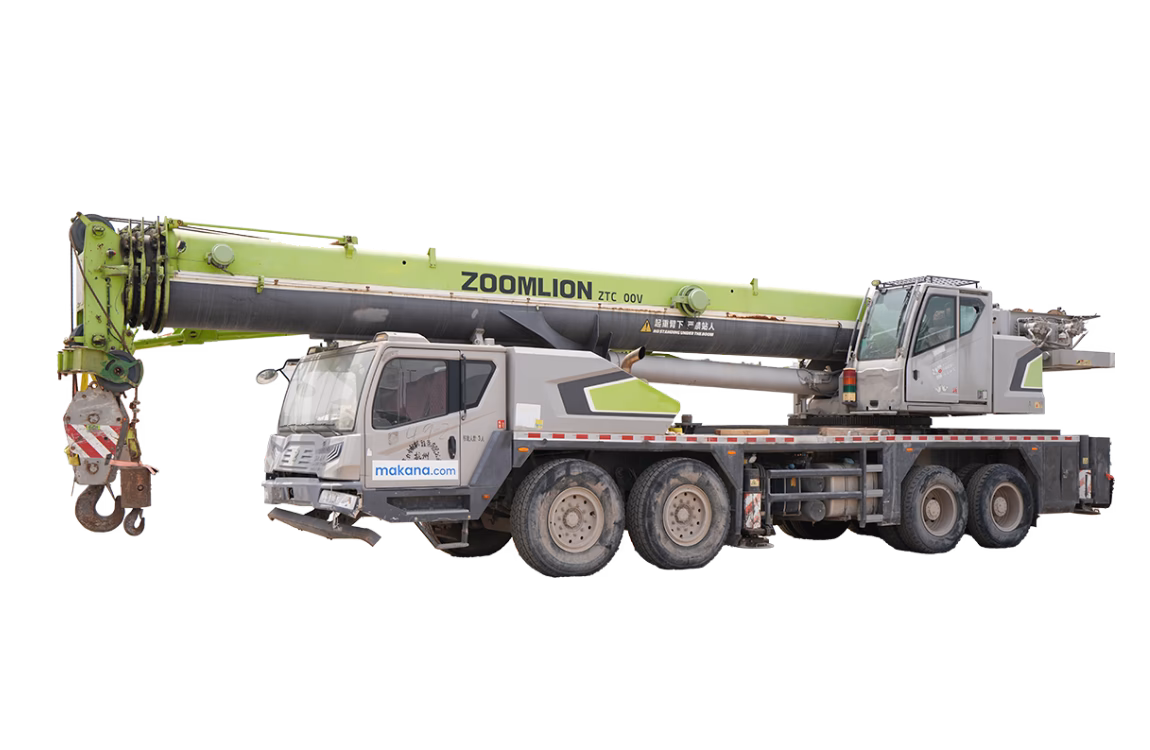

This used 2019 Zoomlion ZTC 800V552.2 truck crane, designated as model ZLJ5503JQZ80V, is an 80-ton truck crane on an 8x4 axle setup, built for heavy lifting on construction sites, industrial jobs, infrastructure work, and general lifting applications that need both road mobility and serious crane capacity. With a 5-section U-shaped main boom extending from 12.5 m to 49 m, a maximum lifting height of 50 m, and up to 67.2 m with the jib, it is suited to steel erection, precast placement, equipment installation, and other lifting work where both reach and rated capacity matter.

This China-made unit is equipped with a 2-section lattice jib from 9.5 m to 16 m, a maximum load moment from 2,999 to 3,342 kN.m, and a total of 16 to 18 tons of fixed and removable counterweights to support heavier lifts. It has a maximum GVW of 50 tons, a 17.7-ton curb weight, and an 8 m outrigger spread width when fully extended. Power comes from a 6-cylinder 11.6-liter turbocharged Weichai WP12.375E50 diesel engine rated at 375 hp, supporting a maximum travel speed of 90 km/h and 48% gradeability. The odometer reads 12,679 km.

Highlights:

• 80-ton maximum lifting capacity
• 12.5 m to 49 m 5-section U-shaped main boom
• Maximum lifting height of 50 m, up to 67.2 m with jib
• 9.5 m to 16 m 2-section lattice jib
• 8x4 axle truck crane, model ZLJ5503JQZ80V
• 375 hp Weichai WP12.375E50 turbo diesel engine
