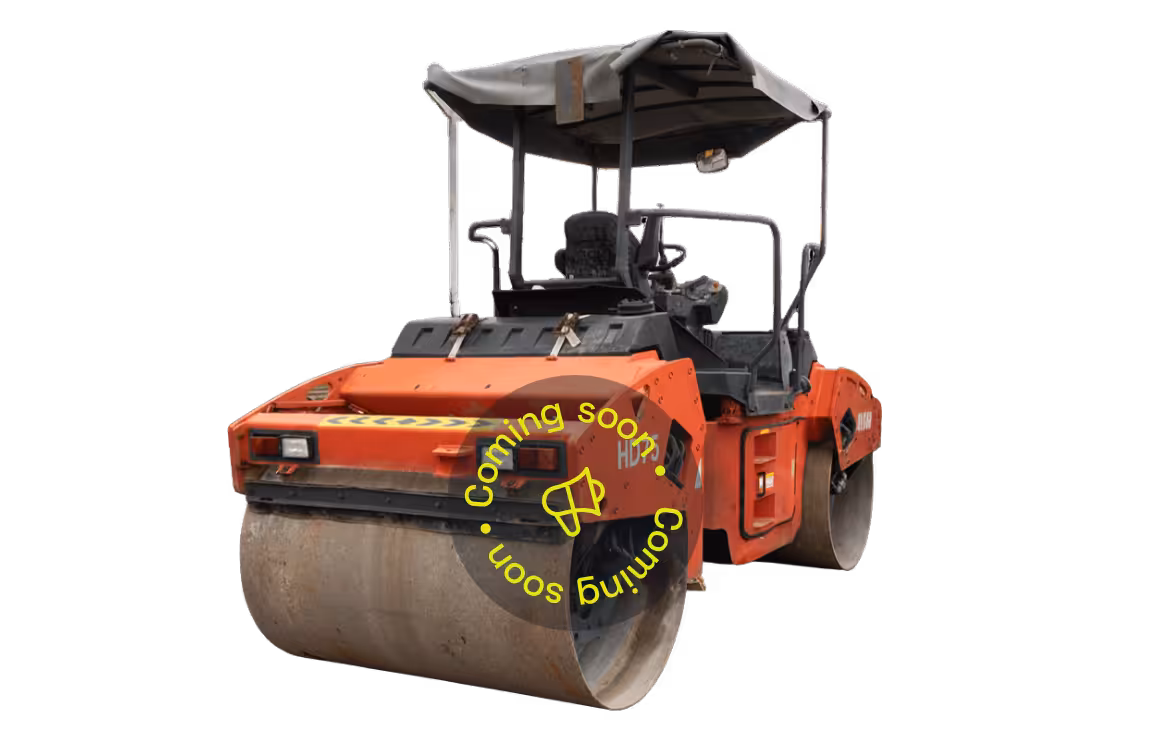

Hamm HD 75 Tandem rollers

This used 2012 Hamm HD 75 tandem roller delivers 76 kN compaction force, about 7.7 tons, making it a 7.68-ton double drum roller built for asphalt finishing, surface compaction, and final rolling work on roads, parking areas, and other paved jobs where smooth coverage and a clean finish matter. With a 1,680 mm compaction width, 1,140 mm drum diameter, and smooth non-split drums, it is set up for steady passes and consistent mat finishing on medium-width paving work.

This Germany-made unit comes with an open canopy, a rotatable ergonomic seat unit, and dual multifunction drive levers for easier operation in either rolling direction. Power comes from a 4-cylinder 3.6-liter Deutz TD 2011 L04 W diesel engine rated at 74 hp, while the compaction setup includes up to 58 Hz frequency, static linear load of 23.1 / 22.6 kg/cm front and rear, and 17 mm drum shell thickness. It also features 3-point articulation for more even weight distribution and higher maneuverability, along with a 720 L water tank, 130 L fuel tank, 12.6 km/h maximum speed, and 187,146 hours on the meter.

Highlights:

• 76 kN compaction force, about 7.7 tons
• 7.68-ton tandem roller
• 1,680 mm compaction width
• 1,140 mm drum diameter
• 74 hp Deutz TD 2011 L04 W 3.6-liter diesel engine
• 3-point articulation for even weight distribution and maneuverability
