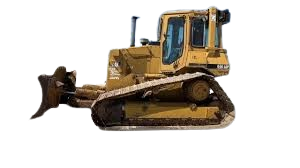

Cat D4H LGP Crawler dozers research
Cat D4H LGP Crawler dozers Technical specifications
General
Engine model
3204
Operating weight
11,244 kg
Blade capacity
2.06 m3
Max speed forward
10.3 kph
Operational specifications
Drive type
Planetary powershift
Blade width
3 mm
Engine
Displacement
5201 cu cm
Aspiration
Turbocharged
Gross power
73.83 kw
Alternator supplied amperage
35 Amh
Operating voltage
24 V
Number of cylinders
4
Net power
67.11 kw
Dimensions
Length with blade
4.85 m
Length without blade
3.72 m
Blade height
0.91 mm
Ground clearance
0.37 m
Width over tracks
2.77 m
Refill capacities
Final drives fluid cap
6.06 liters
Engine oil cap
15.14 liters
Undercarriage
Ground contact area
101093.66 cm3
Number of shoes per side
44
Tracks length
2 m
Ground pressure
0.29 bar
Number of track rollers per side
7
Track width
76.2 cm
Track gauge
2.01 m
Hydraulic system
Pump flow cap
94.63 lpm
Relief valve pressure
186.16 bar
Pump type
Load sensing, variable displacement piston pump
Service refill capacities
Cooling fluid cap
27.25 liters
Fuel cap
167.3 liters
Hydraulic fluid cap
67.37 liters
Transmission
Max speed reverse
12.23 kph
Number of reverse gears
3
Number of forward gears
3
