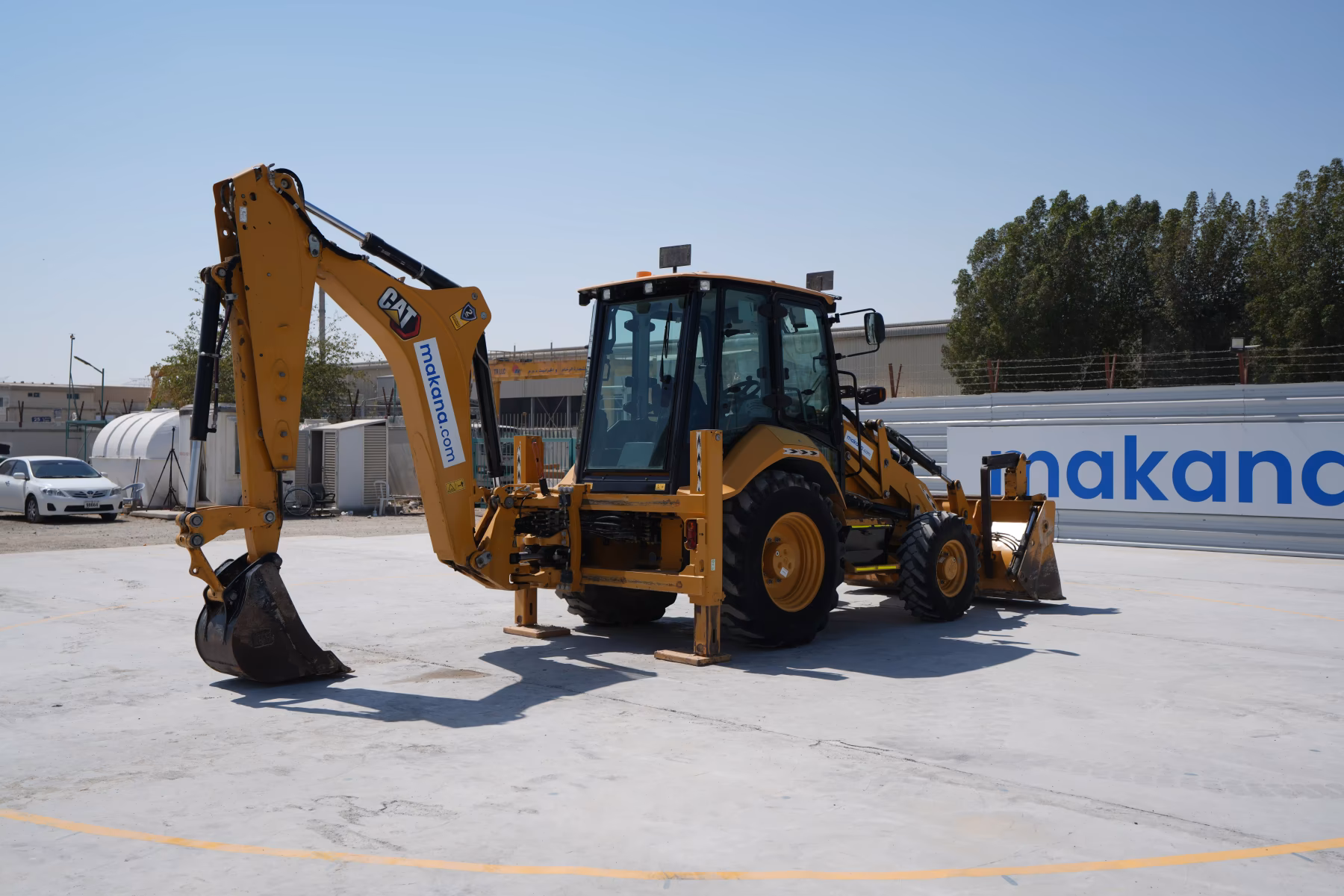

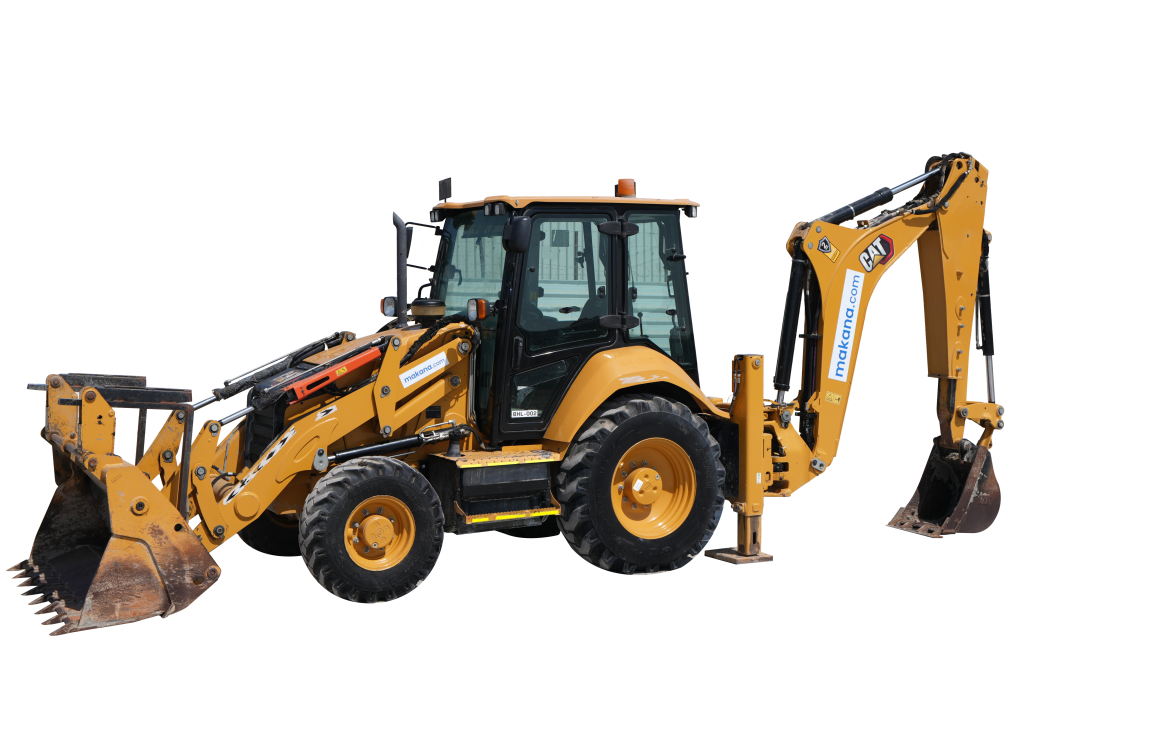

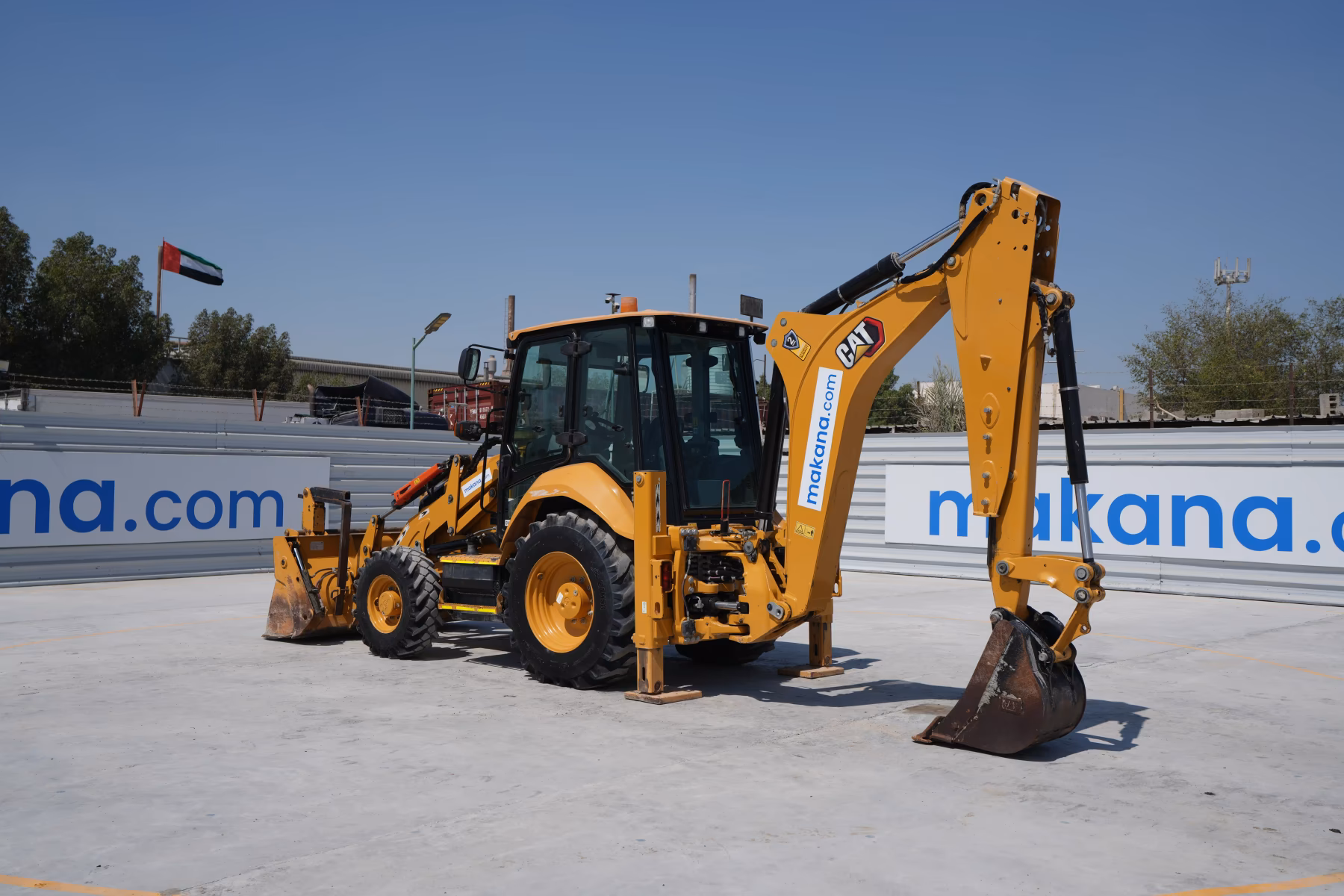

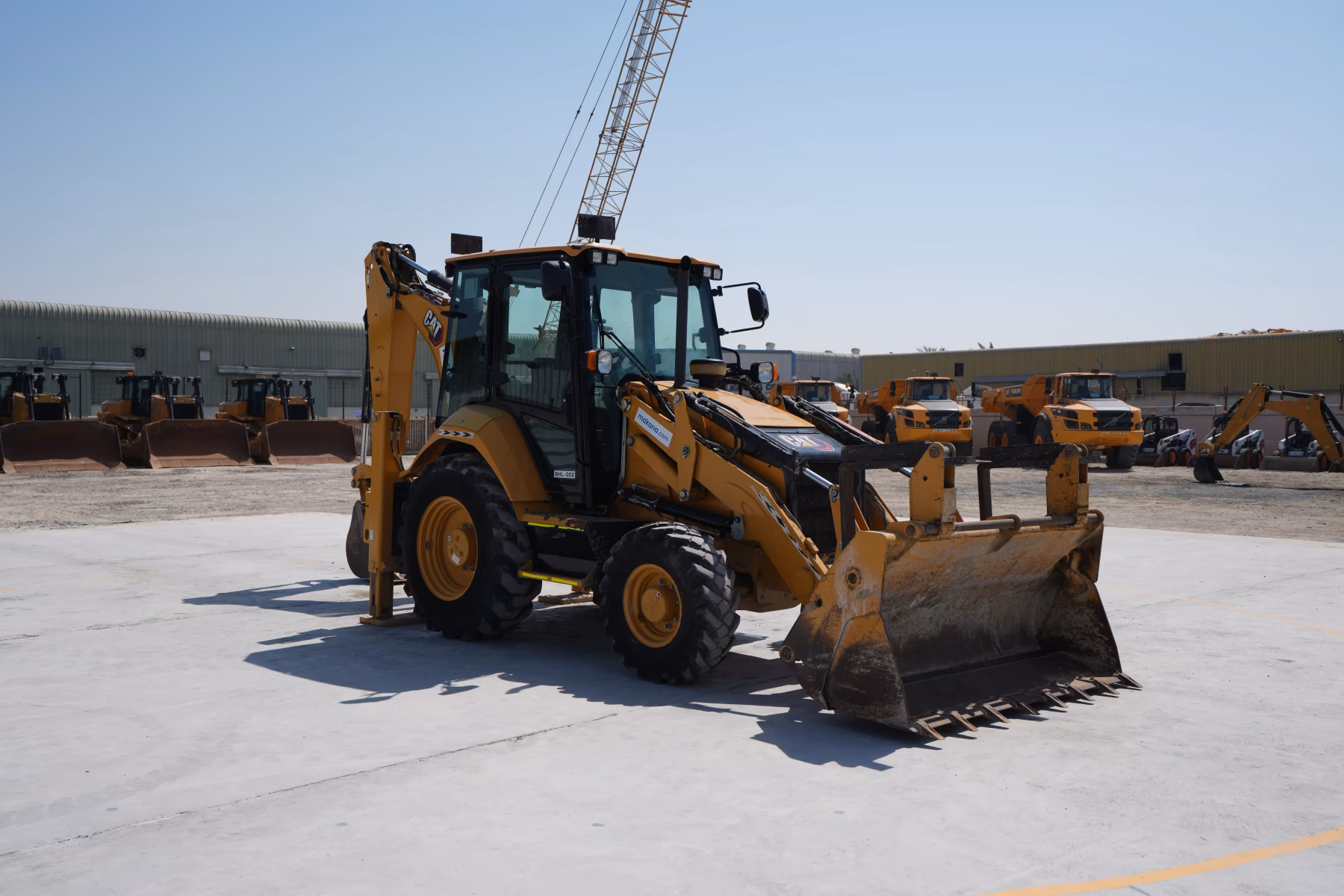

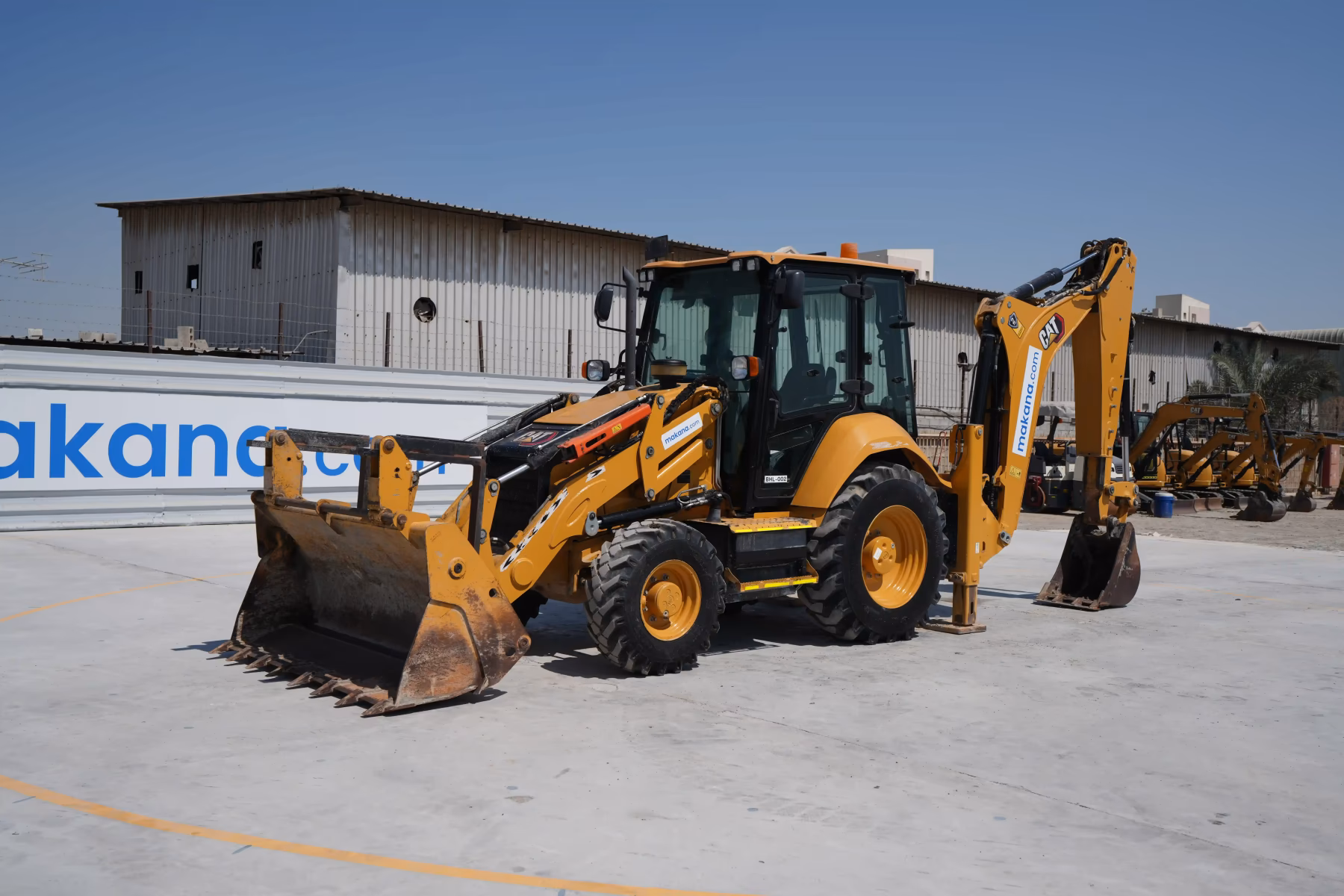

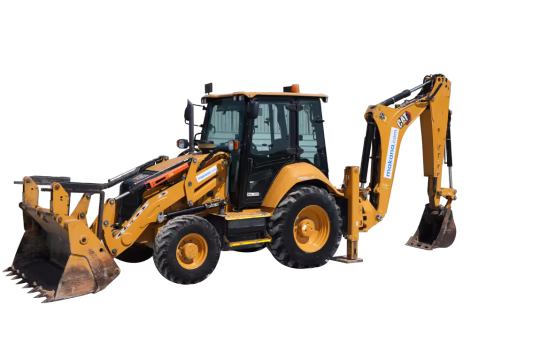

Cat 426 Backhoe loaders

100K+ machines in details.

Cat 426 Backhoe loaders tech specs

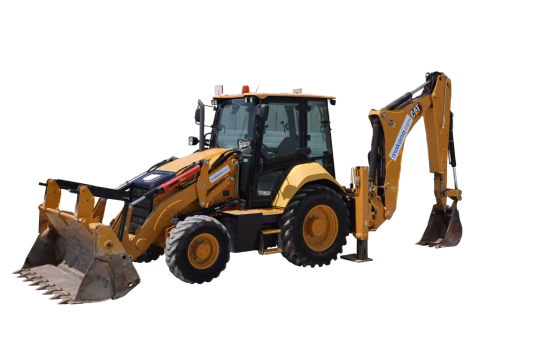

Video[1]

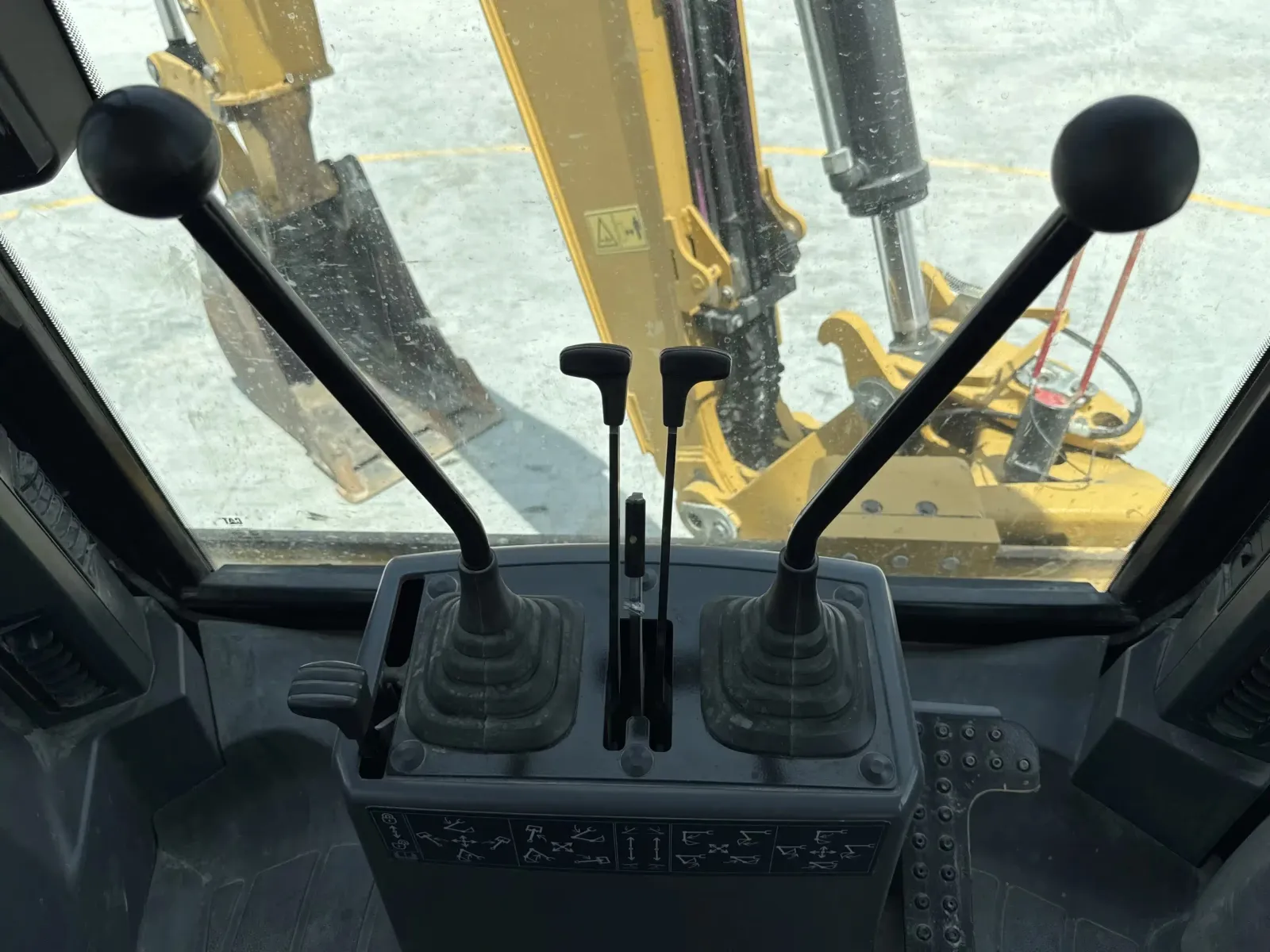

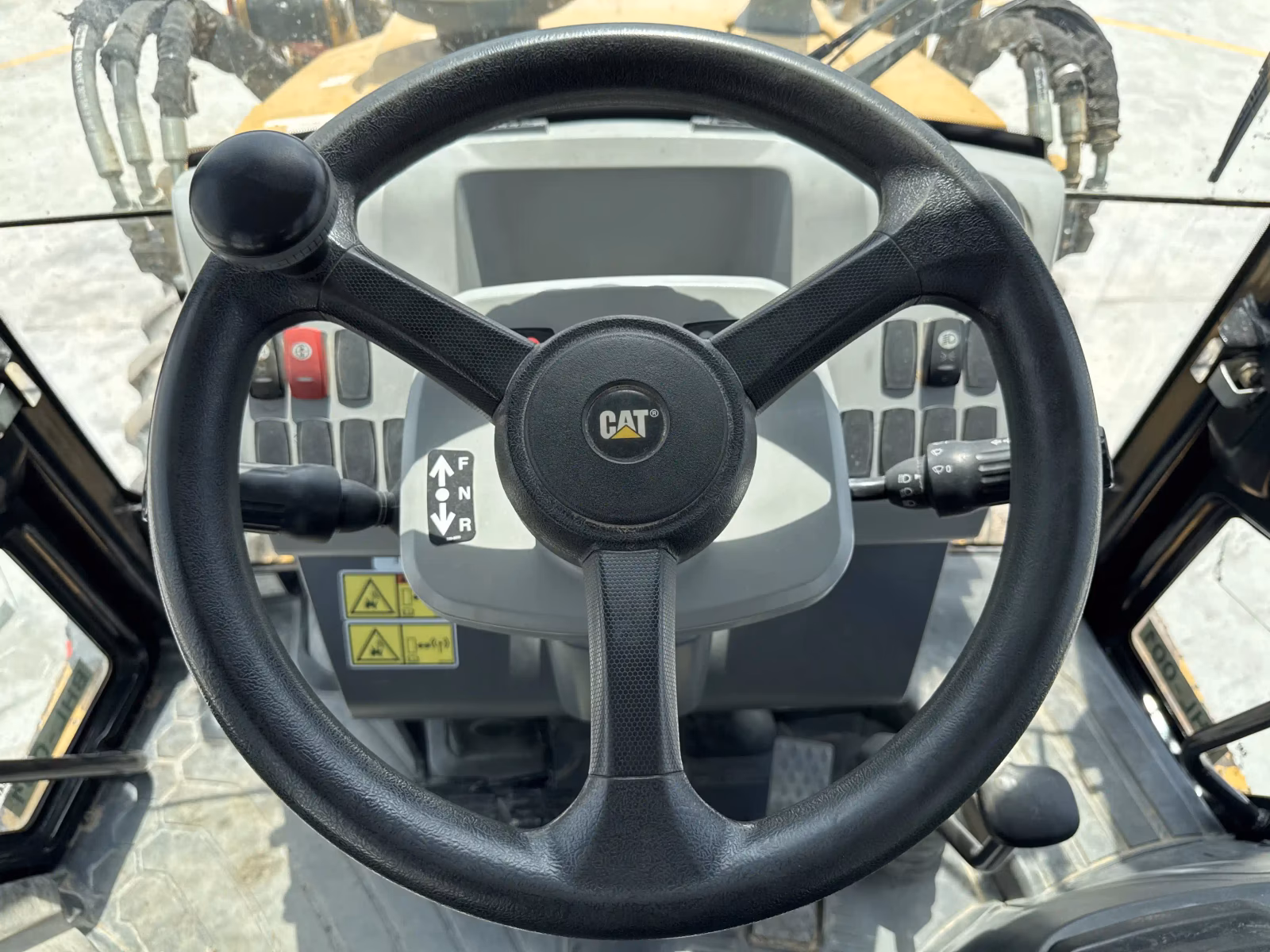

Interior [3]

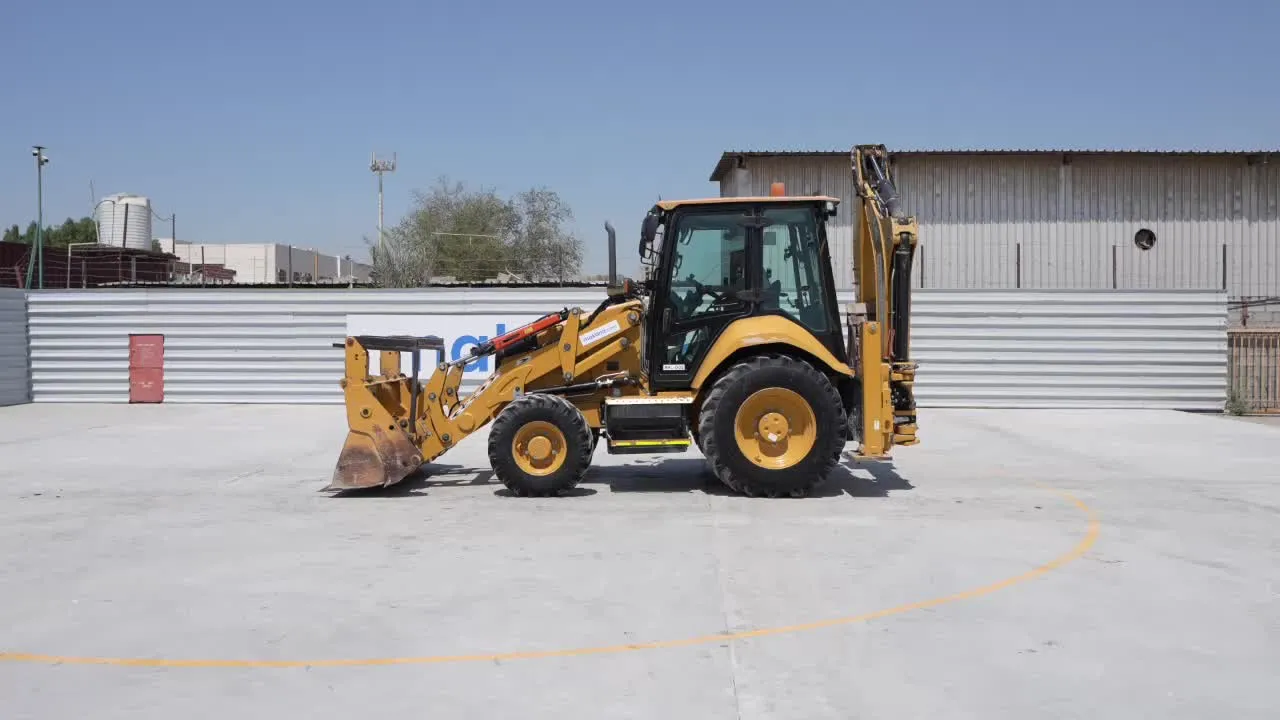

Exterior [4]

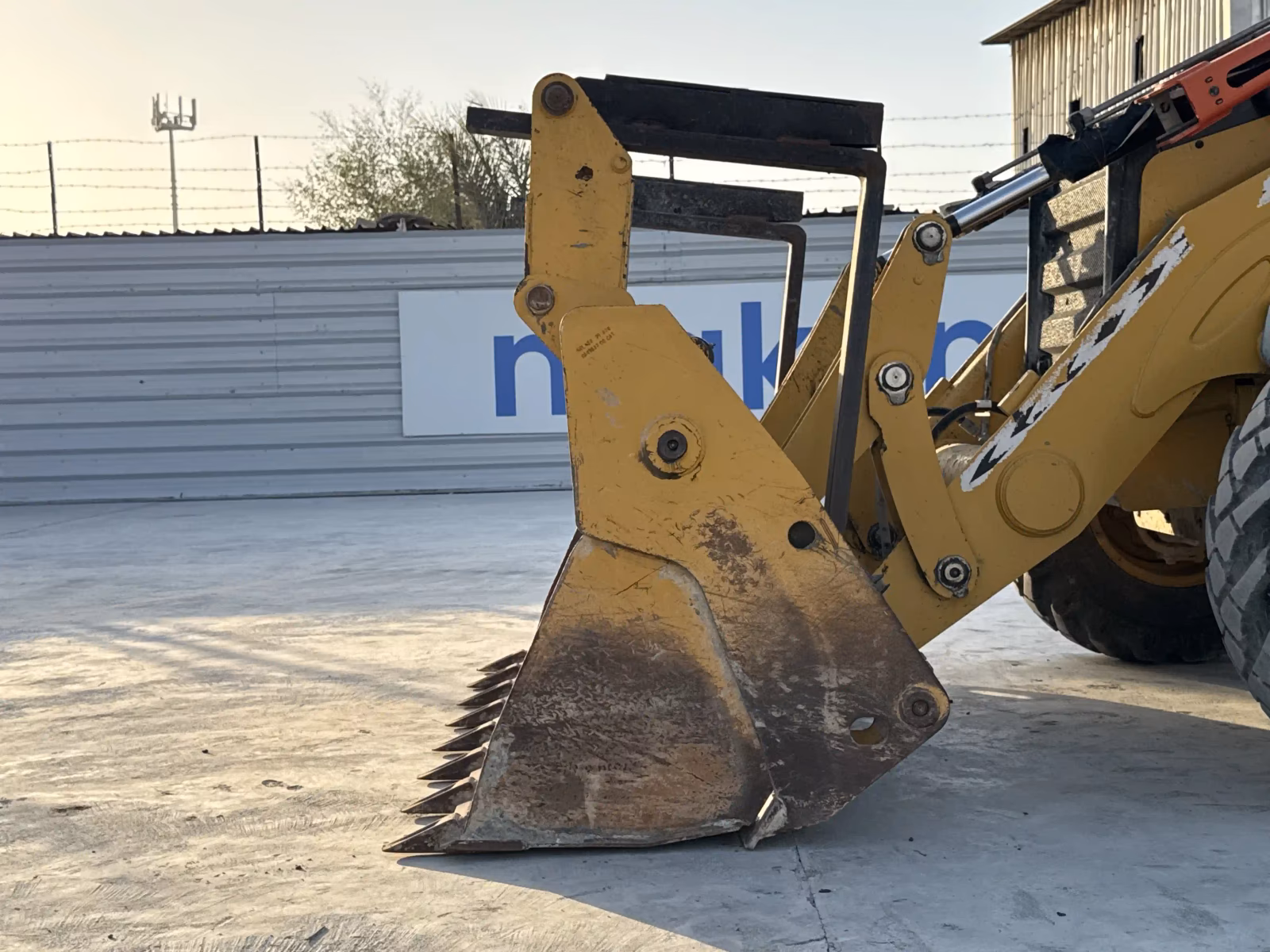

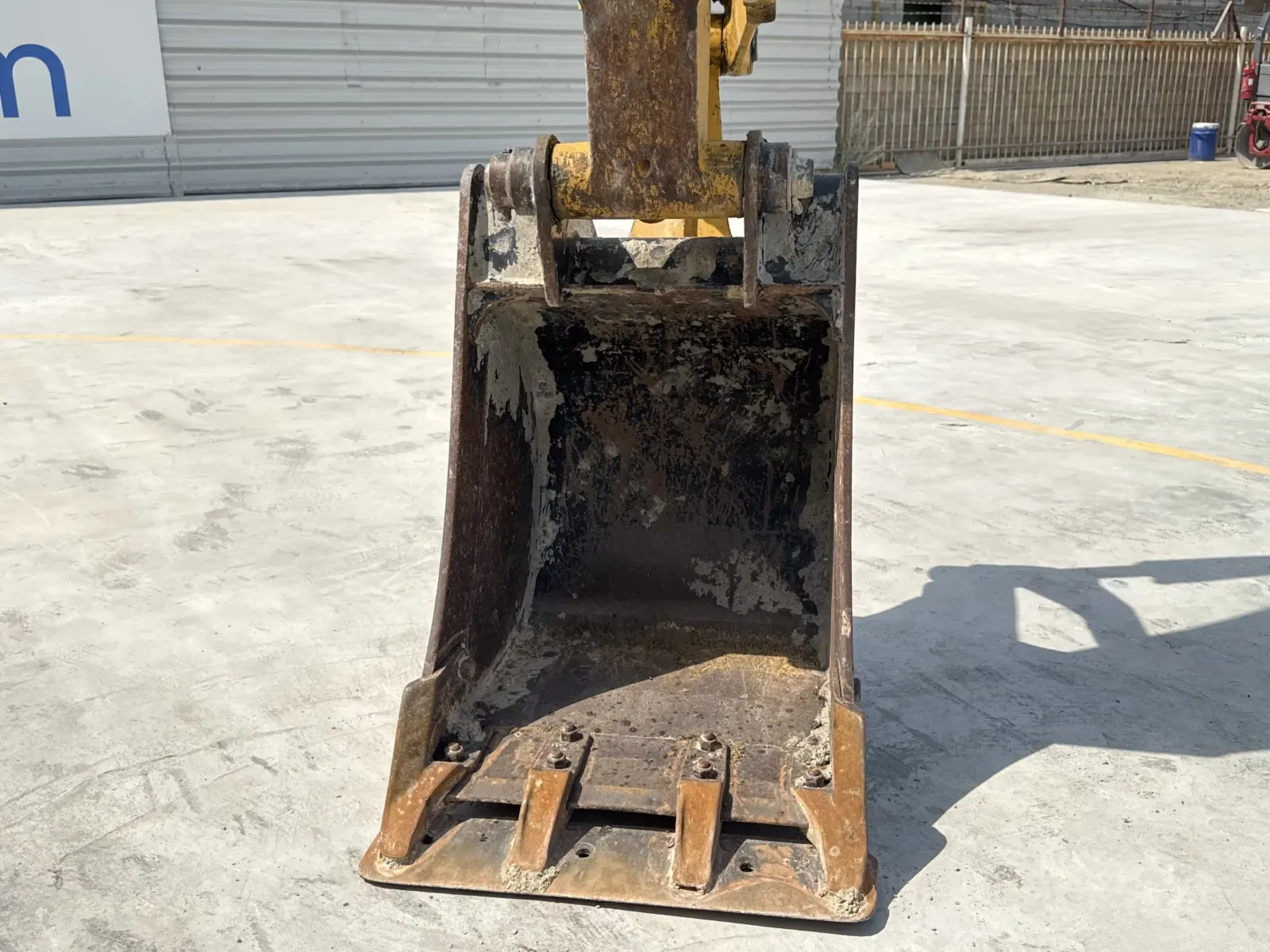

Attachments [2]

2017-2025

69 kw Gross power

1 cu m Bucket capacity

88 mm Loader digging depth

2,700 mm Loader dump height

900 mm Loader dump reach

11,000 kg Operating weight

The Cat 426F2 is a modern backhoe loader built to deliver balanced performance. It uses either Cat 3054C or C4.4 turbo diesel engines.

rated ~68.5 kW / 93 hp (gross), net ~66 kW / 88 hp

nominal operating weight is ~7,990 kg

loader bucket capacity (GP) is ~1.05 m³

lift breakout ~54.46 kN

backhoe reach is ~5.61 m to the ground line

digging depth up to ~4.709 m

bucket dig force ~57.2 kN

Show features

Makana rating

Owner rating

| 1

Market average

AED 250,000

Starting from

AED 230,000

Cat 426 Technical specifications

General

Bucket width

240 mm

Engine model

CAT 3054C

Bucket capacity

1.03 cu m

Lifting capacity

3728 kg

Operating weight

11,000 kg

Max speed forward

40 kph

Transmission type

Powershuttle 4x4

Tire size

(F) 12.5/80-18 SGL , (R) 16.9-28c

Dimensions

Overall Length

5 m

Overall Width

2 m

Wheelbase

2.2 m

Engine

Aspiration

Mechanical turbocharged

Bore

105 cm

Displacement

4400 cu cm

Emissions

Tier 2

Gross power

68.5 kw

Max torque

394 Nm

Net power

66 kw

Stroke

127 cm

Torque rise

38 %

Hydraulic system

Pump flow cap

132 lpm

Pump type

Closed center, variable flow, axial piston

Relief valve pressure

250 bar

Backhoe

Backhoe digging depth

4100 mm

Backhoe dump height

4000 mm

Backhoe dump reach

1400 mm

Backhoe reach from swivel

5600 mm

Bucket rotation

205 º

Operating specifications

Brake system

Fully enclosed boosted, hydraulic, multiple discs

Cab sound

80 dBA

Dump angle

46 º

Extended backhoe digging depth

4.7 m

Exterior sound

104 dBA

Loader

Breakout force

54.45 kN

Loader digging depth

88 mm

Loader dump height

2700 mm

Loader dump reach

900 mm

Service refill capacities

Cooling fluid cap

22 liter

Front axle fluid cap

11 liter

Fuel cap

160 liter

Hydraulic fluid cap

106 liter

Rear axle fluid capacity

14.5 liter

Transmission fluid cap

15 liter

Refill capacities

Engine oil cap

8.8 liter

Transmission

Number of forward gears

Number of reverse gears

Download datasheets

OEM product brochure

Cat 426 expert review

Reviewed by Adrien E. on September 29, 2025

Overview

The 426F2 is built as a full-feature backhoe loader that can handle both loader and excavator tasks. It features a closed-center, load-sensing hydraulic system to match flow to demand, minimizing wasted energy. The AWD (all wheel drive) is selectable on the move or via braking, with a sealed front axle design that requires minimal daily maintenance. The transmission is a 4-speed Power Shuttle capable of ~40 km/h roading speed. The loader arm uses a parallel-lift design for better retention, and the backhoe is “excavator style” to improve reach and flexibility.

Pros Balanced dual capability: strong loader + competent backhoe.
Modern hydraulics, AWD engage on the move, and protected components (sealed axles, internal hose routing).

Cons Not specialized — will lag behind full excavators in deep or heavy trenching.
Safe load drops a lot at full reach — operators must follow the load chart carefully.

Performance & Efficiency

Thanks to the load-sensing hydraulic system, flow is provided only when needed, reducing energy losses. The 132 L/min pump supports simultaneous loader/backhoe operation. Travel speeds are competitive and the 40 km/h top speed increases site mobility. Maintenance features like flip hood, hinged cooling pack, and sealed joints help reduce downtime.

In Comparison

Compared to earlier 426 models, the F2 improves hydraulics, cabin comfort, and features like AWD and modern controls. Versus rival backhoes (JCB, Deere, etc.), the 426F2’s strength lies in reliability, dealer support, and conservative, robust engineering.

Verdict

The Cat 426F2 is a dependable, well-balanced backhoe loader for construction, utilities, and site work. It doesn’t excel in extreme digging or pushing, but for everyday, mixed tasks it is a strong performer. If you have one, use it where flexibility and uptime matter; don’t expect it to replace specialized diggers.
