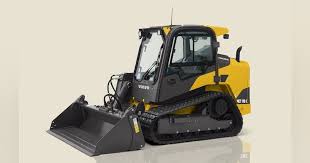

Volvo MCT110C Compact track loaders research

Engine model

TCAE-55

Operating weight

4,640 kg

Bucket width

198.12 mm

Bucket capacity

0.46 cu m

Max speed forward

9.98 kph

Displacement

2481.01 cu cm

Aspiration

Turbocharged

Gross power

55.03 kw

Max torque

400.1 Nm

Alternator supplied amperage

342 Amh

Number of cylinders

4

Battery

12 - 109 (V - Ah)

Transport width

1 m

Length without Bucket

3.72 m

Ground clearance

0.25 m

Width over tracks

2.1 m

Length with bucket

2.96 m

Max height to hinge pin

318.01 cm

Turning radius

1.77 m

Pump flow cap

125.28 lpm

Relief valve pressure

229.94 bar

Loader lift cap

1025.12 kg

Loader dump height

2.44 m

Loader dump reach

0.59 m

Tipping load

2915.01 kg

Cooling fluid cap

15.52 liters

Fuel cap

103.33 liters

Hydraulic fluid cap

60.18 liters

Engine oil cap

15.14 liters

Dump angle

42 degrees

Rack back angle

30 degrees

Lift arm path

Radial

Angle of departure

28 degrees
