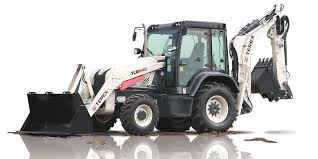

Terex 980 Elite Backhoe loaders research

Engine model

1104C-44T

Operating weight

7,521 kg

Bucket width

238.76 cm

Bucket capacity

1.22 cu m

Max speed forward

41.68 kph

Transmission type

full powershift

Displacement

4408 cu cm

Gross power

74.57 kw

Max torque

562.66 Nm

Alternator supplied amperage

75 Amh

Operating voltage

12 V

Net power

70.1 kw

Bucket digging force

5260.05 kg

Transport length

7 m

Ground clearance

0.49 m

Turning radius

5.73 m

Wheelbase

2.1 m

Transport width

2 m

Pump flow cap

160.11 lpm

Relief valve pressure

224.08 bar

Pump type

Tandem gear

Breakout force

5559.23 kg

Loader dump height

2.68 m

Loader dump reach

0.67 m

Loader dig depth

11.68 cm

Cooling fluid cap

16.28 liters

Fuel cap

130.2 liters

Hydraulic fluid cap

143.07 liters

Rear axle fluid cap

13.25 liters

Front axle fluid cap

12.11 liters

Transmission fluid cap

23.09 liters

Engine oil cap

8.71 liters

Backhoe dig depth

4.45 m

Extended dump height

4.57 m

Extended dump reach

2.93 m

Extended dig depth

5.79 m

Extended reach from swivel

7.04 m

Backhoe reach from swivel

5.73 m

Rear tires size

16.9x24

Max speed reverse

13.04 kph

Number of reverse gears

2

Number of forward gears

4
