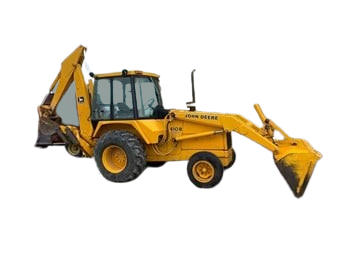

John deere 410B Backhoe loaders research

Engine model

4-219D

Operating weight

6,531 kg

Bucket width

233 cm

Bucket capacity

0.99 cu m

Max speed forward

35.89 kph

Transmission type

Manual shift with first and second speeds having sliding collar engagement and third and fourth speeds engaged in cone-type synchronizers.

Displacement

3588 cu cm

Aspiration

Naturally aspirated

Gross power

49.22 kw

Max torque

211.5 Nm

Alternator supplied amperage

35 Amh

Operating voltage

12 V

Number of cylinders

4

Net power

46.23 kw

Torque rise

0.2 %

Bucket digging force

4626.65 kg

Transport length

7 m

Ground clearance

0.34 m

Turning radius

3.14 m

Wheelbase

2.1 m

Transport width

2 m

Pump flow cap

113.55 lpm

Relief valve pressure

172.37 bar

Pump type

8 radial piston, closed center, variable flow, constant pressure

Breakout force

3538.02 kg

Loader dump height

2.74 m

Loader dump reach

0.73 m

Loader dig depth

10.16 cm

Cooling fluid cap

16.28 liters

Fuel cap

87.06 liters

Hydraulic fluid cap

71.92 liters

Transmission fluid cap

13.25 liters

Engine oil cap

8.71 liters

Backhoe dig depth

4.42 m

Extended dump height

3.93 m

Extended dump reach

7.77 m

Extended dig depth

5.64 m

Extended reach from swivel

6.58 m

Backhoe reach from swivel

5.36 m

Rear tires size

19.5L-24,10PR,R4

Max speed reverse

41.68 kph

Number of reverse gears

4

Number of forward gears

4
