John deere 333D Compact track loaders research
2025
John deere 333D Compact track loaders Technical specifications
General
Engine model
E 5030HT
Operating weight
5,039 kg
Max speed forward
12.71 kph
Engine
Displacement
3000 cu cm
Gross power
71.14 kw
Max torque
341.12 Nm
Alternator supplied amperage
70 Amh
Operating voltage
12 V
Number of cylinders
5
Net power
66.74 kw
Engine make
John Deere
Operational specifications
Tipping angle
50 degrees
Dimensions
Length without Bucket
3.02 m
Ground clearance
0.27 m
Width over tracks
2.07 m
Length with bucket
3.63 m
Turning radius
2.19 m
Hydraulic system
Pump flow cap
95 lpm
Loader
Breakout force
6293.6 kg
Loader lift cap
2145.04 kg
Loader dump reach
0.82 m
Tipping load
4275.11 kg
Service refill capacities
Fuel cap
111.28 liters
Undercarriage
Ground pressure
0.32 bar
Number of track rollers per side
5
Track width
45.21 cm
Operating specifications
Dump angle
45 degrees
Download datasheets
John deere 333D vs John deere 333E
John deere 333D Compact track loaders

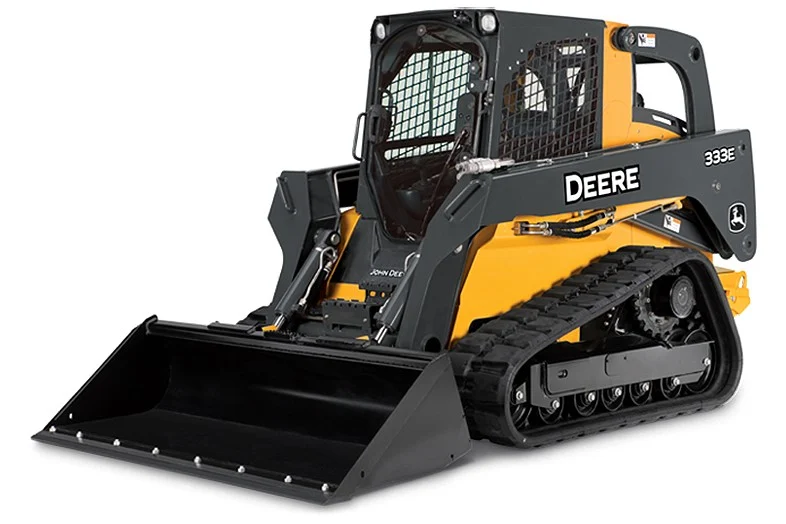

John deere 333E Compact track loaders
Engine model
E 5030HT
4TNV94CHT
Operating weight
5,039 kg
5,357 kg
Max speed forward
12.71 kph
12.71 kph
Market Average
AED 125,000
AED 125,000
price
-
-
Years
2025
2025
Displacement
3,000 cu cm
3,100 cu cm
Gross power
71.14 kw
74.65 kw
Max torque
341.12 Nm
395.08 Nm
Alternator supplied amperage
70 Amh
70 Amh
Operating voltage
12 V
12 V
Number of cylinders
5
4
Net power
66.74 kw
72.04 kw
Engine make
John Deere
Yanmar
Aspiration
-
Turbocharged
Tipping angle
50 degrees
-
Length without Bucket
3.02 m
3.08 m
Ground clearance
0.27 m
0.26 m
Width over tracks
2.07 m
0.46 m
Length with bucket
3.63 m
3.69 m
Turning radius
2.19 m
2.19 m
Max height to hinge pin
-
320.04 cm
Pump flow cap
95 lpm
95 lpm
Relief valve pressure
-
237.87 bar
Breakout force
6,293.6 kg
6,299.05 kg
Loader lift cap
2,145.04 kg
1,498.04 kg
Loader dump reach
0.82 m
1 m
Tipping load
4,275.11 kg
4,279.01 kg
Loader dump height
-
2.59 m
Fuel cap
111.28 liters
96.52 liters
Ground pressure
0.32 bar
0.32 bar
Number of track rollers per side
5
5
Track width
45.21 cm
-
Dump angle
45 degrees
45 degrees
