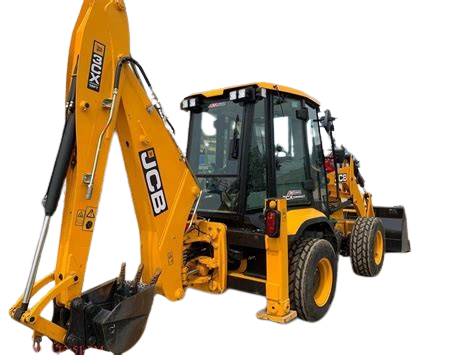

JCB 3CX-17 Backhoe loaders research

Engine model

444

Operating weight

8,482 kg

Bucket width

243 cm

Bucket capacity

1.22 cu m

Max speed forward

36.21 kph

Transmission type

JCB Autoshift

Displacement

4401 cu cm

Aspiration

Turbocharged

Gross power

74.57 kw

Alternator supplied amperage

95 Amh

Operating voltage

12 V

Number of cylinders

4

Net power

81.28 kw

Bucket digging force

5535.01 kg

Transport length

7 m

Ground clearance

0.34 m

Turning radius

4.21 m

Wheelbase

2.29 m

Transport width

2 m

Pump flow cap

155.19 lpm

Relief valve pressure

227.52 bar

Pump type

Tandem gear

Loader lift cap

4637.99 kg

Loader dump height

2.71 m

Loader dump reach

0.82 m

Loader dig depth

5.08 cm

Cooling fluid cap

23.09 liters

Fuel cap

160.11 liters

Hydraulic fluid cap

127.18 liters

Rear axle fluid cap

16.28 liters

Front axle fluid cap

16.28 liters

Transmission fluid cap

16.28 liters

Engine oil cap

15.14 liters

Rear tires size

19.5L-24 R4 10 ply

Extended dump height

4.48 m

Extended dump reach

3.32 m

Extended dig depth

6.55 m

Extended reach from swivel

7.53 m

Backhoe reach from swivel

6.4 m

Max speed reverse

36.21 kph

Number of reverse gears

4

Number of forward gears

4
