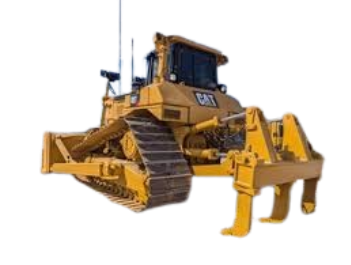

Cat D7R LGP Crawler dozers research

Engine model

3306T

Operating weight

27,079 kg

Blade capacity

5.96 m3

Max speed forward

10.94 kph

Drive type

Powershift

Blade width

4 mm

Displacement

10454 cu cm

Aspiration

Turbocharged

Gross power

191.65 kw

Alternator supplied amperage

70 Amh

Operating voltage

24 V

Number of cylinders

6

Net power

178.97 kw

Length with blade

5.82 m

Length without blade

4.75 m

Blade height

1.34 mm

Ground clearance

0.52 m

Width over tracks

3.38 m

Final drives fluid cap

13.25 liters

Engine oil cap

27.63 liters

Ground contact area

147041.45 cm3

Number of shoes per side

43

Tracks length

3 m

Ground pressure

0.46 bar

Number of track rollers per side

7

Track width

91.44 cm

Track gauge

2.23 m

Pump flow cap

177.14 lpm

Relief valve pressure

227.94 bar

Pump type

Piston

Cooling fluid cap

75.32 liters

Fuel cap

479.18 liters

Hydraulic fluid cap

54.13 liters

Max speed reverse

13.84 kph

Number of reverse gears

3

Number of forward gears

3
