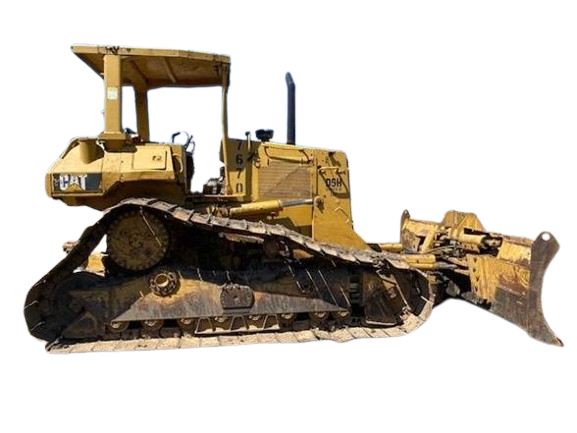

Cat D5H LGP II Crawler dozers research
2025
Cat D5H LGP II Crawler dozers Technical specifications
General
Engine model
3304
Operating weight
15,810 kg
Blade capacity
3.21 m3
Max speed forward
10.14 kph
Operational specifications
Drive type
Powershift
Blade width
3 mm
Engine
Displacement
7000 cu cm
Gross power
93.21 kw
Dimensions
Length with blade
5.3 m
Length without blade
4.15 m
Blade height
1.03 mm
Ground clearance
0.46 m
Width over tracks
3.05 m
Undercarriage
Ground contact area
136399.67 cm3
Tracks length
3 m
Ground pressure
0.3 bar
Number of track rollers per side
8
Track width
86.11 cm
Track gauge
2.16 m
Service refill capacities
Fuel cap
246.03 liters
Transmission
Max speed reverse
12.55 kph
Number of reverse gears
3
Number of forward gears
3
Blades
Blade angle
25 degrees
Download datasheets
Cat D5H LGP II vs Cat D5K LGP
Cat D5H LGP II Crawler dozers
Cat D5K LGP Crawler dozers
Engine model
3304
C4.4 ACERT
Operating weight
15,810 kg
9,682 kg
Blade capacity
3.21 m3
2.37 m3
Max speed forward
10.14 kph
9.01 kph
Market Average
AED 125,000
AED 125,000
price
-
-
Years
2025
2025
Drive type
Powershift
Hydrostatic
Blade width
3 mm
3 mm
Displacement
7,000 cu cm
4,408 cu cm
Gross power
93.21 kw
74.57 kw
Alternator supplied amperage
-
120 Amh
Operating voltage
-
12 V
Net power
-
71.59 kw
Length with blade
5.3 m
-
Length without blade
4.15 m
3.29 m
Blade height
1.03 mm
1.01 mm
Ground clearance
0.46 m
0.34 m
Width over tracks
3.05 m
2.44 m
Ground contact area
136,399.67 cm3
77,445.44 cm3
Tracks length
3 m
2 m
Ground pressure
0.3 bar
0.32 bar
Number of track rollers per side
8
7
Track width
86.11 cm
66.04 cm
Track gauge
2.16 m
1.77 m
Number of shoes per side
-
40
Fuel cap
246.03 liters
194.93 liters
Cooling fluid cap
-
22.71 liters
Hydraulic fluid cap
-
59.42 liters
Max speed reverse
12.55 kph
9.98 kph
Number of reverse gears
3
-
Number of forward gears
3
-
Blade angle
25 degrees
25 degrees
Final drives fluid cap
-
9.84 liters
Engine oil cap
-
11.36 liters
Pump flow cap
-
73.43 lpm
Relief valve pressure
-
206.01 bar
