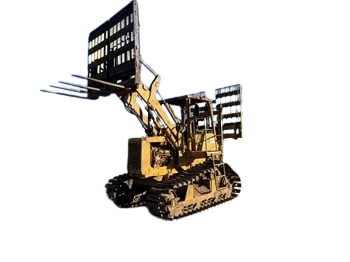

Cat 931B LGP Crawler loaders research

Engine model

3204

Operating weight

8,345 kg

Bucket capacity

0.84 cu m

Max speed forward

11.43 kph

Displacement

5201 cu cm

Alternator supplied amperage

40 Amh

Operating voltage

12 V

Number of cylinders

4

Net power

48.02 kw

Final drives fluid cap

12.11 liters

Engine oil cap

12.11 liters

Ground contact area

60961.65 cu cm

Tracks length

1 m

Ground pressure

0.32 bar

Number of track rollers per side

5

Track width

63.5 cm

Track gauge

1.65 m

Ground clearance

0.34 m

Width over tracks

2.32 m

Length with bucket

3.84 m

Pump flow cap

84.03 lpm

Relief valve pressure

172.37 bar

Pump type

Single-section gear pump

Breakout force

5747.02 kg

Loader dump height

2.53 m

Loader dump reach

0.76 m

Tipping load

5196.04 kg

Cooling fluid cap

20.06 liters

Fuel cap

116.2 liters

Hydraulic fluid cap

84.03 liters

Dump time

1 seconds

Lower time

4 seconds

Raise time

6 seconds
