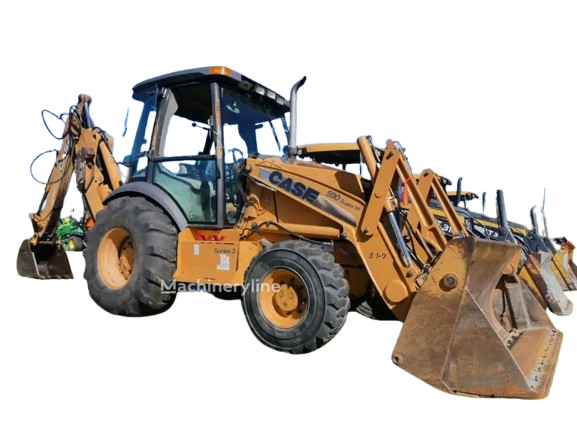

Case 590 SL Backhoe loaders research

Engine model

4T-390

Operating weight

6,991 kg

Bucket width

236 cm

Bucket capacity

0.99 cu m

Max speed forward

42.33 kph

Transmission type

Fully synchronized 4-speed forward reverse shuttle

Displacement

3921 cu cm

Aspiration

Turbocharged

Gross power

70.84 kw

Max torque

352.51 Nm

Alternator supplied amperage

65 Amh

Operating voltage

12 V

Number of cylinders

4

Net power

65.62 kw

Engine make

Case

Bore

10.41 cm

Stroke

12.19 cm

Bucket digging force

5953.86 kg

Transport length

7 m

Ground clearance

0.34 m

Wheelbase

2.13 m

Front tread range

173.99 cm

Rear tread range

162.05 cm

Transport width

2 m

Pump flow cap

113.55 lpm

Relief valve pressure

206.84 bar

Pump type

Front mounted positive displacement tandem gear type

Breakout force

4036.98 kg

Loader lift cap

1555.82 kg

Loader dump height

2.74 m

Loader dump reach

0.67 m

Loader dig depth

9.65 cm

Cooling fluid cap

16.65 liters

Fuel cap

118.85 liters

Hydraulic fluid cap

124.91 liters

Rear axle fluid cap

11.36 liters

Front axle fluid cap

6.81 liters

Transmission fluid cap

18.55 liters

Engine oil cap

10.98 liters

Backhoe dig depth

4.79 m

Backhoe dump height

3.51 m

Extended dump height

4.3 m

Extended dump reach

3.72 m

Extended dig depth

6 m

Extended reach from swivel

7.22 m

Backhoe reach from swivel

6.04 m

Rear tires size

21L x 24, 10PR

Max speed reverse

50.86 kph

Number of reverse gears

4

Number of forward gears

4
