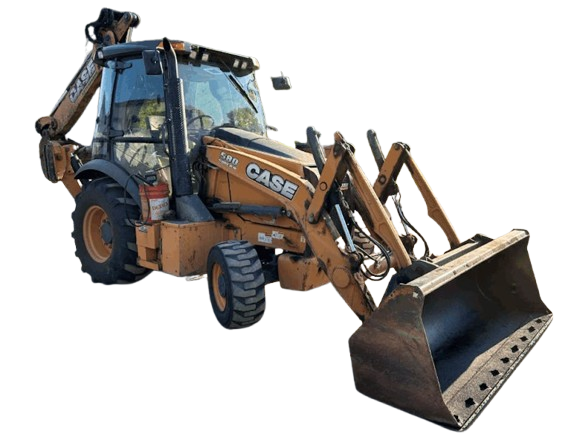

Case 580N Backhoe loaders research

Engine model

FPT F5BFL413C

Operating weight

7,917 kg

Bucket width

208 cm

Bucket capacity

0.69 cu m

Max speed forward

34.28 kph

Operating voltage

12 V

Transmission type

Power shuttle

Displacement

3400 cu cm

Aspiration

Turbocharged

Gross power

67.04 kw

Max torque

415.01 Nm

Alternator supplied amperage

120 Amh

Number of cylinders

4

Net power

62.04 kw

Emissions

Tier 4 Final

Bucket digging force

5125.6 kg

Transport length

7 m

Transport width

2 m

Ground clearance

0.4 m

Turning radius

3.47 m

Wheelbase

2.13 m

Pump flow cap

107.87 lpm

Relief valve pressure

230.97 bar

Pump type

Parker P330 Single Selection Gear

Breakout force

4818.06 kg

Loader lift cap

3085.79 kg

Loader dump height

2.71 m

Loader dump reach

0.82 m

Loader dig depth

44.6 cm

Cooling fluid cap

17.03 liters

Fuel cap

159.35 liters

Hydraulic fluid cap

106.36 liters

Rear axle fluid cap

13.63 liters

Front axle fluid cap

7.95 liters

Transmission fluid cap

19.3 liters

Engine oil cap

13.63 liters

Backhoe dig depth

4.51 m

Backhoe dump height

3.57 m

Extended dump height

4.33 m

Extended dump reach

2.87 m

Extended dig depth

5.58 m

Extended reach from swivel

6.61 m

Backhoe reach from swivel

5.58 m

Rear tires size

19.5L x 24

Max speed reverse

46.83 kph

Number of reverse gears

4

Number of forward gears

4

Brake system

Wet multidisc
