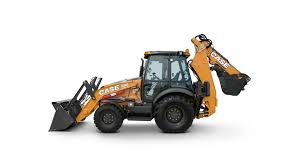

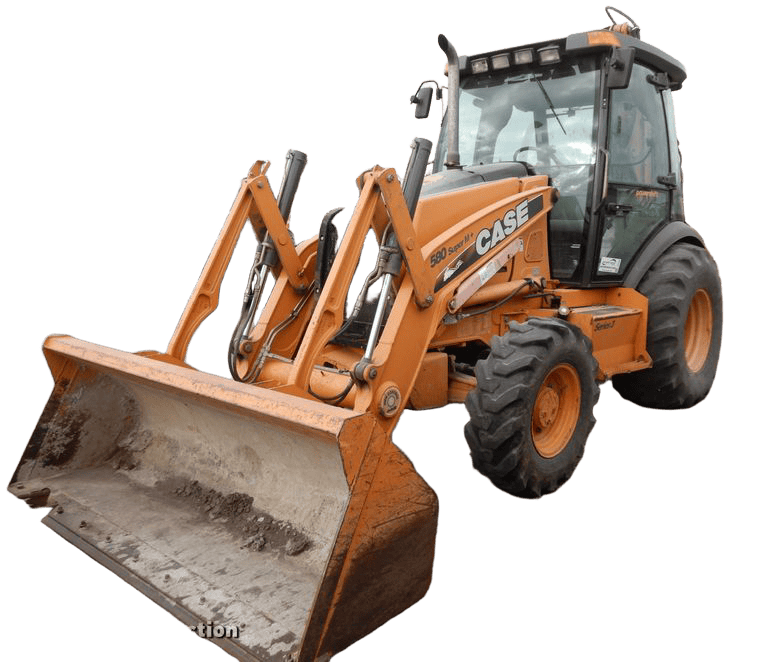

Case 580 Super M+ III Backhoe loaders research

Engine model

Family IV 445TA/E3, Tier III certified

Operating weight

8,222 kg

Bucket width

236 cm

Bucket capacity

0.99 cu m

Max speed forward

40.88 kph

Transmission type

4-speed synchromesh with hydraulically actual clutches

Displacement

4457 cu cm

Aspiration

Turbocharged

Gross power

72.04 kw

Max torque

441.99 Nm

Alternator supplied amperage

90 Amh

Operating voltage

12 V

Number of cylinders

4

Net power

70.84 kw

Torque rise

0.45 %

Bucket digging force

5815.51 kg

Transport length

6 m

Ground clearance

0.4 m

Turning radius

3.44 m

Wheelbase

2.16 m

Transport width

2 m

Pump flow cap

151.02 lpm

Relief valve pressure

206.84 bar

Pump type

Variable flow, axial piston

Breakout force

4300.06 kg

Loader lift cap

2804.11 kg

Loader dump height

2.8 m

Loader dump reach

0.76 m

Loader dig depth

3.3 cm

Cooling fluid cap

18.17 liters

Fuel cap

158.97 liters

Hydraulic fluid cap

117.34 liters

Rear axle fluid cap

18.93 liters

Front axle fluid cap

6.43 liters

Transmission fluid cap

19.68 liters

Engine oil cap

13.63 liters

Backhoe dig depth

4.3 m

Backhoe dump height

3.54 m

Extended dump height

4.05 m

Extended dump reach

3.51 m

Extended dig depth

5.58 m

Extended reach from swivel

6.68 m

Backhoe reach from swivel

5.64 m

Rear tires size

21Lx24 10PR

Max speed reverse

49.25 kph

Number of reverse gears

4

Number of forward gears

4
