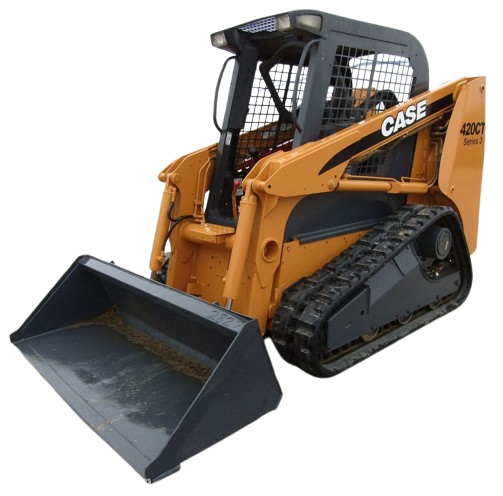

Case 420CT Series 3 Compact track loaders research

Engine model

432T/M3

Operating weight

3,782 kg

Bucket capacity

0.46 cu m

Max speed forward

13.52 kph

Reference bucket capacity

0.46 m3

Displacement

3195 cu cm

Aspiration

Turbocharged

Gross power

55.18 kw

Max torque

275.23 Nm

Alternator supplied amperage

95 Amh

Operating voltage

12 V

Number of cylinders

4

Net power

51.45 kw

Tipping angle

5,715 degrees

Ground contact area

23335.23 cu cm

Tracks length

1 m

Ground pressure

0.4 bar

Number of track rollers per side

3

Track width

32 cm

Length without Bucket

2.62 m

Ground clearance

0.21 m

Width over tracks

1.68 m

Length with bucket

3.29 m

Turning radius

2.05 m

Pump flow cap

90.08 lpm

Pump type

Gear pump

Loader lift cap

1297.28 kg

Loader dump height

2.44 m

Loader dump reach

0.64 m

Cooling fluid cap

11.73 liters

Fuel cap

83.27 liters

Hydraulic fluid cap

49.96 liters

Engine oil cap

8.71 liters
