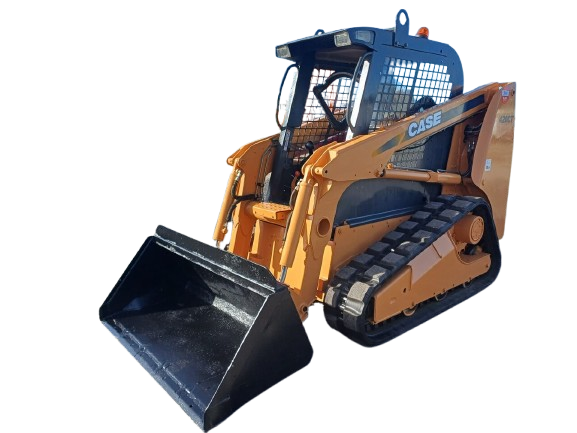

Case 420CT Compact track loaders research

Engine model

422T/M2

Operating weight

3,333 kg

Bucket capacity

0.46 cu m

Max speed forward

10.14 kph

Reference bucket capacity

0.46 m3

Displacement

2195 cu cm

Aspiration

Turbocharged

Gross power

44 kw

Max torque

178.97 Nm

Alternator supplied amperage

55 Amh

Number of cylinders

4

Net power

41.76 kw

Tipping angle

5,000 degrees

Ground contact area

23335.23 cu cm

Tracks length

1 m

Ground pressure

0.36 bar

Number of track rollers per side

3

Track width

32 cm

Track gauge

1.31 m

Length without Bucket

2.56 m

Ground clearance

0.2 m

Width over tracks

1.68 m

Length with bucket

3.14 m

Turning radius

1.97 m

Pump flow cap

73.81 lpm

Relief valve pressure

206.84 bar

Pump type

Gear pump

Breakout force

2070.2 kg

Loader lift cap

1133.98 kg

Loader dump height

2.29 m

Loader dump reach

0.64 m

Cooling fluid cap

17.03 liters

Fuel cap

83.27 liters

Hydraulic fluid cap

49.96 liters

Engine oil cap

10.6 liters
