Boxer 320 Compact track loaders research

Boxer 320 Compact track loaders Technical specifications
General
Engine model
V3300T
Operating weight
4,762 kg
Max speed forward
19.96 kph
Engine
Displacement
3326 cu cm
Gross power
65.18 kw
Max torque
277.94 Nm
Alternator supplied amperage
60 Amh
Net power
61.89 kw
Engine make
Kohler Command
Operational specifications
Tipping angle
6,400 degrees
Dimensions
Length without Bucket
2.99 m
Ground clearance
0.49 m
Width over tracks
2.01 m
Length with bucket
3.72 m
Max height to hinge pin
177.8 cm
Turning radius
0.89 m
Hydraulic system
Pump flow cap
79.49 lpm
Relief valve pressure
206.84 bar
Loader
Breakout force
3175.15 kg
Loader lift cap
1451.5 kg
Loader dump height
2.44 m
Loader dump reach
0.61 m
Tipping load
566.99 kg
Service refill capacities
Fuel cap
109.01 liters
Hydraulic fluid cap
90.84 liters
Undercarriage
Ground pressure
0.4 bar
Track width
45.72 cm
Operating specifications
Dump angle
34 degrees
Download datasheets
Boxer 320 vs Boxer 427

Boxer 320 Compact track loaders

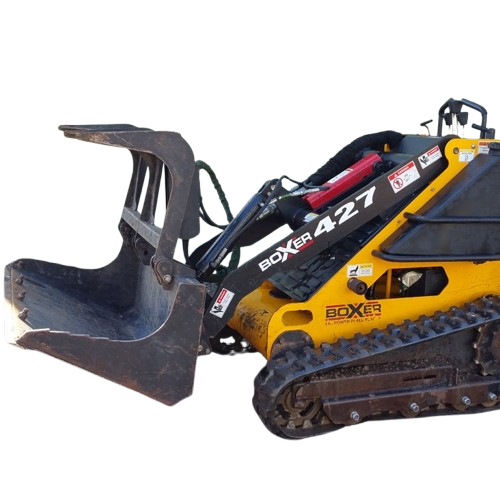

Boxer 427 Compact track loaders
