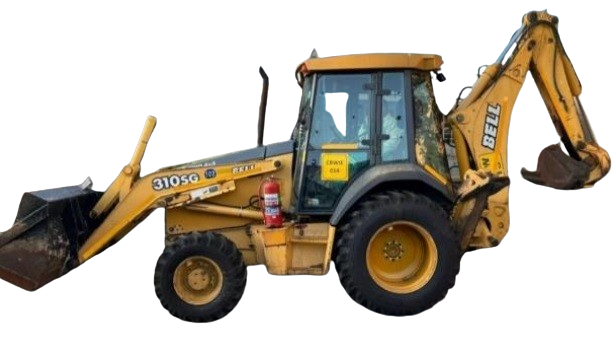

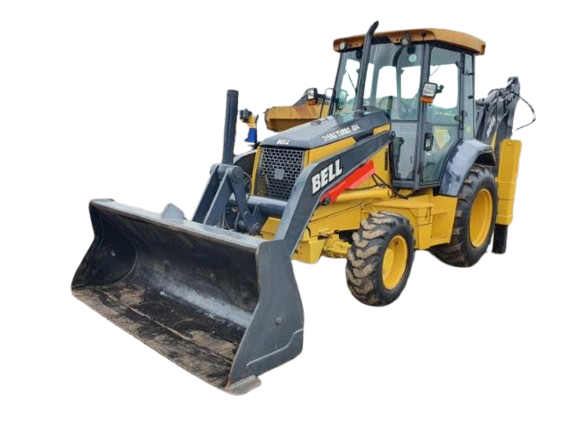

Bell 310SG Backhoe loaders research

Engine model

4045T

Operating weight

7,237 kg

Bucket width

233 cm

Bucket capacity

0.99 cu m

Max speed forward

32.99 kph

Transmission type

4-speed, helical cut gear, full-power-shifted

Bucket digging force

5514.78 kg

Transport length

7 m

Ground clearance

0.34 m

Turning radius

3.6 m

Wheelbase

2.1 m

Transport width

2 m

Aspiration

Turbocharged

Gross power

67.86 kw

Max torque

374.2 Nm

Alternator supplied amperage

65 Amh

Operating voltage

12 V

Torque rise

0.36 %

Pump flow cap

105.98 lpm

Relief valve pressure

249.93 bar

Pump type

Open center

Breakout force

4631.18 kg

Loader lift cap

5166.02 kg

Loader dump height

3.41 m

Loader dump reach

0.91 m

Loader dig depth

14.73 cm

Cooling fluid cap

16.28 liters

Fuel cap

136.26 liters

Hydraulic fluid cap

90.84 liters

Rear axle fluid cap

15.9 liters

Front axle fluid cap

7.57 liters

Transmission fluid cap

15.14 liters

Engine oil cap

13.25 liters

Backhoe dig depth

4.42 m

Backhoe dump height

3.44 m

Extended dump height

4.3 m

Extended dump reach

7.74 m

Extended dig depth

5.64 m

Extended reach from swivel

6.71 m

Backhoe reach from swivel

5.58 m

Rear tires size

16.9-24,8PRR4;19.5L-24,8PRR4

Max speed reverse

32.99 kph

Number of reverse gears

4

Number of forward gears

4
