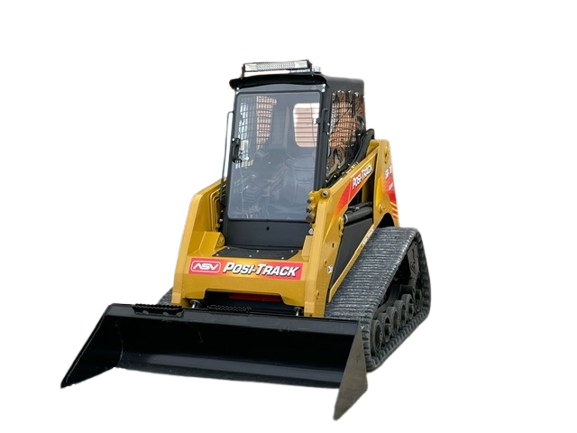

ASV SR-80 Compact track loaders research
2025
ASV SR-80 Compact track loaders Technical specifications
General
Engine model
804C-33T
Operating weight
4,069 kg
Max speed forward
20.12 kph
Engine
Displacement
3300 cu cm
Aspiration
Turbocharged
Gross power
60.03 kw
Max torque
252.18 Nm
Number of cylinders
4
Net power
58.17 kw
Operational specifications
Tipping angle
6,200 degrees
Undercarriage
Ground contact area
46539.36 cu cm
Tracks length
1 m
Ground pressure
0.22 bar
Track width
50.8 cm
Dimensions
Length without Bucket
2.87 m
Ground clearance
0.38 m
Width over tracks
1.86 m
Length with bucket
3.63 m
Hydraulic system
Pump flow cap
113.55 lpm
Relief valve pressure
206.84 bar
Loader
Loader lift cap
1406.14 kg
Loader dump height
2.5 m
Loader dump reach
0.52 m
Service refill capacities
Fuel cap
68.13 liters
Hydraulic fluid cap
79.49 liters
ASV SR-70 vs ASV SR-80
ASV SR-70 Compact track loaders
ASV SR-80 Compact track loaders
Engine model
804C-33T
804C-33T
Operating weight
3,578 kg
4,069 kg
Max speed forward
-
20.12 kph
Market Average
AED 125,000
AED 125,000
price
-
-
Years
2025
2025
Displacement
3,300 cu cm
3,300 cu cm
Aspiration
Turbocharged
Turbocharged
Gross power
52.95 kw
60.03 kw
Max torque
234.55 Nm
252.18 Nm
Number of cylinders
4
4
Net power
50.71 kw
58.17 kw
Tipping angle
5,500 degrees
6,200 degrees
Ground contact area
34,799.65 cu cm
46,539.36 cu cm
Tracks length
1 m
1 m
Ground pressure
0.26 bar
0.22 bar
Track width
38.1 cm
50.8 cm
Track gauge
1.31 m
-
Length without Bucket
2.87 m
2.87 m
Ground clearance
0.38 m
0.38 m
Width over tracks
1.68 m
1.86 m
Length with bucket
3.6 m
3.63 m
Pump flow cap
113.55 lpm
113.55 lpm
Relief valve pressure
206.84 bar
206.84 bar
Loader lift cap
1,247.38 kg
1,406.14 kg
Loader dump height
2.5 m
2.5 m
Loader dump reach
0.52 m
0.52 m
Fuel cap
68.13 liters
68.13 liters
Hydraulic fluid cap
79.49 liters
79.49 liters
