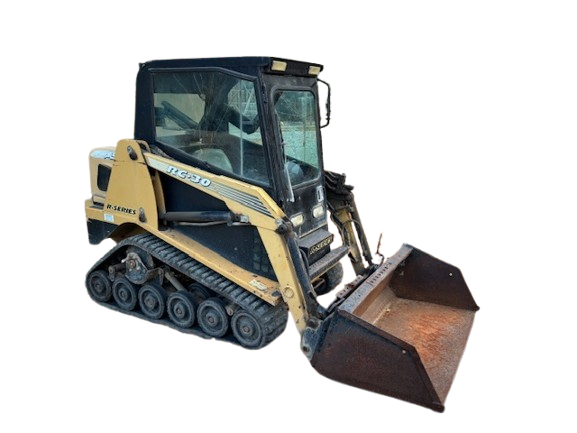

ASV RC-30 Compact track loaders research

Engine model

403C-15

Operating weight

1,499 kg

Max speed forward

9.5 kph

Displacement

1507 cu cm

Gross power

23.49 kw

Max torque

87.31 Nm

Alternator supplied amperage

55 Amh

Operating voltage

12 V

Number of cylinders

3

Tipping angle

1,600 degrees

Ground contact area

19305.64 cu cm

Tracks length

1 m

Ground pressure

0.18 bar

Number of track rollers per side

6

Track width

28.19 cm

Track gauge

0.91 m

Length without Bucket

2.32 m

Ground clearance

0.25 m

Width over tracks

1.19 m

Length with bucket

2.87 m

Pump flow cap

37.85 lpm

Relief valve pressure

206.84 bar

Loader lift cap

362.87 kg

Cooling fluid cap

5.68 liters

Fuel cap

38.23 liters

Hydraulic fluid cap

30.66 liters

Engine oil cap

4.16 liters
